v1.0 (1.0.1.0) (EN/F)
user manual
guide de l'utilisateur
RC130iBL
RC130iGR
RC130iPK
EN/F
It is important to read this user manual prior to using your new product for the fi rst time.
Nous vous recommandons de lire ce manuel avant d'utiliser votre nouveau produit
pour la première fois.
Before you begin
General controls
Plugging in for power
Top view
• Connect the supplied power
adapter to the unit's Power jack,
and connect the other end to a
convenient wall outlet.
• Once connected with power, the
clock fl ashes. Refer to the "Clock"
section and follow the instructions
to set the clock time.
• To turn on the unit, press and hold
SOURCE.
SOURCE – Press to select source; press
and hold to turn the unit on or to
standby mode.
STORE – In radio mode, store radio
stations as presets. In standby mode,
press and hold to set the clock time.
/
– Search radio frequencies;
skip or search music fi le in iPod/iPhone;
adjust clock time and wake time.
VOL+/
ON/OFF – In radio or iPod
mode, increase volume. In standby
mode, press to turn on/off alarm 1 or
press and hold to set alarm 1.
iPod/iPhone
Wake function
Incoming call alert
Set wake time
When there is an incoming call during
This unit allows 2 wake times to be set.
iPhone music playback, the music
1. In standby mode, press and hold
station will stop music playback and
VOL+/
ON/OFF or VOL-/
play the ringtone. Music playback
OFF until the hour fl ashes on the
would resume when the phone call is
display.
fi nished.
2. Press
/
to set the wake time.
The time decrements or increments
follow by a faster rate when you
Made for:
press and hold the button. Press
• iPhone 4 16GB, 32GB
• iPhone 3GS 16GB, 32GB
VOL+/
ON/OFF or VOL-/
• iPhone 3G 8GB, 16GB
OFF to adjust the minute when you
• iPod touch 3rd generation 32GB,
have fi nished setting the hour. Press
64GB
VOL+/
ON/OFF or VOL-/
• iPod touch 2nd generation 8GB,
OFF when you have fi nished setting
16GB, 32GB, 64GB
the minute.
• iPod touch 1st generation 8GB,
16GB, 32GB
3. Press
/
to select the alarm
• iPod nano 5th generation 8GB
source.
or 16GB
b – Buzzer
• iPod nano 4th generation
F – FM Radio
(video) 8GB, 16GB
I – iPod/iPhone
• iPod nano 3rd generation
Press VOL+/
ON/OFF or VOL-/
(video) 4GB, 8GB
ON/OFF to confi rm.
• iPod classic 80GB, 120GB, 160GB
• iPod nano 2nd generation
4. Press
/
to set the alarm
(aluminum) 2GB, 4GB, 8GB
volume level from level 10 to level
• iPod nano 1GB, 2GB or 4GB
30.
• iPod 5th generation (video)
30GB, 60GB, 80GB
5. To save and exit the wake setting,
• iPod mini 4GB, 6GB
press VOL+/
ON/OFF or VOL-/
• iPod 4th generation 20GB, 40GB
ON/OFF.
• iPod 4th generation (color
display) 20GB, 30GB, 40GB, 60GB

IMPORTANT SAFETY INSTRUCTIONS

specifi ed by the manufacturer.
• Use only with the
cart, stand, tripod,
bracket, or table
specifi ed by the
manufacturer,
or sold with the
RC130i
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
• Unplug this apparatus during
Some of the following information may
lightning storms or when unused
not apply to your particular product;
for long periods of time.
however, as with any electronic product,
• Refer all servicing to qualifi ed
precautions should be observed during
service personnel. Servicing is
handling and use.
required when the apparatus has
• Read these instructions.
been damaged in any way, such
• Keep these instructions.
as power-supply cord or plug is
• Heed all warnings.
damaged, liquid has been spilled
• Follow all instructions.
or objects have fallen into the
• Do not use this apparatus near
apparatus, the apparatus has been
water.
exposed to rain or moisture, does
• Clean only with dry cloth.
not operate normally, or has been
• Do not block any ventilation
dropped.
openings. Install in accordance with
the manufacturer's instructions.
ADDITIONAL SAFETY INFORMATION
• Do not install near any heat sources
• The AC adapter supplied with this
such as radiators, heat registers,
product is intended to be correctly
stoves, or other apparatus (including
oriented in a vertical or fl oor mount
amplifi ers) that produce heat.
position.
• Protect the power cord from being
• Do not use unauthorized chargers
walked on or pinched particularly at
or power adapters. Use only
plugs, convenience receptacles, and
chargers that came with your
the point where they exit from the
product or that is listed in the user's
apparatus.
guide.
• Only use attachments/accessories

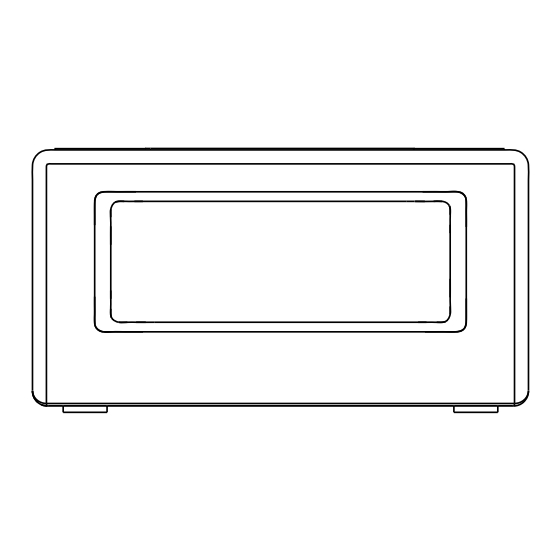

Front view
Clock
Setting clock
1. In standby mode, press and hold
– Play/pause when in iPod/iPhone
STORE until the clock fl ashes on the
mode. In radio mode, switch to iPod/
display.
iPhone mode.
2. Press
RECALL – Recall preset stations
time. Indicator besides PM lights
when the time is set to PM. Press
STORE to shift to minute time.
VOL-/
ON/OFF – In radio or iPod
mode, decrease volume. In standby
Press
time and then press STORE to save.
mode, press to turn on/off alarm 2 or
press and hold to set alarm 2.
The time decrements or increments
follow by a faster rate when you
SNOOZE/SLEEP – Turn off the wake
press and hold the
function momentarily; set sleep time.
Refer to "Sleep function".
Sleep function
In the sleep mode, the radio or iPod can
• To check the wake time after
be set to operate for a certain period of
setting, press VOL+/
ON/OFF or
time before turning off automatically.
VOL-/
ON/OFF and the respective
ON/
assigned wake time shows on the
To set the sleep time:
display.
1. Press SNOOZE/SLEEP repeatedly
to cycle among the sleep time
• The unit equips with GRAD-U-
available (90min, 80min, 70min,
WAKE feature, the alarm tone
60min, 50min, 40min, 30min, 20min,
volume will increase gradually to
10min or 00. The sleep time is
its maximum in 10-30 seconds. The
default to 0).
maximum volume level depends on
ON/
the alarm volume level set in step 4.
To change or check the remaining
time in sleep mode:
Turn off the wake
• Press SNOOZE/SLEEP once to check
ON/
the remaining sleep time. Press
function
SNOOZE/SLEEP repeatedly to select
To silence the wake function
another sleep time.
momentarily:
• Press SNOOZE/SLEEP. The alarm
To cancel the sleep mode:
will sound again when the snooze
• Press and hold SOURCE to cancel
period is over. The snooze period is
the sleep mode and turn off the
9 minutes.
unit.
To turn off the alarm
• Press any keys other than SNOOZE/
If you press SNOOZE/SLEEP
SLEEP.
repeatedly to select "00",
this will only turn off the
To stop the wake function or
sleep function. The unit will not be
to disable the wake function
turned off.
completely:
• Press VOL+/
ON/OFF or VOL-/
ON/OFF twice until the indicator
beside AL1 or AL2 does not show
on the display.
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
• Apparatus shall not be exposed to
dripping or splashing and no objects
]
fi lled with liquids, such as vases,
shall be placed on the apparatus.
• Always leave suffi cient space around
the product for ventilation. Do
Portable Cart Warning
not place product in or on a bed,
rug, in a bookcase or cabinet that
may prevent air fl ow through vent
openings.
• Do not place lighted candles,
cigarettes, cigars, etc. on the
product.
• Care should be taken so that objects
do not fall into the product.
• Do not attempt to disassemble
the cabinet. This product does
not contain customer serviceable
components.
• The marking information is located
at the bottom of apparatus.
• To be completely disconnect the
power input, the AC adaptor of
apparatus shall be disconnected
from the mains.
• AC adaptor is a disconnect device.
The AC adaptor should not be
obstructed OR should be easily
accessed during intended use.
• The ventilation should not be
impeded by covering the ventilation
openings with items such as
newspaper, table-cloths, curtains etc.
• No naked fl ame sources such as
lighted candled should be placed on
the apparatus.
Rear view
FM antenna
Power
Display
POWER – Connect to the power
adapter
3. To save and exit the clock setting,
wait for about 5 seconds or press
STORE until the hour and minute
stop fl ashing.
Auto time synchronization
/
to adjust the hour
Each time an iPhone/iPod is docked, the
clock would automatically synchronize
with the iPhone's or iPod's time.
/
to adjust the minute
/
.
Warranty information
12 Month Limited Warranty
Applies to RCA Clock Radios
AUDIOVOX ACCESSORIES CORP.
(the Company) warrants to the
original retail purchaser of this
product that should this product
or any part thereof, under normal
use and conditions, be proven
defective in material or workmanship
within 12 months from the date
of original purchase, such defect(s)
will be repaired or replaced with
reconditioned product (at the
Company's option) without charge for
parts and repair labor.
To obtain repair or replacement
within the terms of this Warranty, the
product is to be delivered with proof
of warranty coverage (e.g. dated bill
of sale), specifi cation of defect(s),
transportation prepaid, to the
Company at the address shown below.
This Warranty does not extend to the
elimination of externally generated
static or noise, to correction of
antenna problems, loss/interruptions of
broadcast or internet service, to costs
incurred for installation, removal or
reinstallation of product, to corruptions
caused by computer viruses, spyware
or other malware, to loss of media,
fi les, data or content, or to damage
to tapes, discs, removable memory
devices or cards, speakers, accessories,
computers, computer peripherals, other
FCC Information
• Attention should be drawn to the
FCC Information
environmental aspects of battery
Note: This equipment has been tested
disposal.
and found to comply with the limits
• The use of apparatus in moderate
for a Class B digital device, pursuant
climates.
to Part 15 of FCC Rules. These limits
are designed to provide reasonable
Electrical power
protection against harmful interference
in a residential installation. This
information
equipment generates, uses, and can
AC Adaptor:
radiate radio frequency energy and, if
Input: 100 – 240 V AC, 50/60 Hz
not installed and used in accordance
Output: 5V DC, 1.2 A
with the instructions, may cause harmful
interference to radio communications.
"Made for iPod" and "Made for
iPhone" mean that an electronic
However, there is no guarantee
accessory has been designed to
that interference will not occur in a
connect specifi cally to iPod or iPhone,
particular installation. If this equipment
respectively, and has been certifi ed
does cause harmful interference to
by the developer to meet Apple
radio or television reception, which
performance standards. Apple is not
can be determined by turning the
responsible for the operation of this
equipment off and on, the user is
device or its compliance with safety and
encouraged to try to correct the
regulatory standards.
interference by one or more of the
following measures:
iPhone, iPod, iPod classic, iPod nano
• Reorient or relocate the receiving
and iPod touch are trademarks of Apple
antenna.
Inc., registered in the U.S. and other
• Increase the separation between the
countries.
equipment and receiver.
Radio
Listening to the radio
To recall a preset station:
To turn on or off radio:
1. In radio mode, press RECALL.
• In standby mode, press and hold
• The existing preset station number
SOURCE to switch to radio mode.
shows on the display.
• Press and hold SOURCE to return to
standby mode.
2. Press RECALL repeatedly to select
a desired preset station. The station
To tune frequency:
number changes by a faster rate
• In radio mode, press
/
. The
when you press and hold the
selected frequency shows on the
button.
display.
• Press and hold
/
to
automatically search for the
previous/next available station.
Antenna
Built-in AFC
The Built-in Automatic Frequency
Control (AFC) helps reducing drift on
FM reception and keeping the radio
locked in on the FM station to which it
is tuned.
Station presets
To store a station as preset:
1. Tune to a radio station.
2. Press STORE, an available preset
location (e.g.
) shows on the
display.
3. Press
/
to select a desired
preset location (01 - 20).
4. Press STORE. You can save up to 20
preset stations.
media players, home networks or
than expressed herein in connection
vehicle electrical systems.
with the sale of this product.
Some states do not allow limitations
This Warranty does not apply to any
product or part thereof which, in the
on how long an implied warranty
opinion of the Company, has suffered
lasts or the exclusion or limitation of
incidental or consequential damage so
or been damaged through alteration,
improper installation, mishandling,
the above limitations or exclusions may
misuse, neglect, accident, or by
not apply to you. This Warranty gives
removal or defacement of the factory
you specifi c legal rights and you may
also have other rights which vary from
serial number/bar code label(s). THE
EXTENT OF THE COMPANY'S LIABILITY
state to state.
UNDER THIS WARRANTY IS LIMITED
TO THE REPAIR OR REPLACEMENT
Recommendations before returning
your product for a warranty claim:
PROVIDED ABOVE AND, IN NO EVENT,
SHALL THE COMPANY'S LIABILITY
• Properly pack your unit. Include
EXCEED THE PURCHASE PRICE PAID BY
any remotes, memory cards, cables,
PURCHASER FOR THE PRODUCT.
etc. which were originally provided
with the product. However DO NOT
This Warranty is in lieu of all other
return any removable batteries,
express warranties or liabilities. ANY
even if batteries were included
IMPLIED WARRANTIES, INCLUDING
with the original purchase. We
recommend using the original
ANY IMPLIED WARRANTY OF
MERCHANTABILITY, SHALL BE LIMITED
carton and packing materials. Ship
TO THE DURATION OF THIS WRITTEN
to the address shown below.
WARRANTY. ANY ACTION FOR BREACH
• Note that product will be returned
with factory default settings.
OF ANY WARRANTY HEREUNDER
INCLUDING ANY IMPLIED WARRANTY
Consumer will be responsible to
OF MERCHANTABILITY MUST BE
restore any personal preference
BROUGHT WITHIN A PERIOD OF 24
settings.
MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE
Audiovox Electronics Corp.
COMPANY BE LIABLE FOR ANY
Attn: Service Department.
150 Marcus Blvd.
CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR
Hauppauge N.Y. 11788
ANY OTHER WARRANTY. No person or
representative is authorized to assume
1-800-645-4994
for the Company any liability other
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician for
help.
Changes or modifi cations not expressly
approved by Audiovox could void
the user's authority to operate the
equipment.
iPod/iPhone
Listening to iPod/iPhone
To connect iPod/iPhone:
Place your iPod/iPhone on the universal
dock for iPod/iPhone.
To select iPod mode:
• In standby mode, press and hold
SOURCE to turn on the unit. Press
SOURCE until iPod is displayed.
• Playback from the iPod/iPhone starts
automatically.
• If no iPod/iPhone is connected in
the iPod mode, the unit will exit the
iPod mode and return to standby
mode.
To control the playback:
1. During playback, press
to pause
the playback and press again to
resume.
2. Press
/
to skip to the
previous or next fi le.
• Press and hold
/
to search
backward or forward on the current
playback content.
To charge the iPod/iPhone:
• You may charge the battery of your
iPod/iPhone through the universal
dock for iPod while the unit is in
standby mode, radio mode or iPod
mode. Charging control should be
operated on the iPod/iPhone. It
is not necessary to charge in iPod
mode, unless you are listening to
the iPod.
For Canada Customers, please ship to:
Audiovox Return Centre
c/o Genco
6685 Kennedy Road,
Unit#3, Door 16,
Mississuaga, Ontario
L5T 3A5
Illustrations contained within this publication
are for representation only and subject to
change.
The descriptions and characteristics given
in this document are given as a general
indication and not as a guarantee. In order
to provide the highest quality product
possible, we reserve the right to make any
improvement or modifi cation without prior
notice.
Visit http://store.audiovox.com to find the
best accessories for your products.
© 2010 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032
Trademark(s) ® Registered
Printed in China

Advertisement

   Also See for RCA RC130i

   Related Manuals for RCA RC130i

This manual also for:

Rc130ibl, Rc130igr, Rc130ipk

Comments to this Manuals

Symbols: 0
Latest comments:
