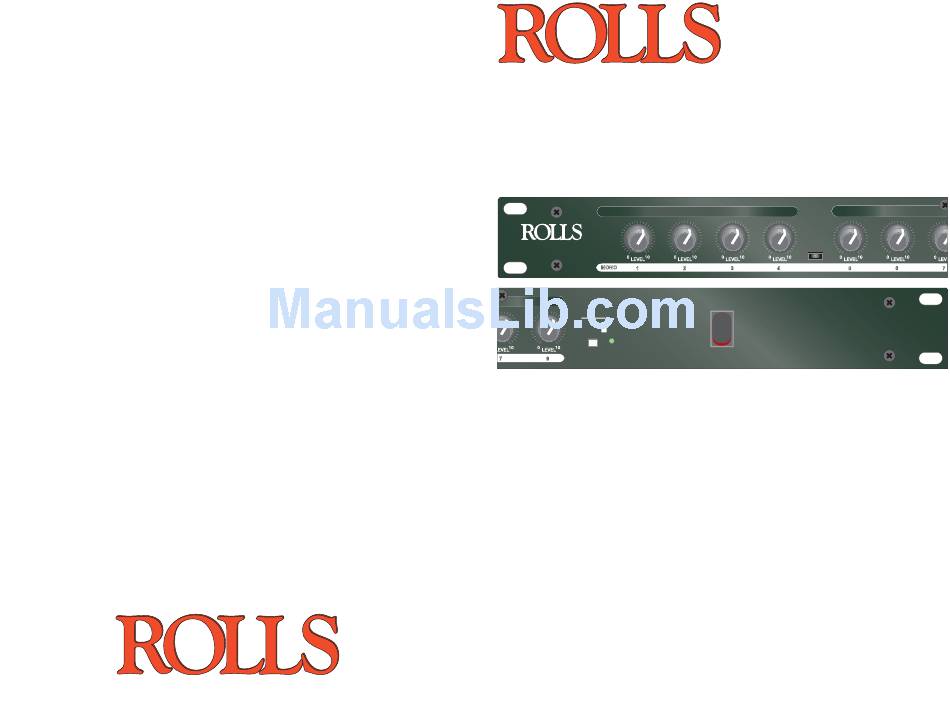

ROLLS CORPORATION
SALT LAKE CITY, UTAH
08/09
RA163
DISTRIBUTION AMPLIFIER
1
STEREO
MADE IN USA
www.rolls.com
MONO
1
3
4
GAIN
0 dB
+20 dB
pwr
7
8
FEATURES
• Stereo 4 channel or Mono 8 channel audio distribution
• Front panel volume controls
• Balanced inputs and outputs
SPECIFICATIONS
Input Impedance:
Max Input Level:
Output Impedance:
Max Output Level:
Max Gain:
S/N Ratio:
Frequency Response:
THD:
Power:
Size:
Weight:
2
3
4
1
LEFT
CONFIGURATION
SWITCH
STEREO
MONO
2X4
1X8
2
3
4
5
DISTRIBUTION
AMPLIFIER PRO PLUS
8 Channel Mono
RA163
4 Channel Stereo
20 KΩ Balanced
+22 dBV
100 Ω Balanced
+24 dB
20 dB
>90 dB
10 Hz - 40 kHz, +/- 1 dB
<.008%
120 VAC 50-60 Hz, 15VA
19" x 1.75" x 6.5"
(48 x 4.5 x 17 cm)
7 lbs. (3 kg)
Quick Start Operation Guide
2
RIGHT
6
7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rolls RA163
Summary of Contents for Rolls RA163
- Page 1 RA163 DISTRIBUTION AMPLIFIER STEREO LEFT RIGHT CONFIGURATION SWITCH MADE IN USA STEREO MONO www.rolls.com MONO DISTRIBUTION GAIN AMPLIFIER PRO PLUS 0 dB +20 dB 8 Channel Mono RA163 4 Channel Stereo FEATURES • Stereo 4 channel or Mono 8 channel audio distribution •...
- Page 2 LED indicating the unit’s power status. STEREO/MONO CONFIGURATION Use the 2X4 - 1X8 switch to change the stereo/mono confi guration of the RA163. Follow the silk screening on the unit for proper connection. REAR PANEL SERIAL NUMBER...
