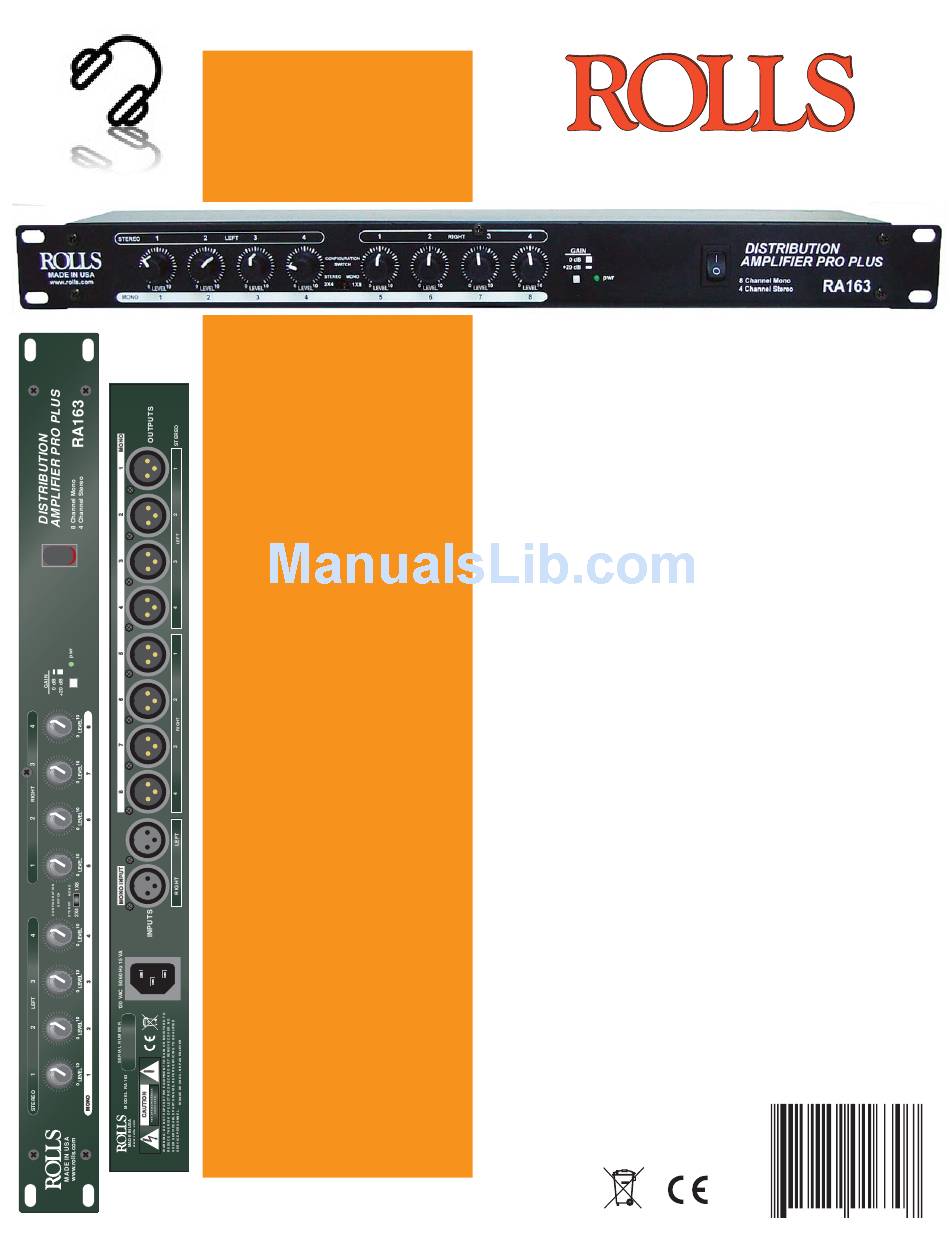

Rolls RA163 Specifications

RA163
ROLLS ROLLS
8 CHANNEL 8 CHANNEL
DISTRIBUTION DISTRIBUTION
AMPLIFIER AMPLIFIER
1X8 MONO OR 2X4 STEREO
BALANCED XLR INPUTS
AND OUTPUTS
ROLLS
5968 SOUTH 350 WEST S.L.C.,UT 84107
PHONE: 801-263-9053
FAX: 801-236-9068
DATA SHEET FOR RA163
8 CHANNEL XLR DISTRIBUTION AMP
The RA163 is an eight channel distribution amp. It
has independent volume attenuation for each
channel, and 1X8(mono) or 2X4(stereo) compat-
ibility. Balanced XLR jacks for all inputs and
outputs. The RA163 also has volume knobs on the
front panel and access to the stereo/mono switch.
The chassis is made of powder coated steel and
uses an IEC 120V power cord, no wall wort
adapter with this professional grade distribution
amp. Designed for installations where you need to
send a line level signal to more than one amplifier
with NO SIGNAL LOSS or impedance issues.
SPECIFICATIONS
Input Impedance:
Max Input Level:
Output Impedance:
Max Output Level:
Max Gain:
S/N Ratio:
Frequency Response:
THD:
Power:
Size:
Weight:
MADE IN USA
www.rolls.com
20 KΩ Balanced
+22 dBV
100 Ω Balanced
+24 dB
20 dB
>90 dB
10 Hz - 40 kHz, +/- 1 dB
<.008%
120 VAC 50-60 Hz, 15VA
19" x 1.75" x 3.5"
(48 x 4.5 x 17 cm)
7 lbs. (3 kg)
75889 01630
