Rolls DA134 Quick Start Operation Manual

ROLLS CORPORATION
SALT LAKE CITY, UTAH
04/12

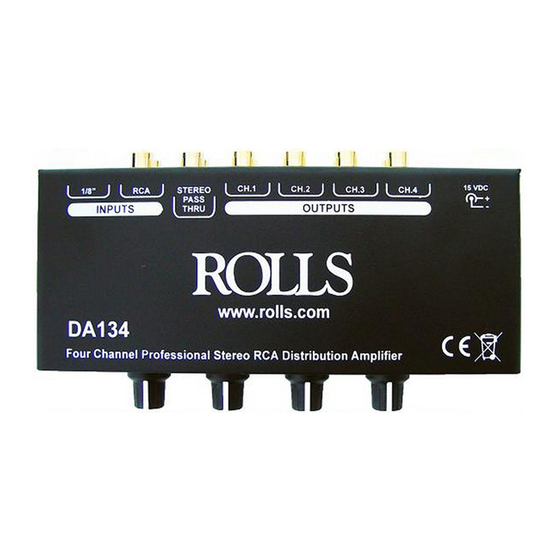

DA134
DISTRIBUTION AMPLIFIER
STEREO-MONO
0 10 0
LEVEL
LEVEL
CH 1 CH 2

FEATURES

- Expands the output of a stereo device to multiple outputs
- Can raise the output level to true line level for any output
- Stereo 4 channel distribution amplifi er
- Front panel volume controls
- Mono or Stereo operation
- DC low end frequency for audiophile frequency responce
- Small compact design
- Accepts inputs directly from I-pad / I- pod or laptop / notebook

SPECIFICATIONS

Input Impedance:
Max Input Level:
Output Impedance:
Max Output Level:
Max Gain:
S/N Ratio:
Cross Talk:
Frequency Response:
THD:
Power:
Size:
Weight:
10
0 10 0 10
LEVEL LEVEL
4 Ch. Distribution
CH 3 CH 4 Amplifier
10 KΩ
+12 dBV
470 Ω
+12 dB
20 dB
>90 dB
-70 dB (stereo)
DC - 60 kHz, +/- 1 dB
<.008%
15 VDC
6.5" x 3.5" x 1.5"
1 lbs. 3 oz.
Quick Start Operation Guide
DA134
pwr
