Wall / ceiling / stand /
bracket sold
separately
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Sample Installations...............................................................................................................................10
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
B-TECH AUDIO VIDEO MOUNTS
BT7505

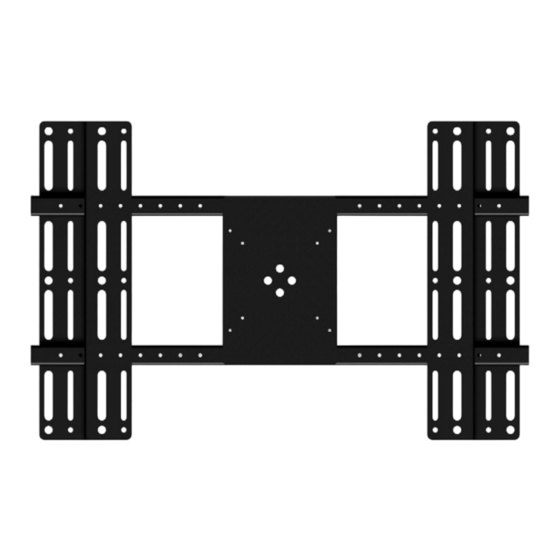

UNIVERSAL FLAT SCREEN ADAPTOR PLATE
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Adaptor Pate
PLEASE KEEP THIS FOR FUTURE REFERENCE
Actual screen size & weight limit
dependant on mount to which
BT7505 is attached
CONTENTS
www.btechavmounts.com
FEATURES
●
Designed for flat screens up to 40" (101cm) / 40kg (88lbs)
●
Universal adaptor kit to allow fitting of Non-VESA screens to
75 x 75mm and 100 x 100mm VESA mounts
●
Simple installation with all mounting hardware included
●
Must be used with a 75 x 75mm or 100 x 100mm
VESA flat screen mount (BT7510 / BT7511 / BT7512 / BT7513
/ BT7514 / BT7515 / BT7518 / BT7519 / BT7521 / BT7522)
Crosshead
screwdriver
Advertisement
Related Manuals for B-Tech mountlogic range BT7511
Summarization of Contents
Installation Safety Instructions
General Safety Advice
General advice and recommendations for safe installation.
Product Location Safety
Guidance on selecting a safe and suitable installation location.
Fixing Hardware Guidance
Recommendations for using supplied and external fixing hardware.
Hazard Limitation Precautions
Precautions regarding cable management and moving parts.
Installation Instructions
Attach adaptor plate to VESA interface
Attaching the adaptor plate to a 75x75mm or 100x100mm VESA interface plate.
Slide interface arms onto adaptor plate
Sliding the interface arms onto the main adaptor plate for assembly.
Fix interface arms to flat screen
Securing the interface arms to the flat screen using screws and spacers.
Fix interface arms to adaptor plate
Securing the interface arms to the main adaptor plate using washers and screws.
