Globe RM510 Manual

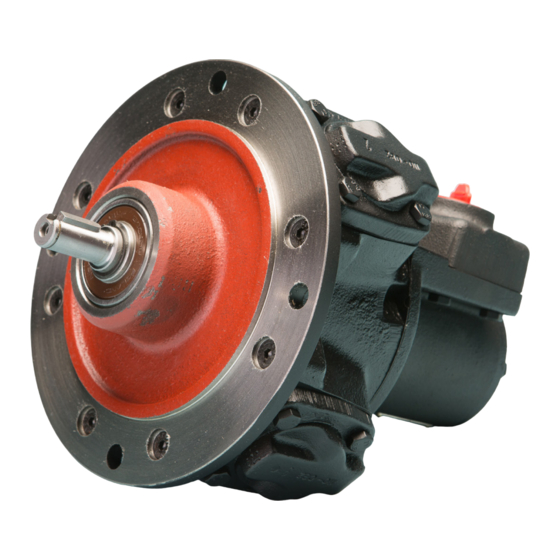

Piston air motor with optinal auxiliaries
Hide thumbs Also See for RM510:
Table of Contents

Advertisement

Quick Links

®
AIRMOTORS B.V.
GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl
Manual
GLOBE RM410 Piston Air Motor
With optional auxiliaries
ATEX certified
II 2G Ex h IIC T5 Gb
II 2D Ex h IIIC T100°C Db
II 2G Ex h IIC T4 Gb X
II 2D Ex h IIIC T135°C Db X
globeairmotors.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM510 and is the answer not in the manual?

Questions and answers

Related Manuals for Globe RM510

Summary of Contents for Globe RM510

  • Page 1 ® AIRMOTORS B.V. GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Manual GLOBE RM410 Piston Air Motor With optional auxiliaries ATEX certified II 2G Ex h IIC T5 Gb II 2D Ex h IIIC T100°C Db...

  • Page 2: Table Of Contents

    Maximum surface temperature 135°C Spare Parts List RCV Ordering code Equipment protection level Gb ATEX Certification Equipment protection level Db Ambient temperature range CE Certification Options & Accessories 2 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 3: Warranty

    Warranty The GLOBE Piston Air Motor and the GLOBE Pneumatic Brakes are designed to operate without any problems. This is only guaranteed if the regulations with regards to installation, operation, maintenance and repair are observed. Problems occurring during the guarantee period are corrected in accordance to GLOBE Airmotors BV guarantee conditions.

  • Page 4: Checklist To Comply To Atex

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. 4 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 5 Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 5...

  • Page 6: Installation Motor & Valve

    Note! When first running the motor some light oil should be injected into the inlet connection to ensure adequate lubrication until the airline lubrication is established. Do not use a hammer on the shaft or body of the motor. 6 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 7 It’s important that no dust or debris can accumulate at the output shaft. This may damage the shaft seal. The GLOBE Piston Motor is only allowed in horizontal position or shaft pointing vertical downwards. It is not allowed for the shaft to point in any angle upwards.

  • Page 8: Mounting To Construction

    Use only belts with <100 electrical leakage resistance to prevent static electrical problems. 8 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 9: Air Supply

    » Air quality should meet ISO 8573-1:2010 appropriate to the situation. class 4 for solid particles and ISO 8473- 1:2010 class 3 for water. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 9...
  • Page 10 ENERGOL HLP-HM32 Esso NUTO H.100 Regent REGAL PE.RO Castrol HYSPIN AWH-M100 HYSPIN AWS 32 Mobil ALMO 524 Texaco RANDO 32 For extremes of ambient temperatures consult the manufactures 10 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 11: Installation Brake 1

    It’s important that no dust or debris can accumulate at the output shaft. This may damage the shaft seal. The GLOBE Piston Motor is only allowed in horizontal position or shaft pointing vertical downwards. It is not allowed for the shaft to point in any angle upwards.

  • Page 12: Mounting To Construction

    Make sure that the air is dry and filtered with an air filter of 64 micron or better. » The brake must be mounted to a GLOBE Piston Airmotor of equivalent size (for instance: RM1 10 Brake on RM1 10 Motor) including the correct piping and control valves supplied by GLOBE.

  • Page 13: Operation Motor & Valve

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 13...
  • Page 14 0-2000 0-2000 Do not run the air motor at high speeds with no load. STOP This will result in excessive internal heat that may cause motor damage. 14 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 15 25 hours of initial running and every 200 hours thereafter or sooner if found necessary e.g. (contamination of oil by water from the air line.) GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 15...

  • Page 16: Performance Regulation

    Rotation speed For optimal power and speed control, we advise to use the com- bination of pressure and air flow regulation. 16 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 17: Operational Principle Hcv

    10-15% at 6 bar (90 psi) at maximum power. The starting torque remains unaffected. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 17...

  • Page 18: Operational Priciple Rcv

    10-15% at 6 bar (90 psi) at maximum power. The starting torque remains unaffected. 18 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 19: Operation Brake

    Specific Condition of Use: When the motor is used with brake assembly, it is man- datory to use valve tye GLOBE APPV3214 to control the brake. The pressure setting of the valve is preset, marked on the valve and shall not be changed. The customer/...
  • Page 20 The two control valves work in such way that the brake will always have the highest release pressure after the motor is under pressure. 20 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 21: Operation Principle Brake

    The brake torque can be varied by means of two spring adjusters but it for ATEX application set by GLOBE to maximum torque which belongs with the operating pressure of the motor. At this pressure the brake will be fully released. Any unauthorized adjustment will make ATEX invalid.
  • Page 22 To comply to ATEX the holding torque is set by GLOBE and the brake is controlled with piping and special valves to be supplied by GLOBE. The brake must be mounted to a GLOBE Piston Airmotors of equivalent size ( Gor instance: RM1 10 BRAKE on RM1 10 Motor) including the correct piping and control valves supplied by GLOBE.
  • Page 23 The temperature raise of the brakes are tested on frequent start-stop. The next start-stop frequencies are allowed: Maximum start stop frequency brakes RM110 RM210 RM310 RM410 RM510 RM610 Times per minute GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 23...

  • Page 24: Load Adjustment

    After setting the brake lock the Adjusters with locknut item 14. Remember each Adjuster must be altered the same amount to give equal operation to the brake shoes. 24 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 25: Maintenance Motor & Valve

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 25...

  • Page 26: Shutdown And Long Storage

    » Cap or plug each port of the air motor. » Coat output shaft with oil or grease. » Store the air motor in a dry environment. 26 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 27 25 hours of initial running and every 200 hours thereafter or sooner if found necessary e.g. (contamination of oil by water from the air line.) GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 27...

  • Page 28: Servicing

    This is always stamped on the main flange plate (24) located near the breather plug hole 46, i.e. 230 Hx. GLOBE provide a seal kit for each motor and it is strongly recommended that new oil seals, seals and gaskets are used throughout.
  • Page 29 (22) and the tapered pin (21). Both balance weights (part no. 20A and 20B) can now be disengaged. This will expose the king rod and queen rod assembly. To remove the queen rod remove the pivot pin (29). GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 29...
  • Page 30 Locate the spacing washer (31 - 34) and spacing as paragraph No. 10. After assembly, install the motor according to the Installation chapter in this manual 30 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 31 Assembly of valve housing This is the reverse procedure to dismantling. Smear oil to external surface of valve (2) and to the bore of valve housing (3). GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 31...
  • Page 32 Spray some light oil into the inlet and exhaust ports and connect the unit to a low pressure supply and allow the unit to run on the bench for a short period of time prior to refitting the unit into full service. 32 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 33 RM1 10 13 mm / 0.50” 27 mm / 1” RM210 32 mm / 1.25” 25 mm / 1” RM310 45 mm / 1.75” 16 mm / 0.625” GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 33...
  • Page 34 Listen if there is air leaking from the bottom of the valve. If there is clearly a hissing sound it means that one or more of the O-rings are damaged during re-assembly. Start proce- dure again. 34 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 35 Grub Screw M8 x 16 802-045 Hex Bolt M8 x 60 313-002 Hand Lever 818-002 Black Plastic Knob 1-1/2” 816-061 Plug 1/4” BSPT Sq. Head 1 13-050 Vent Plug GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 35...
  • Page 36 Listen if there is air leaking from the bottom of the valve. If there is clearly a hissing sound it means that one or more of the O-rings are damaged during re-assembly. Start proce- dure again. 36 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 37 31 1-072 Washer, Spring Centering 31 1-073 Spring, Control Spool 31 1-064 End Cap - Spring End 816-048 Elbow M/F 1/4” BSPT 816-061 Plug 1/4” BSPT Sq. Head GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 37...

  • Page 38: Maintenance Brake

    Flush this product in a well ventilated area. Do not use kerosene or other combustible solvents to flush this product. Failure to follow these instructions can result in serious injury or property damage. 38 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 39 Always replace both brakes shoes even if only one is worn. After fitting the new brake shoe assemblies use the LOAD ADJUSTMENT procedure as mentioned in the chapter OPERATION. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 39...

  • Page 40: Summary Of The Hazards With Protective Means

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not Electrostatic charging subject the equipment to external conditions that could cause build-up of electrostatic charges. 40 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 41: Trouble Shooting

    Motor is running hot. Perform a service maintenance. Inadequate air flow from air source. Inspect and repair. Air source is too far from the motor. Put the air source closer. GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 41...

  • Page 42: Dimensions, Performances & Spare Parts

    Dimensions, Performances & Spare Parts Dimensions RM410 & RM410 with Foot Bracket 42 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 43 Dimensions & Performance RM410 + Brake GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 43...

  • Page 44: Performance Rm410 + Brake

    Prior to initial start-up, inject oil into the inlet port. +140°F) / -10°C to +60°C (-14°F to +140°F) with brake Lubricator drop rate 6-8 drops/minute continuous operation Lubricator drop rate 12-16 drops/minute intermittent operation 44 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 45: Main Dim. Rm410 + Brake + Hcv

    Dimensions & Performance RM410 + Brake + HCV GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 45...

  • Page 46: Main Dim. Rm410 + Brake + Rcv

    Dimensions & Performance RM410 + Brake + RCV 46 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 47: Performance Rm410 + Hcv/Rcv

    Prior to initial start-up, inject oil into the inlet port. +140°F) / -10°C to +60°C (-14°F to +140°F) with brake Lubricator drop rate 6-8 drops/minute continuous operation Lubricator drop rate 12-16 drops/minute intermittent operation GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 47...

  • Page 48: Spare Parts List Rm410

    Queen Rod Pivot 430-078 Queen Rod 430-052 Crank Spacer * SELECT 430-053 Crank Spacer * ON 430-054 Crank Spacer * ASSEMBLY 430-010 Balance Weight 81 1-009 Woodruff Key 48 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 49: Spare Parts List Parking Brake

    804-068 Circlip 90mm Internal 808-048 Oilseal 40x72x10/R21 81 1-005 Key K128 412-003 Brake Shoe Pivot 808-133 O Ring 3-1/2” ID x .139 7008G18 Breather plug 1/8 BSPP GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 49...

  • Page 50: Spare Parts List Hcv

    Grub Screw M8 x 16 802-045 Hex Bolt M8 x 60 313-002 Hand Lever 818-002 Black Plastic Knob 1-1/2” 816-061 Plug 1/4” BSPT Sq. Head 1 13-050 Vent Plug 50 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 51: Spare Parts List Rcv

    31 1-072 Washer, Spring Centering 31 1-073 Spring, Control Spool 31 1-064 End Cap - Spring End 816-048 Elbow M/F 1/4” BSPT 816-061 Plug 1/4” BSPT Sq. Head GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 51...

  • Page 52: Ordering Code

    For example ATEX Certified, different mountings, brakes etc. You name it and we make it possible. Contact us for your wishes and we will be happy to engineer a proposal to suit your requirements. 52 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 53 5 = Biased: CCW Lowering (NPT) RM410 (14 KW / 19 HP) = R43 RM510 (14 KW / 31 HP) = R52 RM610 (14 KW / 32 HP) = R62 GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 53...

  • Page 54: Atex Certification

    II 2D Ex h IIIC T100ºC Db -20°C ≤ Ta ≤ +60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVeritas in the UK.
  • Page 55 II 2D Ex h IIIC T100ºC Db -20°C ≤ Ta ≤ +60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVertitas in the...
  • Page 56 Hereby declare in our sole responsibility, that the following pneumatic brake models: 112-900EX, 212-900EX, 312-900EX, 412-920EX, 512-900EX as well as the GLOBE Airmotors’ “GLOBE Piston Motor” & Brake assemblies and “GLOBE Piston Motor” & Brake & Valve assemblies: RxxDxxxxxEX, RxxDxxHxxEX, RxxDxxRxxEX,...
  • Page 57 II 2D Ex h IIIC T135ºC Db X -10°C ≤ Ta ≤ +60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVertitas in the...

  • Page 58: Ce Certification

    The technical file is present inside the EER and can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Signature assignee of Date: 19-02-2022 GLOBE Airmotors BV Name: J.G.G. Wannet Director 58 · GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 59 The technical file can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Signature assignee of Date: 19-02-2022 GLOBE Airmotors BV Name: J.G.G. Wannet Director GLOBE RM410 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 59...

  • Page 60: Options & Accessories

    Compact Piston Air Motors Pneumatic Brakes Compact Vane Air Motors Planetary Geared Vane Air Motor Vane Air Motors Specials: Costum Build This document, as well as the CAD data of the vane air motors are available for download on globe-benelux.nl. globe-benelux.nl...
