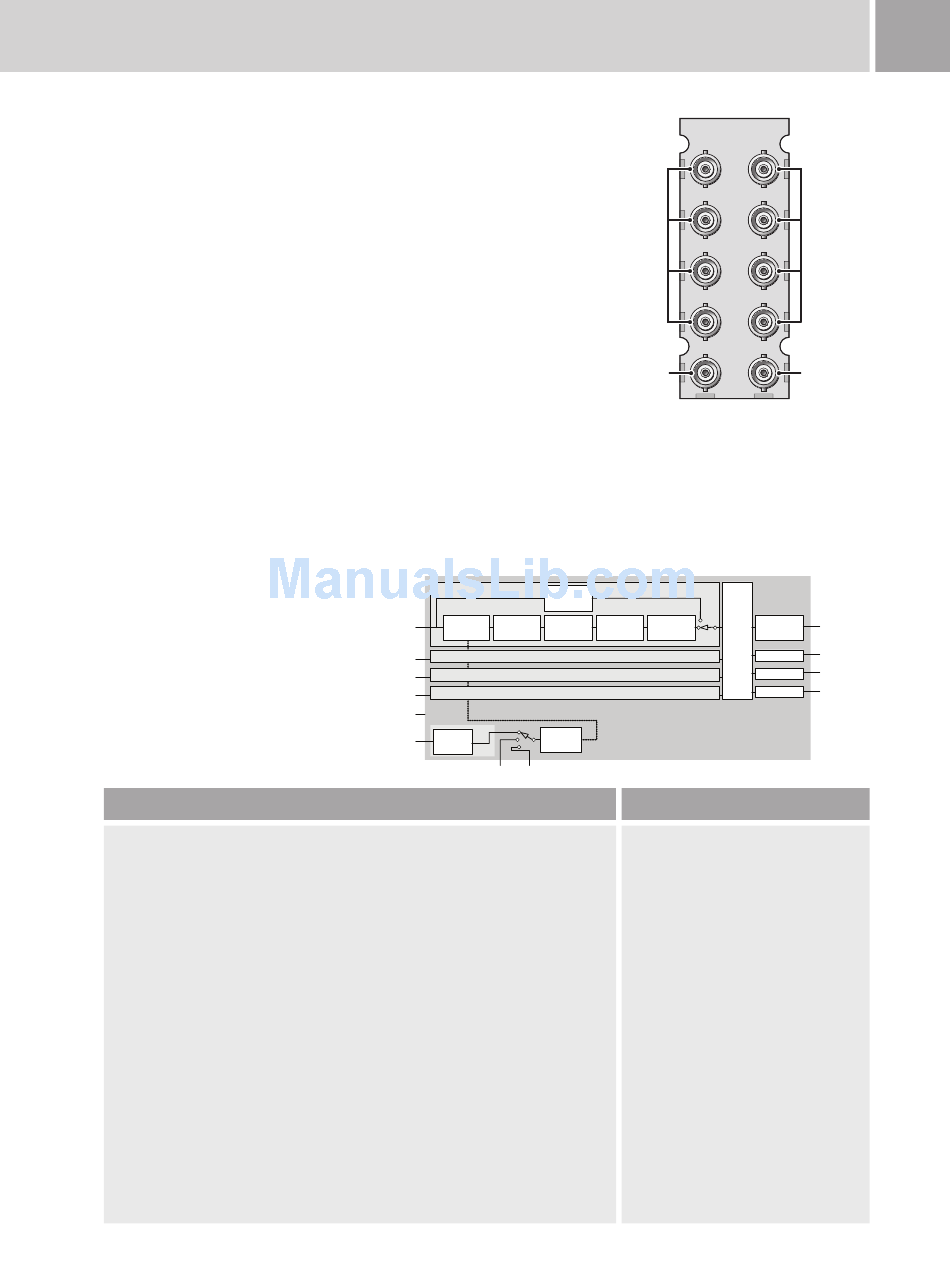

8977AP-4U Digital Audio Processor – Unbalanced I/O w/Delay
Key Features
•
Eight independent channels of audio
processing
•
Four AES inputs and four AES outputs – all
unbalanced
•
Auto tracking delay to video synchronizers
•
Fixed delay for each channel up to 10s
•
Smooth audio handling when adjusting
delay
•
Channel routing for PCM signals, stream
routing for Dolby E
•
Dolby E programmable delay and routing
•
Sample rate conversion accepts 32 kHz,
44.1 kHz, 48 kHz, or 96 kHz and outputs
48 kHz
•
Uses local or frame reference for
synchronization
•
High density (80 PCM channels per 2 RU
frame)
•
Remote control and monitoring via
Ethernet frame interface
Applications
•
A companion to the 8985, 8995, and 8981
modules with video synchronization to
provide AES audio handling with tracking
delay
•
To route and control PCM channels
combined with Dolby E audio streams
Specifications
Supported Frame Types
GeckoFlex with 8900NET (Net Card) for configuration
Power Rating
6.0 Watts – single slot
Audio I/O
AES four inputs, four outputs
Signal Type
Unbalanced: AES-3id-2001
Common mode range: Unbalanced: N/A
Input sampling rate (FS): 32, 44.1, 48, or 96 kHz
Input resolution: 16-, 20-, or 24-bit
Input return loss: >20 dB (100 kHz – 128 FS)
Output sampling rate: 48 kHz
Output resolution: 20- or 24-bit
Output return loss: >15 dB (100 kHz – 128 FS)
Input impedance: Unbalanced: 75Ω
Connector type: Unbalanced: BNC
The 8977AP-4U is a compact, high-
performance, high-density digital audio
processor. It provides processing at channel
level for up to eight PCM audio channels.
It also provides sample-rate conversion
and synchronization for asynchronous and
consumer-type sources. Automatic delay
tracking synchronizes the sound to a video
synchronizer, while a user-configurable delay
can compensate for fixed latency processing.
A particularly powerful feature of the
8977AP-4U is its ability to handle Dolby E
streams. These can be both routed and
delayed while preserving the non-PCM data.
The 8977AP-4U can handle a mix of Dolby E
streams and PCM channels so that, for
example, a Dolby stream on AES input 1 can
be routed to AES output 2 and then replaced
by selected PCM channels on output 1. Audio
input and output connectors are unbalanced
(see 8977AP-4B for balanced connectors).
PCM audio can be synchronized to a reference;
either a color black video reference, tri-level
syncs, an AES feed, or even word-clock can
be used. Reference can be fed directly to the
Two Channels or One Stream
Programmable
Sample Rate
Programmable
AES 1 In
Synchronizer
Converter
Two Channels or One Stream
AES 2 In
Two Channels or One Stream
AES 3 In
Two Channels or One Stream
AES 4 In
Delay
Tracking
Option
External
Genlock
Ref In
Reference
Adjustment
input
Bus
Bus
Reference
See 8900GEN-SM genlock submodule
Tracking Input
One wire serial interface (RS-232 type)
Format: 1200 baud
Parity: Even
Bits/word: Seven
Stop bit: One
Connector type: BNC
Electrical Length (delay)
PCM mode: 1.7 ms to 3.9 ms depending on input
sampling rate, typically 3.9 ms at 48 kHz
Non-PCM mode: 280 µs
Sync PCM mode: 280 µs
8900UE-R
J1
J3
Audio
Input
J5
J7
J9
Ref
Input
module by fitting the optional 8900GEN-SM
reference input sub-module or alternatively
taken from one of GeckoFlex's two internal
busses. This allows several modules in a frame
to share a reference feed including sharing it
with a video synchronizer.
Dolby E & Non-PCM Path
Delay
Tracking Delay
Gain
Channel
Delay
/
Stream
Router
Ordering Information
This module can be mounted in a GeckoFlex
frame but not in other 8900 series frames,
including Gecko-A or Gecko-V frames. As this
module has no card-edge controls, in order to
configure this module, an 8900NET (Net Card)
Network Interface module is required.
8977AP-4U
Audio processor – eight channels – unbalanced audio
I/O, front and rear module set
8977AP-4B
Audio processor, front and rear – eight channels –
balanced audio I/O (see previous page)
8900GEN-SM
Reference input submodule
For detailed specifications, installation, and setup
instructions see:
www.grassvalley.com/docs/modular
23
J2
J4
Audio
Output
J6
J8
J10
Audio Delay
Tracking
Input
Mono/Stereo
AES 1 Out
Switch
AES 2 Out
M/S
AES 3 Out
M/S
AES 4 Out
M/S
