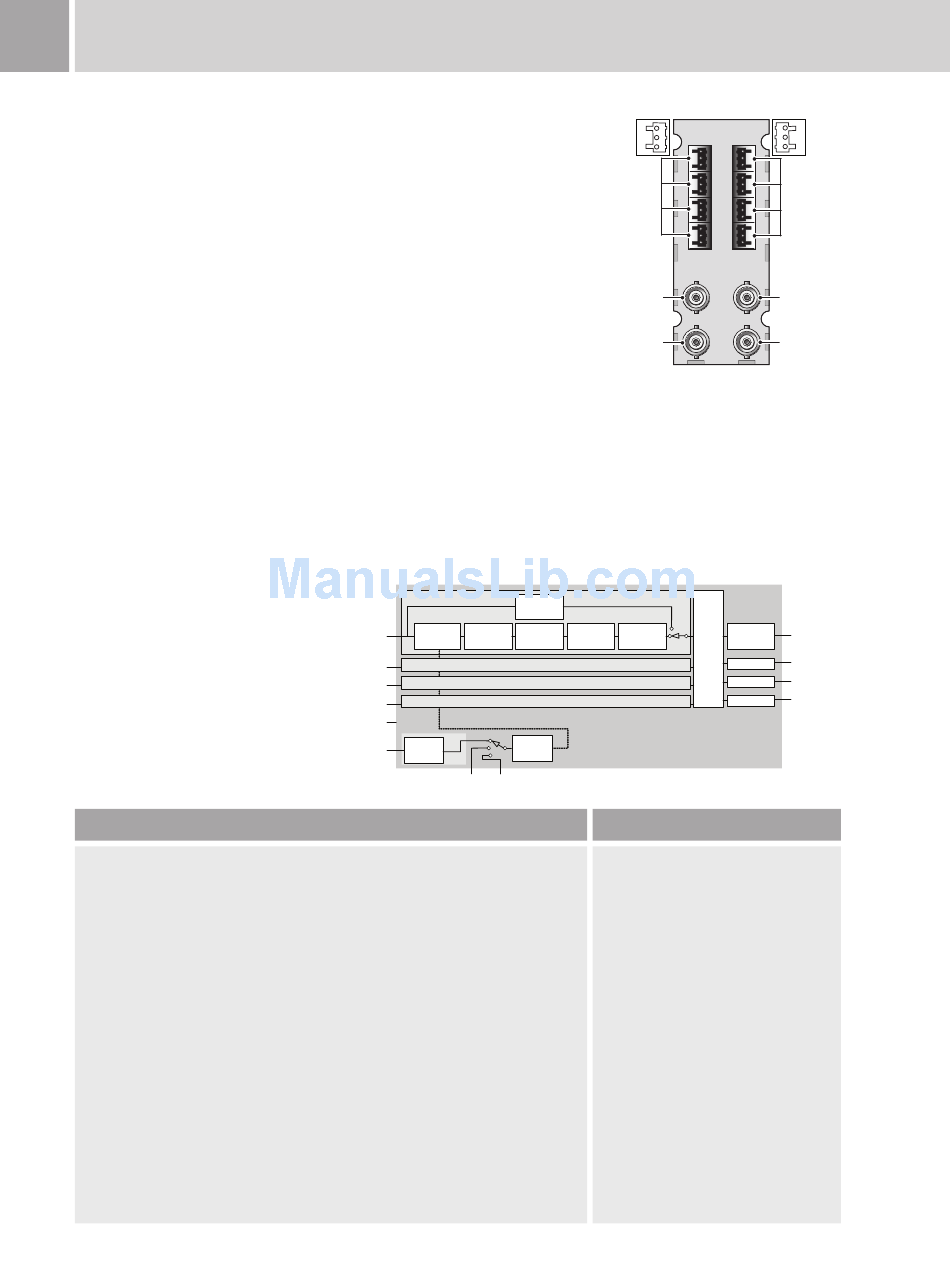

8977AP-4B Digital Audio Processor – Balanced I/O w/Delay
Key Features
Eight independent channels of audio
processing
Four AES Inputs and four AES outputs
– all balanced
Auto tracking delay to video synchronizers
Fixed delay for each channel up to 10s
Smooth audio handling when adjusting
delay
Channel routing for PCM signals, stream
routing for Dolby E
Dolby E programmable delay and routing
Sample rate conversion accepts 32 kHz,
44.1 kHz, 48 kHz, or 96 kHz and outputs
48 kHz
Uses local or frame reference for
synchronization
High density (80 PCM channels per 2 RU
frame)
Remote control and monitoring via
Ethernet frame interface
Applications
A companion to the 8985, 8995, and 8981
modules with video synchronization to
provide AES audio handling with tracking
delay
To route and control PCM channels
combined with Dolby E audio streams
Specifications
Supported Frame Types
GeckoFlex with 8900NET (Net Card) for configuration
Power Rating
6.0 Watts – single slot
Audio I/O
AES: Four inputs, four outputs
Signal type: Balanced AES-3id-1997
Common mode range: Balanced 10 Vp-p DC
500 Hz to 20 kHz
Input sampling rate (FS): 32, 44.1, 48, or 96 kHz
Input resolution: 16-, 20-, or 24-bit
Input return loss: >20 dB (100 kHz – 128 FS)
Output sampling rate: 48 kHz
Output resolution: 20- or 24-bit
Output return loss: >15 dB (100 kHz – 128 FS)
Input impedance: Balanced: 110Ω
Connector type: Balanced: mini-screw terminal block
The 8977AP-4B is a compact, high-
performance, high-density digital audio
processor. It provides processing at channel
level for up to eight PCM audio channels.
It also provides sample-rate conversion
and synchronization for asynchronous and
consumer-type sources. Automatic delay
tracking synchronizes the sound to a video
synchronizer, while a user-configurable delay
can compensate for fixed latency processing.
A particularly powerful feature of the
8977AP-4B is its ability to handle Dolby E
streams. These can be both routed and
delayed while preserving the non-PCM data.
The 8977AP-4B can handle a mix of Dolby E
streams and PCM channels so that, for
example, a Dolby stream on AES input 1 can
be routed to AES output 2 and then replaced
by selected PCM channels on output 1. Audio
input and output connectors are all balanced
(see 8977AP-4U for unbalanced connectors).
PCM audio can be synchronized to a reference;
either a color black video reference, tri-level
syncs, an AES feed, or even word-clock can
be used. Reference can be fed directly to the
module by fitting the optional 8900GEN-SM
Two Channels or One Stream
Programmable
Sample Rate
Programmable
AES 1 In
Synchronizer
Converter
Two Channels or One Stream
AES 2 In
Two Channels or One Stream
AES 3 In
Two Channels or One Stream
AES 4 In
Delay
Tracking
Option
External
Genlock
Ref In
Reference
Adjustment
input
Bus
Bus
Reference
See 8900GEN-SM genlock submodule
Tracking Input
One wire serial interface (RS-232 type)
Format: 1200 baud
Parity: Even
Bits/word: Seven
Stop bit: One
Connector type: BNC
Electrical Length (delay)
PCM mode: 1.7 ms to 3.9 ms depending on input
sampling rate, typically 3.9 ms at 48 kHz
Non-PCM mode: 280 µs
Sync PCM mode: 280 µs
Pin 3
+
8900BA-R
_
Pin 2
G
Pin 1
Audio
Input
Audio Delay
J11
Tracking
Input
J13
Ref Input
reference input submodule or alternatively
taken from one of GeckoFlex's two internal
busses. This allows several modules in a frame
to share a reference feed, including sharing it
with a video synchronizer.
Dolby E & Non-PCM Path
Delay
Tracking Delay
Gain
Channel
Delay
/
Stream
Router
Ordering Information
This module can be mounted in a GeckoFlex
frame but not in other 8900 series frames,
including Gecko-A or Gecko-V frames. As this
module has no card-edge controls, in order to
configure this module, an 8900NET (Net Card)
Network Interface module is required.
8977AP-4B
Audio processor – eight channels – balanced audio
I/O, front and rear module set
8977AP-4U
Audio processor, front and rear – eight channels –
unbalanced audio I/O (see next page)
8900GEN-SM
Reference input submodule
8900-GFA-CBL
Package of four three-terminal to dual BNC cables,
used for unbalanced outputs on 8900A-R modules in a
GeckoFlex frame
For detailed specifications, installation, and setup
instructions see:
www.grassvalley.com/docs/modular
Pin 1
G
_
Pin 2
+
Pin 3
J1
J2
J3
Audio
J4
Output
J5
J6
J7
J8
J9
J10
Not Used
J12
Not Used
J14
Mono/Stereo
AES 1 Out
Switch
AES 2 Out
M/S
AES 3 Out
M/S
AES 4 Out
M/S
