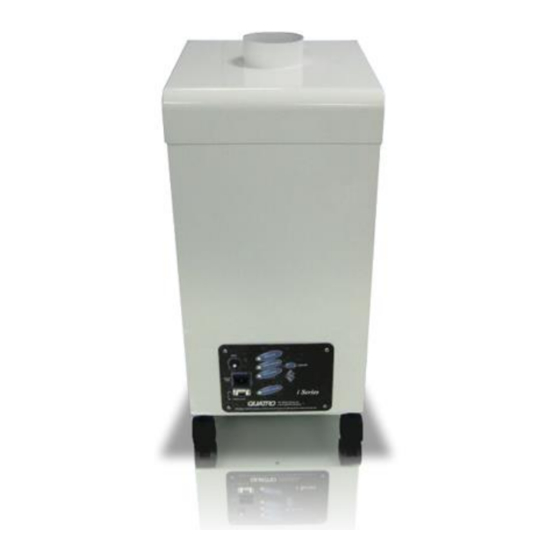

QUATRO
Air Technologies Inc.
SPH & AF400 Vac Series
Premium Turbine Dust Collectors
Instruction & Maintenance Manual
READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THE SYSTEM
STORE THE MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE
THIS MANUAL CONTAINS CRITICAL OPERATING INFORMATION
WHICH IF NOT FOLLOWED
COULD CAUSE DAMAGE TO THE SYSTEM NOT COVERED BY WARRANTY.
1
Advertisement
Related Manuals for Quatro 4B6
Summary of Contents for Quatro 4B6
- Page 1 QUATRO Air Technologies Inc. SPH & AF400 Vac Series Premium Turbine Dust Collectors Instruction & Maintenance Manual READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THE SYSTEM STORE THE MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE THIS MANUAL CONTAINS CRITICAL OPERATING INFORMATION WHICH IF NOT FOLLOWED COULD CAUSE DAMAGE TO THE SYSTEM NOT COVERED BY WARRANTY.
-
Page 2: Installation
1- INTRODUCTION You are now the owner of a QUATRO SPH Or AF System, an advanced effective indoor dust and fume collection system designed specifically to remove particulate matter and odour causing gas phase contaminants at the source. You can expect a noticeable improvement in air quality as the SPH Or AF System begins the process of reducing microscopic airborne particulate. - Page 3 Never use any form of remote control that switches the power source on and off. In doing so, serious damage to the controls and motors may occur. Contact QUATRO if power switching is the only way you have to remotely control the unit.
- Page 4 Receiving Remote Signal Remote Switch Closed (On) OR Receiving Remote Signal From Another Piece Of Equipment Standby Fading Shutdown Delay Quatro System Continues To Run For 30-45 Seconds To Remove All Debris From LED 5 IN-OUT Work Area (L5) Flashing...
- Page 5 If a custom cable isn’t available then the AE427 universal remote cable will be provided. Connect the AE427 remote cable in between the Quatro System & the other piece of equipment using only the wires required as per the diagram below.
- Page 6 The status signals can either return a “signal” provided by your equipment or output a 12VDC+ or 12VDC- depending on how the AE427 remote cable is wired. The Quatro System uses a single “common” for both the Run & Fault Signals.
- Page 7 QUATRO Air Technologies Inc. 6- FILTER SERVICE & REPLACEMENT LED Diagnostic Table - “Service Filter(s)” Alerts (iSeries Controls) If “Service Filter(s)” alert is FLASHING SLOWLY some of the particulate filters are getting clogged and need to replaced. If “Service Filter(s)” alert is ON SOLID replace the odor filter.
- Page 8 H296 The Quatro System can be equipped with many filter sequences. The filters shown on the above table are the most popular general filter sequence that work in most applications. Verify the filter(s) in your Quatro System for the correct part numbers before ordering.
- Page 9 QUATRO Air Technologies Inc. “Infinity” & Brushless Motors Are Considered Consumables And Will Not Be Changed Under Warranty Unless Found To Be DEFECTIVE Within The Warranty Period. Service- Motors With “Quick Change” Brushes Even with replaceable motor brushes the “Quick Change” motors do have a service life. When the motor(s) are sparking excessively or consuming brushes too quickly they should be replaced.
-
Page 10: Troubleshooting Guide
QUATRO Air Technologies Inc. For units equipped with 2 motors: It is highly recommended to replace both motors or both sets of brushes at the same time so the brush wear rates stay in sync. Replacement Instructions ALLOW MOTOR(S) TO COOL FOR 45 MINS BEFORE SERVICING 1- Unplug power cord and open motor access panel. -
Page 11: Specifications
QUATRO claims no warranty as to merchantability or as to the fitness of the merchandise for any particular use and shall not be liable for any loss or damage. No person, firm or corporation is authorised to assume for QUATRO any other liability in connection with the sale of these goods. - Page 12 QUATRO Air Technologies Inc.
- Page 13 QUATRO Air Technologies Inc.
- Page 14 QUATRO Air Technologies Inc.
