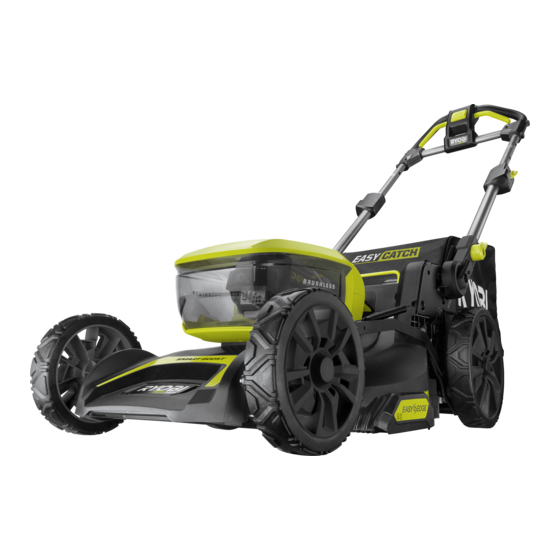

RYOBI R36XLMW16 MANUAL Pdf Download

IMPORTANT!

INTENDED USE

GENERAL SAFETY WARNINGS

PERSONAL SAFETY

Operator Age and Supervision

Ensure only qualified individuals operate the product and supervise children to prevent play.

Protective Clothing and Footwear

Wear substantial clothing and footwear for protection against injury from blades and debris.

Slope Operation Safety

Mow across slopes, maintain balance, and avoid running to prevent slips and falls.

Avoid Hazardous Terrain

Do not operate near drop-offs, ditches, or excessively steep slopes.

Wear Safety Glasses

Always wear safety glasses to protect eyes from thrown objects.

Maintain Alertness and Common Sense

Operate only when alert and sober. Avoid fatigue, illness, or impairment for safe operation.

WORK AREA SAFETY

Maintain Safe Distance from Bystanders

Keep people and pets at least 15m away due to thrown object risk.

Ensure Adequate Lighting

Operate only in daylight or under good artificial light for visibility.

Avoid Wet Conditions

Do not operate on wet grass or during rain to prevent electrical hazards.

Clear Work Area of Debris

Inspect and remove all foreign objects before mowing to prevent injury from thrown debris.

Avoid Explosive Atmospheres

Do not operate in areas with flammable liquids, gases, or dust due to spark ignition risk.

Avoid Lightning Risk

Do not operate the product during thunderstorms or when lightning is present.

Child Safety Awareness

Be vigilant about children's presence; never assume they remain in a seen location.

Approach Obstacles with Caution

Exercise caution around blind corners and objects that obstruct view.

BATTERY TOOL USE AND CARE

Isolator Key Usage

Remove the isolator key when not operating to ensure the product is off.

Battery Pack Removal

Remove battery pack and isolator key before maintenance or adjustments.

Use Specified Charger Only

Recharge battery packs only with the specified manufacturer's charger.

Use Correct Battery Pack

Use only battery packs designed for this product to prevent fire or injury.

Prevent Battery Short-Circuiting

Keep battery packs away from metal objects to prevent short circuits and fire.

Avoid Heat and Fire

Do not expose battery products or batteries to fire or heat to avoid explosion risk.

Handle Battery Pack Carefully

Do not open or damage battery packs; electrolyte is corrosive and toxic.

Protect Battery from Moisture

Keep battery packs dry. Do not charge in damp or wet locations to prevent electric shock.

Battery Vapour Handling

Seek fresh air and medical help if battery vapour is inhaled; it can irritate respiratory system.

Avoid Extreme Vehicle Temperatures for Batteries

Do not store battery packs in vehicles in extreme hot or cold conditions.

Do Not Incinerate Battery

Never dispose of batteries by incineration.

Battery Leakage Precautions

Avoid contact with ejected battery liquid. Flush with water if contact occurs; seek medical help for eye contact.

LAWNMOWER SAFETY WARNINGS

Inspect Blades and Cutter Assembly

Visually inspect blades and assembly before use; replace worn parts in sets.

Replace Damaged Labels

Have damaged or unreadable labels replaced at an authorized service center.

Safe Backward Movement

Look behind before backing up to avoid tripping or pulling the product over feet.

Tilt Product Safely

Turn off and stop the blade before tilting for transport or crossing non-grass surfaces.

Use Safety Devices

Never operate with defective guards or missing safety devices like deflectors or catchers.

Avoid Tilting While Running

Do not tilt the mower while motor is on; only slightly raise front for starting if necessary.

Start Away from Discharge Opening

Never start the product when positioned in front of the grass discharge opening.

Safe Starting Procedure

Always start the product from behind the handlebars, ensuring safety conditions are met.

Grass Discharge Chute Safety

Ensure grass discharge chute is covered by catcher/cover; do not start otherwise.

Hands and Feet Clearance

Ensure hands and feet are clear of the cutting enclosure before starting.

Keep Clear of Blades and Openings

Keep hands and feet away from blades and openings during operation.

Operation Safety

Do Not Carry While Running

Never pick up or carry the product while the motor is running.

Stop Product Before Checks

Stop the product, remove key/battery, and ensure all parts stop before any checks.

Inspect for Blade Damage

Check blades for damage, replace or repair any damaged parts, and tighten loose parts.

Blade Rotation Alignment

Ensure the cutting blade rotates approximately parallel to the ground.

Blade Handling Safety

Use caution and heavy-duty gloves when handling the sharp blade for fitting, cleaning, or checks.

Check On/Off Switch Functionality

Do not operate if the on/off switch does not function correctly.

Do Not Lock On/Off Switch

Never lock the on/off switch in the 'on' position; it is extremely dangerous.

Do Not Force Product

Do not force the product; operate it at its designed speed for safety and efficiency.

Stop Blade on Gravel

Stop the blade when crossing gravel surfaces to prevent object projection.

Avoid Uneven Terrain

Avoid holes, ruts, bumps, and hidden objects to prevent slip-and-fall accidents.

Protect Motor Control Cable

Ensure the motor control cable is not trapped or damaged during assembly or folding.

Take Regular Breaks

Take regular breaks during prolonged use to prevent injury or aggravation.

ADDITIONAL BATTERY SAFETY WARNINGS

Prevent Fluid Immersion

Never immerse product, battery, or charger in fluid to prevent short circuits and damage.

PRODUCT FEATURES

OVERLOAD AND OVERHEAT PROTECTION

Product has overload protection; it auto-shuts off when overloaded. Battery has overheat protection.

Overload Protection

Product automatically turns off when overloaded. Release lever and press start button to reset.

Battery Overheat Protection

Battery stops powering if too warm; allow to cool before resuming operation.

Battery Pack LED Indicator Note

Battery pack LED may not function if protection feature is active; restart product/battery for normal function.

GENERAL MOWING TIPS

Adjust Cutting Height

Adjust cutting height to match the current lawn condition for optimal mowing.

Optimal Cutting Ratio

For best performance, cut no more than one-third of the grass height at a time.

Mowing Long Grass

Reduce speed when cutting long grass for effective cutting and clipping discharge.

Cutting Height and Run Time

Using a higher cutting height can extend the battery pack's run time.

TRANSPORTATION AND STORAGE

Cool Down Before Storage/Transport

Allow the product to cool down before storing or transporting it.

Proper Storage Conditions

Store in a cool, dry, well-ventilated place, away from children and corrosive agents.

Vehicle Transportation Safety

Remove isolator key and secure product in vehicles to prevent movement and injury.

Caution When Lifting/Tilting

Exercise extreme caution when lifting or tilting; keep body parts away from the sharp blade.

TRANSPORTING LITHIUM BATTERIES

Lithium Battery Transport Regulations

Transport batteries per regulations, ensuring protection of terminals and avoiding damaged batteries.

MAINTENANCE

Use Original Parts

Use only original manufacturer's parts and accessories to ensure safety and performance.

Professional Servicing

Servicing requires expertise; have the product serviced by an authorized service center only.

Replace Worn Parts

Replace any worn or damaged parts for safety reasons.

Check Grass Catcher

Frequently check the grass catcher for signs of wear or deterioration.

Check Fastener Tightness

Regularly check and tighten all nuts, bolts, and screws for safe operation.

Finger Entrapment Warning

Be careful during adjustments to prevent finger entrapment between moving and fixed parts.

Blade Movement During Servicing

Be aware that blades can move even when the power source is off during servicing.

Manual vs. Professional Repairs

Perform only repairs described in manual; other repairs require an authorized service center.

Post-Use Cleaning

Clean plastic parts with a soft, dry cloth after each use. Repair damaged parts professionally.

Blade Bolt Tightening

Ensure blade bolts are adequately tightened; refer to specifications for torque values.

CLEARING BLOCKAGES

Gloves for Blockage Clearing

Always wear heavy-duty gloves when clearing blockages due to sharp blades and objects.

Clear Grass Catcher

Remove and check the grass catcher for any obstructions and clear them.

Clear Discharge Chute

Check the grass discharge chute and carefully clear any blockages.

Clear Underside Blockages

Turn mower on side to check and clear underside blockages near the blade carefully.

SYMBOLS ON THE PRODUCT

Wear Ear Protection Symbol

Symbol indicates the need to wear ear protection when operating the product.

Symbol Explanations

Wear Eye Protection Symbol

Symbol indicates the need to wear eye protection when operating the product.

Slope Operation Limits

Do not operate on inclines over 15°; mow across slopes, not up/down.

Avoid Rain and Damp Conditions

Do not expose the product to rain or damp conditions.

Sharp Blade Warning

Beware of sharp blades that rotate after motor stops; remove isolator key before maintenance.

Thrown Object Warning

Beware of thrown objects; keep bystanders, especially children/pets, 15m away.

Recycling and Disposal

Recycle waste electrical products responsibly according to local authority advice.

Getting Started Overview

Adjust Handle Operating Angle

Adjust handle angle by turning the quick-release fastener clockwise and counterclockwise to lock.

Lock Upper Handle

Rotate handle lock levers clockwise to secure the upper handle.

Install Mulching Plug

Insert mulching plug into magnetic slot and rear discharge chute for mulching operation.

Mulching Plug Functionality

Mulching plug enables finer clippings; product won't start without catcher/mulch plug.

Dual Battery Operation

Product can use one or two battery packs; two packs enable SMART BOOST™ for higher power.

Insert Isolator Key and Close Door

Insert the isolator key and close the battery door to prepare for operation.

Start the Product

Press start, squeeze on/off lever; never start on grass. Start with wheels raised or on hard surface.

Handle and Catcher Setup

Unlock Upper Handle

Rotate handle lock levers counterclockwise to unlock the upper handle.

Extend Upper Handle

Fully extend the upper handle to its operational length.

Confirm Handle Extension

Ensure that the upper handle is fully extended before proceeding.

Install Grass Catcher

Insert grass catcher frame into magnetic slot, ensuring full coverage and alignment with rear discharge chute.

Grass Catcher Functionality

Grass catcher collects clippings; product requires catcher/mulch plug to start.

Install Battery Packs

Open battery door, install battery packs, ensuring latches snap securely before operating.

On/Off Lever Operation

The on/off lever must be held continuously during use; release to stop the product.

USING THE GRASS CATCHER

Prepare for Grass Catcher Use

Open battery door, install batteries, insert isolator key, and close door for operation.

Remove Mulching Plug

Remove the mulching plug before attaching the grass catcher.

Attach Grass Catcher

Insert grass catcher into magnetic slot, ensuring alignment. It prevents clippings from scattering and is required to start.

Start Mower with Grass Catcher

Press start, squeeze on/off lever. Allow up to 2 seconds for self-propel to reach full speed.

Stop Mower with Grass Catcher

Release the on/off lever to stop the product when using the grass catcher.

USING THE MULCHING PLUG

Prepare for Mulching Operation

Open battery door, install batteries, insert isolator key, and close door for mulching.

Remove Grass Catcher for Mulching

Remove the grass catcher before installing the mulching plug.

Install Mulching Plug

Insert mulching plug into magnetic slot and rear discharge chute for mulching operation.

Mulching Plug Functionality

Mulching plug covers discharge opening for finer clipping and recutting.

Start Mower with Mulching Plug

Press start, squeeze on/off lever. Hold lever to keep using product with mulching plug.

Stop Mower with Mulching Plug

Release the on/off lever/trigger to stop the product when mulching.

CUTTING WITH EASY EDGE

EASY EDGE Feature Explanation

EASY EDGE feature allows cutting grass along walls or lawn edges by pulling grass towards the blade.

ADJUSTING THE CUTTING HEIGHT

Hold Handle During Height Adjustment

Properly hold the carry handle while adjusting the cutting height.

Unlock Cutting Deck

Slide forward the cutting height release key to unlock the cutting deck for adjustment.

Set Preferred Cutting Height

Adjust deck to desired height using release key; ensure it locks securely. Start with highest setting.

REPLACING THE BLADE

Prepare for Blade Replacement

Open battery door, remove batteries and isolator key, close door, and remove U-shape plug.

Tilt Mower and Wear Gloves

Tilt mower on its side and wear heavy-duty gloves when replacing the sharp blade.

Clear Cutting Deck and Blade

Remove all grass clippings and debris from the cutting deck and blade.

Loosen Blade Nut

Insert U-shape plug into deck holes to prevent blade spin; loosen the blade nut.

Remove Blade Change U-Bolt

Remove the blade change U-bolt to detach the blade.

Remove Blade Components

Remove blade nut, spacer, and washer; dispose of old blade properly.

Install New Blade Components

Install the new blade, washer, spacer, and nut.

Tighten Blade Nut

Use U-bolt for stability; hand-tighten nut, then use spanner to tighten to 35-40 Nm torque.

EMPTYING THE GRASS CATCHER

When to Empty Grass Catcher

Stop mowing when the grass catcher is full and empty it before resuming operation.

Stop Mower for Emptying

Release the on/off lever to turn off the product before emptying the grass catcher.

Remove Grass Catcher

Remove the grass catcher from the mower.

Empty Grass Catcher Contents

Remove grass clippings from the catcher and place them into a bin.

CLEANING AND STORING THE PRODUCT

Clean Product Exterior

Clean product with a soft, dry cloth or brush. Do not use water.

Retract Upper Handle

Open handle locks, push upper handle into lower handle until fully retracted.

Secure Retracted Handle

Close the handle locks to secure the retracted handle.

Fold Handle for Storage

Turn fastener counterclockwise, push handle forward to fold for vertical storage.

Store Folded Grass Catcher

Fold the grass catcher and place it on top of the product for storage.

Final Storage Check

Ensure batteries are removed and handles are secure before storing vertically.

PRODUCT SPECIFICATIONS

REPLACEMENT PARTS

Lists available replacement parts for the cordless lawnmower, including blades and grass catchers.

Replacement Blade

Part number for the replacement blade.

Replacement Grass Catcher

Part number for the replacement grass catcher.

Vibration and Noise Emission Declaration

Declared vibration and noise values are measured per standards for comparison and exposure assessment.

Exposure to Vibration and Noise

Exposure levels vary with application and maintenance; consider idle times for accurate assessment.

BATTERY AND CHARGER INFORMATION

Details on compatible battery packs and chargers for the lawnmower models.

Compatible Battery Packs

Lists compatible battery packs for the product.

Compatible Charger

Lists compatible chargers for the product.

Ryobi R36XLMW16 Manual

Table of Contents

Need help?

Questions and answers

Summarization of Contents

Ryobi R36XLMW16 Manual

Table of Contents

Need help?

Questions and answers

Related Manuals for Ryobi R36XLMW16

Summarization of Contents

Table of Contents
