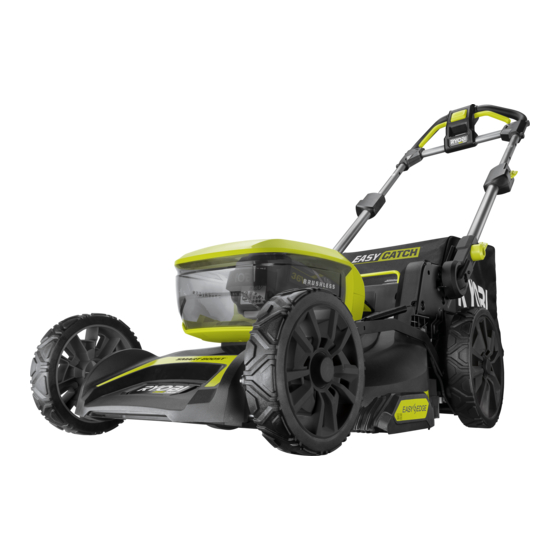

Ryobi R36XLMW10 Manual
  1. Manuals
  2. Brands
  3. Ryobi Manuals
  4. Lawn Mower
  5. R36XLMW10
  6. Manual
Ryobi R36XLMW10 Manual

Ryobi R36XLMW10 Manual

Hide thumbs Also See for R36XLMW10:
Table of Contents

Advertisement

Quick Links

Download this manual
FRONT PAGE
R36XLMW10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R36XLMW10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi R36XLMW10

Summary of Contents for Ryobi R36XLMW10

  • Page 1 FRONT PAGE R36XLMW10...

  • Page 2: Intended Use

    cord suitable for outdoor use reduces the risk of electric IMPORTANT! shock. It is essential that you read the instructions in this manual ■ If operating a power tool in a damp location is before assembling, operating, and maintaining the unavoidable, use a residual current device (RCD) product.

  • Page 3: Lawnmower Safety Warnings

    ■ Maintain power tools and accessories. Check for LAWNMOWER SAFETY WARNINGS misalignment or binding of moving parts, breakage ■ Do not use the lawnmower in bad weather conditions, of parts and any other condition that may affect the especially when there is a risk of lightning. This power tool’s operation.
  • Page 4 ■ Charge the battery pack in a location where the ambient ADDITIONAL SAFETY WARNINGS temperature is between 10 °C and 38 °C. ■ The product must be started with the user behind the ■ Store the battery pack in a location where the ambient handlebars in the operator safety zone.

  • Page 5: Transporting Lithium Batteries

    TRANSPORTING LITHIUM BATTERIES SYMBOLS ON THE PRODUCT Transport the battery pack in accordance with local and national provisions and regulations. Read and understand all instructions Follow all special requirements on packaging and labelling before operating the product. Follow all when transporting batteries by a third party. Ensure that warnings and safety instructions.

  • Page 6: Led Indicators

    LED INDICATORS SMART POWER OVER-HEAT MODE Status Solution High load Blinking product working ■ Consider using a higher cutting height. beyond a limit that can be ■ Walk slower while mowing. maintained. The product may ■ Avoid mowing long and unruly lawns or wet grass. overload.
  • Page 7 R36XLMW10 On/Off lever Dashboard and fuel gauge Start button Telescopic handle Handle lock Isolator key Height adjustment release key Quick-release fastener EASYCATCH grass catcher Battery door Blade change U-bolt Rear wheel Front wheel Operator's manual Mulching plug Battery pack Charger...
  • Page 8 Wear full eye protection, ear protection, Adjust the operating angle of the handle to your preference. Turn the quick- non-slip heavy-duty gloves, substantial release fastener 90° clockwise. Set the handle to the operating position. Turn the footwear, and long trousers at all times fastener 90°...
  • Page 9 NOTE: Align and secure the handle to Rotate handle lock levers Fully extend the upper handle. the preferred locking slot. counterclockwise to unlock the upper handle. NOTE: The mulching plug covers NOTE: The grass catcher collects For bagging operation, insert the metal the rear discharge opening to allow frame of the grass catcher into the grass clippings, preventing them from...
  • Page 10 Using the grass Using the mulching Cleaning and Adusting the p.14 p.11 p.12 p.19 catcher plug storing the product cutting height Cutting with EASY Emptying the grass Replacing the blade p.15 p.14 p.18 EDGE catcher...

  • Page 11: Using The Grass Catcher

    USING THE GRASS CATCHER WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. 1. Remove the mulching plug. Max.15˚...

  • Page 12: Using The Mulching Plug

    4. Press the start button, then squeeze and hold either side of the on/off lever to start the product. Keep holding the on/off lever to keep using the product. 5. Release the on/off lever to stop the product. USING THE MULCHING PLUG WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects.
  • Page 13 1. Remove the grass catcher. 2. Insert the metal frame of the mulching plug into the magnetic slot on the mower, and insert the mulching plug into the rear discharge opening. NOTE: The mulching plug covers the rear discharge opening to allow the blade to cut and recut for finer clipppings.

  • Page 14: Adjusting The Cutting Height

    CUTTING WITH EASY EDGE EASY EDGE allows the product to easily cut the grass along walls or the edge of the lawn. ADJUSTING THE CUTTING HEIGHT NOTE: Properly hold the carry handle while adjusting the cutting height. 1. Slide forward the height adjustment release key to unlock the cutting deck.

  • Page 15: Replacing The Blade

    Pull up or push down the deck to the preferred cutting height. Refer to the height label and indicator. Make sure that the cutting height is securely locked into position before mowing. NOTE: The cutting height can be adjusted to 10 positions. Cutting heights may vary in particular products.
  • Page 16 2. Remove the blade change U-bolt from its compartment. 3. Tilt the product on its side. WARNING: The blade on the product is sharp. Use extreme caution, and wear heavy- duty gloves when fitting, replacing, cleaning, or checking bolt security. Remove all grass clippings and debris from the cutting deck and blade.
  • Page 17 6. Remove the blade change U-bolt. 7. Remove the blade nut, spacer, and washer. Remove and properly dispose of the old blade. 8. Install the new blade, washer, spacer, and nut. 9. Insert the blade change U-bolt into the cutting deck holes to prevent the blade from spinning during tightening of the blade nut.

  • Page 18: Emptying The Grass Catcher

    EMPTYING THE GRASS CATCHER NOTE: Stop mowing when the grass catcher is full. Empty the grass catcher before resuming operation. 1. Release the on/off lever to turn off the product. 2. Remove the grass catcher. 3. Remove the grass clippings from the grass catcher into a bin.
  • Page 19 CLEANING AND STORING THE PRODUCT 1. Release the on/off lever to turn off the product. 2. Open the battery door. Remove the battery packs. Remove the isolator key, and close the battery door. 3. Remove all foreign materials from the product.
  • Page 20 5. Open the handle locks. Push the upper upper handle into the lower handle until the upper handle is fully retracted. 6. Close the handle locks to secure the handle. 7. Turn the quick-release fastener 90° counterclockwise. Push handle forwards until it is perpendicular to the floor, then turn back the quick-release fastener to align with the handle.

  • Page 21: Product Specifications

    Cordless lawnmower standardised test and may be used to compare one tool with Model R36XLMW10 another. They may be used for a preliminary assessment of exposure. Rated voltage 36 V d.c.
  • Page 24 Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. EASYCATCH is a trade mark of Techtronic Cordless GP. SMART BOOST is a trade mark of Techtronic Cordless GP.
