M1328/M1342 PRODUCTION NOTES
Note:
0_
This pcb blank is X8005. After stuffing,
it becomes either M1328 for the DB400
or M1342 for the DB400H.

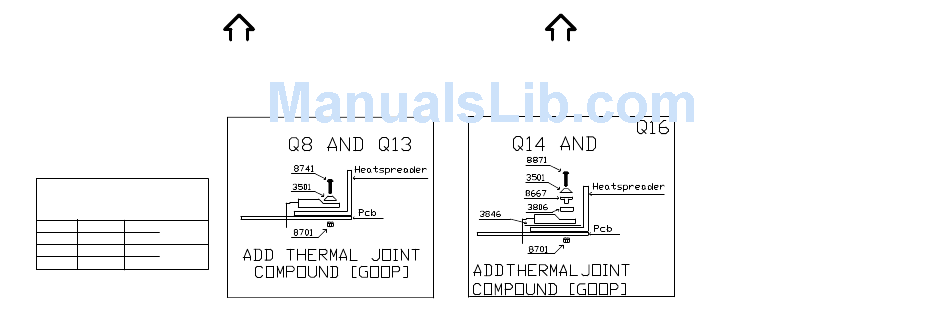

ADD THERMAL JOINT COMPOUND {GOOP}
1_
BETWEEN Q1 AND Q2 ; Q4 AND Q5 .
COVER WITH VINYL CAP {8609} AND RTV.
2_
USE DOUBLE INSULATION
RED
9"
W13
RED
9"
W14
BLK
25.5"
W12
BLK
25.5"
W11
SEE LAYOUT DIAGRAM
3_
(
4_
)
5_
R5, C9, W32, W33, ONLY FOR M1328 DB400
AND DB400T. DO NOT STUFF FOR M1342 DB400H
6_
TO-3s: INSTALL NUTS ON BOTTOM SIDE OF PCB
7_
PCBSA: DB400 AND DB400T: CLIP OUT X51_
DB400H: CLIP OUT X50_
8_
D11 AND D12 ARE HAND INSERTED
