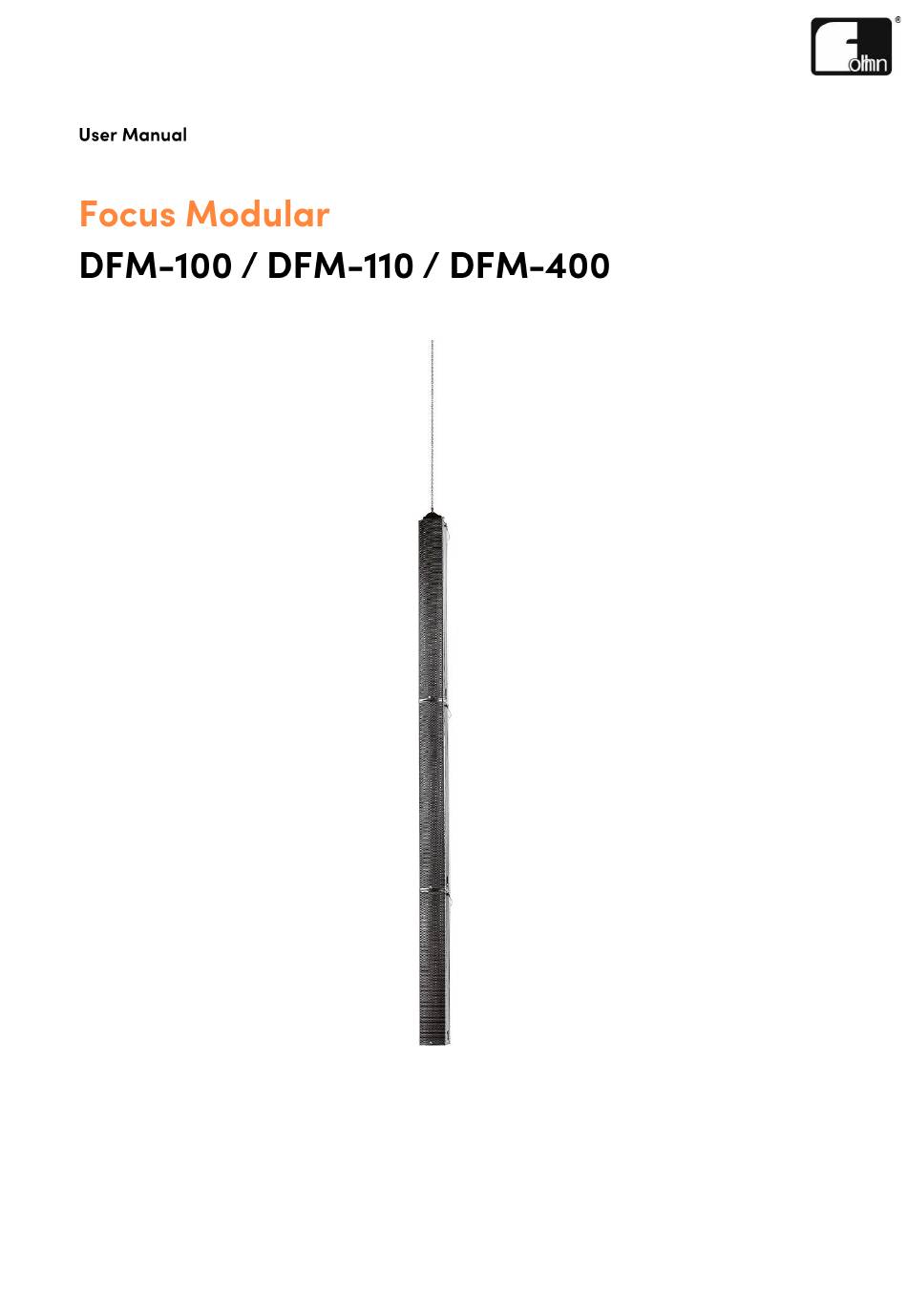

- Page 1 Version 1.0 / Oct. 2021 Copyright by Fohhn Audio AG 2021; all rights reserved. Please read this user manual through carefully before putting the system into operation and keep it for future reference.
-
Page 2: Table Of Contents
3. Mechanical Setup and Rigging ......................13 3.1 Wall mount installation ......................13 3.2 Rigging a Focus Modular System ....................13 3.2.1 Rigging System of a Focus Modular Module ..............13 3.2.2 Flying adapter VFM-1, number of arrayable modules ............14 3.2.3 Cardan Clamp CC-300 ....................... - Page 3 4.11.2 Password Lock ........................37 4.11.3 Tilt Sensor ......................... 37 4.12 Adjusting level relations within an array .................. 38 5. Control via Fohhn Audio Soft ......................39 5.1 Beam Steering – the functional principle ................. 39 5.1.1 Side Lobe Free Technology ....................39 5.1.2...
- Page 4 11.5.1 Disclaimer ......................... 69 11.5.2 Copyright ........................... 69 11.6 Contact Address........................69...
-
Page 5: Introduction And General Information
– even in the most acoustically challenging venues. All the functions of a Focus Modular system can be controlled using a single piece of software, Fohhn Audio Soft. -
Page 6: General Safety Instructions
The information presented here should, however, be regarded as accompanying advice and it does not affect the ultimate responsibility of the user to ensure safe on-site operation of a Focus Modular system. -
Page 7: Electrical Safety Information
Contact details can be found in the appendix to this user manual. 1.1.3 Electrical Safety Information Focus Modular systems are Protection Class 1 appliances. They are built and certified in accordance with the VDE safety measures for electronic devices and, safety-wise, leave our factory in perfect condition. -
Page 8: Acoustic Safety Information
1.1.4 Acoustic Safety Information Focus Modular loudspeaker systems are capable of generating very high sound pressure levels, which can cause irreparable damage to hearing. Warning! To avoid potential hearing impairment, never stand in close proximity (5 metre or less) to a device while it is in operation. -
Page 9: Storage And Transportation
The temperature of the Focus Modular loudspeaker system will be displayed in Fohhn Audio Soft. Shutdown is getting more likely if the product is exposed to direct sunlight or very high environmental temperatures. -
Page 10: The Product
Focus Modular array may improve the acoustical result. The current version of the required Fohhn Audio Soft software can be downloaded free of charge from www.fohhn.com. The following modules are available:... -
Page 11: Delivery And Unpacking
Keep the packing material for examination by the transportation company. 2.3 Product Identification The Focus Modular module’s type designation can be found below the upper connection panel at the rear side of the speaker. -
Page 12: Accessories
2.4 Accessories Setting up a Focus Modular module requires a Windows PC (Windows 7 or higher) with Fohhn Audio Soft installed and a Fohhn network adapter or – if connected via Fohhn Airea – an AIREA breakout box. Product ID... -
Page 13: Mechanical Setup And Rigging
3. Mechanical Setup and Rigging 3.1 Wall mount installation On the back of each Focus Modular module, two M8 threaded inserts can be found at both the top and bottom. These are solely intended for attaching dedicated wall brackets. 3.2 Rigging a Focus Modular System 3.2.1 Rigging System of a Focus Modular Module... -
Page 14: Flying Adapter Vfm-1, Number Of Arrayable Modules
To connect the Focus Modular modules to one another, or to flying adapters, two ball lock pins are used. During transportation, these ball lock pins can be securely housed in two pilot holes on the connector panel. Danger! Always make sure, no yellow tag is visible at the two latches and all ball lock pins are inserted correctly before hoisting the system. - Page 15 Focus Modular is a modular Beam Steering system. In its main mode of application, it is usually flown or suspended in a vertical, linear format. However, in some cases it can be advantageous – for acoustic or optical reasons – to carry out a mechanical inclination.
-
Page 16: Cardan Clamp Cc-300
3.2.3 Cardan Clamp CC-300 The Cardan Clamp CC-300 can be used to mount a Focus Modular system to a traverse or bar, while the array remains in its centre of gravity without tilting sideways. Other advantages are an ease in... -
Page 17: Safety Chains
Never use just one of the safety chain suspension points of the VFM-1. Once the Focus Modular system has reached its final working height, all safety chains have to be pulled tight and attached to the safety suspension point as tight as possible. Any failure of a suspension element should only lead to a minimal drop in height, the maximum drop distance should be not more than 10 cm to keep the dynamic forces as low as possible. -
Page 18: Flying From The Hook Of A Crane Or Chain Hoist
ID. To avoid any confusion during assembly, mark each module, e.g. with a sticker on its front grille that shows the Fohhn Net ID. This can be removed before the system is flown. It may be helpful to put together a brief overview of all integrated Fohhn Net devices, along with their respective ID numbers. - Page 19 Please refer to section 3.2.4. 5. Wire power cable, Airea data or Fohhn Net and digital audio data. Relief the cables to avoid them from dragging on the VFM-1.
- Page 20 6. Raise the currently suspended module to a height that enables you to position the next module directly underneath it. 7. Carefully lower the suspended module until it sits on top of the standing module. Stop the motor as soon as the chain loses its tension. Then align both modules horizontally with one another.
- Page 21 9. Connect the two modules. Only use the ball lock pins of the lower module located in their pilot holes in the connector panel. The knurled-head screws may now be tightened gently to avoid rattling noise of the Focus Modular system at high SPL. Danger! Make sure that both pins are fully inserted and that their collars are fastened to the metal of the supporting tube.
- Page 22 11. Repeat steps 6 to 10 for each module in the array. 12. Hoist the completed Focus Modular system to its final working height and fasten the safety bridle to the relevant points. Please refer to section 3.2.4. 13. Align Focus Modular system horizontally. Therefore, the VFM-1’s suspension point (b) may be used according to section 3.2.2.
-
Page 23: Flying From Traverses Or Bars
3.2.6 Flying from traverses or bars It is recommended to use the Cardan Clamp CC-300 when flying a Focus Modular system from traverses or bars. This gimbal suspension ensures that, under all operating conditions, no load bending can affect the connection between the traverse/bar and the Focus Modular system and that, even in the case of vertically slanting traverses, the system can hang unhindered in its centre of gravity. -
Page 24: Rain Covers For Outdoor Use
Every Focus Modular module is fully active, containing not only the Class-D amplifiers for the various drivers and the switching power supplies, but also all the necessary DSPs for signal processing. To protect these electronics from moisture, a rain cover is essential if using a Focus Modular system at outdoor applications. - Page 25 2. Connect the VFM-1 to the Focus Modular as described in section 3.2.5. The VFM-1 must be completely flush with the Focus Modular system’s rain cover to guarantee impermeability. Turn the rain cover lid’s protruding collar upwards. 3. Join the lid with the covers’ side elements using zippers. The actual positioning of the rain cover on the loudspeaker enclosure is determined by the sewn-in magnets, which adhere to the front grille.
- Page 26 5. The closed rain cover is kept away from the module’s rear panel by clamping elements. The two connector panels through which the Focus Modular system maintains its air supply and extraction are also equipped with clamping elements. Warning! Never shut these openings and never press the rain cover flat against the rear of the loudspeaker to avoid the system from overheating.
-
Page 27: Wiring And Software Setup
The mains power supply cable is connected to the powerCON socket. The universal power supply permits a supply voltage of 100 - 240 V at a frequency of 50/60 Hz. Focus Modular modules are equipped with a switch-on delay (soft start function). - Page 28 The green “remote power” LED indicates that the 48V Airea supply voltage is available at the Airea input of the Focus Modular module. This is the case, when the mains switch is on and mains supply is available. Then the Airea stack link input is able to work as power supply for...
-
Page 29: Output Panel
4.2 General configurations There are several opportunities to supply a Focus Modular system with Fohhn Net and digital audio data. Generally, you may use Fohhn Airea Net, but separate feeds with Fohhn Net and audio data are also possible. Using Fohhn Airea Net provides some advantages:... - Page 30 3. Sequential power-up of an entire stack is possible using a Airea Master. Some possible configurations are given below. Fohhn Net & AES/EBU via Airea Master Fohhn Net & analog audio via Airea Master Fohhn Net & Dante via Airea Master Fohhn Net & analog audio, separately Fohhn Net &...
-
Page 31: Hardware And Software Requirements
.NET version: Microsoft .NET Framework 4.6.1 Additional requirements: current update status of the operating system Further tips for running under Windows 10 can be found in the separate Fohhn Audio Soft user manual. This can be downloaded free of charge from the Fohhn website: www.fohhn.com The Fohhn Net connection is used for controlling the integrated digital signal processors (DSP). -
Page 32: Fohhn Net Id Allocation
The software is immediately ready for use following installation and can either be opened via the program symbol on the desktop, or via the Start > All Programs > Fohhn Audio AG > Fohhn Audio Soft path. 4.5 Fohhn Net ID Allocation For the control of Focus Modular systems, each module in the Fohhn Net must be allocated its own specific ID. -
Page 33: Identifying Connected Systems
You may also change the ID of a Focus Modular module at any time while it is actually in use. To do this, the module must be in the Fohhn Net. Proceed as follows: 1. Open the Device List view, either via the View menu, or via the corresponding button on the Toolbar. -
Page 34: Renaming Devices / Channels
If a Fohhn Net ID needs to be changed, either during identification or at a later date, proceed as described in section 4.5. -
Page 35: Combining Modules To A Speaker Stack
5. Select Combine speakers. At this point, in addition to the Fohhn Net ID and the channel, the letter C will also have been added to the loudspeaker pictograms: This means that two or more modules have been linked together to... -
Page 36: Loading Loudspeaker Presets
1 second and 12 hours. The mode can also be completely deactivated. Proceed as follows to set up Auto Power Save in Fohhn Audio Soft: 1. Select one or more Focus Modular system(s) in the Device List, then right click to open the context menu. -
Page 37: Password Lock
Audio Soft user manual. It´s available at the Fohhn website: www.fohhn.com 4.11.3 Tilt Sensor All Focus Modular systems have a tilt sensor whose data can be read out in Fohhn Audio Soft. The sensor detects the actual mechanical tilt of the installed loudspeaker systems. Please note that it has a tolerance of ±... -
Page 38: Adjusting Level Relations Within An Array
Further information on the Focus Simulation is available in section 5.2. 4.12 Adjusting level relations within an array Basically, the volume level of a Focus Modular module has been predefined in the speaker presets for different combinations of Focus Modular modules. Load the appropriate speaker preset to each module in the array. -
Page 39: Control Via Fohhn Audio Soft
5. Control via Fohhn Audio Soft The complete control of your Focus Modular systems can be exclusively carried out via Fohhn Audio Soft. A comprehensive description of the software and all its functions can be found in the separate Fohhn Audio Soft user manual. -
Page 40: Two Beam Technology (Two Beam Mode)
Beam with Side Lobes Focus Modular systems are equipped with Fohhn Side Lobe Free Technology: A specially developed algorithm effectively reduces the side lobes. This results in fewer unwanted sound reflections in the room. Consequently, levels of speech intelligibility are improved and feedback prevention is increased. - Page 41 This enables an asymmetric beam dispersion to be created for precise sound coverage of two separate listening areas (e.g. stalls and balcony). Two Beam Mode: The production of two separate beams Simultaneous sound coverage of stalls and balcony using two beams from a single Fohhn Focus-Series system Example of an asymmetric beam...
-
Page 42: Acoustic Centre
5.2 Setup in the Beam Steering View To adjust your Focus Modular system to the venue and the particular application, open the Beam Steering view in Fohhn Audio Soft: This display lets you set all the parameters that are relevant to Beam Steering. - Page 43 Its depiction and management are covered in the following sections: The Device Selection This shows all the Focus-Series devices that are in the system, along with their IDs, names, type/model classifications and current operating status. The Parameter Field This lets you configure the beam dispersion characteristics of the chosen module in the Device Selection.
-
Page 44: Adjustment Of Dsp Functions
Fohhn algorithm. Because this makes the room less “excited”, levels of speech intelligibility will be significantly improved. With the overall volume level of the system now somewhat lower as a result, you can use the volume control in Fohhn Audio Soft to compensate for this. -
Page 45: Saving Projects
Fohhn Audio Soft user manual. 5.4 Saving Projects To save the settings on the computer as a Fohhn Audio Soft Projekt (.fap), proceed as follows: 1. In the File menu, select Save Project As. 2. Select the location in which you want to save your project. Click on Save to confirm your choice. -
Page 46: Application Examples
6. Application Examples The following examples show possible and useful combinations of the various Focus Modular modules in typical sound reinforcement scenarios. Individual parameter settings (e.g. vertical dispersion characteristics and inclination angles, level adjustments, acoustic centre etc.) are intentionally not shown here in detail. -
Page 47: Larger Venue With A Single Audience Level
FM-110 module should be used for the high frequency range. If a Focus Modular loudspeaker stack has several DFM-400 modules, it must always be operated as a “Combined Speaker“. You can find more information on this in section 4.8 of this manual. - Page 48 2c: 1x FM-110, 2 x FM-400 and 1 x FM-100 with a room depth of more than 50 m and rising audience seating. Caution! Focus Modular high frequency modules (FM-100 or FM-110) cannot be linked to form a “Combined Speaker“. They will be displayed as separate modules in the Beam Steering view. Always install the...
-
Page 49: Large Venues With Two Audience Levels
Example 3b: If an additional DFM-100 module is available, you can install this at the lower end of the Focus Modular stack: The DFM-100 is well suited to the lower audience area. Both high frequency modules can then be used without Two Beam mode. Each high frequency module covers one audience level respectively. -
Page 50: Large Venues With Three Or Four Audience Levels
3c: 1x DFM-110, 2x DFM-400 and 1x DFM-100 with a room depth of more than 30 m and two audience levels. All Focus Modular modules are used in Two Beam mode. 6.4 Large venues with three or four audience levels Example 4a: The venue has a room depth of more than 30 metres and und several audience levels –... - Page 51 Arrangement possibilities for the different modules Focus Modular high frequency and low-mid modules can be used in a stack, or side by side. However, modules of the same type, or with the same frequency range, should not be used side by side.
-
Page 52: Technical Documentation
7. Technical Documentation 7.1 Technical Specifications 7.1.1 DFM-100... -
Page 54: Dfm-110
7.1.2 DFM-110... -
Page 56: Dfm-400
7.1.3 DFM-400... -
Page 58: Technical Drawings
7.2 Technical Drawings 7.2.1 DFM-100... -
Page 60: Dfm-110
7.2.2 DFM-110... -
Page 62: Dfm-400
7.2.3 DFM-400... -
Page 64: Pin Assignments And Cable Lengths
7.3 Pin Assignments and Cable Lengths For correct operation of your Focus Modular systems, only properly supported, shielded and intact cables and plugs should be used. Check the condition of the connection cable at regular intervals and change any damaged cable where necessary. -
Page 65: Troubleshooting
Problem Probable Cause Possible Remedies No sound is audible. However, The Input- and Output routing Check the DSP settings in Fohhn there is an audio signal. in the User DSP is not correct. Audio Soft. The module is not recognized Several products have the Change the ID –... -
Page 66: Service And Repair
This will minimize the risk of any potential damage during transportation. 9.1 Maintenance Measures Only use a dry or slightly damp, well wrung out towel, to clean your Focus Modular system. Do not use any aggressive cleaning agents, waxes or solvents (such as cleansing alcohol or paint thinner), as these could spoil the appearance of the device and/or affect the paintwork on the enclosure. -
Page 67: Glossary
To communicate with the Focus Modular systems, Fohhn Audio Soft requires an adapter for the Fohhn Net, which is connected to the control computer and transmits the data generated in Fohhn Audio Soft to the systems – e.g. an NA-3 or NA-11. -
Page 68: Appendix
EMC law and as such, carries the CE marking. The relevant Declarations of Conformity are available on request from Fohhn Audio AG, 72622 Nürtingen. 11.3 Trademarks All trademarks and brand names referred to in this manual, which may be protected by third parties, are subject to the provisions of trademark law and the title rights of their respective owners. -
Page 69: Disclaimer And Copyright
11.5 Disclaimer and Copyright 11.5.1 Disclaimer The contents of this user manual have been created with great care. However, Fohhn Audio AG cannot guarantee that the information therein (images, text and other representations) is always complete, correct and current. Fohhn Audio AG therefore reserves the right to make changes or additions to the given information at any time.
