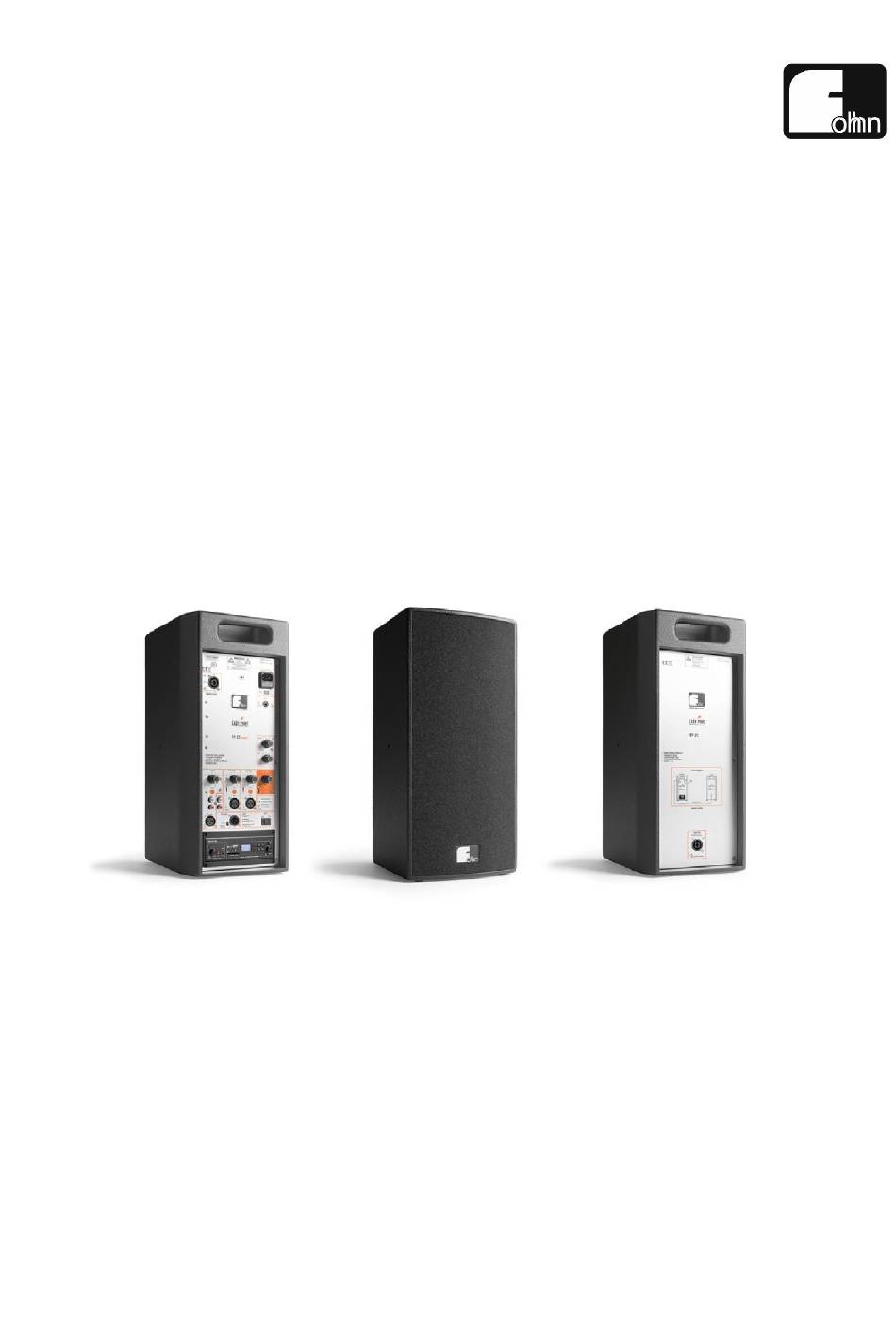

User Instructions (EN)
EasyPort
FP-22 modular
FP-22 passive
Please read this manual carefully before operating the equipment and store this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyPort FP-22 modular and is the answer not in the manual?

Questions and answers

Related Manuals for Fohhn EasyPort FP-22 modular

Summary of Contents for Fohhn EasyPort FP-22 modular

  • Page 1 User Instructions (EN) EasyPort FP-22 modular FP-22 passive Please read this manual carefully before operating the equipment and store this manual.
  • Page 2 Important safety instructions CAUTION Read these safety instructions prior to operating the unit. Keep RISK OF ELECTRIC SHOCK these safety instructions in a safe place. The lightning symbol inside a triangle draws the user´s attention to an uninsulated "dangerous voltage" on the inside of the unit, which is sufficiently powerful to Caution: To reduce the risk of electric shock cause injuries by electric shock.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction .................... 4 2. Safety + Environment ................4 2.1 Precautions ..................4 2.2 Potential Risks ................. 4 3. Unpacking ....................4 4. Description ....................5 4.1 General .................... 5 4.2 Optional accessories ............... 5 4.3 Controls ................... 5 4.3.1 Bluetooth-MP3/WAV-Player (Option) .........

  • Page 4: Introduction

    3. Unpacking 1. Introduction The EasyPort is a high quality powered loudspeaker for a wide range Your EasyPort FP-22 modular comprises the following components: of applications. It allows you to set up a mobile or fixed sound FP-22 modular self-powered loudspeaker system quickly and easily.

  • Page 5: Description

    4. Description 4.3 Controls (Refer to illustration on page 14) Most controls on the FP-22 are located on the back of the speaker. 4.1 General The squelch control (10) and the channel selector switch (11) for the radio receiver, which is fitted as an option, are located under FP-22 modular the flap in the cover.
  • Page 6 (19) Speakon output port for FP-22 passive wired mic Passive additional speaker FP-22 passive can be connected (8) input to FP-22 modular with loadspeaker cable. (26) This balanced female XLR connector allows you to connect a wired microphone (optional) via a standard microphone cable with a Note: male XLR connector (optional).

  • Page 7: Bluetooth-Mp3/Wav-Player (Option)

    4.3.1 Bluetooth-MP3/WAV-Player (Option) OVERVIEW OF THE CONTROLS Label Function Bluetooth receiver On/off switch and volume control (31) ON/MIN/MAX (32) LINK Activates Bluetooth "pairing" mode (33) LOCK/SCAN- Bluetooth connection status display Your Bluetooth MP3/WAV player consists of 2 separate basic devices, LEDs each of which can be separately adjusted and switched on via its own volume control.
  • Page 8 BASIC FUNCTIONS of the Bluetooth player (available without remote control) (37) Multifunction display (31-33) Operation of the bluetooth receiver The display (37) shows all necessary information about the player status in the upper area. Below this is the name of the track being played (ID3 tag), as well as its track number When the Bluetooth receiver is used, it must first be switched and the total number of tracks available on the selected...
  • Page 9 ADVANCED FUNCTIONS of the MP3/WAV player (only (51) Changing the playback medium available via remote control) If 2 playback media (USB and SD/MMC) are inserted in the player at the same time, the active medium can be changed by pressing (45-46) Folder jump This function allows you to jump from one folder of the [USB/SD] (51).

  • Page 10: Setting Up

    5.3.1 Total Discharge Protection Circuit 5.3 Powering Up (Battery Operation) The EasyPort FP-22 modular has been designed primarily for battery Discharging a battery totally may cause extensive damage. We operation. Before first operating the EasyPort or if the unit has not...

  • Page 11: Wireless Micophone System

    In order to ensure consistent coverage and intelligibility from the first to the last row of the auditorium, Plug the supplied IEC cable into the recharge battery jack (1) Place the EasyPort FP-22 modular/passive as high as on the EasyPort rear panel. possible using a loudspeaker stand.

  • Page 12: Specifications

    8. Specifications Model FP-22 modular Model FP-22 passive electro-acoustical features electro-acoustical features acoustic design passive loudspeaker system acoustic design active, battery-powered loudspeaker system 2-way, bass reflex 2-way, bass reflex components 8“ / 1“ compression driver with short horn components 8“ / 1“ compression driver with short horn operating mode passive (for operation with FP-22 modular) operating mode...

  • Page 13: Installing Of The Optional Bluetooth-Mp3/Wav-Player

    The FP-22 modular was designed in such a way that specialised dealers can install the radio receiver independently, following successful completion of an installation training course at Fohhn Audio AG. Please contact your dealer. Connect the cabling to the Bluetooth MP3/WAV player as shown.
  • Page 15 Tel. +49 7022 93323-0 Großer Forst 15 Fax +49 7022 93324-0 72622 Nürtingen www.fohhn.com Deutschland info@fohhn.com Die Fohhn Audio AG behält sich vor, unangekündigt Änderungen am Produktdesign oder Technologien vorzunehmen. Alle Angaben ohne Gewähr. © 2022, Fohhn Audio AG, Deutschland.
