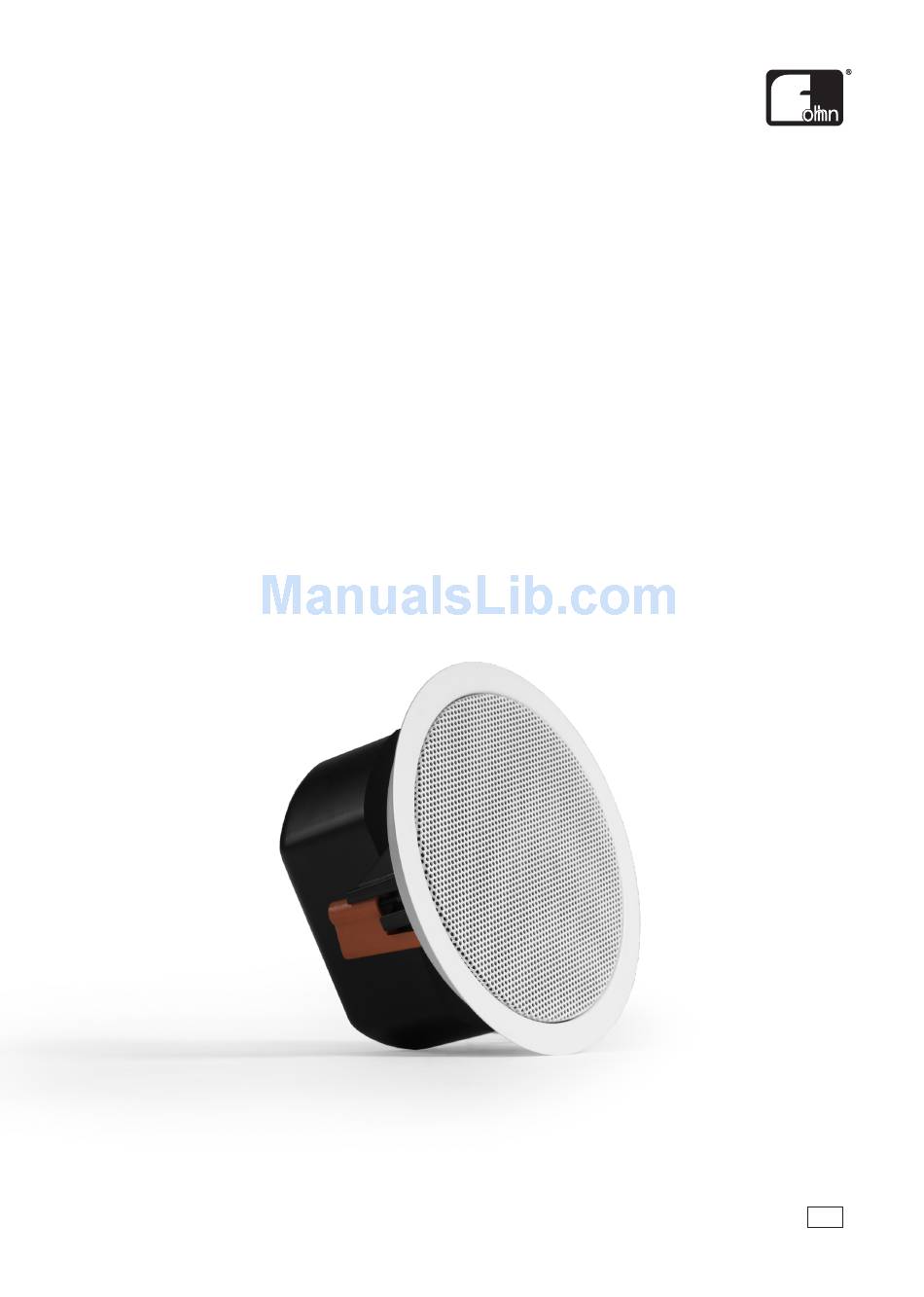

- Page 1 USER MANUAL INTEGRATO-SERIES IG-100 CEILING SPEAKER Please read this user manual through carefully before putting the system into operation and keep it for future reference.
-
Page 2: Table Of Contents
Contents 1.1 Important Safety Instructions 4 1.1.1 Explanation of Terms 4 1.1.2 General Safety Instructions 4 1.1.3 Acoustic Safety Information 5 1.1.4 Connections and Cabling 5 1.2 Operating Conditions 6 1.2.1 Information on Abnormal Operation 6 1.3 Storage and Transportation 6 2. - Page 3 5. Service and Repair 22 5.1 Maintenance Measures 22 6. Appendix 23 6.1 Environmental Information 23 6.2 CE Marking and Declaration of Conformity 23 6.3 Trademarks 23 6.4 Disclaimer and Copyright 23 6.5 Contact Address 24...
-
Page 4: Important Safety Instructions
1. Introduction and General Instructions Congratulations on the purchase of your INTEGRATO IG-100 ceiling loudspeaker. Specially developed as an unobtrusive system for installation in ceilings and walls, the speaker has been kept very compact in response to demand. 1.1 Important Safety Instructions Please read the following safety instructions in their entirety before putting this device into operation. -
Page 5: Acoustic Safety Information
If necessary, please contact your FOHHN dealer and the transportation company immediately. 1.1.3 Acoustic Safety Information FOHHN systems are capable of generating very high sound pressure levels, which can cause irreparable damage to hearing. Warning: To avoid potential hearing impairment, never stand in close proximity (1 metre or less) to a device while it is in operation. -
Page 6: Operating Conditions
Never expose the device to strong vibration. 1.2.1 Information on Abnormal Operation The device should be immediately inspected by a FOHHN AUDIO AG approved service partner if a foreign body or liquid has got into the interior of the device, ... -
Page 7: The Product
2.1 Product Description The INTEGRATO IG-100 is a compact ceiling speaker with 2-way coaxial design: The loudspeaker is equipped with a 4″ woofer – with a 0.75″ high frequency driver placed in front – and a crossover with high frequency driver protection. -
Page 8: Installation
3. Installation The IG-100’s exceptionally flat design makes it suitable for a range of installation situations: in suspended ceilings with at least 100 mm installation depth in concrete structures – in concrete ceilings with the aid of installation housing: To build the IG-100 into a concrete ceiling, we recommend the HaloX®... -
Page 9: Preparation
3.1 Preparation If your IG-100 ceiling loudspeaker is no longer the colour you desire, you have the possibility to simply re-paint any visible parts yourself, such as the front grille and mounting ring. This is relatively straightforward. a) Remove the front grille (see Chapter 3.3) and paint this separately. b) Detach the supplied frame painting template from its cardboard surround and place it centrally on the baffle. -
Page 10: Safety Eyelet
3.4 Safety Eyelet On the side of the enclosure, to the right of the cable outlet, is an eyelet for securing the loudspeaker in the ceiling using a safety cable. TIP: Before actually installing the speaker, we recommend fitting a safety cable and securing the loudspeaker via the eyelet. -
Page 11: Mounting Clamps
3.6 Mounting Clamps Thanks to its three mounting clamps, the IG-100 can be easily, quickly and safely installed. To ensure secure mounting, the ceiling thickness should not exceed 37 mm! Depending on the ceiling thickness, it is intended that the mounting clamps be used in one of two positions: Mounting clamps in their factory positioning for Mounting clamps rotated for ceiling ceiling thicknesses of 0 mm to 18.5 mm... -
Page 12: Installing The Ceiling Loudspeaker
3.7 Installing the Ceiling Loudspeaker Install the IG-100 as follows: a) With the front grille removed, slide the loudspeaker - which is secured via its rear eyelet - into the specially created ceiling cut out. b) Tighten the three fixing screws with a cross-head screwdriver. The three mounting clamps will fold out and pull the IG-100 into the ceiling. -
Page 13: Technical Documentation
4. Technical Documentation 4.1 Technical Data Electroacoustic features Acoustic design ceiling loudspeaker, 2-way coaxial ″ ″ Components 1 x 4 weather resistant cone / 0.75 tweeter with self-resetting HF protection Power rating (16 ohms, nominal) [1] 50 W Power rating (16 ohms, program) [2] 100 W Power rating (Peak) [3] 200 W... - Page 14 Ceiling cut-out diameter Ø 176 mm Weight [7] 1.8 kg Optional features Optional colours all RAL colours [1] according to IEC-60268-5 long term [2] according to IEC-60268-5 short term [3] Peak, 20 ms with bandpass filtered pick noise signal according to IEC 60268- 2, at one octave above the lower limit of the frequency range [4] 2.83 V at 8 ohms (2 V at 4 ohms, 4 V at 16 ohms) at a distance of 1 meter under anechoic halfspace conditions...
-
Page 15: Technical Drawings
4.2 Technical Drawings... -
Page 18: Measurement Diagrams
4.3 Measurement Diagrams Polar response, horizontal... - Page 19 Conical coverage, horizontal Directivity...
- Page 20 Frequency response Impedance...
- Page 21 Spectogram...
-
Page 22: Service And Repair
For details of a FOHHN Service provider in your area, please contact us at the address on the final page. Keep the packaging for your device so that, in the event of any problem occurring, it can be returned in its original packaging. -
Page 23: Appendix
(images, text and other representations) is always complete, correct and current. FOHHN AUDIO AG therefore reserves the right to make changes or additions to the given information at any time. Neither FOHHN AUDIO AG (as a public limited company), nor its Executive Board or employees take any responsibility for direct or indirect damage, including loss of profit, which arises as a result of, or in connection with, the information in this manual. -
Page 24: Contact Address
6.5 Contact Address FOHHN AUDIO AG Hohes Gestade 3-8 72622 Nürtingen Germany Tel. +49 7022 93323-0 Fax +49 7022 93324-0 www.fohhn.com info@fohhn.com DB0090X 04/18...
