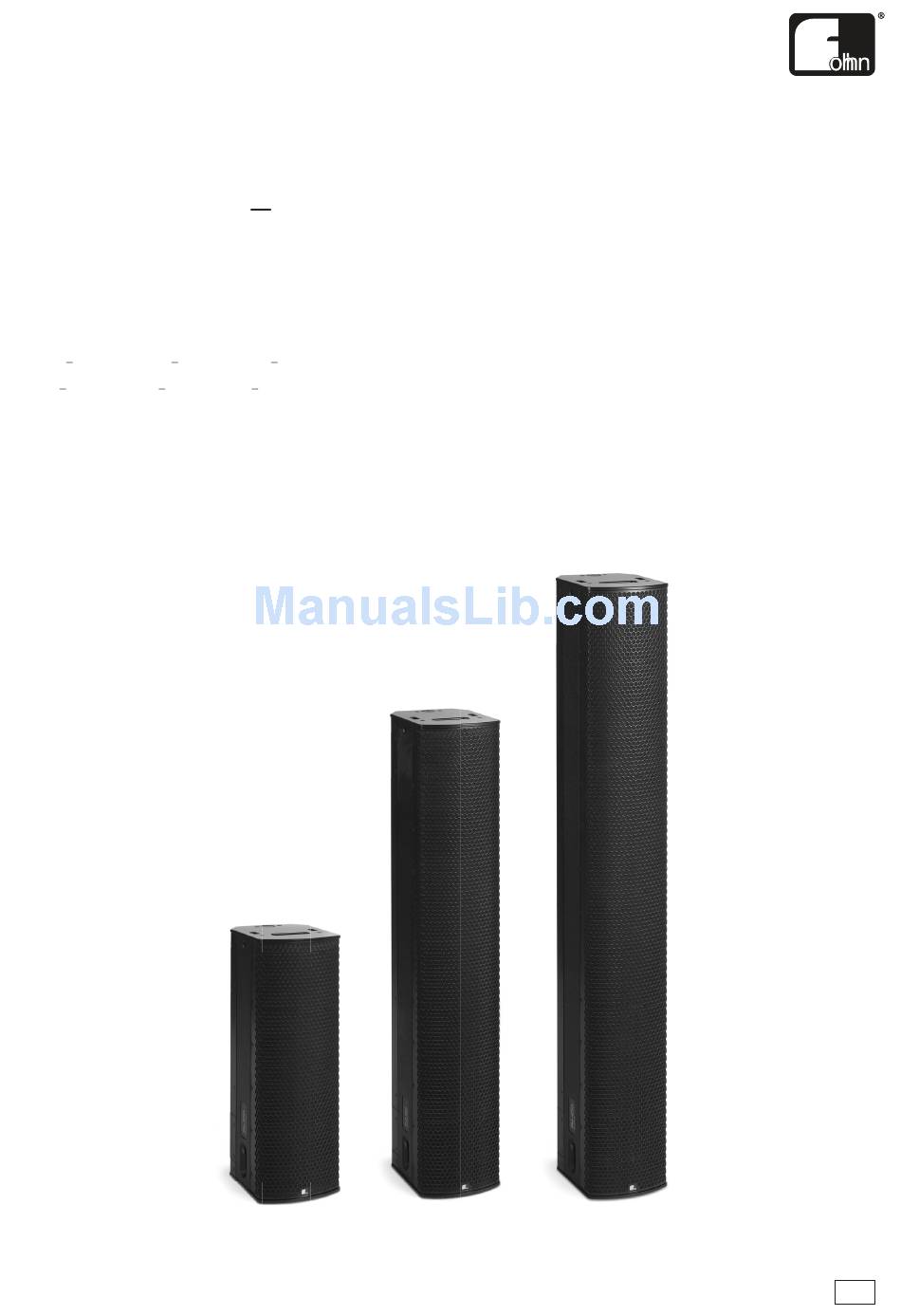

USER MANUAL
FOCUS SERIES
FOCUS MODULAR
MODULAR BEAM STEERING SYSTEMS
FMI 100 / FMI 110 / FMI 400
FM 100 / FM 110 / FM 400
Please read this user manual through carefully before putting the system into operation
and keep it for future reference.
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMI-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Fohhn FMI-100

Summary of Contents for Fohhn FMI-100

  • Page 1 USER MANUAL FOCUS SERIES FOCUS MODULAR MODULAR BEAM STEERING SYSTEMS FMI 100 / FMI 110 / FMI 400 FM 100 / FM 110 / FM 400 Please read this user manual through carefully before putting the system into operation and keep it for future reference.
  • Page 2 3.2.4 Rain covers for mobile operation .................. 3 7 3.3 Cabling ............................ 3 9 3.3.1 Connecting mobile variants (FM) .................. 3 9 3.3.2 Connecting installation variants (FMI) ................. 4 0 3.3.3 Status messages for both variants .................. 4 3 3.4 Setting up ............................ 4 5 3.4.1 Configuration ........................ 4 5 3.4.2 System Requirements for the Computer ................ 4 5 3.4.3 Downloading and Installing Fohhn Audio Soft .............. 4 6 3.4.4 Fohhn-Net Cabling and ID Allocation ................... 4 7 3.4.5 Identifying Connected Systems .................... 4 8 3.4.6 Renaming Devices / Channels .................... 5 0...
  • Page 3 5. Application Examples ........................ 6 1 5.2 Larger venues with a single audience level ................. 6 3 5.3 Larger venues with two audience levels .................. 6 7 5.4 Larger venues with three or four audience levels ............... 7 0 6. Technical Documentation ......................... 7 2 6.1 Technical Specifications....................... 7 2 6.1.1 FMI-100 / FM-100 ........................ 7 2 6.1.2 FMI-110 / FM-110 ........................ 7 5 6.1.3 FMI-400 / FM-400 ........................ 7 8 6.2 Technical Drawings ........................ 8 1 6.2.1 FMI-100 / FM-100 ........................ 8 1 6.2.2 FMI-110 / FM-110 ........................ 8 2 6.2.3 FMI-400 / FM-400 ........................ 8 3...
  • Page 4 10.4 Protection Classes and Protection Types .................. 8 9 10.5 Disclaimer and Copyright ...................... 9 0 10.5.1 Disclaimer ........................... 9 0 10.5.2 Copyright .......................... 9 0 10.6 Contact Address ........................ 9 0...

  • Page 5: Introduction And General Instructions

    1. Introduction and General Instructions Congratulations on the purchase of your Fohhn® Focus Modular system. As with all our Focus-Series systems, Focus Modular loudspeakers are equipped with the very latest Fohhn Beam Steering technology. This allows users to adjust the system’s vertical beam dispersion characteristics in real time, enabling optimum sound coverage – even in the most acoustically challenging venues. All the functions of a Focus Modular system can be controlled using a single piece of software, Fohhn Audio Soft. All Focus Modular systems are available in both mobile and fixed installation variants. In order to benefit from all the advantages of your Focus Modular system and to guarantee smooth operation, please read the following user instructions carefully before putting the system into operation and keep this manual for future reference! 1.1 Important Safety Instructions Please read the following safety instructions in their entirety before putting this device into operation. Keep these instructions near the device at all times. Reading the user manual does not...

  • Page 6: General Safety Instructions

    To avoid danger to life or limb, please ensure that all personnel involved in installing or dismantling such a system have read and understood the contents of this manual. The information presented here should, however, be regarded as accompanying advice and it does not affect the ultimate responsibility of the user to ensure safe on-site operation of a Focus Modular system. Warning: To prevent injury caused by a fallen system, this device must be securely mounted in accordance with the assembly instructions and current safety guidelines. Only use the specially designed Fohhn® mounting accessories or components, which are explicitly specified in the assembly instructions. this device must be regularly inspected for any signs of wear or loosening of the load-bearing connections. it is necessary to ensure that the mounting points on a building or structure have sufficient load-bearing capacity and are structurally viable. all components of a hung (i.e. “flown”) device must be visually inspected before installation. Any part showing signs of deformity, cracks, rust, fractured welds or other signs of wear must not be used under any circumstances.

  • Page 7: Electrical Safety Information

    If necessary, please contact your Fohhn® dealer and the transportation company immediately. Contact details can be found in the appendix to this user manual. 1.1.3 Electrical Safety Information Focus Modular systems are Protection Class 1 appliances. They are built and certified in accordance with the VDE safety measures for electronic devices and, safety-wise, leave our factory in perfect condition. The devices comply with all currently applicable EMC directives: Confirmed by the attached CE marking.

  • Page 8: Connections And Cabling

    Protect any laid cables from mechanical damage, or unnecessary traction. Avoid excessive tightening of the screws on connection terminals! (This only applies to fixed installation variants.) The wiring up of loudspeakers should only be carried out by suitably qualified personnel! Important: To enable communication between a Windows PC with Fohhn Audio Soft installed and the Focus Modular loudspeaker system, a Fohhn® network adapter (e.g. NA-11 Fohhn-Net USB Adapter or NA-3 Fohhn-Net Ethernet Adapter) is required. More information can be found in Chapter 3 of this user manual! 1.2 Operating Conditions Please note the following when operating your Focus Modular system: The permitted ambient temperature of the device during operation ranges from 0 °C to...

  • Page 9: Information On Abnormal Operation

    The temperature of the Focus Modular loudspeaker system will be displayed in Fohhn Audio Soft. Shutdown can also occur if the product is exposed to direct sunlight or very high environmental temperatures. Reliable operation is only guaranteed in compliance with the permissible ambient...

  • Page 10: Product Description 1

    2. The Product 2.1 Product Description Fohhn® Focus Modular loudspeaker systems, which form part of the Focus-Series, are active, modular loudspeaker systems designed both for fixed installation use and for mobile applications. The special feature of these systems is their integrated Beam Steering Technology: Using dedicated control software, Fohhn Audio Soft, the systems’ beam dispersion characteristics can be intuitively controlled in real time and thereby optimally adjusted to suit the particular application. Conventional mechanical tilting, i.e. the physical adjustment of the loudspeaker at the venue, is therefore no longer necessary. The current version of the required Fohhn Audio Soft software can be downloaded free of charge from www.fohhn.com The following modules are available: • FMI-100 / FM-100: High frequency module •...

  • Page 11: Product Identification 1

    The low-mid / full range module is equipped with 32 long excursion cone speakers. The chassis are driven in pairs by 16 Class-D amplifier channels. The frequency range here is 60 Hz to 17 kHz. Brief overview of the modules: Module FMI-100 / FM-100 FMI-110 / FM-110 FMI-400 / FM-400 Components 8 x 1“ drivers 16 x 1“ drivers 32 x 4“ chassis Amplifier channels 8 x 120 W, Class-D 16 x 120 W, Class-D 16 x 120 W, Class-D Frequency range 1 kHz – 20 kHz 1 kHz – 20 kHz 60 Hz – 17 kHz Full range use Yes The modules can be acoustically and mechanically combined as required, in order to suit the particular application and space situation. Long reach and optimal sound results can be achieved even in acoustically difficult situations.
  • Page 12 Laterally attached plate with type designation Both variants can be additionally identified via their connector panels: • On FMI-XXX modules, the connection panels are located behind a cover in the speaker enclosure. • On FM-XXX modules, the rear connector panels allow direct access to the connections. FM-XXX upper connector panel...

  • Page 13: Delivery And Accessories 1

    Please check your product carefully for any signs of transport damage and, in the event of any damage having occurred, inform your dealer and the transportation company immediately. Please also check that the packaging contains all the components belonging to the device. Focus Modular system is delivered with the following: Your Installation variants: • 1 x FMI-100, FMI-110 or FMI-400 • 1 x Quick Start Guide • 1 x three-part cable set for the electrical connection of two adjacent FMI modules (supply voltage, audio signal, Fohhn-Net network) •...
  • Page 14 Soft installed and one of the two following Fohhn® network adapters: Product ID Article number Description NA-11 6115-00000 Fohhn-Net USB Adapter NA-3 6104-00000 Fohhn-Net Ethernet Adapter The following accessories are available: Product ID Article number Description WFM-100 8441-B0000 Wall-mounting bracket for FMI-100, black WFM-110 8442-B0000 Wall-mounting bracket for FMI-110, black WFM-400 8443-B0000 Wall-mounting bracket for FMI-400, black VFM-1 8444-B0000 Flying adapter, black, including: - 2 x shackles with 1000 kg WLL (Working Load Limit) - 1 x shackle with 2000 kg WLL CC-300 8320-B0000 Cardan Clamp, black, with rotation brake, for use with VFM-1, 300 kg SWL (Safe Working Load)

  • Page 15: Unpacking 1

    2.4 Unpacking When unpacking the system, we recommend the following procedure: 1. Open the packaging and take out the product. 2. Examine the product for any visible signs of transport damage. 3. If the product has been damaged, inform the transportation company immediately. A claim for transport damage can only be made by the recipient (that is to say, you). Keep the packaging for examination by the transportation company. 4. As a general rule, always retain the packaging. Despatch the product in appropriate outer packaging or in a suitable flightcase.

  • Page 16: Installation 1

    3. Installation 3.1 The Focus Modular Load-Bearing System Each Focus Modular module has two aluminium supporting tubes integrated into its enclosure. These are located behind the right and left side panels respectively, and can be accessed via openings in the aluminium covers that form the top and bottom ends of the enclosure. The two tubes carry the entire weight of the system – both must therefore always be used during installation! At the lower end of the supporting tube is a steel slider. This can be extended, enabling the Focus Modular module to be joined to another module. A knurled-head screw acts as a handle when moving the slider and also keeps the slider locked within the enclosure during transportation, or when the system is not in use.
  • Page 17 To connect the Focus Modular modules to one another, or to flying adapters, two ball lock pins are used. In the case of FMI modules, these are supplied loose, whereas with FM modules they are attached to the upper connector panel via safety cables. During transportation, these ball lock pins can be securely housed in two pilot holes on the connector panel. On the back of each Focus Modular module, two M8 threaded inserts can be found at both the top and bottom. These are solely intended for attaching WFM wall brackets.

  • Page 18: Assembling And Dismantling A Mobile Focus Modular System 1

    3.2 Assembling and dismantling a mobile Focus Modular system 3.2.1 General rules on assembly Number of individual modules The maximum number of modules in a Focus Modular stack is limited to six. VFM-1 flying adapter To safely fly one or more Focus Modular modules, a VFM-1 flying adapter is required. Using any other form of suspension is expressly forbidden! The VFM-1 has three suspension points for different purposes: (a) Drilled hole with 17 mm diameter, centre If one or more modules are attached here, the module(s) will hang vertically without any degree of tilt. In this instance, use the supplied 2000 kg shackle in accordance with DIN 13889. If other shackles are used, these must guarantee a Working Load Limit (WLL) of at least 2000 kg with an operating ratio (safety factor) of at least 6. The pin diameter of the shackle must be no less than 16 mm. If using (b) as an attachment point, (a) can then be used for a safety cable, provided that any potential outward swing of the module is also prevented in the event of a failure.
  • Page 19 (b) Drilled hole with 17 mm diameter, rear (b) can primarily be attached to elements that enable horizontal alignment of the Focus Modular system, if point (a) is being used for flying. If cables are being used for this purpose, the tensile direction should, ideally, be approximately horizontal, in order to prevent the modules from tilting. If (b) is used as an attachment point, a slight forward tilt of one or more modules can easily be achieved without the need for a second attachment point to be used.
  • Page 20 2. The VFM-1’s rear attachment point (b) can be used for mechanically tilting a Focus Modular system (see above). This enables a slight forward inclination of individual modules, or short stacks containing several Focus Modular modules, without using a second suspension point. For individual modules, the following inclination angles are possible from vertical: • FM-100: 14° inclination • FM-110: 9° inclination • FM-400: 8° inclination For stacks involving several modules, the following inclination angles are possible (the columns...
  • Page 21 Secondary safety cables The Focus Modular VFM-1 flying adapter is designed with an operating ratio of 10:1. However, despite all checks and worst-case scenario considerations, any component could fail during the flow of force between load and suspension point: This could either be a shackle or a motorized chain, or even the load bearing point in the ceiling itself. To guarantee the best possible degree of safety for staff, performers and public, we strongly recommend the use of safety cables or chains as a secondary safety component at all times – even in the kind of situation where it should not normally be required. This is even more important since Focus Modular has been designed as a “single-point-suspension” system. When selecting safety cables or chains, their load-bearing capacity must be such that they can resist the entire weight of the system (loudspeaker modules, flying adapter, cables, motors etc.) while complying with all local regulations. They should also be attached to a secure point that is structurally separate from the actual system suspension point.
  • Page 22 It is recommended that you do not use both of these points for flying a Focus Modular system, since this is virtually impossible without some lateral inclination occurring, which is forbidden.

  • Page 23: Flying From The Hook Of A Crane Or Chain Hoist 2

    To avoid any confusion during assembly, mark each module, e.g. with a sticker on its front grille that shows the Fohhn-Net ID. This can be removed before the system is actually flown. Further information on allocating and changing ID numbers can be found in the “Fohhn-Net Cabling and ID Allocation” section (page 47), as well as in the Fohhn Audio Soft user manual. This can be downloaded free of charge from our website: www.fohhn.com It may also be helpful to put together a brief overview of all integrated Fohhn-Net devices, along with their respective ID numbers. 2.) Connect the top module to the VFM-1. Only use the ball lock pins which are located in their pilot holes in the connector panel. The VFM-1 must be slightly raised in order to do this. Make sure that both pins are fully inserted and that their collars are fastened to the metal of the supporting tube.
  • Page 24 To correctly secure the system, please pay careful attention to the “Secondary Safety Cables” section (page 21). 5.) Connect the system to its supply cables for power, network (Fohhn-Net) and audio signal. (For details on this, please refer to the “Cabling“, section on page 39.) “Ease” the cables to prevent them from dragging on the VFM-1.
  • Page 25 6.) Raise the currently suspended module to a height that enables you to position the next module directly underneath it. 7.) Carefully lower the suspended module until it sits on top of the standing module. Then align both modules horizontally with one another. Stop the motor as soon as the chain loses its tension! Never put your hands in between the two modules!
  • Page 26 8.) Loosen the knurled-head screws on the upper module’s connecting bar and slide this into the lower module’s supporting tube. Keep the knurled-head screws loosened for the moment. 9.) Connect the two modules. Only use the ball lock pins which are located in their pilot holes in the connector panel. Make sure that both pins are fully inserted and that their collars are fastened to the metal of the supporting tube. The distance between the T-handle on the pin and the speaker enclosure should be no more than ca. 10 mm! 10.) Connect the lower module to its supply cables for power, network (Fohhn-Net) and audio signal. (For details on this, please refer to the “Cabling“, section on page 39.) Use the supplied cable set for connecting the modules.
  • Page 27 11.) Repeat steps 6 to 10 for each module in the stack. 12.) Hoist the completed Focus Modular system to its final working height. Fasten the safety bridle to the relevant points (see “Secondary Safety Cables” section on page 21). The VFM-1’s rear attachment point (b) can be used for horizontal alignment of the system (see above).
  • Page 28 13.) Dismantling the system is done in reverse order. Therefore, please observe the following: • Make sure that the surface onto which the system will be lowered can take the corresponding load, and is also level. • After the system has been lowered to the ground, the rigging motor must immediately be switched off! The chain should lose its tension, yet it must not be allowed to noticeably sag. Otherwise the system could tip over. • Never attempt to remove ball lock pins that are under load! This leads to risk of injury! •...

  • Page 29: Flying From Traverses Or Bars 2

    3.2.3 Flying from traverses or bars Cardan Clamp CC-300 To safely fly either a single module, or a stack consisting of several Focus Modular modules from traverses or bars, round slings and safety chains can be used as described in the previous section – unless a CC-300 Cardan Clamp is available. Using a CC-300 has greater advantages with regard to ease of use and horizontal orientation. The CC-300 consists of three components: (a) Half Coupler The Half Coupler used here is a fixed system component, which should not be removed or substituted for other components that may appear identical in construction.

  • Page 30: Cabling 3

    To avoid any confusion during assembly, mark each module, e.g. with a sticker on its front grille that shows the Fohhn-Net ID. This can be removed before the system is actually flown. Further information on allocating and changing ID numbers can be found in the “Fohhn-Net Cabling and ID Allocation” section (page 48), as well as in the Fohhn Audio Soft user manual. This can be downloaded free of charge from our website: www.fohhn.com It may also be helpful to put together a brief overview of all integrated Fohhn-Net devices, along with their respective ID numbers. 2.) Connect the top module to the VFM-1. Only use the ball lock pins which are located in their pilot holes in the connector panel. The VFM-1 must be slightly raised in order to do this. Make sure that both pins are fully inserted and that their collars are fastened to the metal of the supporting tube.
  • Page 31 3.) Connect the VFM-1 to the CC-300. This is done by pushing the CC-300’s Y-branch onto the VFM-1. The ball lock pin will then be fully inserted. The retaining ball must unlock without obstruction on the other side. This must only be done using the 10x50 ball lock pin that is fixed to the CC-300’s Y-branch. Loosen the rotation brake’s knurled-head screw. 4.) Lower the traverse from which the system is to be flown until the CC-300’s half coupler can be attached. Manually tighten the clamp in the first instance.
  • Page 32 5) Raise the traverse until the first module is hanging freely above the floor. The CC-300 will have now aligned itself vertically. Firmly tighten the nut on the half coupler and secure it with the lock nut. 6.) Fasten the safety bridle to the 1000 kg shackles, as necessary. If using separate cables or chains for both points, make sure that these are exactly the same length and that they are attached to the same point. To correctly secure the system, please pay careful attention to the “Secondary Safety Cables” section (page 21).
  • Page 33 7.) Connect the system to its supply cables for power, network (Fohhn-Net) and audio signal. (For details on this, please refer to the “Cabling” section on page 39.) “Ease” the cables to prevent them from dragging on the VFM-1. 8.) Turn the module around the axis of the CC-300 and align it horizontally. As the alignment may need further adjustment following assembly, only slightly tighten the knurled- head screw on the rotation brake. Otherwise this can be manually tightened in order to prevent unwanted rotation.
  • Page 34 9.) Raise the traverse with the first module to a height that enables you to position the next module directly underneath it. 10.) Carefully lower the suspended module until it sits on top of the standing module. Then align both modules horizontally with one another. Stop the motor as soon as the chain loses its tension! Never put your hands in between the two modules!
  • Page 35 11.) Loosen the knurled-head screws on the upper module’s connecting bar and slide this into the lower module’s supporting tube. Keep the knurled-head screws loosened for the moment. 12.) Connect the two modules. Only use the ball lock pins which are located in their pilot holes in the connector panel. Make sure that both pins are fully inserted and that their collars are fastened to the metal of the supporting tube. The distance between the T-handle on the pin and the speaker enclosure should be no more than ca. 10 mm! 13.) Connect the lower system to its supply cables for power, network (Fohhn-Net) and audio signal. (For details on this, please refer to the “Cabling“, section on page 39.) Use the supplied cable set for connecting the modules.
  • Page 36 14.) Repeat steps 9 to 13 for each module in the stack. 15.) If the horizontal alignment of the completed system needs readjusting, raise the system to an accessible height and adjust it by turning the lowest module. 16.) Dismantling the system is done in reverse order. Therefore, please observe the following: • Make sure that the surface onto which the system will be lowered can take the corresponding load, and is also level. • After the system has been lowered to the floor, the rigging motor must immediately be switched off! Part of the weight may otherwise fall on the Focus Modular system: This can lead to both component damage and risk of injury to personnel!
  • Page 37 3.2.4 Rain covers for mobile operation Every Focus Modular module is fully active, containing not only the Class-D amplifiers for the various drivers and the switching power supplies, but also all the necessary DSPs for signal processing. In order to protect these electronics from moisture, a rain cover is essential if using a Focus Modular system out of doors. Never use a Focus Modular module in the rain without its original Fohhn® rain cover. Water ingress can cause danger to life through electric shock. The system itself can also be ruined. Only use original rain covers, otherwise the operational cooling process may be impaired. This can lead to the module overheating and shutting down. Fit the rain cover as follows: 1.) Guide both of the VFM-1’s mounting brackets through the slit in the lid of the rain cover. The fabric surface should now be facing upwards.
  • Page 38 3.) Join the lid to the sides of the cover using the zipper. The actual positioning of the rain cover on the loudspeaker enclosure is determined by the sewn-in magnets, which adhere to the front grille. Move the magnets and pull the cover tightly forwards and downwards simultaneously. 4.) Close the rain cover by pulling the zipper that runs the length of its side. The remaining opening above the connector panel will then be covered by the two flaps, which are pressed together and connected to the rain cover using Velcro strips. Keep these on the inside. Die verbleibende Öffnung oberhalb des Anschlussfelds wird danach mit den beiden Laschen abgedichtet, indem diese mit Klettband aufeinander gedrückt und mit dem Regenschutzdeckel verbunden werden. Halten Sie dazu von innen dagegen. 5). The closed rain cover is kept away from the module’s rear panel by clamping elements. The two connector panels through which the Focus Modular system maintains its air supply and extraction are also equipped with clamping elements. In order not to affect their functionality, never shut these openings and never press the rain cover flat against the loudspeaker.
  • Page 39 3.3 Cabling 3.3.1 Connecting mobile variants (FM) The line of supply runs from the top module to all the other connected Focus Modular modules. Mains power, analogue audio signal and network (Fohhn-Net) cables are all connected to the upper connection panel. FM-XXX upper connection panel Focus Modular’s mobile variants have the following connectors on the upper connection panel: 1. Mains The mains power supply cable is connected to the PowerCON socket. The related power LED shows the current mains supply status. The universal power supply permits a supply voltage of 100 – 240 V / 16 A / 50/60 Hz. 2. Fohhn-Net Remote IN The Focus Modular module is connected to the Fohhn-Net via this EtherCON socket. The receive and send LEDs flash when Fohhn-Net control data is received and sent. 3. Fohhn-Net Remote OUT Fohhn-Net control signals can be looped through via the parallel Link-Out socket. 4. Audio Input The audio input signal is fed in via the analogue XLR input socket. This input is transformer-balanced and designed for +4 dBu signal level(s). 5. Audio Output The audio signal is looped through via the analogue output socket.

  • Page 40: Connecting Installation Variants (Fmi) 4

    FM-XXX lower connection panel The lower connection panel has: 1. Mains Link The PowerCON socket enables the mains supply voltage to be looped through to a subsequent module. 2. Fohhn-Net Remote Out The parallel Link-Out socket enables Fohhn-Net control signals to be looped through. 3. Audio Output The analogue XLR output socket allows the audio signal to be looped through. Use the supplied cable sets for looping all signals through to a subsequent module. Link-Out sockets are found on the upper connection panel. 3.3.2 Connecting installation variants (FMI) The line of supply runs from the top module to all the other connected Focus Modular modules.
  • Page 41 After fitting the cover, the power LED will no longer be visible during operation. However, the mains supply status will be displayed in Fohhn Audio Soft. 2. DATA Stack Link Input This RJ-45 socket is exclusively intended for the connection of Focus Modular modules within a stack. Please note that this socket is NOT suitable for the connection of further stacks, or other Fohhn® devices! FMI-XXX upper connection panel 3. AUDIO Stack Link Input This RJ-45 socket is exclusively intended for the connection of Focus Modular modules within a stack. 4. Net These Phoenix terminal blocks are used for connecting the module to the Fohhn-Net. Connecting a Focus Modular stack to the Fohhn-Net can only be done using these Phoenix terminal blocks. 5. Fault This potential-free open/close contact is used for fault notification. The fault contact relay can be operated with a maximum of 50 V and 1 A.
  • Page 42 This connection is transformer-balanced, potential-free and designed for +4 dBu signal levels. Pilot tone monitoring can be (de-)activated in Fohhn Audio Soft. Further information on this can be found in the separate Fohhn Audio Soft user manual. 7. In 1 This is the audio input for installation variants (FMI). It takes the form of a Phoenix terminal block. The connection is transformer-balanced, potential-free and designed for +4 dBu signal levels. 8. 230 V Mains This connector is exclusively intended for service purposes. 9. 24 V This is an internal test connection, which is exclusively intended for service purposes. Emergency power may not be plugged into this. The Net, Fault, In 1 and 2 connections are duplicated. The lower part of the module has a second connection panel with the following connectors: FMI-XXX lower connection panel 1. Mains Link The PowerCON socket enables the mains supply voltage to be looped through to a subsequent module.

  • Page 43: Status Messages For Both Variants 4

    ⏊ relevant In 1 Phoenix plug, then plug this into the upper connection panel’s In 1 Phoenix terminal block. Proceed in the same way when using In 2. 3. Screw the wire ends of the Fohhn-Net supply cable to the corresponding and pins of the ⏊ relevant Net Phoenix plug, then plug this into the Net terminal block on the loudspeaker. Use the supplied cable set for looping through all signals to a subsequent module. The Link-Out connectors are on the lower connection panel. Cable routing is via an outlet in the enclosure lid. The...
  • Page 44 The LED glows red: The module is connected to the mains power supply, but is in Standby mode. • The LED flashes red and green alternately: There is a hardware fault. In this situation, contact the service department at Fohhn Audio AG. Network Connection Status Focus Modular systems inform of Fohhn-Net data exchange with the help of two LEDs. On mobile variants (FM), these LEDs are located immediately to the left of the Fohhn-Net Remote IN socket. On installation variants (FMI), these LEDs are under the cover plate in the Phoenix terminal area and can therefore only be seen during installation. Status conditions are shown as follows: • The send LED flashes: The Focus Modular system is supplying data in response to Fohhn Audio Soft, or rather, the control computer. • The receive LED flashes: The Focus Modular system is receiving data from Fohhn Audio Soft, or rather, from the control computer.

  • Page 45: Setting Up 4

    (mixing desk, playback devices etc.) have been switched on. Switch off in reverse order, disconnecting the Focus Modular systems from the mains power BEFORE switching off all the other components! Otherwise this could result in hearing damage due to loud signals! Nobody should stand directly in front of the loudspeaker systems for any length of time! 3.4.1 Configuration To control your Focus Modular systems, you will need a computer with Fohhn Audio Soft software (Version 4.0 or later) installed and an appropriate Fohhn-Net Adapter: NA-11 Fohhn-Net USB Adapter or NA-3 Fohhn-Net Ethernet Adapter. Example: Controlling Focus Modular via a computer and NA-11 Fohhn-Net USB Adapter 3.4.2 System Requirements for the Computer To use Fohhn Audio Soft, you will need a commercially available computer with the following: • Windows 7 SP1, Windows 8.1 or Windows 10 (32- and 64-Bit versions respectively) •...

  • Page 46: Downloading And Installing Fohhn Audio Soft 4

    – an internet connection is required for this) • a free USB port (for NA-11) or a free Ethernet port (for NA-3) Further tips for running under Windows 10 can be found in the separate Fohhn Audio Soft user manual. This can be downloaded free of charge from the Fohhn website: www.fohhn.com/downloads The Fohhn-Net connection is used for controlling the integrated digital signal processors (DSP). 3.4.3 Downloading and Installing Fohhn Audio Soft Fohhn Audio Soft is directly compatible with all Fohhn® active DSP systems, therefore, no special “Focus Modular series” version of this software is required. Regardless of the loudspeaker systems, you can always work with the same software and within the same user interface. The current version of Fohhn Audio Soft can be downloaded free of charge from: www.fohhn.com If a new version becomes available, proceed as follows to install Fohhn Audio Soft on your computer: 1. Download the latest version of Fohhn Audio Soft to your computer. 2. Locate the Fohhn_Audio_Soft_X.X.X_Setup.exe file on your computer (X.X.X represents the respective version number).

  • Page 47: Fohhn-Net Cabling And Id Allocation 4

    ID allocation for individual modules: In order for an ID to be allocated, each Focus Modular module must first be individually connected to Fohhn Audio Soft. Proceed as follows for each individual module: 1. Connect the Focus Modular module to the mains power (see section 3.3 “Cabling”). 2. Connect the NA-11 or NA-3 Fohhn-Net Adapter to the computer. 3. Link the Fohhn-Net Adapter to the Focus Modular module using the appropriate CAT cable. 4. Start Fohhn Audio Soft. The selected Fohhn-Net Adapter will be automatically recognised. 5. When Fohhn Audio Soft opens, an automatic search starts that results in the listing of all correctly connected Focus Modular modules. If any module is not shown, check all the connections and re-run the search. When doing so, please also note the ID search range. Proceed as follows: 1. In the Devices menu, click on the Search Device / Network Scan dialog. 2. If the module still isn’t shown, check the mains power supply and/or the network cabling in your system. Then repeat step 1. If a Focus Modular module is recognised, this appears with ID 1 (factory setting).

  • Page 48: Identifying Connected Systems 4

    1. Open the Device List view, either via the View menu, or via the corresponding button on the Toolbar. 2. Click with the right mouse button on a module in the Device List display. 3. In the context menu select Change Fohhn-Net ID. 4. In the same dialog, give the Focus Modular module a new ID. 5. Confirm this entry by clicking OK: The module will now have a newly assigned ID. Further information on setting up a Fohhn-Net and on Fohhn-Net ID allocation can be found in Chapter 4.1 “Fohhn-Net Setup“ of the Fohhn Audio Soft user manual. 3.4.5 Identifying Connected Systems Visual identification On the front of every Focus Modular module is a function display with a blue LED. You can switch this LED on or off, or let it flash in order to visually identify the module. 1. In Fohhn Audio Soft, click on the Status button in the Devices view to reveal a window with information on the Fohhn-Net status, the operating time and the temperature of the connected devices.
  • Page 49 2. Click on Sign in the opened context menu: The blue LED on the front of the selected Focus Modular module will begin to flash. 3. When you reset the selection for the module, the LED will revert to its normal mode. Acoustic identification Using Fohhn Audio Soft you can allocate either a sinus tone or pink noise to each loudspeaker system in the Fohnn-Net. 1. Open the Devices view. 2. Click in the respective module on Tools. 3. In the Tools window, click on either the Sine or Noise button: The appropriate button will now be highlighted green and a sinus tone or pink noise will be output.

  • Page 50: Renaming Devices / Channels 5

    3.4.6 Renaming Devices / Channels For better identification within Fohhn Audio Soft, it is recommended that the individual Focus Modular modules are given separate names. Proceed as follows: 1. Open the Device List or Devices view, either via the corresponding entry in the Menu view, or via the respective button on the Toolbar. 2. Click with the right mouse button on the required module in the list (Device List) or in the work space (Devices). 3. In the context menu, select the Rename Device option.

  • Page 51: Loading Loudspeaker Presets 5

    2. Arrange the individual loudspeaker pictograms and/or devices according to the physical positions of the actual loudspeaker systems and/or devices. The arrangement will be saved in Fohhn Audio Soft and will remain until you change the configuration or arrangement. Combining loudspeaker systems In Fohhn Audio Soft, Focus Modular low-mid modules can be combined into one unit. These modules will jointly behave like a single, longer loudspeaker module. To link these modules via...

  • Page 52: Adjusting The Volume Level 5

    3.4.9 Adjusting the Volume Level Now set the volume levels for your individual Focus Modular modules: 1. Open the Devices view. 2. Set the level directly (-80 to +12 dB) using the fader or corresponding text box. The ON/OFF button will switch the relevant channel on or off. The level of an FM-110/FMI-110 module has been designed for operation in a stack with four FM- 400/FMI-400 modules. If a different quantity of FM-400/FMI-400 modules is to be used, the level(s) must be adjusted accordingly. Recommended level adjustments Loudspeaker stack: Input level adjustment: 1x FM-400 + 1x FM-100 FM-100: -8 dB 2x FM-400 + 1x FM-110 FM-110: -14 dB / -8 dB* 1x FM-110 + 2x FM-400 + 1x FM-100 FM-110: - 8dB FM-100: -10 dB 1x FM-110 + 2x FM-400 + 1x FM-110 FM-110: - 8 dB (both modules) 1x FM-110 + 3x FM-400 + 1x FM-110 FM-110: - 6 dB (both modules) *for rising or two audience levels For consistent behaviour of the limiter within the system as a whole, it is important that level adjustments are carried out on input (gain structure).

  • Page 53: Control Via Fohhn Audio Soft 5

    The complete control of your Focus Modular systems can be exclusively carried out via Fohhn Audio Soft. A comprehensive description of the software and all its functions can be found in the separate Fohhn Audio Soft user manual. You can download this free of charge from our website: www.fohhn.com/downloads 4.1 Beam Steering – the functional principle In the audio processing world, the term “Beam Steering“ refers to the process of controlling the beam dispersion characteristics of loudspeaker systems using electronics and software. Through...

  • Page 54: Side Lobe Free Technology 5

    4.1.1 Side Lobe Free Technology Due to their construction, line source and line-array speakers generate unwanted Side Lobes in their vertical axes. These result from the distances between the individual loudspeaker chassis and the finite length of an array. Beam with Side Lobes Focus Modular systems are equipped with Fohhn Side Lobe Free Technology: A specially developed algorithm effectively reduces the side lobes. This results in fewer unwanted sound reflections in the room. Consequently, levels of speech intelligibility are improved and feedback prevention is increased. Optimized beam with Fohhn Side Lobe Free Technology...

  • Page 55: Two Beam Technology (Two Beam Mode) 5

    4.1.2 Two Beam Technology (Two Beam Mode) Fohhn’s in-house developed Two Beam Technology enables the production of two independent beams with separately configurable parameters. In each case, the entire speaker line length is used for reproduction. So when activating the second beam, the sound dispersion still covers the entire frequency bandwidth. All parameters such as the vertical inclination angle and vertical beam width, the acoustic centre position, level and high pass filtering can be separately configured for each beam. This enables an asymmetric beam dispersion to be created for precise sound coverage of two separate listening areas (e.g. stalls and balcony).

  • Page 56: Acoustic Centre 5

    Example of an asymmetric beam Further information on beam configuration and its associated parameters can be found in section 4.7.3 “System Setup (Focus-Series)” of the Fohhn Audio Soft user manual. 4.1.3 Acoustic Centre This function allows you to move the vertical position of a beam’s acoustic centre: Acoustic centre at the top...

  • Page 57: Setup In The Beam Steering View 5

    Acoustic centre at the bottom Further information on setting the acoustic centre can be found in section 4.7.3 “System Setup (Focus-Series)“ of the Fohhn Audio Soft user manual. 4.2 Setup in the Beam Steering View To adjust your Focus Modular system to the venue and the particular application, open the Beam Steering view in Fohhn Audio Soft: This display lets you set all the parameters that are relevant to Beam Steering. Its depiction and management are covered in the following sections: The Device Selection This shows all the Focus-Series devices that are in the system, along with their IDs, names, type/model classifications and current operating status.
  • Page 58 The Device Selection (left), Focus Simulation (centre) and Parameter Field (right) Beam Steering settings in the Parameter Field: • X-Pos (m) This defines the distance of the selected speaker (in metres) in relation to the vertical back wall. • Z-Pos (m) Defines the height of the selected speaker’s lower edge (in metres) in relation to the floor. • Pre-Angle (°) Here you can enter the mechanical inclination of the loudspeaker. This value only influences the display in the Focus Simulation. • Freq. (Hz) Here you can input the reference frequency for calculation and display in the neighbouring Focus Simulation. The frequency you input here will have no effect whatsoever on the sound being reproduced by your loudspeaker! • Upside Down Adding a check mark to this field means that the loudspeaker effectively turns upside down. This can be useful if your Focus-Series loudspeakers have to be installed head first. • Beam 2 (previously: Split) Adding a check mark to this field creates a second beam for the loudspeaker in question. The following parameters can then be set for both beams, individually and independently from each other. • Angle (°) Here you can enter the beam’s vertical inclination angle – in 0.1° increments - within a range of +/-40°.

  • Page 59: Adjustment Of Dsp Functions 5

    Detailed descriptions of the individual fields can be found in section 4.7.3 “System Setup (Focus- Series)“ of the Fohhn Audio Soft user manual. 4.3 Adjustment of DSP Functions In addition to configuring the vertical beam dispersion characteristics of your Focus Modular systems, Fohhn Audio Soft also give you direct access to the parameters of the Fohhn Audio DSP (digital signal processor). The following DSP functions are available: •...

  • Page 60: Saving Projects 6

    4.4 Saving Projects To save the settings on the computer as a Fohhn Audio Soft Projekt (.fap), proceed as follows: 1. In the File menu, select Save Project As. Select the location in which you want to save your project. Click on Save to confirm your choice.

  • Page 61: Application Examples 6

    5. Application Examples The following examples show possible and useful combinations of the various Focus Modular modules in typical sound reinforcement scenarios. Individual parameter settings (e.g. vertical dispersion characteristics and inclination angles, acoustic centre etc.) are intentionally not shown here in detail. Level reductions are generally dependent on room depth, the opening angle of the beam and the room acoustic. Therefore, this information is only intended for rough guidance. For planning, use the Focus Simulation in the Beam Steering view. Here you can simulate the direct sound dispersion of a system.
  • Page 62 Example 1b: You can use the lower of two connected modules (in this case, the FM-100) in Two Beam mode and adjust one of those beams (Beam 2) to provide nearfield coverage. To align the level of the two modules, reduce the FM-100’s input level by ca. 8 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the level of Beam 2. For consistent behaviour of the limiter within the system as a whole, it is important that level adjustments are carried out on input (gain structure). 1b: 1 x FM-400 and 1 x FM-100 with a maximum room depth of 30 m. A second beam from the FM-100 covers the nearfield area.

  • Page 63: Larger Venues With A Single Audience Level 6

    5.2 Larger venues with a single audience level Example 2a: The venue has a room depth of more than 30 metres and a single audience level; here it is equipped with a “Combined Speaker“ (consisting of two FM-400s) and an FM-110. If a Focus Modular loudspeaker stack has several FM-400 modules, it must always be operated as a “Combined Speaker“! You can find more information on this in section 3.4.7 “Graphically arranging the loudspeaker systems” (page 51) of this manual. Due to the larger room size, an FM-110 module should be used for the high frequency range. To align the level of the two modules, reduce the FM-110’s input level by ca. 14 dB For consistent behaviour of the limiter within the system as a whole, it is important that level adjustments are carried out on input (gain structure).
  • Page 64 Example 2b: Depending on the application, it can make sense to use both the “Combined Speaker“ (with the linked FM-400 modules) and the FM-110 in Two Beam mode to achieve a more even coverage of the listening area. The same applies with rising audience seating. To align the levels of the modules, reduce the FM-110’s input level by ca 8 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the level of Beam 2. For consistent behaviour of the limiter within the system as a whole, it is important that level adjustments are carried out on input (gain structure). 2b: 2 x FM-400 and 1 x FM-110 with a room depth of more than 30 m and rising audience seating. A second beam from the FM-110 covers the nearfield area.
  • Page 65 Example 2c: In the following example, intended for venues with an even greater room depth (e.g. 50 metres or more), we have used at least two FM-400s as a “Combined Speaker“, in Two Beam mode, for the mid- and low-mid ranges, plus an FM-100 and an FM-110 for the high frequency range. For this more distant coverage, you can install an FM-110 above both FM-400 modules – with an FM- 100 at the bottom of the stack to cover the nearfield area. To align the levels of the modules, reduce the FM-100’s input level by ca. 10 dB and the FM-110’s by ca. 8 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the Beam 2 level of the “Combined Speaker“(consisting of the two FM-400s). For consistent behaviour of the limiter within the system as a whole, it is important that level adjustments are carried out on input (gain structure). 2c: 1x FM-110, 2 x FM-400 and 1 x FM-100 with a room depth of more than 50 m and rising audience seating.
  • Page 66 Focus Modular high frequency modules (FM-100 or FM-110) cannot be linked to form a “Combined Speaker“. They will be displayed as separate modules in the Beam Steering view. Always install the high frequency modules at the upper or lower end of a Focus Modular stack! Incorrect combinations: FM-400 above an FM-110 and FM-100 / FM-110 above an FM-100 and FM-400 (left) Correct combination: FM-110 above an FM-400 and FM-100 (right)

  • Page 67: Larger Venues With Two Audience Levels 6

    5.3 Larger venues with two audience levels Example 3a: The venue has a room depth of more than 30 metres and two audience levels – for example a theatre with stalls and a circle, or a town hall with stalls and a gallery; covered here by two FM-400s as a “Combined Speaker“ and an FM-110 installed below. Both the “Combined Speaker“ and the single FM-110 module are used in Two Beam mode. This provides each audience level with two completely independent beams, which can be adjusted to the acoustic conditions of the two levels. Moreover, one beam from the FM-110 can be directed, from below, onto the upper audience level.
  • Page 68 Example 3b: If an additional FM-100 module is available, you can install this at the lower end of the Focus Modular stack: The FM-100 is well suited to the lower audience area. Both high frequency modules can then be used without Two Beam mode. Each high frequency module covers one audience level respectively. To align the level of the modules, reduce the FM-100’s input level by ca. 10 dB and that of the FM- 110 by ca. 8 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the Beam 2 level of the “Combined Speaker“ (consisting of two FM-400s).
  • Page 69 Example 3c: If required, the FM-110 and FM-100 can be used in Two Beam mode and the beams directed accordingly: Here, the FM-110’s two beams only cover the upper audience level, while those of the FM-100 only cover the lower. The “Combined Speaker“, consisting of two FM-400s, covers both audience levels, each with one beam. To align the level of the modules, reduce the FM-100’s input level by ca. 10 dB and that of the FM- 110 by ca. 8 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the Beam 2 levels of all modules.

  • Page 70: Larger Venues With Three Or Four Audience Levels 7

    5.4 Larger venues with three or four audience levels Example 4a: The venue has a room depth of more than 30 metres and und several audience levels – for example, a theatre with stalls and several balconies; here, a “Combined Speaker“ is used, consisting of two FM-400s, along with a high frequency module (FM-100 or FM-110) at each end of the stack. By using the modules in Two Beam mode, different levels can be individually covered. To align the levels of the modules, reduce the input level of both FM-110s by ca. 8 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the Beam 2 levels of all modules.
  • Page 71 Example 4b: Depending on the size of the venue and the number of audience levels, it may be necessary to use more than two FM-400 modules in a “Combined Speaker“: A “Combined Speaker“ can consist of up to four FM-400 modules. To align the levels of the modules, reduce the input level of both FM-110s by ca. 6 dB. In the parameter field of the Beam Steering view, use the Trim parameter to separately reduce the Beam 2 levels of all modules.

  • Page 72: Technical Documentation 7

    6. Technical Documentation 6.1 Technical Specifications 6.1.1 FMI-100 / FM-100 Electroacoustic features Acoustic design electronically steerable line array speaker 8 x 1" horn loaded compression driver, Components neodymium magnet Operating mode active, 8-channel DSP amplifier, class D Maximum SPL [1] 142 dB (102 dB @ 100 m) Frequency range [2] 1 kHz – 20 kHz Beam dispersion angle, horizontal [3] 90° Vertical beam width, digitally controlled [3] 0° - 90° in 0.1° increments Vertical inclination angle, digitally controlled -40° - +40° in 0.1° increments both beams movable between 0 % Acoustic centre (bottom) to 100 % (top) Loudspeaker features Enclosure aluminium / wood cabinet Protection Grille steel, ball impact resistant, powder coated Mounting points 4 x M8 threads, integrated rigging system Standard colours Black or white powder coating steel grille in enclosure colour, backed by Front design acoustically transparent foam Dimensions (B x H x T) approx. 224 x 700 x 274 mm Weight [4] approx. 24 kg...
  • Page 73 Electronic features Amplifier power 8 x 120 W Amplifier type Pure Path Digital PWM 2 independent line inputs with automatic Audio inputs priority, transformer-balanced Audio outputs 2 x link DSP channels Fohhn Audio DSP 16 Amplification 28 dB Input sensitivity 1.4 V Frequency response 20 Hz – 20 kHz Signal/Noise ratio >105 dB/A soft start, temperature monitoring, short- Protective circuit circuit protection, overload 100 V - 240 V AC 50/60 Hz, power supply Power supply with Power Factor Correction (PFC) Power consumption standby 5 W, max. 400 W Power factor (PFC) > 90 % Fault current < 0.5 mA Fuse 16 A @ 230 V Low Power Green Power Standby Mode Emergency power operation possible external USV 230 V / 1000 W 16 A Temperature range 0 – 40 °C...
  • Page 74 CAAD simulation data EASE Connections FMI-100 fixed installations (internal) Fohhn-Net 2 x Phoenix, 3-pin Mains connection 1 x PowerCON in, 1 x PowerCON out 2 independent line inputs (Phoenix, 3-pin) Audio inputs with automatic priority, transformer- balanced Audio outputs 2 x link, Phoenix 3-pin Fault contact relais 2 x changeover, link Display LEDs (internal) green = on, red = standby, Power on / off (standby) red flashing = fault Network control receive/send remote control LED Connections FM-100 mobile applications Fohhn-Net 1 x RJ-45 Neutrik in, 2 x RJ-45 Neutrik out Mains connection 1 x PowerCON in, 1 x PowerCON out Audio inputs 1 x Line, XLR, transformer-balanced Audio outputs 2 x XLR, balanced Display LEDs green = on, red = standby, Power on/ off (standby) red flashing = fault Network control receive/send remote control LED [1] Peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range.

  • Page 75: Fmi-110 / Fm-110 7

    Frequency range [2] 1 kHz – 20 kHz Beam dispersion angle, horizontal [3] 90° Vertical beam width, digitally controlled [3] 0° - 90° in 0.1° increments Vertical inclination angle, digitally controlled -40° - +40° in 0.1° increments both beams movable between 0 % Acoustic centre (bottom) to 100 % (top) Loudspeaker features Enclosure aluminium / wood cabinet Protection Grille steel, ball impact resistant, powder coated Mounting points 4 x M8 threads, integrated rigging system Standard colours Black or white powder coating steel grille in enclosure colour, backed by Front design acoustically transparent foam Dimensions (B x H x T) approx. 224 x 1285 x 274 mm Weight [4] approx. 39 kg Optional features Optional colours [5] all RAL Classic colours Remote control, remote monitoring Remote control Fohhn-Net, Fohhn Audio Soft temperature, protect, signals, power Remote monitoring supply, Fohhn-Net, Fohhn Audio Soft, Pilot signal monitoring relais 2 x changeover Fault message contact for max. 50 V / 1 A...
  • Page 76 Electronic features Amplifier power 16 x 120 W Amplifier type Pure Path Digital PWM 2 independent line inputs with automatic Audio inputs priority, transformer-balanced Audio outputs 2 x link DSP channels Fohhn Audio DSP 16 Amplification 28 dB Input sensitivity 1.4 V Frequency response 20 Hz – 20 kHz Signal/Noise ratio >105 dB/A soft start, temperature monitoring, short- Protective circuit circuit protection, overload 100 V - 240 V AC 50/60 Hz, power supply Power supply with Power Factor Correction (PFC) Power consumption standby 10 W, max. 800 W Power factor (PFC) > 90 % Fault current < 1.0 mA Fuse 16 A @ 230 V Low Power Green Power Standby Mode Emergency power operation possible external USV 230 V / 1000 W 16 A Temperature range 0 – 40 °C...
  • Page 77 CAAD simulation data EASE Connections FMI-110 fixed installations (internal) Fohhn-Net 2 x Phoenix, 3-pin Mains connection 1 x PowerCON in, 1 x PowerCON out 2 independent line inputs (Phoenix, 3-pin) Audio inputs with automatic priority, transformer- balanced Audio outputs 2 x link, Phoenix 3-pin Fault contact relais 2 x changeover, link Display LEDs (internal) green = on, red = standby, Power on / off (standby) red flashing = fault Network control receive/send remote control LED Connections FM-110 mobile applications Fohhn-Net 1 x RJ-45 Neutrik in, 2 x RJ-45 Neutrik out Mains connection 1 x PowerCON in, 1 x PowerCON out Audio inputs 1 x Line, XLR, transformer-balanced Audio outputs 2 x XLR, balanced Display LEDs green = on, red = standby, Power on/ off (standby) red flashing = fault Network control receive/send remote control LED [1] Peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range.

  • Page 78: Fmi-400 / Fm-400 7

    Beam dispersion angle, horizontal, 80° full range [3] Vertical beam width, digitally controlled [3] 0° - 90° in 0.1° increments Vertical inclination angle, digitally controlled -40° - +40° in 0.1° increments both beams movable between 0 % Acoustic centre (bottom) to 100 % (top) Loudspeaker features Enclosure aluminium / wood cabinet Protection Grille steel, ball impact resistant, powder coated Mounting points 4 x M8 threads, integrated rigging system Standard colours Black or white powder coating steel grille in enclosure colour, backed by Front design acoustically transparent foam Dimensions (B x H x T) approx. 224 x 1636 x 274 mm Weight [4] approx. 41 kg Optional features Optional colours [5] all RAL Classic colours Remote control, remote monitoring Remote control Fohhn-Net, Fohhn Audio Soft temperature, protect, signals, power Remote monitoring supply, Fohhn-Net, Fohhn Audio Soft, Pilot signal monitoring relais 2 x changeover Fault message contact for max. 50 V / 1 A...
  • Page 79 Electronic features Amplifier power 16 x 120 W Amplifier type Pure Path Digital PWM 2 independent line inputs with automatic Audio inputs priority, transformer-balanced Audio outputs 2 x link DSP channels Fohhn Audio DSP 16 Amplification 28 dB Input sensitivity 1.4 V Frequency response 20 Hz – 20 kHz Signal/Noise ratio >105 dB/A soft start, temperature monitoring, short- Protective circuit circuit protection, overload 100 V - 240 V AC 50/60 Hz, power supply Power supply with Power Factor Correction (PFC) Power consumption standby 10 W, max. 800 W Power factor (PFC) > 90 % Fault current < 1.0 mA Fuse 16 A @ 230 V Low Power Green Power Standby Mode Emergency power operation possible external USV 230 V / 1000 W 16 A Temperature range 0 – 40 °C...
  • Page 80 CAAD simulation data EASE Connections FMI-400 fixed installations (internal) Fohhn-Net 2 x Phoenix, 3-pin Mains connection 1 x PowerCON in, 1 x PowerCON out 2 independent line inputs (Phoenix, 3-pin) Audio inputs with automatic priority, transformer- balanced Audio outputs 2 x link, Phoenix 3-pin Fault contact relais 2 x changeover, link Display LEDs (internal) green = on, red = standby, Power on / off (standby) red flashing = fault Network control receive/send remote control LED Connections FM-400 mobile applications Fohhn-Net 1 x RJ-45 Neutrik in, 2 x RJ-45 Neutrik out Mains connection 1 x PowerCON in, 1 x PowerCON out Audio inputs 1 x Line, XLR, transformer-balanced Audio outputs 2 x XLR, balanced Display LEDs green = on, red = standby, Power on/ off (standby) red flashing = fault Network control receive/send remote control LED [1] Peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range.

  • Page 81: Technical Drawings 8

    6.2 Technical Drawings 6.2.1 FMI-100 / FM-100...

  • Page 82: Fmi-110 / Fm-110 8

    6.2.2 FMI-110 / FM-110...

  • Page 83: Fmi-400 / Fm-400 8

    6.2.3 FMI-400 / FM-400...

  • Page 84: Cat Cable 8

    Never use audio or CAT cables with defective shielding for example: This can lead to interference signals which, in some cases may also result in damage to the speaker chassis. Check the condition of the connection cable at regular intervals and change any damaged cable where necessary. Important: Please also note the maximum permitted cable lengths. To ensure correct operation, these should not be exceeded! 6.3.1 CAT cable For the plugs and cable used for transmitting data from Fohhn Audio Soft or from an NA-11 Fohhn- Net USB Adapter or NA-3 Fohhn-Net Ethernet Adapter to the Focus Modular modules, the following specifications apply: Assignment: Type 8-pin RJ-45...

  • Page 85: Audio Cable 8

    6.3.2 Audio Cable We generally recommend using high-quality professional cable in order to achieve the best possible audio quality. Assignment: 1: Screen 2: + 3: -...

  • Page 86: Troubleshooting 8

    7. Troubleshooting The following table describes how you can determine errors and shows the corrective measures that are recommended. Problem Probable Cause Possible Remedies No sound is audible. However, The In- and Output routing in Check the DSP settings in there is an audio signal. the User DSP is not correct. Fohhn Audio Soft. The module is not recognized Several products have the same Change the ID – no ID can by Fohhn Audio Soft. Fohhn-Net ID. (An ID conflict appear twice. (See “3.4.4 will be displayed in Fohhn Fohhn-Net Cabling and ID- Audio Soft.) Allocation“). The ID search range is Extend the search range from restricted. ID 1 to 254. The Fohhn-Net plug (see Connect the module to the section “3.3 Cabling“) is not NA-3 or NA-11 Fohhn-Net inserted. Adapter. The Focus Modular module’s There is no supply voltage. Check whether a supply voltage power, send and receive LEDs is present. are not lighting up. 230 V not available. Mains fuse Measure the supply voltage at tripped.

  • Page 87: Service And Repair 8

    8. Service and Repair Servicing and/or repairs should only be undertaken by suitably qualified, Fohhn®-trained personnel. Do not carry out any servicing or any repairs to the device beyond what is listed in the “Maintenance Measures” section below. For details of a Fohhn® Service provider in your area, please contact us at the address on the previous page. Keep the packaging for your device so that, in the event of any problem occurring, it can be returned in its original packaging. This will minimize the risk of any potential damage during transportation. 8.1 Maintenance Measures • To clean your Focus Modular systems, only use a dry or slightly damp, well wrung out towel. • Do not use any aggressive cleaning agents, waxes or solvents (such as cleansing alcohol or paint thinner), as these could spoil the appearance of the device and/or affect the paintwork on the enclosure.

  • Page 88: Glossary 8

    Fohhn Audio Soft to the systems – e.g. an NA-3 or NA-11. More on this in section “3.4.1 Configuration“. Listening Area This term denotes the area in which sound coverage is required for spectators/listeners. Here, this refers to the assigned address of an active Fohhn device in the (Fohhn-Net) Fohhn-Net. More on this in section “3.4.4 Fohhn-Net Cabling and ID Allocation“. Side Lobes Due to their construction, line arrays generate unwanted Side Lobes. These result from the finite distances between the individual loudspeaker chassis and the length of an array.

  • Page 89: Appendix 8

    Further information on these and on appropriate waste disposal facilities can be obtained from your city/town council as well as from your local distribution partner. 10.2 CE Marking and Declaration of Conformity This loudspeaker complies with the currently applicable conditions of EMC law and as such, carries the CE marking. The relevant Declarations of Conformity are available on request from Fohhn Audio AG, 72622 Nürtingen 10.3 Trademarks All trademarks and brand names referred to in this manual, which may be protected by third parties, are subject to the provisions of trademark law and the title rights of their respective owners. All trademarks, trade names or company names appearing here are, or may be, trademarks or registered trademarks of their respective owners. All right are reserved, with the exception of those...

  • Page 90: Disclaimer And Copyright 9

    10.5 Disclaimer and Copyright 10.5.1 Disclaimer The contents of this user manual have been created with great care. However, Fohhn Audio AG cannot guarantee that the information therein (images, text and other representations) is always complete, correct and current. Fohhn Audio AG therefore reserves the right to make changes or additions to the given information at any time. Neither Fohhn Audio AG (as a public limited...
