Sanyo VDC-HD3100P Summary Manual

Side b megapixel camera.
Hide thumbs

Advertisement

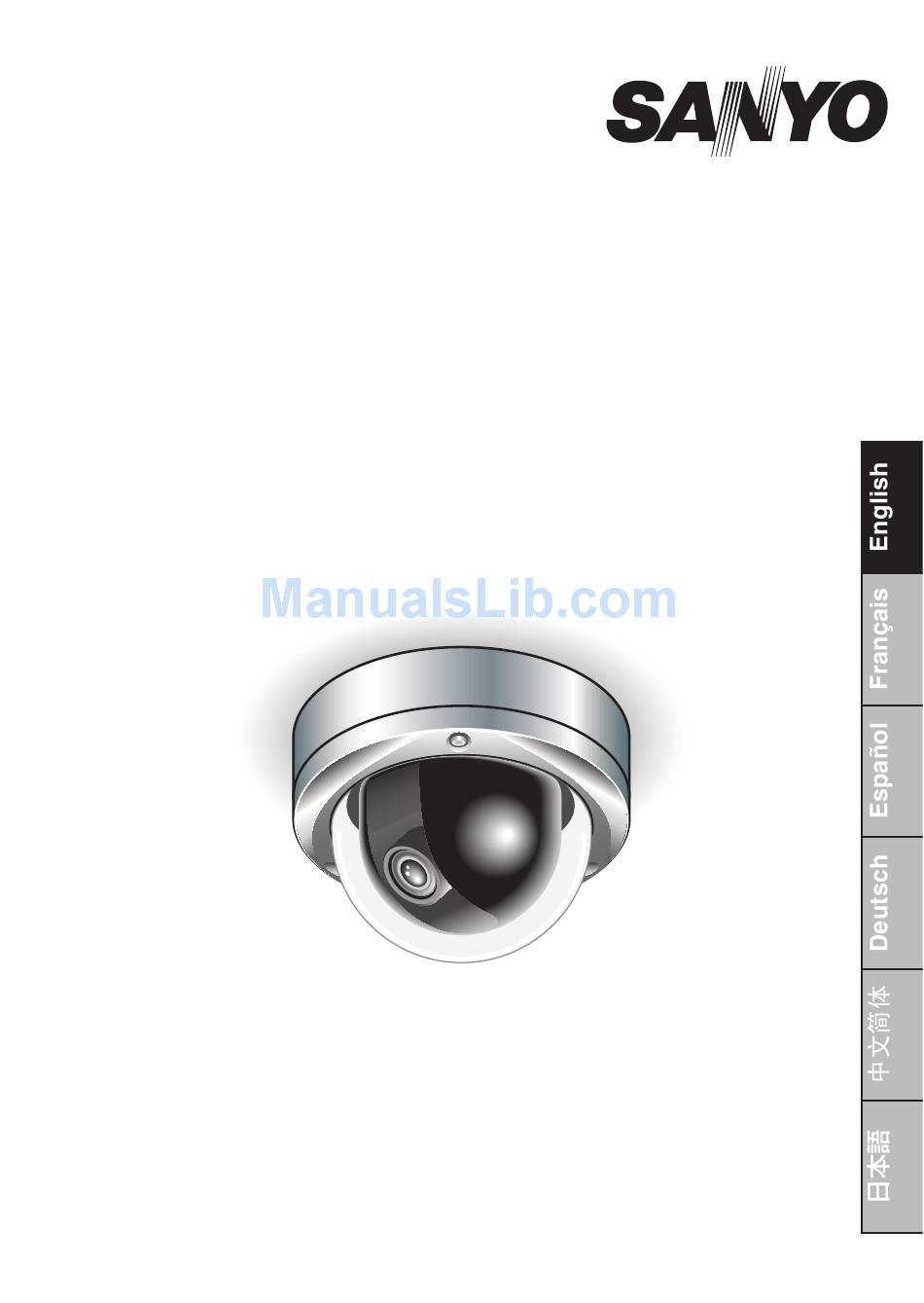

SUMMARY MANUAL
Side B
Megapixel Camera
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED
SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL
CODES.
Please read this instruction manual carefully in order to ensure correct installation.
In addition, be sure to read carefully the electronic manual (INSTRUCTION MANUAL)
contained in the supplied CD-ROM to ensure correct operation of the camera.
VDC-HD3500P/HD3500
VDC-HD3300P/HD3300
VDC-HD3100P/HD3100
VCC-HD3500/HD3300

Advertisement

Table of Contents

   Related Manuals for Sanyo VDC-HD3100P

   Summary of Contents for Sanyo VDC-HD3100P

  • Page 1 SUMMARY MANUAL VDC-HD3500P/HD3500 VDC-HD3300P/HD3300 VDC-HD3100P/HD3100 VCC-HD3500/HD3300 Side B Megapixel Camera THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL CODES. Please read this instruction manual carefully in order to ensure correct installation. In addition, be sure to read carefully the electronic manual (INSTRUCTION MANUAL)
  • Page 2: Table Of Contents

    Table of Contents Name and Function of Each Component ..............2 Lens Adjustment ....................... 3 Network Settings ...................... 5 Specifications ......................7 Copyright Notice ....................... 9 ■ Accessories Connector Clamping Core Video Cable To prevent electromagnetic Cushioning Sheet interference Hexagonal Wrench Pattern Sheet CD-ROM VDC-HD3500P...
  • Page 3: Name And Function Of Each Component

    Name and Function of Each Component ■ Top Face Dome cover Monitor Output Socket Inner cover SD Card Slot (VDC-HD3500P/HD3500) LED lamp (VDC-HD3500P/HD3500) The power indicator blinks to indicate the following camera statuses. • Recording to SD memory card stopped •...
  • Page 4: Lens Adjustment

    Lens Adjustment Focus can be electrically adjusted. For high-resolution megapixel images, the focus assist function is useful to obtain a precise focus because otherwise it is extremely difficult. The focus must be readjusted if the camera has lost focus due to difference in the subject distance or ambient temperature, the deterioration of the lens and installation environment, and the like that have been caused over the years.
  • Page 5: Adjusting Focus

    Lens Adjustment ■ Adjusting focus NEAR Roughly focus the subject using NEAR/FAR buttons. Make adjustment while watching the monitor. Press the SET button. The camera automatically focuses on the subject. Note that the color of the status indicator “FOCUSING” turns from black to orange. The status indicator changes to “ERROR”...
  • Page 6: Network Settings

    Network Settings Preparing Your Computer for Network Operation Check your operating environment. ( Page 1) Connect the camera to the network to which your PC is also connected. Configue the network information on your PC. Configure information such as the IP address of your PC. Install the “H.264 Plug-in”...
  • Page 7 Network Settings Type your user name and password and click [OK]. The language selection screen appears. If this is the first access to the camera, log in as an admin user (administrator) using the following default authentication information. • User name: admin •...
  • Page 8: Specifications

    ■ SD Recording (SD Memory Card) (VDC-HD3500P/HD3500) Recording mode Alarm recording, backup recording in event of a network failure For the recommended SD memory cards, visit our website. http://www.sanyo-cctv.net/ ■ Video output Composite output 10BASE-T/100BASE-TX (RJ-45 connector) Card slot 1 (SDHC compliant, max. 32 GB supported)
  • Page 9 HD3300, VDC-HD3100P/HD3100) φ146 × 94 mm/φ5.7 × 3.7 inch Dimensions Dome diameter: 114 mm/4.5 inch Weight 800 g/28.2 oz. (VDC-HD3500P/HD3500) 700 g/24.7 oz. (VDC-HD3300P/HD3300, VDC-HD3100P/ HD3100) Appearance and specifications are subject to change without prior notice or obligations. ■ Approvals: IP66 This unit has been certified to IP66 standards when properly installed.
  • Page 10: Copyright Notice

    Copyright Notice The instruction manual and the software are copyrighted by SANYO Electric Co., Ltd. No materials contained in the manual and the software may, wholly or partially, be copied, modified, reproduced, or distributed in any format without the prior permission of the copyright holder.
