Sanyo VDC-HD3100 Specifications

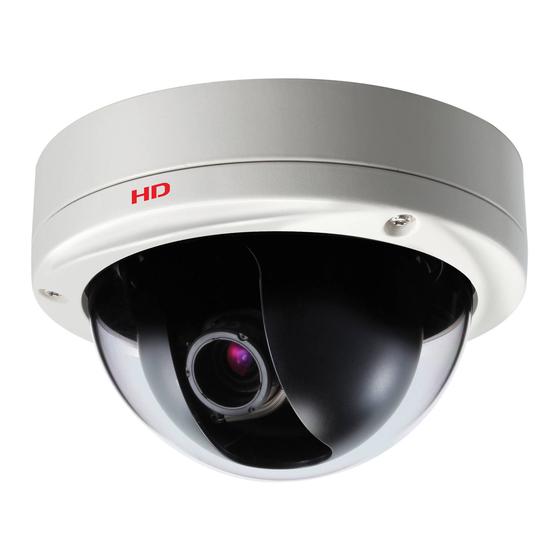

1080p 4 megapixel color vandal dome camera.
Hide thumbs


Advertisement

SANYO VDC-HD3100 1080p 4 MEGAPIXEL COLOR
Sanyo Company
Security Products Division
21605 Plummer Street
Chatsworth, CA 91311
Phone: 888. 818. 2597
Fax: 818.717.2716 223 9180
http://us.sanyo.com/security

Specifier Notes: This product guide specification is written according to the Construction Specifications

Institute (CSI) 3‐Part Format, based on Master Format 2004 and The Project Resource Manual—CSI Manual

of Practice. The Manufacturer is responsible for technical accuracy. By removing the references to specific

Sanyo product names or part numbers, the text may be used also in performance‐based specifications.



The section must be carefully reviewed and edited by the Architect or Engineer to meet the requirements of

the project and local building code. Words and sentences within brackets [ ] are choices to include or

exclude a particular item or statement. Coordinate this section with other specification sections and the

Drawings.


VIDEO SURVEILLANCE REMOTE DEVICES AND SENSORS
Sanyo VDC-HD3100 4 MEGAPIXEL COLOR VANDAL DOME CAMERA
PART 1 - GENERAL
1.1
SUMMARY
A.
Section Includes
1.
B.
Related Sections
1.
2.
3.
4.
1.2
REFERENCES
A.
Federal Communications Commission (FCC) (www.fcc.gov)
1.
B.
International Electrotechnical Commission (IEC)
1.
Project Name/Project Number



Product Guide Specification
SECTION 28 23 29
Video Surveillance Remote Devices
Section 28 23 13 – Video Surveillance Control and Management
Systems
Section 28 23 16 – Video Surveillance Monitoring and Supervisory
Interfaces
Section 28 23 19 – Digital Video Recorders and Analog Recording
Devices
Section 28 23 23 – Video Surveillance Systems Infrastructure
FCC CFR 47 part 15 Class B – Telecommunications – Radio
Frequency Devices – Digital Emission
IEC 60529 Degrees of Protection provided by enclosures (IP Code)
28 23 29 - 15
VANDAL DOME





Video Surveillance Remote Devices and Sensors
CAMERA

November, 2009

Advertisement

Table of Contents

   Related Manuals for Sanyo VDC-HD3100

   Summary of Contents for Sanyo VDC-HD3100

  • Page 1   Drawings.      VIDEO SURVEILLANCE REMOTE DEVICES AND SENSORS Sanyo VDC-HD3100 4 MEGAPIXEL COLOR VANDAL DOME CAMERA PART 1 - GENERAL SUMMARY Section Includes Video Surveillance Remote Devices Related Sections Section 28 23 13 – Video Surveillance Control and Management Systems Section 28 23 16 –...
  • Page 2 SANYO VDC-HD3100 1080p 4 MEGAPIXEL COLOR Institute of Electrical and Electronics Engineers, Inc. (IEEE) (www.ieee.org) IEEE 802.3af Power Over Ethernet International Organization of Standardization (ISO) 9001 – Quality System Underwriters Laboratories, Inc. (UL) (www.ul.com) UL 2044 Commercial Closed-Circuit Television Equipment...
  • Page 3 SANYO VDC-HD3100 1080p 4 MEGAPIXEL COLOR trained by the manufacturer in the installation and service of the equipment provided. DELIVERY, STORAGE AND HANDLING Comply with requirements of Section [01 60 00] Deliver materials in manufacturer’s original, unopened, undamaged containers; and unharmed original identification labels.
  • Page 4 SANYO VDC-HD3100 1080p 4 MEGAPIXEL COLOR Low profile cast aluminum housing True 3-axis gimbal Leashed bubble cover assembly Analog test monitor port The camera will provide a sixteen (16) character camera ID. Provide selection of languages from English, French, German, Japanese and Spanish.
  • Page 5 SANYO VDC-HD3100 1080p 4 MEGAPIXEL COLOR adjustments; Outdoor, Indoor, Fluorescent and Manual control (MWB). MWB allows individual red and blue adjustments. The camera shall support Backlight Compensation: Selectable Multi-spot metering, Center-zone metering, Face and Off. Mask settings available. AGC Gain: Selectable Normal/Middle/High/Off. Adjustable gain control in Off mode.
  • Page 6 IP addresses provided by a Dynamic Host Control Protocol (DHCP) server. 13. The camera shall be able to interface with SANYO Video Pilot software. Video Pilot shall support full functionality when operating on Windows Vista or Windows XP Professional Edition with SP2/SP3.
  • Page 7 SANYO VDC-HD3100 1080p 4 MEGAPIXEL COLOR Determine and report all problems to the manufacturer’s customer service department. ADJUSTING Make proper adjustment to video system devices for correct operation in accordance with manufacturer’s instructions. Make any adjustment of camera settings to comply with specific customer’s need.
