Dacor EG366SCH Planning Manual

Dacor EG366SCH Planning Manual

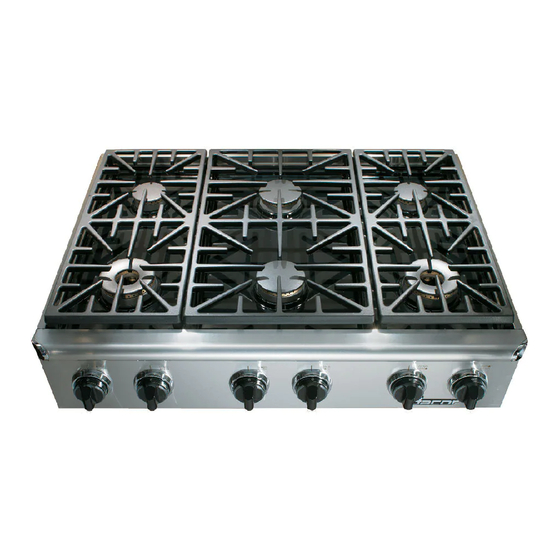

36 inch and 48 inch wide epicure gas cooktops

Advertisement

Document # PG04-001
Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
This appliance must be installed in accordance with the
accompanying installation instructions.
Product tolerances: ±1/16" (±1.6 mm) unless otherwise noted
A

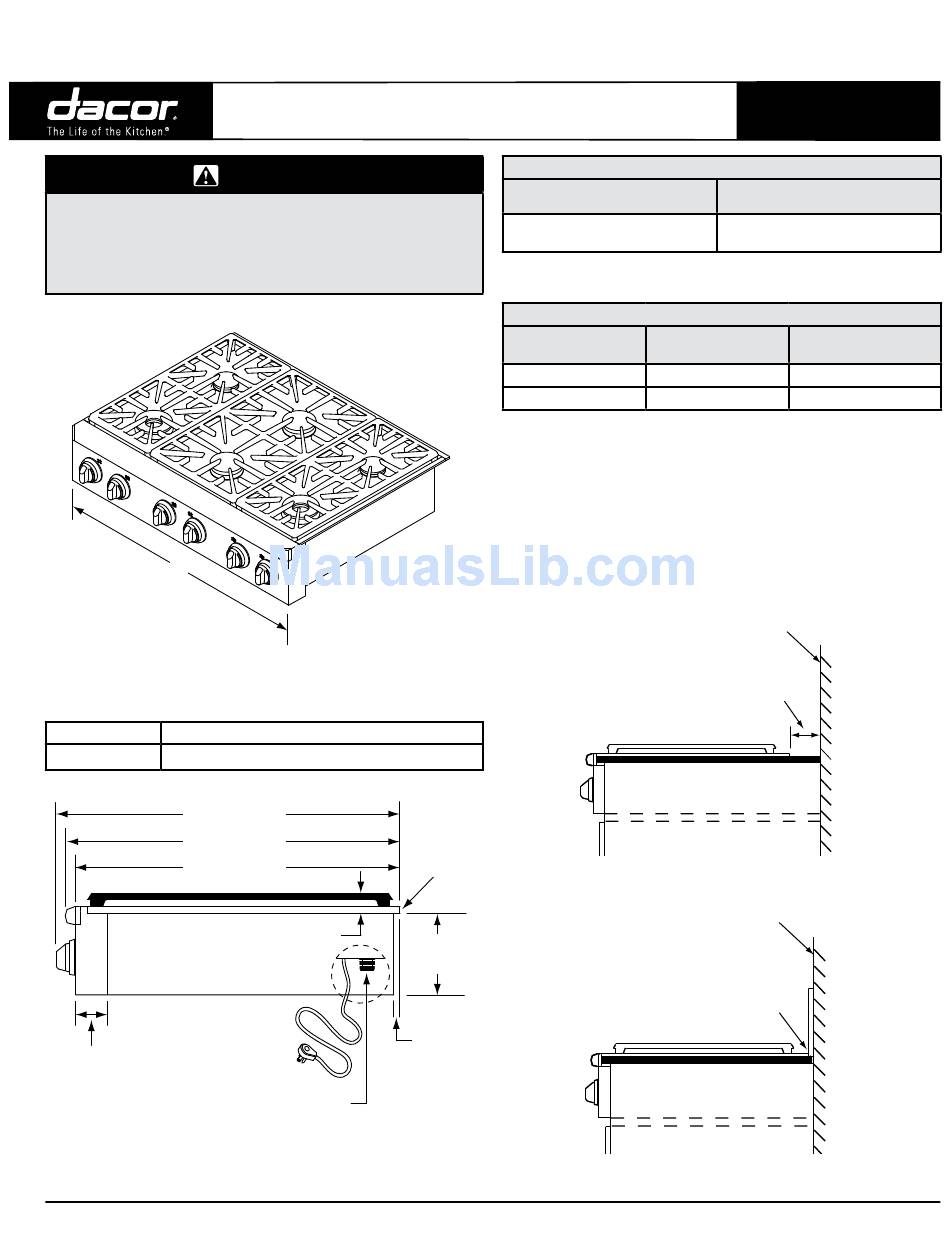

ProDUct DImENsIoNs - Iso VIEw
EG366
EG486
28" (711 mm)
27" (686 mm)
26" (660 mm)
1 1/2" (38 mm) cooking surface
height (grate level) above
countertop
4" (102 mm)
3/4" gas inlet, connects to regulator from
bottom or rear of unit, end is recessed
2" (51 mm) from chassis bottom

ProDUct DImENsIoNs - sIDE VIEw

Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
EG366, EG486
36 Inch and 48 Inch wide
Epicure
WARNING
A - Width
35 7/8" (911 mm)
47 7/8" (1216 mm)
Power cord
32" long
®
Circuit Required
120 Vac 60Hz, 15 Amp. (3 wire)

GAs sUPPLy PrEssUrE rEqUIrEmENts*

Gas Type
Natural Gas
Propane (LP)
* Maximum gas supply pressure for all models is 1/2 p.s.i.
IMPORTANT: Installation of a non-combustible material* (up to the hood) or
a backsplash is always recommended, and mandatory if the distance to the
back wall from the cooktop is less than 2 1/2" (Figure 2). When installing a
backguard, use only Dacor model numbers AEB3609, AEB3612 (EG366),
AEB4809 or AEB4812 (EG486).
Trim:
7/16"
(11 mm)
thick

cAbINEt/coUNtErtoP sIDE VIEw wIthoUt bAckGUArD

7 3/4"
(197 mm)
5/8"
(16 mm)

cAbINEt/coUNtErtoP sIDE VIEw wIth bAckGUArD

www.Dacor.com
Revised 05/06/10 Page 1/4
PLANNING

ELEctrIc cIrcUIt rEqUIrEmENts

Total Connected Load
0.25 Amp @ 120 Vac, 60 Hz
Manifold Pressure
5" Water Column
10" Water Column
Combustible
rear wall
2 1/2" (64 mm) Min. to
combustible rear wall
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
Phone: (800) 793-0093
GUIDE
Minimum Gas Supply
Pressure
6" Water Column
11" Water Column
