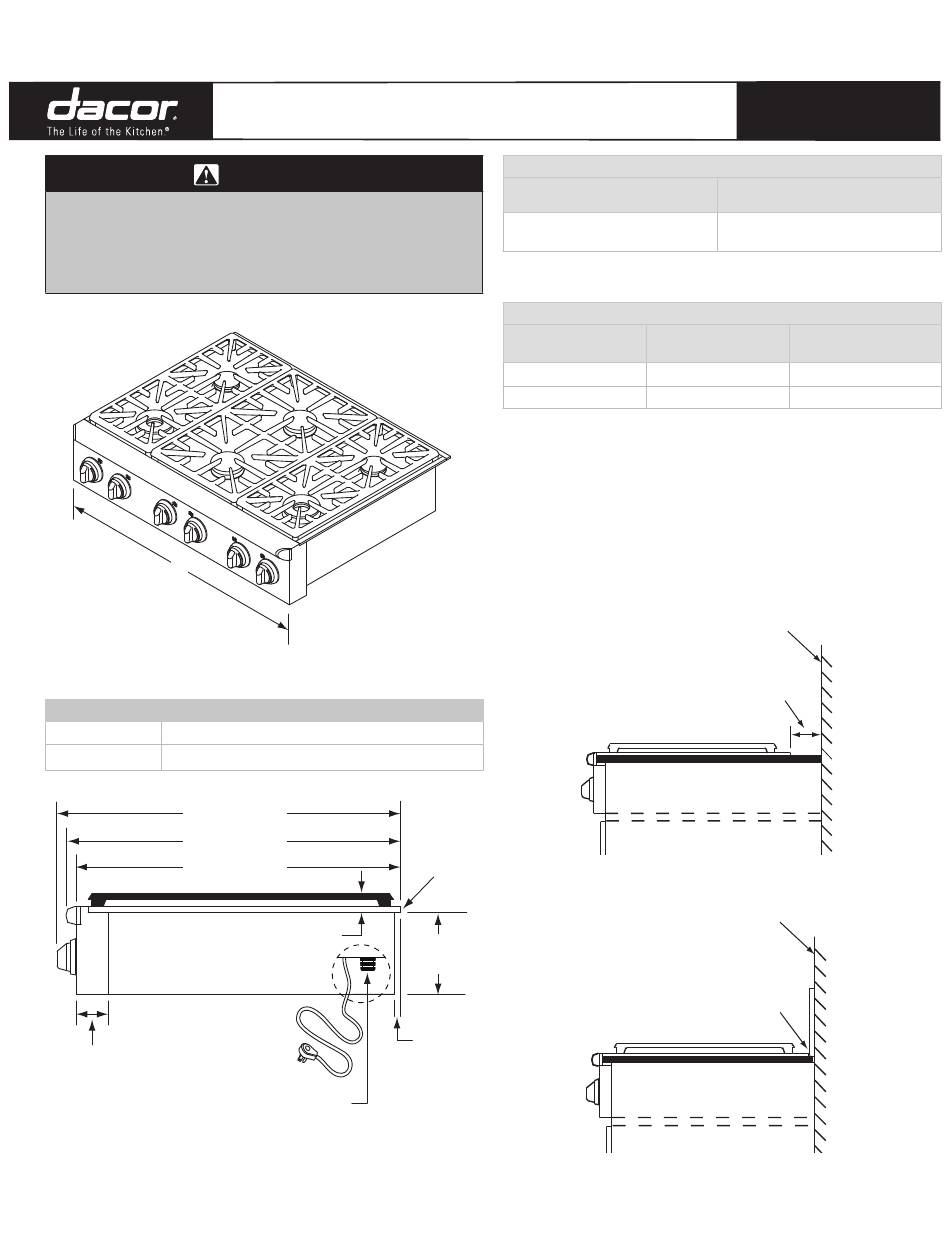

Dacor Epicure EG366 Planning Manual

Document # PG04 - 001
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Product tolerances: ±1/16" (±1.6 mm) unless otherwise noted
A
ProDUCt DImENsIoNs - Iso VIEW
EG366
EG486
28" (711 mm)
27" (686 mm)
26" (660 mm)
1 1/2" (38 mm) cooking surface
height (grate level) above
countertop
4" (102 mm)
3/4" gas inlet, connects to regulator from
bottom or rear of unit, end is recessed
2" (51 mm) from chassis bottom
ProDUCt DImENsIoNs - sIDE VIEW
www.Dacor.com
Phone: (800) 793-0093
EG366, EG486
36 Inch and 48 Inch Wide
Epicure
WARNING
A - Width
35 7/8" (911 mm)
47 7/8" (1216 mm)
Power cord
32" long
Gas Cooktops
®
Circuit Required
120 Vac 60Hz, 15 Amp. (3 wire)
GAs sUPPLy PrEssUrE rEqUIrEmENts*
Gas Type
Natural Gas
Propane (LP)
* Maximum gas supply pressure for all models is 1/2 p.s.i.
IMPORTANT: Installation of a non-combustible material* (up to the hood) or
a backsplash is always recommended, and mandatory if the distance to the
back wall from the cooktop is less than 2 1/2" (Figure 2). When installing a
backguard, use only Dacor model numbers AEB3609, AEB3612 (EG366),
AEB4809 or AEB4812 (EG486).
Trim:
7/16"
(11 mm)
thick
CAbINEt/CoUNtErtoP sIDE VIEW WIthoUt bACkGUArD
7 3/4"
(197 mm)
5/8"
(16 mm)
CAbINEt/CoUNtErtoP sIDE VIEW WIth bACkGUArD
Specifications are subject to change without notice.
See installation instructions for additional details.
Revised 09/09/09 Page 1/4
PLANNING
ELECtrIC CIrCUIt rEqUIrEmENts
Total Connected Load
0.25 Amp @ 120 Vac, 60 Hz
Manifold Pressure
5" Water Column
10" Water Column
Combustible
rear wall
2 1/2" (64 mm) Min. to
combustible rear wall
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
GUIDE
Minimum Gas Supply
Pressure
6" Water Column
11" Water Column
4.5
