- Page 1 Wall-Mounted Range Hood Operation Manual MPM-50-OV-03 MPM-60-OV-09,10,11,19 MPM-90-OV-22,23 MPM-60-ME-43,44 MPM-60-OM-31,32,41,42 MPM agd S.A. ul. Brzozowa 3, 05-822 Milanówek Tel. +48 22 380 52 00 Fax: +48 22 724 70 00 E-mail: mpm@mpm.pl www.mpm.pl...
- Page 2 Dear Customers, Thank you for your trust and purchasing of our product. Our device was designed in order to meet your expectations in terms of functionality and esthetics. It will certainly become a practical and decorative element for every kitchen. We hope that the device will serve you for many years. Before starting the range hood assembly, please read attentively this Operation Manual.
- Page 3 General safety and assembly requirements • This Operation Manual shall be maintained, in order to be able to use it in every further moment. • Read this Operation Manual attentively, as it contains the detailed information regarding the installation, assembly and maintenance of the hood.
- Page 4 • Do not disconnect the plug from the socket drawing the power cable. • The power cable may not touch the hot surface. • Do not start the device if the power cable is damaged. • The replacement of the damaged power cable may be performed by the manufacturer;...
- Page 5 Environment protection The device was designed and manufactured from the high-quality recycling materials and components. The crossed waste container sign (Fig. A) on the product means that it is subject to the selective waste collection, according to the Directive of the European Parliament and Council 2012/19/EC.
-
Page 6: Technical Specifications

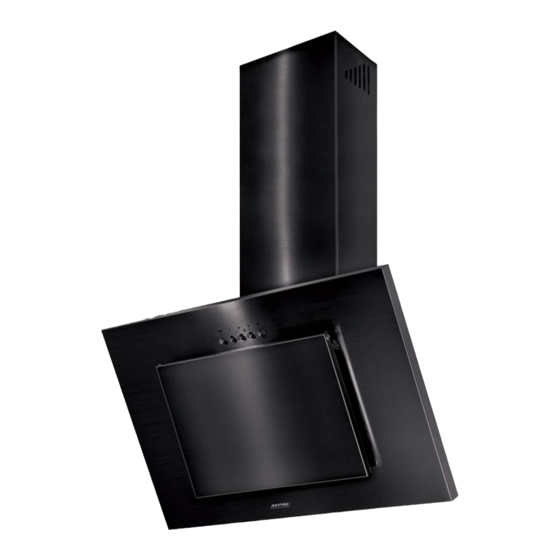

Technical specifications The technical specifications specified in this Operation Manual, and in the labels attached to the hood, have been obtained by measurements and calculations made according to the EU resolution No. 65/2014 and 66/2014. Fig.1 General view of the range hood. Chimney body Power cabel Control panel... - Page 7 Operation The hood is intended for sucking in the vapours during the meals cooking. The device may work in two modes: As the extracting hood: the vapours are extracted from the premise through the withdrawal tube. The withdrawal tube is not supplied with the device, and should be acquired separately.
- Page 8 The installation of the hood Fig. 3 Recommended distances from the cooking range. and chimney body is shown at the figures (Fig.4 - Fig.9). The hood is equipped with the fixing pins matching to the most part of walls and ceilings.
- Page 9 2. Into the openings, insert the screw plugs. In two openings marked with A screw also the screws (leaving 7 mm of screw length outside the screw plug, Fig.5). 3. Open the hood cover and remove the fat filter (Fig.6). 4.
- Page 10 Fig. 4 Assembly dimensions. Fig. 5 Screw plugs assembly. 2 x O8 x 40mm 2 x O5 x 45mm 4 x O8 x 40mm...
- Page 11 Fig. 6 Aluminium fat filter removing. Fig. 7 Hood hanging.
- Page 12 Fig. 8 Range hood positioning. 2 x O5 x 45mm Fig. 9 Chimney body assembly. 2 x O3,9x9,5 Be especially attentive while drawing the chimney body cut...
- Page 13 Electrical connections The network voltage shall correspond to the voltage indicated at the plate placed inside the hood. If the hood is equipped with a plug, insert it into the socket complying with the applicable requirements, and located in the easily accessible place.
-
Page 14: Light Replacement
clean the filter regularly reduces the hood performance, and may cause the fire. The filter shall be cleaned at least every 35 hours of hood operation. Coal filter The hood may be equipped with the coal filter. The coal filter is used when the hood is not connected to ventilation duct only. - Page 15 NOTE: Before the replacement of lamps, switch the hood power off. Do not touch the lamps when they are hot. Be attentive not to touch the lamp installed with hands. Fig. 11 Lights replacement. GU10 Mark lamp installation Mark lamp removal Hood operation control The hood is equipped with the mechanical control system.
- Page 16 How to reduce the cooking impact to the environment In order to reduce the energy consumption, cook in the kitchenware under the cover. The hood aluminium filters shall be kept clean (the recommended time of work of aluminium filter between its cleaning: max. 35h of hood operation).
- Page 17 Product characteristics Product characteristics are placed inside the hood.
-
Page 18: Troubleshooting
Troubleshooting Trouble Possible cause Trouble elimination Touch and hold for approx.. 8 After 35 hours of operation, the During the hood operation, the seconds the "-" touch button. hood informs on the need to clean pulsing "F"symbol is displayed. Wash the filter in the or replace the fat filter. - Page 19 Notes ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________...
