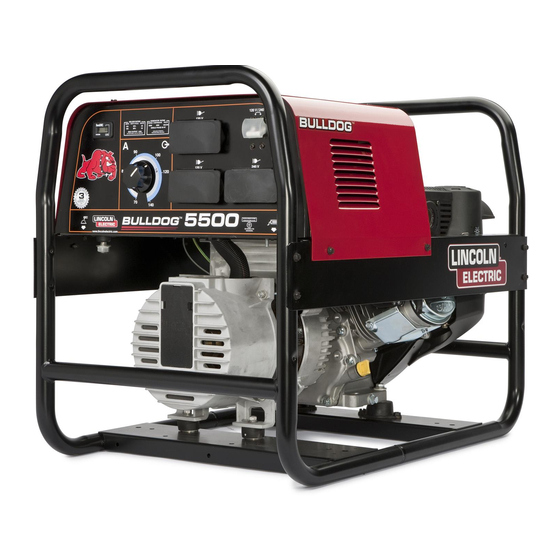

TECHNICAL SPECIFICATIONS - BULLDOG™ 5500 K2708-2
Manufacturer Description
Kohler
CH395
air-cooled
gasoline
8.9 HP @
3600 RPM
Aluminum Block
with Cast Iron
Duty Cycle
30% Duty Cycle
60% Duty Cycle
Welding Ranges
70 - 140 Amps AC
Height
25.62 in.
651 mm
(1)
Kohler also rates the engine at 9.5 HP@ 4000 RPM
INSTALLATION
INPUT - GASOLINE ENGINE
Speed
1 cyl.,
3750 RPM
4 cycle
± 100 RPM
at no load
(1)
Sleeve
RATED OUTPUT - WELDER
Amps AC
125 Amps AC Constant Current
100 Amps AC Constant Current
OUTPUT - WELDER AND GENERATOR
Welder Open Circuit Voltage
PHYSICAL DIMENSIONS
Width
21.77 in.
553 mm
BULLDOG™ 5500
Displacement
16.9 cu. in.
(277 cc)
Bore x Stroke
3.1" x 2.3"
(78mm x 58mm)
66 VAC Max.
Depth
31.48 in.
800 mm
Ignition
Capacities
Manual,
Fuel: 1.9 gal. (7.2 L)
Recoil start;
Manual choke
Oil: 1.2 qts.(1.1 L)
Volts at Rated Amperes
20 VAC
25 VAC
AC Auxiliary Power
4000 Continuous Watts
5500 Surge Watts
Weight
198.0 lb.
89.8 kg
A-1
