- Page 1 UC-8 User’s Guide...
-
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION This section contains detailed instructions on the operation and maintenance of this machine. To achieve optimum utility of this device, all operators should carefully read and follow the instructions in this manual. Please keep this manual in a handy place near the machine. - Page 4 SAFETY INFORMATION INFORMATIONS DE SÉCURITÉ Cette section contient des instructions détaillées sur l'utilisation et l'entretien de cette machine. Pour obtenir un rendement optimal de cette machine, il est impératif que toutes les personnes l'utilisant lisent attentivement et observent scrupuleuse- ment les consignes de ce manuel. Veuillez conserver ce manuel en lieu sûr, à proxi- mité...
- Page 5 SAFETY INFORMATION • Do not modify this product, as a fire, electrical shock, or break- down could result. If the product employs a laser, the laser beam source could cause blindness. • Do not attempt to remove the covers and panels which have been fixed to the product.
- Page 6 SAFETY INFORMATION • Do not unplug or plug in the power cord with a wet hand, as an electrical shock could result. • Né branchez ni débranchez jamais le cordon d'alimentation avec des mains mouillées car cela risquerait de provoquer une électrocution. •...
- Page 7 SAFETY INFORMATION • Ne posez jamais de vase ou tout autre récipient contenant de l’eau, ainsi que de petits objets métalliques tels que des trombones sur l’appareil. Si le récipient venait à être renversé ou des objets métalliques venaient à tomber dans l’appareil, cela risquerait de provoquer un incendie, une électrocution ou une panne de l’appareil.
- Page 8 SAFETY INFORMATION • Do not use flammable sprays, liquids, or gases near this product, as a fire could result. • Do not leave a toner unit or drum unit in a place within easy reach of children. Licking or ingesting any of these things could injure your health.
- Page 9 SAFETY INFORMATION • N’installez pas cet appareil sur une surface instable ou inclinée, et évitez également les endroits particulièrement exposés aux vibrations et chocs. L’appareil risquerait de se renverser ou de tomber, causant des blessures ou une panne. • Veillez lors de l’installation de l’appareil à ce qu’il repose sur une surface stable.
- Page 10 SAFETY INFORMATION • When unplugging the power cord, be sure to hold onto the plug. Pulling on the power cord could damage the cord, resulting in a fire or electrical shock. • Veillez à ce que la prise de courant alimentant l’appareil se trouve à proximité...
- Page 11 SAFETY INFORMATION Precautions for Routine • Do not store toner units, PC drum units, and other supplies and consumables in a place subject to direct sunlight and high temperature and humidity, as poor image quality and malfunc- tion could result. •...
- Page 12 SAFETY INFORMATION • N’utilisez jamais cet appareil en présence d’ammoniaque ou d’autres produits chimiques ou gaz. Le non-respect de cette précaution risque- rait de réduire la durée de vie de l’appareil, de causer des dommages ou de réduire ses performances. •...
- Page 13 SAFETY INFORMATION Welcome This User's Guide explains how to operate the unit and replenish its supplies. It also gives some troubleshooting tips as well as general precautions to be observed when operating the unit. To ensure the best performance and effective use of your unit, read this User's Guide carefully until you familiarize yourself thoroughly with the unit's operation and features.
-
Page 14: Table Of Contents
Contents Contents 1 Notes to Operators and Key Operators 1.1 The following safety rules should be observed......1-1 FCC Part 15 - Radio Frequency Devices (For U.S.A. Users) ....1-1 WARNING ....................1-1 Interference-Causing Equipment Standard (ICES-003 ISSUE 4) (For Canada Users)...........1-2 CE Marking (Declaration of Conformity) (For European Users) ....1-2 2 Part Identification 2.1 Part Identification................2-1 3 Operation... -
Page 15: Notes To Operators And Key Operators
Notes to Operators and Key Operators 1 Notes to Operators and Key Operators 1.1 The following safety rules should be observed 1. The unit should be kept free from moisture, dirt, dust and exposure to heat and direct sunlight at all times. 2. -
Page 16: Interference-Causing Equipment Standard (Ices-003 Issue 4) (For Canada Users)
Notes to Operators and Key Operators Interference-Causing Equipment Standard (ICES-003 ISSUE 4) (For Canada Users) This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe A est conforme a la norme NMB-003 du Canada. CE Marking (Declaration of Conformity) (For European Users) This product complies with the following EU directives: 2006/95/EC and 2004/108/EC directives. -
Page 17: Part Identification

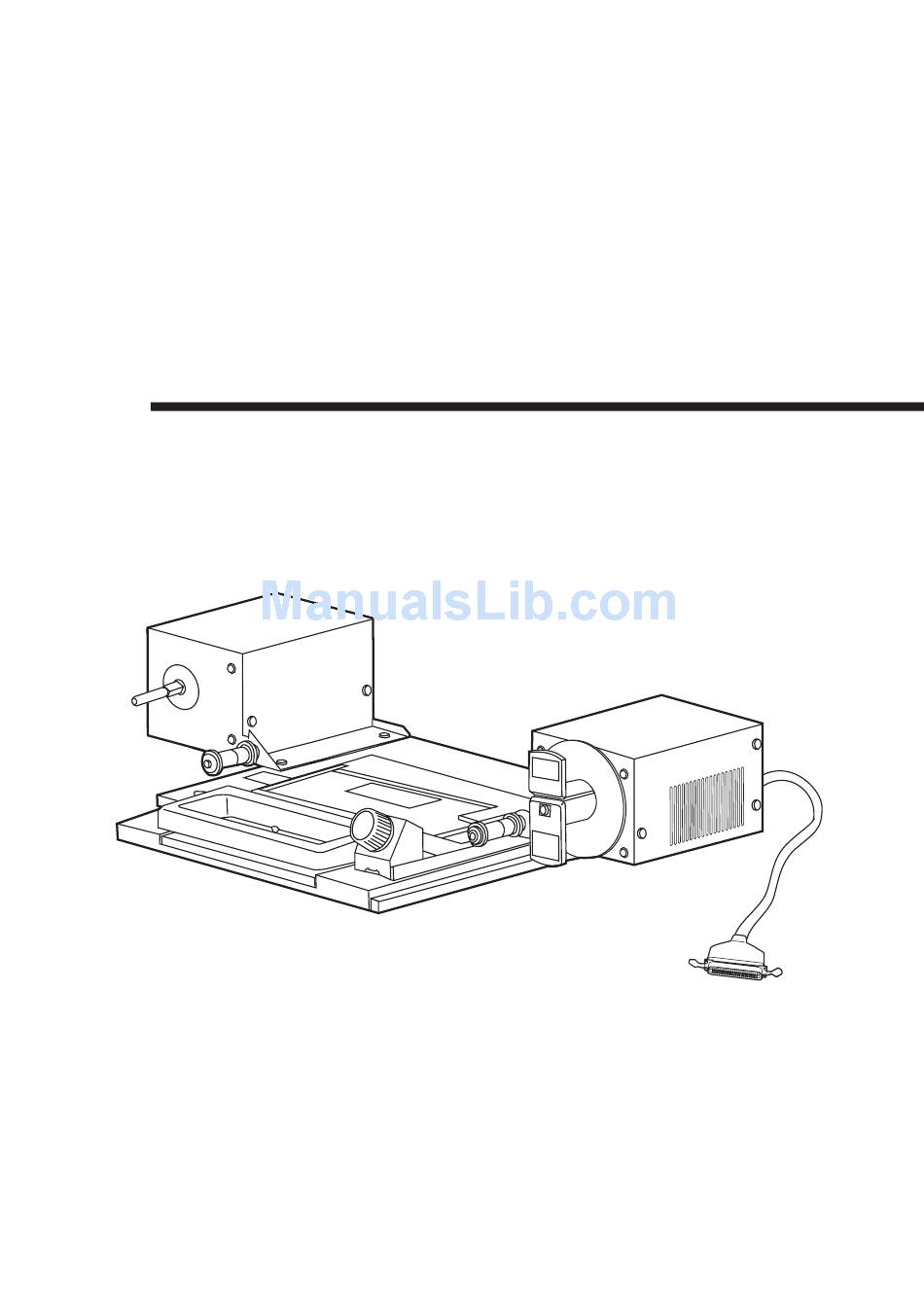

Part Identification 2 Part Identification 2.1 Part Identification 5 Take-Up Reel 1 Guide Roller (Left) 2 Reel Shaft 6 Guide Roller (Right) 7 Speed Control Knob 3 Film Pressure Glass 8 Carrier Handle 4 Connecting Cord (I/F Cable) -
Page 18: Operation
Operation 3 Operation 3.1 Selecting the Film Width 16/35mm 1 Release the Stopper Ring which holds the Guide Roller. Be careful not to lose the NOTE Stopper Ring when you release it. 2 Pull out the front part of the Guide Roller, then reverse its directions and insert again. -
Page 19: Loading The Roll Film
Operation 3.2 Loading the Roll Film 1 Mount the Roll Film onto the Reel Shaft and unwind the leading edge of the film. Be sure to set the film so NOTE that its winding direction is to be clockwise. The film will not be correctly rewound if the open reel roll film is mounted in the opposite... -
Page 20: Feeding The Film
Operation 3.3 Feeding the Film 1 Turn the Speed Control Knob clockwise or counter-clockwise to feed the film in the forward or reverse direction. The film scanning speed is FOWARD determined by the turning angle of the Speed Control Knob. Important! REVERSE If you feed the film at high speeds,... -
Page 21: Rewinding The Film
Operation 3.4 Rewinding the Film 1 Take hold of the Carrier Handle and pull it gently out as far as it will go. This causes the Film Pressure Glass to swing up. 2 To rewind the film, turn the Speed Control Knob in the REVERSE direction. -
Page 22: Operating Fiche
Operation 3.5 Operating Fiche 1 Take hold of the Carrier Handle and pull it forward fully, then the Film Pressure Glass will open. 2 Insert the film between the Glasses. Aperture Card Place the Card so that the film area is on the left side, face-down. Fiche, Jacket Film Place the film so that the title is toward the rear and face-down. -
Page 23: Daily Maintenance
Daily Maintenance 4 Daily Maintenance 4.1 Cleaning the Carrier Glasses 1 Clean and remove any dust or debris on the Carrier Glass’s surface with a damp cloth, then wipe it with a soft and dry cloth. Before cleaning the Carrier NOTE Glasses, be sure to remove the Projection Lens. -
Page 24: Installation
Installation 5 Installation Important! Make sure that the Power ON/OFF Switch of the Microfilm Scanner has been turned OFF before starting the installation or removal procedure. 5.1 Installation 1 Turn the Guide Rail of the main unit counterclockwise at 90 degrees. 2 Pull the Carrier to the let fully against the Lower Frame, then insert it into the main unit so that the cover on the... -
Page 25: Removal
Installation 4 Plug the Connecting Cord Connector of the Carrier into the Socket in the machine dedicated to this Carrier. 5 Install the Lens Unit all the way into Position. 5.2 Removal 1 To remove the Carrier from the main unit, reverse the procedure of this installation. -
Page 26: Miscellaneous
Miscellaneous 6 Miscellaneous 6.1 Specifications Film Type 16mm Open Reel Roll Film, 35mm Open Reel Roll Film, Microfiche, Aperture Card, Jacket Film Used Roll Film Thickness ...2.5Mil (0.0635mm) to 5Mil (0.127mm) Length ....2.5Mil 50ft (15.2m) to 215ft (65.6m) 5Mil 25ft (7.6m) to 100ft (30.5m) Film Loading Manual Loading Film Feeding... - Page 28 Copyright 2010 KYOKKO SEIKO CO., LTD. The information contained in this manual is subject to change without notice to incorporate improvements made on the product or products the manual covers. Printed in Japan 2010.2 7162-7701-01...
