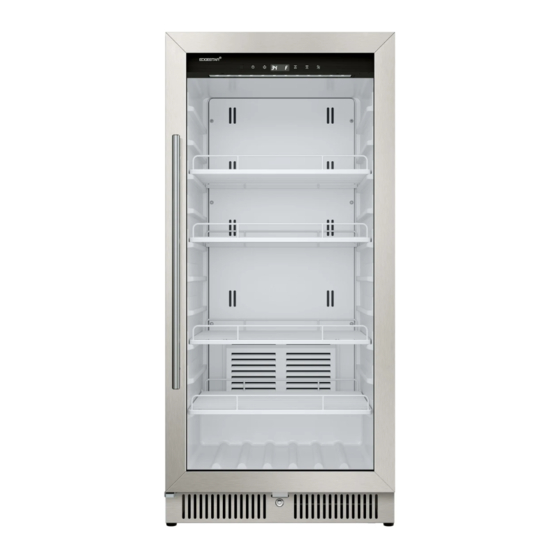

- Page 1 Commercial Refrigerator VBM91SS VBM101SS VBM131SS Owner’s Manual www.edgestar.com V1.1 12112020...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar commercial refrigerator and / or injury to the user. This commercial refrigerator is designed for indoor use only. Any other use may invalidate the warranty. Please review the rating label located inside or on the right exterior panel of the unit for electrical and other technical data related to this unit. - Page 3 Important Safety Information General Safety • To prevent injuries, use at least two people to move and install the commercial refrigerator. • Install the commercial refrigerator in a well-ventilated area where the ambient temperature is above 50° F and below 90° F. •...
-
Page 4: Table Of Contents
Using the Temperature Control Panel ..............16 Normal Sounds......................17 Temperature Alarm ....................17 Door Ajar Alarm ....................... 17 Defrosting ........................ 18 Preparing the Commercial refrigerator for Storage ..........18 Cleaning and Maintenance ..................... 18 Troubleshooting ......................19 Specifications ......................... 21 EdgeStar Limited Warranty .................... 22... -
Page 5: First-Time Operating Instructions
Thank you for purchasing this EdgeStar commercial refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Note: Gather the model and serial number from the product label and write them down before installing the commercial refrigerator. Front View: Rear View: Control Panel Shelf Handle Cabinet Fan Cover Compressor Door Lock Front Vent Power Cord Leveling Leg Sealing Strip Note: The appearance of each unique model covered by this manual may vary slightly... -
Page 7: Installation
Installation The commercial refrigerator should be installed in accordance with local electrical code requirements. The commercial refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the commercial refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Clearance Requirements
Clearance Requirements Notes: • Choose a location that has ambient temperatures above 50° F and below 90° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects. • This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips. •... - Page 9 Side View: 1/2” 3/4” Note: The commercial refrigerator should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the commercial refrigerator to be level in order to work properly. If needed, you can adjust the height of the commercial refrigerator by rotating the feet.
-
Page 10: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your Commercial refrigerator into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required. -
Page 11: Leveling The Commercial Refrigerator
Leveling the Commercial Refrigerator It is important for the commercial refrigerator to be level in order to work properly. It can be raised or lowered by rotating the plastic sheaths around each of the feet on the bottom of the machine. If you find that the surface is not level, rotate the feet until the commercial refrigerator becomes level. -
Page 12: Installing The Sealing Strip
Installing the Sealing Strips Four (4) sealing strips have been included with the commercial refrigerator. Two (2) for the front/ back, and two (2) for the right/left. Once the sealing strips are fully installed they will create a barrier between the bottom of the commercial refrigerator and the floor that will help prevent dirt, debris, and other contaminenets from getting under the refrigerator. To install the sealing strips: 1. -
Page 13: Installing The Door Handle
Installing the Door Handle To install the door handle: 1. Open the door and carefully pull the door gasket around the area where the handle is to be installed. 2. Carefully remove the two pre-installed decorative plugs from the front of the door. 3. -
Page 14: Reversing The Door Swing
Reversing the Door Swing Warning: Before you begin, unplug the Refrigerator. Warning: Use two or more people to reverse the door swing of the commercial refrigerator. Failure to do so can result in back or other injury. 1a. Using a flathead screw driver or flat blade, carefully pry off the decorative plugs on the opposite upper side of the cabinet. 1b. - Page 15 1. Decorative plug 2. Flat blade 3. Lower door support 4. M5 hex screw 5. M5 hex key 6. Door hinge pin 7. Upper door hinge 8. Lower door hinge...
-
Page 16: Operation
Operation Installation Checklist Before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the commercial refrigerator? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the commercial refrigerator? 3. -
Page 17: Normal Sounds
When the interior temperature rises above 30°F (-1°C) the alarm will stop automatically. If one of these situations occurs please reference the troubleshooting section found in this manual or contact EdgeStar for support. Door Ajar Alarm This commercial refrigerator includes a door ajar alarm, which will sound if one of the doors is open for more than three (3) minutes, “00 00”... -
Page 18: Defrosting
Defrosting Note that under most refrigerating settings, the unit will automatically defrost in most ambient conditions. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. -
Page 19: Troubleshooting
Troubleshooting Before Calling for Help: If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions The commercial refrigerator The room temperature Run the refrigerator at the appropriate turns on and off frequently. - Page 20 Symptoms Possible Causes Solutions The unit is not level or is Check to make sure that the touching another appliance. refrigerator is level, and that it is not in contact with another appliance or furniture. The body of the commercial The unit is not grounded Contact your local electrician to test refrigerator is electrified.
-
Page 21: Specifications
Specifications Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the commercial refrigerator for the most accurate information. Product Type Commercial refrigerator Model VBM91SS VBM101SS VBM131SS Voltage / Frequency AC 115V~60Hz Amperage Input Power 110-120V Color Stainless Steel Door; White Cabinet... -
Page 22: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge. - Page 23 ©2020 EdgeStar...
