CREVIS FnIO GT-7511 User Manual

Power module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

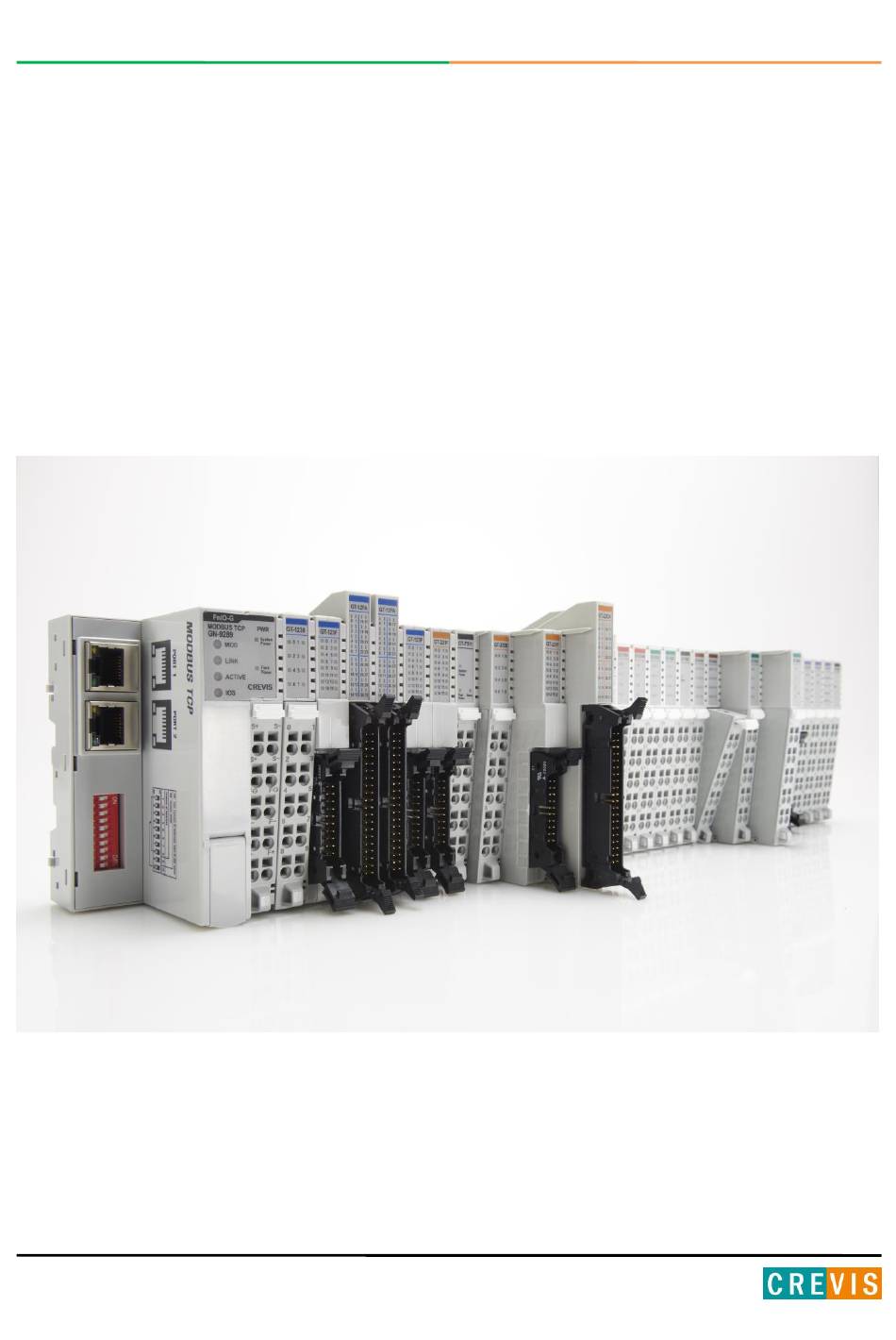

FnIO G-Series
1
Power Module
GT-7xxx
User Manual
REV 1.00
2018 CREVIS Co.,Ltd
Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FnIO GT-7511 and is the answer not in the manual?

Questions and answers

Related Manuals for CREVIS FnIO GT-7511

Summary of Contents for CREVIS FnIO GT-7511

  • Page 1 FnIO G-Series Power Module GT-7xxx User Manual REV 1.00 2018 CREVIS Co.,Ltd Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
  • Page 2 FnIO G-Series DOCUMENT CHANGE SUMMARY REV. PAGE REMARKS DATE EDITOR 1.00 New Document 2018/07/30 YE JEON Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 3: Table Of Contents

    3.3.3. System/Field Power LED ................... 15 3.3.4. Status LED ........................15 3.3.5. Specification ....................... 16 3.3.6. Example ........................17 3.4. GT-7518 ..........................18 3.4.1. Wiring Diagram......................18 3.4.2. LED Indicator ......................19 3.4.3. Status LED ........................19 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
  • Page 4 5.1. GT-7XXX ..........................28 6. Mounting ..........................29 6.1. I/O Inserting and Removing Devices ................29 6.2. RTB (Removable Terminal Block) ..................30 7. G-Bus Pin Description ......................31 8. Trouble Shooting ........................32 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 5: Important Notes

    In no event will CREVIS be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

  • Page 6: Safety Instruction

    Avoid touching conductive components, G-Bus Pin. 1.1.3. Certification c-UL-us UL Listed Industrial Control Equipment, certified for U.S. and Canada See UL File E235505 CE Certificate EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions Reach, RoHS (EU, CHINA) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 7: Power Module List

    Expansion Power Supply, Input 24Vdc, Output 1.0A/5Vdc 7511 Active GT-7518 Common for 24Vdc, ID Type 7518 Active GT-7588 Common for 24Vdc, 0Vdc ID Type 7588 Active GT-7641 Field Power Distribution 5,24,48(Vdc), 110,220(Vac) ID Type 7641 Active Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 8: Specification

    FnIO G-Series 3. Specification 3.1. GT-7408 3.1.1. Wiring Diagram Pin No. Signal Description Signal Description Pin No. Shield Shield Shield Shield Shield Shield Shield Shield Field Power, 24V Field Power, 24G Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 9: Led Indicator

    General Specification System Power Dissipation Max. 30mA @ 5Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Weight 70g Max. Module Size 12mm x 99mm x 70mm Refer to ‘1. Environment Specification’ Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 10: Example

    FnIO G-Series 3.1.5. Example GT-7408 Shield Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 11: Gt-7508

    FnIO G-Series 3.2. GT-7508 3.2.1. Wiring Diagram Pin No. Signal Description Signal Description Pin No. 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 0VDC/L2 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 12: Led Indicator

    General Specification System Power Dissipation Max. 30mA @ 5Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Weight 70g Max. Module Size 12mm x 99mm x 70mm Refer to ‘1. Environment Specification’ Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 13: Example

    FnIO G-Series 3.2.5. Example GT-7508 Common 0Vdc Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 14: Gt-7511

    3.3.1. Wiring Diagram Pin No. Signal Description Signal Description Pin No. System Power, 24V System Power, Ground System Power, 24V System Power, Ground Field Power, Ground Field Power, Ground Field Power, 24V Field Power, 24V Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 15: Led Indicator

    LED maintains ON status.) Although this module is connected normally, Absence of data Flashing green size. there are not input/output data for communication. Absence of Network adapter is not connected to this module. Network adapter Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 16: Specification

    - 40 ~ 70℃ temperature range specification can be guaranteed under the following conditions. > Current for I/O modules : 0.4 A below. > Otherwise, temperature specification can be guaranteed with -40 ~ 60℃. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 17: Example

    FnIO G-Series 3.3.6. Example GT-7511 Provides Power Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 18: Gt-7518

    FnIO G-Series 3.4. GT-7518 3.4.1. Wiring Diagram Pin No. Signal Description Signal Description Pin No. 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 24VDC/L1 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 19: Led Indicator

    General Specification System Power Dissipation Max. 30mA @ 5Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Weight 70g Max. Module Size 12mm x 99mm x 70mm Refer to ‘1. Environment Specification’ Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 20: Example

    FnIO G-Series 3.4.5. Example The GT-7518 Common 24Vdc Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 21: Gt-7588

    FnIO G-Series 3.5. GT-7588 3.5.1. Wiring Diagram Pin No. Signal Description Signal Description Pin No. 24VDC/L1 0VDC/L2 24VDC/L1 0VDC/L2 24VDC/L1 0VDC/L2 24VDC/L1 0VDC/L2 24VDC/L1 0VDC/L2 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 22: Led Indicator

    General Specification System Power Dissipation Max. 30mA @ 5Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Weight 70g Max. Module Size 12mm x 99mm x 70mm Refer to ‘1. Environment Specification’ Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 23: Example

    FnIO G-Series 3.5.5. Example GT-7588 Common 24Vdc, 0Vdc Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 24: Gt-7641

    FnIO G-Series 3.6. GT-7641 3.6.1. Wiring Diagram Pin No. Signal Description Signal Description Pin No. Field Power, Arbitrary (N) Field Power, Arbitrary (N) Field Power, Arbitrary (P) Field Power, Arbitrary (P) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 25: Led Indicator

    General Specification System Power Dissipation Max. 30mA @ 5Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Weight 70g Max. Module Size 12mm x 99mm x 70mm Refer to ‘1. Environment Specification’ Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 26: Example

    FnIO G-Series 3.5.5. Example GT-7641 provides Field Power Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 27: Environment Specification

    - 500 ~ 2000 Hz : 0.002 → 1.3 x 10 - Test time : 1hrs for each test Industrial Emissions EN61000-6-4/All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Certifications CE, UL Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 28: Dimension

    FnIO G-Series 5. Dimension 5.1. GT-7XXX (mm) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 29: Mounting

    - As above figure in order to safeguard the FnIO module from jamming, it should be fixed onto the DIN rail with locking level. To do so, fold on the upper of the locking lever. To pull out the FnIO module, unfold the locking lever as below figure. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 30: Rtb (Removable Terminal Block)

    There is a locking switch on the RTB for the easy combination and easy removal. • Easy combination and easy removal for IO modules on the din rail through One Touch Locking Switch. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 31: G-Bus Pin Description

    Field Power (GND) G-Bus CLK G-Bus MISO G-Bus MOSI G-Bus Token System Power (GND) System Power (VCC) Do not touch data and field power pins in order to avoid soiling and damage by ESD noise. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...

  • Page 32: Trouble Shooting

    G-Bus normal Operation Flashing Green G-Bus Ready G-Bus ready G-Bus Time Out, Flashing Red G-Bus Fault G-Bus Failed Communication Device Fault Device fault CHANNEL STATUS LED Not Signal Normal Operation Green On Signal Normal Operation Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
