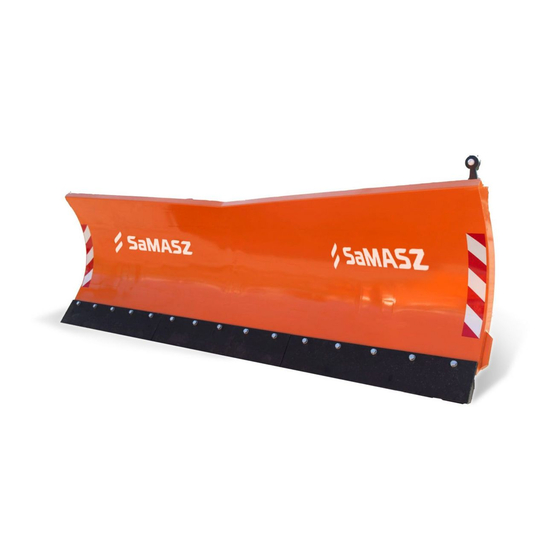

OPERATOR'S MANUAL
SNOW PLOW
The original operator's manual
RAM 250
RAM 270
RAM 300
ENGLISH
SaMASZ Sp. z o.o.
tel. (+48) (85) 664 70 31
ul. Trawiasta 1
fax (+48) (85) 664 70 41
16-060 Zabłudów
e-mail: samasz@samasz.pl
Polska
www.samasz.pl
Serial No
IN0489EN001
14.10.2015
EDITION 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAM 270 and is the answer not in the manual?

Questions and answers

Related Manuals for SaMASZ RAM 270

Summary of Contents for SaMASZ RAM 270

  • Page 1 SaMASZ Sp. z o.o. tel. (+48) (85) 664 70 31 ul. Trawiasta 1 fax (+48) (85) 664 70 41 16-060 Zabłudów e-mail: samasz@samasz.pl Polska www.samasz.pl OPERATOR’S MANUAL SNOW PLOW RAM 250 RAM 270 RAM 300 IN0489EN001 The original operator’s manual Serial No 14.10.2015...
  • Page 2 The proven designs and the correct selection of materials ensure a high reliability and a long service life of our products. SaMASZ is confident that your purchase of this machine is the right choice and you will have a great experience when operating it.

  • Page 3: Table Of Contents

    OPERATOR’S MANUAL SNOW PLOW Table of Contents IDENTIFICATION ........................4 INTRODUCTION ........................4 PROPER USE ..........................5 3.1. Technical data ........................5 3.2. Construction ........................6 3.3. Equipment.......................... 7 3.3.1. Standard equipment ....................7 3.3.2. Optional equipment ..................... 7 3.4. Spare parts ........................

  • Page 4: Identification

    SNOW PLOW OPERATOR’S MANUAL 1. IDENTIFICATION Every snow plow can be clearly identified using the identification plate which is permanently attached to the suspension body, as is shown below Fig. 1. Fig. 1. Data plate and its placement Data plate includes: name and adress of the manufacturer, model year, ❑...

  • Page 5: Proper Use

    The machine must only be used, operated, and repaired by personnel familiar with its detailed characteristics and safety procedures. The manufacturer shall not be liable for any damage or loss resulting from unauthorized modifications of the machine’s design. 3.1. Technical data SaMASZ® manufactured Ram snow plows feature the following parameters:...

  • Page 6: Construction

    SNOW PLOW OPERATOR’S MANUAL Tab. 1. Technical data Plow type Ram 250 Ram 270 Ram 300 Mounting manner 3-point linkage category II Turning left/right to 30° min 2350 min 2600 Operating width: depending on min 2180 max 2700 max 3000...

  • Page 7: Equipment

    OPERATOR’S MANUAL SNOW PLOW Fig. 2. Construction of the Ram plow 1 – mounting system 6 – hitch frame 2 – actuator 7 – clearance flaglets 3 – cross sweep valve 8 – clearing bar 4 – mouldboard 9 – support foot 5 –...

  • Page 8: Spare Parts

    In the event of failure, pull up, stop the vehicle's engine and remove the ignition key. Next, contact ❑ the SaMASZ authorized service. In the event of an accident (including a road accident), follow the good practices of first medical aid and contact relevant services.

  • Page 9: Dangers And Prohibitions

    4.2. Dangers and prohibitions ATTENTION! Even though the manufacturer of the plow SaMASZ Sp. z o. o. Bialystok, in order to eliminate danger, assumes responsibility for the design and construction of its plows, some elements of risk (so called residual risk) are unavoidable during plow use.

  • Page 10: Handling The Machine Onto A Vehicle For Transporting Purpose

    SNOW PLOW OPERATOR’S MANUAL Adapt the driving speed to the road conditions and the national Highway Code regulations. ❑ Operating speeds of the tractor-plow unit should be appropriate to working conditions, such as: ❑ level of unevenness, rocks, curbs and other immovable obstacles. Low operating speeds are recommended –...
  • Page 11 OPERATOR’S MANUAL SNOW PLOW Fig. 4. Location of centre of gravity Tab. 2. Location of centre of gravity Dimension Model Ram 250 Ram 270 Ram 300 [mm] 1250 1350 1500 when mounting slings, chains, handles etc. always pay attention to setting the machine's center of ❑...

  • Page 12: Warning Signs

    SNOW PLOW OPERATOR’S MANUAL 4.5. Warning signs ATTENTION! Always observe the instructions on warning signs on the plow which warn of dangers. ATTENTION! a) All warning labels should be clean and legible. b) In the event of loss or damage of labels they should be replaced. c) Labels can be purchased from the manufacturer.

  • Page 13: Operation

    OPERATOR’S MANUAL SNOW PLOW Fig. 5. Safety signs on the machine 5. OPERATION 5.1. Connecting Conditions for connecting the plow to the tractor: the Ram plows have been designed as front mounted plows with the cat. II TPH type mounting ❑...

  • Page 14: Plow Control

    SNOW PLOW OPERATOR’S MANUAL In order to mount the plow on the tractor approach the plow so that the lower lifting arms of the three point hitch are inserted into the mountings of the plow's suspension. Secure the mounting using pins and cotter pins.

  • Page 15: Preparing The Plow For Operation

    5.4. Preparing the plow for operation ATTENTION! During storing of the machines in company SaMASZ the cylinders are protected by special grease in order to secure them against weather which may cause their premature wear. Before starting the operation excess grease should be removed from the cylinders.

  • Page 16: Operation

    SNOW PLOW OPERATOR’S MANUAL In order to adjust the force loosen nuts (N), and then adjust screw connection by loosening or tightening the spring (S) (Fig. 10). Once these are done tighten locknuts. Fig. 10. Adjusting shield's unlocking force 5.5. Operation ATTENTION! While plowing the driving speed should be appropriate to existing road conditions.
  • Page 17 OPERATOR’S MANUAL SNOW PLOW Tab. 4. Schematic visualization of the permissible loading of the Ram plow Schematic of the permissible loads affecting the Distribution of permissible loads of the Ram Ram plows plows with GCJ-63-36x300 up to 6 Ton up to 6 tons Force tilting Ground uchylająca odkładnicę...
  • Page 18 Tab. 5. Depending on the type of an obstacle the stopping time may vary. Tab. 6. The working of the blade This concerns the entire moldboard with the initial spring setting at 30 mm. Fu [kg] α [º] Ram 250 Ram 270, Ram 300 ~ 90 ~ 135 ~ 250...
  • Page 19 OPERATOR’S MANUAL SNOW PLOW Fig. 11. Types of hitch frames for Ram plows a) frame Cat. II f) enclosure plate b) EURO frame g) frame for municipal triangle hitch c) frame Cat.I h) frame for triangle hitch Cat. I d) SMS frame i) frame for triangle hitch Cat.

  • Page 20: Maintenance

    SNOW PLOW OPERATOR’S MANUAL 5.7. Maintenance ATTENTION: Each time the plow is disconnected from the vehicle's hydraulic system, the partial pressure in the hydraulic system must be reduced. Every time before starting work: make certain that the plow is properly connected to the tractor, ❑...

  • Page 21: Repair And Disposal

    OPERATOR’S MANUAL SNOW PLOW remove any rust spots and touch up any damaged paint, ❑ protect metal surfaces with a light coating of a thick lubricant such as ŁT – 43, mineral oil or gear ❑ oil like 15W40, replace any illegible warning or informational signs, ❑...

  • Page 22: Warranty

    SNOW PLOW OPERATOR’S MANUAL 8. WARRANTY 8.1. Warranty card This product has been checked and cleared for use - it conforms to the Technical Acceptance Specifications (in accordance to the technical documents for this product). MIDDLE CLASS SNOW PLOW Serial number Date of manufacture Guarantor seal Inspector signature...
  • Page 23 OPERATOR’S MANUAL SNOW PLOW e) support skids, f) marking lights, etc. 8. Guarantor has the right to void the warranty in the event of: a) changes made to its construction or intentional damage, b) extensive damage due to a random event or other for which the guarantor is not responsible, c) lack of required signatures, seals or an attempt to forge them in the warranty card, d) operating the device not according to its use or the operating manual.

  • Page 24: Record Of Warranty Repairs

    SNOW PLOW OPERATOR’S MANUAL 8.3. Record of warranty repairs Repairs performed and parts replaced: Date, seal and signature of the person performing the repair. Date, seal and signature of the person performing the repair. Date, seal and signature of the person performing the repair.

  • Page 25: Defining The Total Weight, Axis Load, Tyre Load Capacity And Minimum Load

    OPERATOR’S MANUAL SNOW PLOW DEFINING THE TOTAL WEIGHT, AXIS LOAD, TYRE LOAD CAPACITY AND MINIMUM LOAD ATTENTION! Load applied on the front axle cannot be less than 20% of the tractor's overall weight. Before using the tractor-machine assembly, check whether these conditions are met, while calculating and weighing the assembly.
  • Page 26 SNOW PLOW OPERATOR’S MANUAL Calculating minimum weight of front balast M – machine mounted at tractor's rear: ❑ P min. �� × ( �� + �� ) − �� × �� + 0,2 × �� × �� �� �� �� ��������.
  • Page 27 OPERATOR’S MANUAL SNOW PLOW...
  • Page 28 SNOW PLOW OPERATOR’S MANUAL SaMASZ Sp. z o.o. tel. (+48) (85) 664 70 31 ul. Trawiasta 1 fax (+48) (85) 664 70 41 16-060 Zabłudów e-mail: samasz@samasz.pl Polska www.samasz.pl...
