Bedienungs- und
Wartungsanleitung
Operating and
Maintenance Instructions
Modelle:
X-CYCLONE
®
Auftrags-Nr.
Order No.
Stand 06 / 2013
As of 06 / 2013
www.facebook.com/REVEN.info
Schwebstofffilter
Models:
X-CYCLONE
Hersteller /
Manufacturer:
Rentschler REVEN
®
Lüftungssysteme GmbH
Ludwigstraße 16 -18
D-74372 Sersheim
Germany
HEPA filters
®
Tel.: +49 (0) 7042 - 373 - 0
Fax.: +49 (0) 7042 - 373 - 20
www.reven.de
info@reven.de
Advertisement
Table of Contents
Related Manuals for Reven X-CYCLONE C-2
Summarization of Contents
General Description I

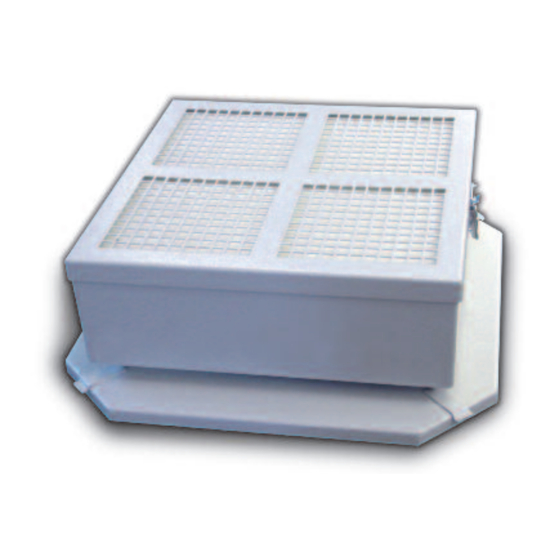

HEPA Filter Top Unit Functionality
Describes the HEPA filter top unit for high-performance post-filtering of extracted air.
Filter Top Unit Installation Method
Explains the filter top unit is fitted to the basic device using quick-release clip fasteners.
Available HEPA Filter Top Unit Models
Lists the X-CYCLONE® C and RJ models for which HEPA filter top units are available.
General Description II
HEPA Filter Components and Configuration
Details the H11 HEPA filter's three-stage configuration: filter mat, z-line filter, separator system.
Filter Mat Functionality
Describes the preliminary filter mat's role in initial filtration and air distribution.
Z-line Filter System Benefits
Explains the Z-line filter's zigzag configuration and its advantages like increased filter area and reduced resistance.
Expansion Chamber Purpose
Details the expansion chamber's function in distributing airflow evenly before the particulate filter.
General Description III
HEPA Filter Stage 1: Filter Mat
Details the preliminary filter mat's function in initial filtration and air distribution.
HEPA Filter Stage 2: Z-line Filter
Explains the Z-line filter's zigzag design for increased surface area and reduced resistance.
HEPA Filter Stage 3: Expansion Chamber
Describes the expansion chamber's role in ensuring even airflow distribution to the filter.
Safety Notes
Use in Explosive Environments
Warns against using devices in explosive environments due to lack of explosion protection.
Handling Media with Low Ignition Points
Addresses the increased risk of fire and explosion when using oils with low ignition points.
Warning Notes: Hazardous Substances
Air Recirculation Prohibition
Prohibits recirculating cleaned air in areas with hazardous substances like carcinogens.
Installation of the Equipment I: HEPA Filter Top Unit
Step 1: Prepare the Basic Device
Instructions to release clip fasteners and remove the exhaust lid from the basic device.
Installation of the Equipment II: Attaching the Top Unit
Step 2: Mount and Secure HEPA Top Unit
Guide to placing the HEPA filter top unit on the basic device and securing it with clip fasteners.
Correct Orientation for Airflow
Emphasizes the critical requirement for the air inlet opening to face the basic device's air intake.
Installation of the Equipment III: Inserting the Filter
Step 3: Insert HEPA Filter into Housing
Instructions for inserting the HEPA filter correctly into the housing.
Critical Airflow Direction Check
Highlights the importance of positioning the filter mat above the housing's air intake.
Installation of the Equipment IV: Finalizing Assembly
Step 4: Re-attach Exhaust Lid
Guide to placing the exhaust lid back on the unit and securing it with clip fasteners.
Warranty Disclaimer for Non-Original Parts
Warns that using non-original parts voids warranty and functional guarantee.
Technical Data: HEPA Filter Specifications
HEPA Filter Top Unit Housing Dimensions
Provides length, width, and height dimensions for various X-CYCLONE® models' HEPA filter top units.
H11 HEPA Filter Dimensions
Lists the length, width, and height dimensions for the H11 HEPA filters themselves.
HEPA Filter Separation Efficiency
Details the separation efficiency of HEPA filters for different particle sizes (0.5 µm to 10 µm).
Admissible Ambient Temperature Range
Specifies the operating temperature range for all X-CYCLONE® types, from 0°C to 40°C.
Spare Parts List: HEPA Filters (Part 1)
HEPA Filter Top Units for X-CYCLONE® RJ Models
Lists spare HEPA filter top units compatible with X-CYCLONE® RJ-2/RJ-3 models.
HEPA Filter Top Units for X-CYCLONE® C-1, C-2, C-3
Details spare HEPA filter top units suitable for X-CYCLONE® C-1, C-2, and C-3 models.
Accessory HEPA Filters for X-CYCLONE® C-1, C-2, C-3
Lists accessory HEPA filters compatible with X-CYCLONE® C-1, C-2, and C-3 models.
Spare Parts List: HEPA Filters (Part 2)
HEPA Filter Top Units for X-CYCLONE® C-6, C-7
Lists spare HEPA filter top units suitable for X-CYCLONE® C-6 and C-7 models.
Accessory HEPA Filters for X-CYCLONE® C-6, C-7
Lists accessory HEPA filters compatible with X-CYCLONE® C-6 and C-7 models.
HEPA Activated Charcoal Filters
Details spare HEPA activated charcoal filters for X-CYCLONE® C-6 and C-7 models.
Manufacturer's Declaration: EC Conformity
Compliance with Machinery Directive 2006/42/EG
Declares development, design, and manufacturing in compliance with EC directives.
Applicable Harmonized Standards
Lists the harmonized standards applied for the product's compliance.
Responsibility for Integrated Systems
Clarifies responsibility for compliance when the product is integrated into larger systems.
