Johnson Controls FCP-PA-701 Quick Start Manual

FCP-NA-701, FCP-PA-701
FCP Non-programmable and Progammable Fan Coil or PTAC
Thermostat
Quick Start Guide
Figure 1: FCP dimensions, in. (mm) and UI layout
Parts included
• One FCP thermostat
• One Quick Start Guide
• Four mounting screws
• One lock screw
Applications
The FCP-NA-701 non-programmable, non-connected fan coil unit (FCU) or package terminal air conditioning (PTAC) thermostat and
FCP-PA-701 programmable, non-connected FCU or PTAC thermostat are compatible with most 24 VAC FCU or PTAC equipment.
The following list shows the compatible configurations of the equipment:
• 2-Pipe with 3-speed fan
• 4-Pipe with 3-speed fan
• Conventional PTAC
• Heat pump PTAC with or without auxiliary heat
North American emissions compliance
United States
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canada
CAN ICES-3(B)/NMB-3(B). This Class (B) digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe (B) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
• Seven pre-installed terminal wires
• One wire label
• One coin cell battery (included only with FCP-PA-701)
1
*241148200006-*

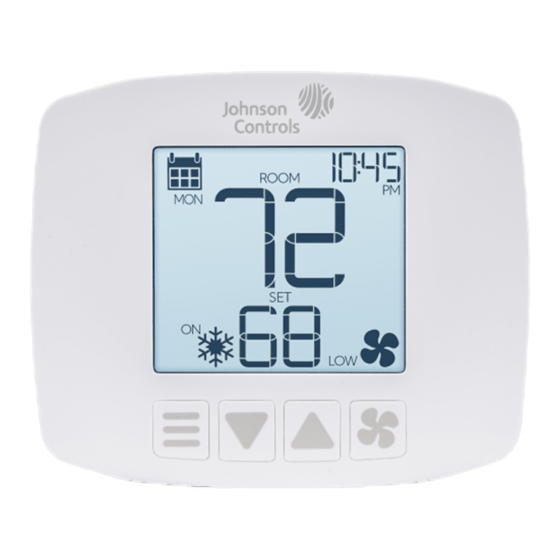

Table 1: UI layout
Number Description
1 Schedule
2 Time
3 Room temperature
4 Temperature setpoint
5 Fan speed
6 Mode
7 Down
8 Up
9 Fan
10 Cool or heat status
11 Day
24-11482-00006 Rev. —
August 2020
