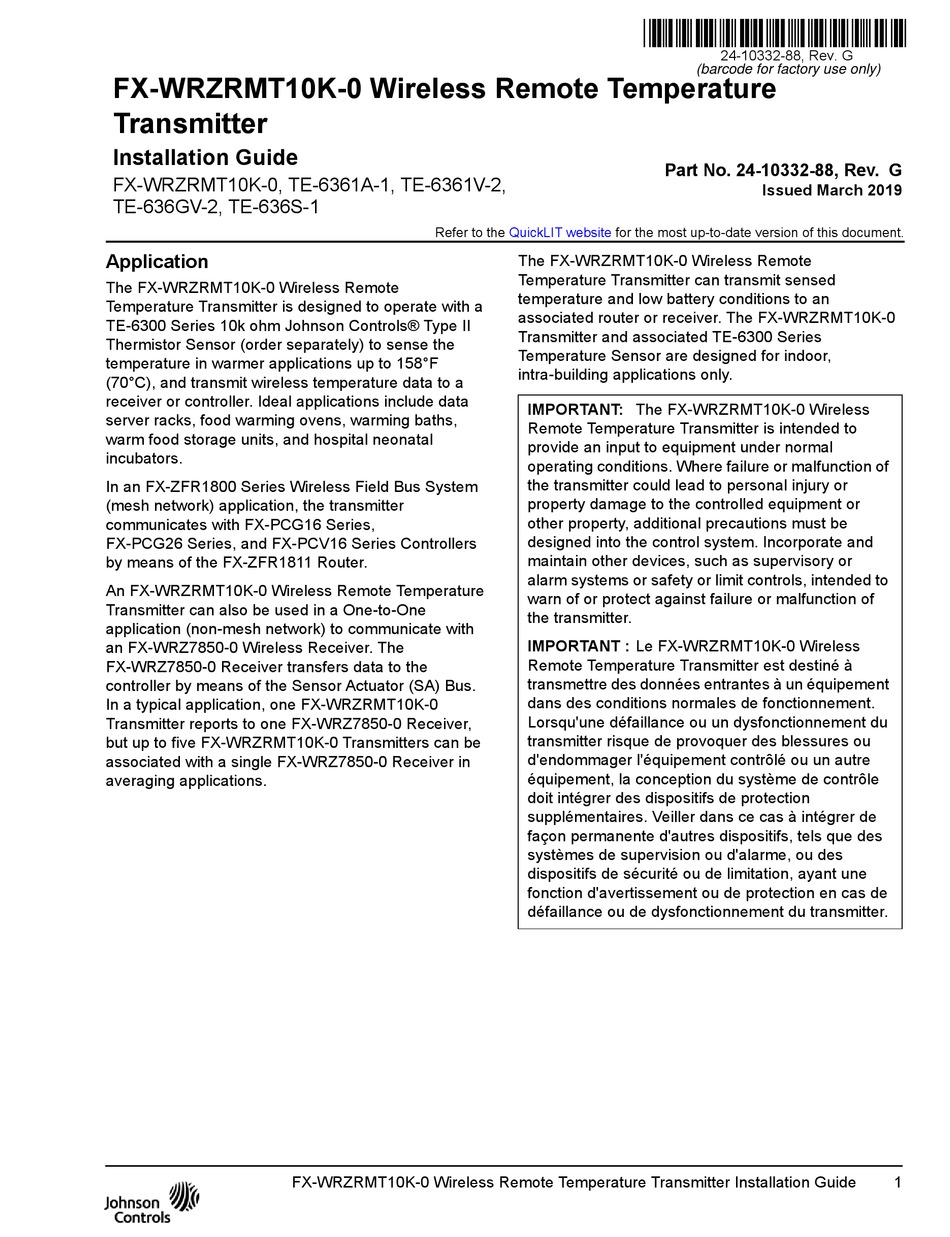

Johnson Controls FX-WRZRMT10K-0 Installation Manual

FX-WRZRMT10K-0 Wireless Remote Temperature
Transmitter

Installation Guide

FX-WRZRMT10K-0, TE-6361A-1, TE-6361V-2,
TE-636GV-2, TE-636S-1
Application
The FX-WRZRMT10K-0 Wireless Remote
Temperature Transmitter is designed to operate with a
TE-6300 Series 10k ohm Johnson Controls® Type II
Thermistor Sensor (order separately) to sense the
temperature in warmer applications up to 158°F
(70°C), and transmit wireless temperature data to a
receiver or controller. Ideal applications include data
server racks, food warming ovens, warming baths,
warm food storage units, and hospital neonatal
incubators.
In an FX-ZFR1800 Series Wireless Field Bus System
(mesh network) application, the transmitter
communicates with FX-PCG16 Series,
FX-PCG26 Series, and FX-PCV16 Series Controllers
by means of the FX-ZFR1811 Router.
An FX-WRZRMT10K-0 Wireless Remote Temperature
Transmitter can also be used in a One-to-One
application (non-mesh network) to communicate with
an FX-WRZ7850-0 Wireless Receiver. The
FX-WRZ7850-0 Receiver transfers data to the
controller by means of the Sensor Actuator (SA) Bus.
In a typical application, one FX-WRZRMT10K-0
Transmitter reports to one FX-WRZ7850-0 Receiver,
but up to five FX-WRZRMT10K-0 Transmitters can be
associated with a single FX-WRZ7850-0 Receiver in
averaging applications.
Refer to the
FX-WRZRMT10K-0 Wireless Remote Temperature Transmitter Installation Guide
*241033288G*
Part No. 24-10332-88, Rev. G
QuickLIT website for the most up-to-date version of this document.
The FX-WRZRMT10K-0 Wireless Remote
Temperature Transmitter can transmit sensed
temperature and low battery conditions to an
associated router or receiver. The FX-WRZRMT10K-0
Transmitter and associated TE-6300 Series
Temperature Sensor are designed for indoor,
intra-building applications only.
IMPORTANT: The FX-WRZRMT10K-0 Wireless
Remote Temperature Transmitter is intended to
provide an input to equipment under normal
operating conditions. Where failure or malfunction of
the transmitter could lead to personal injury or
property damage to the controlled equipment or
other property, additional precautions must be
designed into the control system. Incorporate and
maintain other devices, such as supervisory or
alarm systems or safety or limit controls, intended to
warn of or protect against failure or malfunction of
the transmitter.
IMPORTANT : Le FX-WRZRMT10K-0 Wireless
Remote Temperature Transmitter est destiné à
transmettre des données entrantes à un équipement
dans des conditions normales de fonctionnement.
Lorsqu'une défaillance ou un dysfonctionnement du
transmitter risque de provoquer des blessures ou
d'endommager l'équipement contrôlé ou un autre
équipement, la conception du système de contrôle
doit intégrer des dispositifs de protection
supplémentaires. Veiller dans ce cas à intégrer de
façon permanente d'autres dispositifs, tels que des
systèmes de supervision ou d'alarme, ou des
dispositifs de sécurité ou de limitation, ayant une
fonction d'avertissement ou de protection en cas de
défaillance ou de dysfonctionnement du transmitter.
24-10332-88, Rev. G
(barcode for factory use only)
Issued March 2019
