Table of Contents

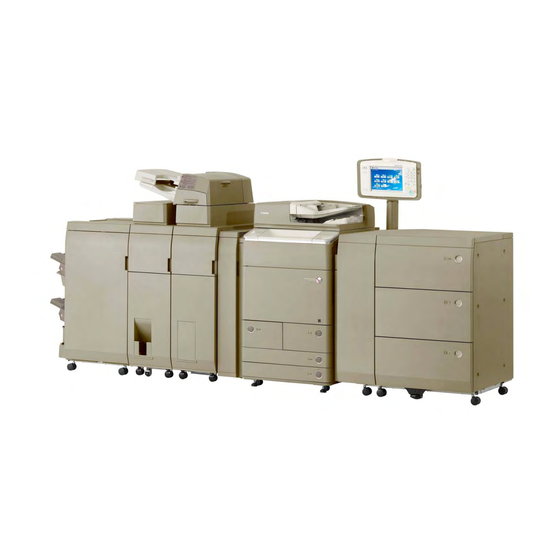

Related Manuals for Canon imageRUNNER ADVANCE C9000 Series
Summarization of Contents
Error Codes
E004-0205/E004-0501/E004-0502/E006-0001/E007-9902 Fixing Drawer Connector Terminals
Errors due to foreign substance or terminal deformation in fixing drawer connector terminals.
E004-0205/E004-0501/E004-0502/E006-0001/E007-9902 Interlock Switch Assembly
Errors caused by incorrect assembly of the fixing feeder assembly interlock switch.
E004-0701 Relay PCB Connector
E004-0701 error due to an unsecured connector on the Relay PCB.
E007-0001/E007-0011/E007-0021 Unhooked Tension Spring
E007 series errors caused by an unhooked tension spring in the fixing belt assembly.
E007-0021/E007-0001 Faulty Front Lift Cam
E007 errors due to a faulty front lift cam in the fixing assembly.
E007-0022 Error Code Displayed
E007-0022 error code related to pressure belt displacement.
E007-0102 /0CF1 Jam Code Pressure Belt HP Sensor
E007-0102 and 0CF1 jam codes linked to the pressure belt HP sensor.
E007-9902 Lower Fixing Pressure Belt Position Sensors
E007-9902 error resolved by replacing lower fixing pressure belt position sensors.
E008-0001 27T Gear and Bearing Defect
E008-0001 error due to a defective 27T gear and bearing in the fixing unit.
E025-0400 Toner Container Drive Motor Overcurrent
E025-0400 error caused by overcurrent in the toner container drive motor.
E025-0x02 Supply Screw Rotation Sensor Timeout
E025-0x02 error due to a timeout in the supply screw rotation detection sensor.
E025-0x10 Toner Bottle Attachment/Detachment Failure
E025-0x10 error from toner bottle attachment/detachment or home position issues.
E025-0x20 Small Door Open/Sensor Failure
E025-0x20 error from a small door being open or sensor detection failure.
E025-0xC0 Small Door Not Opened
E025-0xC0 error indicating the small toner door failed to open.
E025-0xa0/E025-0xb0 Toner Bottle Attachment/Detachment
E025-0xa0/0xb0 errors related to toner bottle attachment or detachment.
Jam (Main Body)
0101/0102 Jam Code Lifter Wire Slack
0101/0102 jam codes caused by slack in the lifter wire.
0101 Jam Code DCON Earlier than Ver.62.02
0101 jam code on machines with DCON software older than Ver.62.02.
0101 Jam Code Right Deck Paper Delivery Burr
0101 jam code resulting from a burr on the right deck paper delivery path.
020F Jam Code Exchange Flapper Failure
020F jam code due to operational failure of the exchange flapper.
Feeder Jam
0045/0047/0049 Jam Codes Registration Guide Sheet
Feeder jam codes caused by a turned-up sheet in the registration guide.
0002/0003/0004 Jam Code Multi-feed Low Separation
Multi-feed jam codes due to low separation performance of originals.
Booklet/Staple Finisher-A1
1121 Jam Code Feeding Roller Pressure Uneven
1121 jam code due to uneven feeding roller pressure in the finisher.
1121/1012/1011 Jam Codes Curl Correction Adjustment
Jam codes resolved by adjusting Curl Correction for finisher drawers.
112F Jam Code Foreign Material in Gripper Track
112F jam due to foreign material in the gripper track during multiple copies.
Booklet/Staple Finisher-B1
1124 Jam Code Swing Arm Operation Failure
1124 jam code due to swing arm operation failure in the finisher.
1124 Jam Code Staple/Booklet Finisher-A1
Specific instance of 1124 jam code for Staple/Booklet Finisher-A1.
1011 Jam Code Stuck Sensor Flag
1011 jam code caused by a stuck sensor flag in the finisher.
1121/1011 Jam Codes Curl Correction Adjustment
Jam codes resolved by adjusting Curl Correction for finisher drawers.
Color Displacement
Horizontal Scan Displacement First 4 Sheets
Color displacement in horizontal scan occurs on the first 4 sheets.
Sudden Horizontal Scan Displacement
Large color displacement suddenly occurs in the horizontal scan direction.
Fluctuating Bk Displacement Vertical Scan
Fluctuating displacement of Black (Bk) occurs in the vertical scan direction.
Fluctuating YMC Displacement Vertical Scan
Fluctuating displacement of Yellow/Magenta/Cyan (YMC) in vertical scan.
Sudden Large Vertical Scan Displacement
Large color displacement suddenly occurs in the vertical scan direction.
Fixed Bk Displacement Large Print Jobs
Fixed Black (Bk) displacement occurs in large print jobs.
Color Displacement DCON Before Ver.66.05
Color displacement on machines with DCON software prior to Ver.66.05.
Fixed YMCK Displacement All Pages
Fixed displacement of any color (YMCK) occurs on all pages.
Appendix
Paper Delivery/Stacking Failure Tension Spring Breakage
Paper delivery/stacking failure due to a broken finisher tension spring.
Poor Paper Alignment Booklet Saddle Stitch Tension Spring
Poor paper alignment in saddle stitch booklets due to a broken tension spring.
