Table of Contents

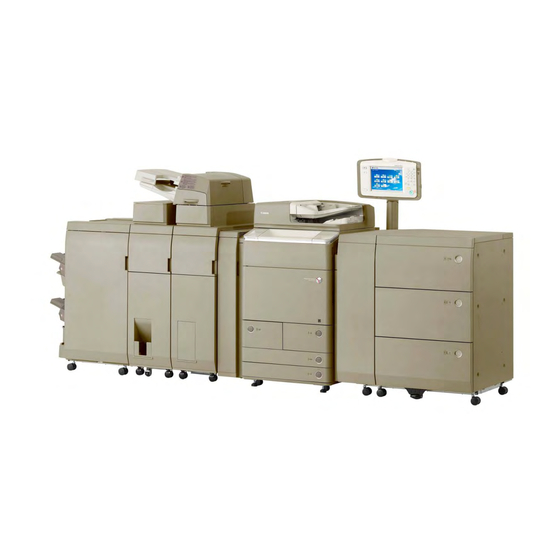

Related Manuals for Canon imageRUNNER ADVANCE C7000 Series
Summarization of Contents
Error Codes
E004-0205/0501/0502/E006-0001/E007-9902: Fixing Drawer Connector Terminal Issues
Error related to fixing drawer connector terminals due to foreign substances or deformation.
E004-0205/0501/0502/E006-0001/E007-9902: Interlock Switch Assembly Errors
Error due to incorrect assembly of the fixing feeder assembly open/close switch.
E004-0701: Loose Relay PCB Connector
Error due to a loose connector on the Relay PCB.
E007-0001/0011/0021: Unhooked Tension Spring Errors
Errors caused by an unhooked tension spring in the fixing belt assembly.
E007-0021/0001: Faulty Front Lift Cam
Errors due to a faulty front lift cam in the fixing assembly.
E007-0022: Pressure Belt Displacement Failure
Error code E007-0022 displayed, indicating pressure belt displacement failure.
E007-0102 /0CF1: Pressure Belt HP Sensor Issues
Jam code 0CF1 and error code E007-0102 related to pressure belt HP sensor.
E007-9902: Fixing Pressure Belt Position Sensor Replacement
Error E007-9902 resolved by replacing fixing pressure belt position sensors.
E008-0001: Defective Fixing Unit Gear and Bearing
Error E008-0001 due to defective 27T gear and bearing in the fixing unit.
E025-0400: Toner Container Motor Overcurrent
Overcurrent in toner container motor due to incorrect toner bottle insertion.
E025-0x02: Supply Screw Rotation Sensor Timeout
Timeout error from the supply screw rotation detection sensor.
E025-0x10: Bottle Attachment/Detachment Sensor Failure
Error E025-0x10 due to failure in bottle attachment/detachment and home position detection.
E025-0x20: Open Small Door and Toner Insertion Sensor Failure
Error E025-0x20 due to open small door and failed toner insertion cover sensor detection.
E025-0xC0: Small Door Not Opening
Error E025-0xC0 indicating the small door did not open.
E025-0xa0/0xB0: Bottle Attachment/Detachment Sensor Issues
Errors E025-0xa0/E025-0xb0 related to bottle attachment/detachment.
E004-0205/0501/0502/E006-0001/E007-9902: Fixing Drawer Connector Terminal Issues
Error related to fixing drawer connector terminals due to foreign substances or deformation.
Jam (Main Body)
0101/0102 Jam Codes: Slack Lifter Wire
Jam codes 0101/0102 caused by slack in the lifter wire.
0101 Jam Code: Early DCON Versions
Jam code 0101 on machines with DCON earlier than Ver.62.02.
0101 Jam: Right Deck Paper Delivery Path Burr
Jam code 0101 due to a burr on the right deck paper delivery path.
020F Jam: Exchange Flapper Operation Failure
Jam code 020F due to exchange flapper operation failure.
Feeder Jam
0045/0047/0049 Jam Codes: Turned-up Registration Guide Sheet
Jam codes 0045/0047/0049 due to a turned-up registration guide sheet.
0002/0003/0004 Jam: Low Original Separation Performance
Multi-feed jams (0002/0003/0004) due to low original separation performance.
Booklet/Staple Finisher-A1
1121 Jam: Uneven Feeding Roller Pressure
Jam code 1121 due to uneven feeding roller pressure in the finisher.
1121/1012/1011 Jam: Curl Correction Adjustment
Jam codes 1121, 1012, 1011 resolved by adjusting curl correction in the finisher drawers.
112F Jam: Foreign Material in Gripper Track
Jam code 112F due to foreign material in the gripper track of the finisher.
Booklet/Staple Finisher-B1
1124 Jam: Swing Arm Operation Failure
Jam code 1124 due to swing arm operation failure in the finisher.
1124 Jam: Stationary Jam at Delivery Sensor
Jam code 1124 related to stationary jam at the delivery sensor of the finisher.
1011 Jam: Stuck Sensor Flag
Jam code 1011 due to a stuck sensor flag in the finisher.
1121/1011 Jam: Curl Correction Adjustment
Jam codes 1121, 1011 resolved by adjusting curl correction in finisher drawers.
112F Jam: Failed Paper Detection in Finisher Tray
Jam code 112F due to failed paper detection in the finisher tray.
Appendix
Paper Delivery/Stacking Failure: Broken Finisher Tension Spring
Paper delivery/stacking failure due to broken finisher tension spring.
Poor Booklet Alignment: Broken Tension Spring
Poor booklet alignment in saddle stitch due to a broken tension spring.
Color Displacement
Horizontal Scan Displacement (First to 4th Sheets)
Color displacement in horizontal scan on the first few sheets.
Sudden Large Horizontal Scan Displacement
Sudden large color displacement in the horizontal scanning direction.
Fluctuating Black Displacement (Vertical Scan)
Fluctuating black color displacement in the vertical scanning direction.
Fluctuating YMC Displacement (Vertical Scan)
Fluctuating YMC color displacement in the vertical scanning direction.
Sudden Large Vertical Scan Displacement
Sudden large color displacement in the vertical scanning direction.
Fixed Black Displacement (Large Print Jobs)
Fixed black color displacement in large print jobs.
Color Displacement: Early DCON Versions
Color displacement on machines with older DCON firmware.
Fixed YMCK Displacement (All Pages)
Fixed color displacement for all YMCK colors on all pages.
