2020-10-30 14:18
Victron & Freedom Won LiFePO4 batteries -
Freedom Lite
Installers Note
Important: It is very important to read this documentation in full and carefully. Freedom Won battery
warranties require that you have configured the battery correctly.
Please take special and careful note of the section below on "DC bus pre-charging".
Introduction
Freedom Won (www.freedomwon.co.za) produces two ranges of LiFePO4 batteries for 48V systems:
Freedom Lite Home and Business: Eight models available ranging from the smallest 5kWh
model (Freedom Lite Home 5/4) up to the 80kWh model (Freedom Lite Business 80/64)
Freedom Lite Commercial: Ten models available ranging from the 100kWh model (Freedom Lite
Commercial 100/80) up to the 700kWh model (Freedom Lite Commercial 700/560).
Note: Refer to Freedom Won website for detailed specification sheets covering all models

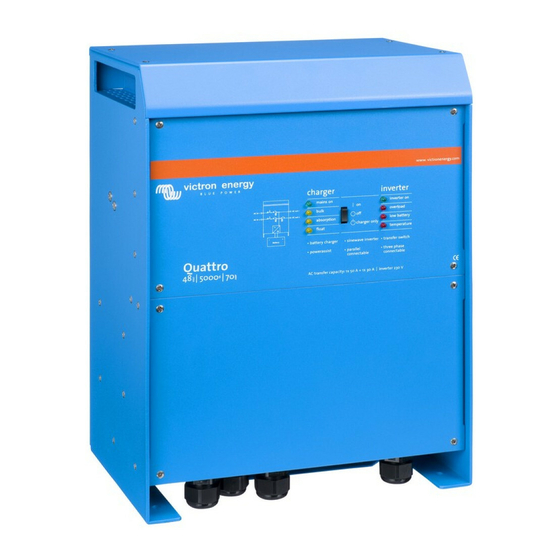

These Freedom Lite batteries are fully compatible with the Victron MultiPlus, MultiPlus II, MultiPlus II
GX, and Quattro inverter/chargers, Solar charge controllers (VE.Direct and VE.CAN), and
controllers (Color Control
The Freedom Lite batteries contain an advanced battery management system (BMS) that
communicates via a CAN Bus protocol with the Victron GX device. The GX device in turn connects and
manages the other compatible devices in the system.
All Freedom Lite models can be connected in parallel with other models of the same capacity, where
one Lite (Master) communicates with the GX device as well as all the other Lite's in the system
(Slaves). The Victron and Freedom Won integration has been extensively developed and tested and is
certified and supported by both companies.
The system is suitable for all applications, namely:
Grid Connected with solar and storage including continued operation in grid outage
consumption mode)
Backup storage or UPS mode
Off Grid plant with storage and solar
Figure 1 Typical Installation: Freedom Lite 60/42 with Victron 15kVA Quattro and 3x Ve Direct MPPT's
Victron Energy - https://www.victronenergy.com/live/
1/13
GX, Venus GX, Octo GX,
Victron & Freedom Won LiFePO4 batteries - Freedom Lite
Cerbo
GX, CANvu GX, Maxi GX).
system
(ESS
or self-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiPlus II GX and is the answer not in the manual?

Questions and answers

Related Manuals for Victron energy MultiPlus II GX

Summary of Contents for Victron energy MultiPlus II GX

  • Page 1 Grid Connected with solar and storage including continued operation in grid outage (ESS or self- consumption mode) Backup storage or UPS mode Off Grid plant with storage and solar Figure 1 Typical Installation: Freedom Lite 60/42 with Victron 15kVA Quattro and 3x Ve Direct MPPT’s Victron Energy - https://www.victronenergy.com/live/...
  • Page 2 Last update: 2020-10-30 14:17 battery_compatibility:freedomwon https://www.victronenergy.com/live/battery_compatibility:freedomwon Figure 2 Typical Installation: 7 x Freedom Lite Commercial 200/140 with Victron 12 x 15kVA Quattro and 10 x Ve Direct MPPT’s and 6 x Fronius ECO 27kW https://www.victronenergy.com/live/ Printed on 2020-10-30 14:18...

  • Page 3: This Manual

    Victron – Freedom Lite system. For further details pertaining to the setup of the Victron equipment not pertaining directly to the Freedom Lite interface please refer to the various manuals available on the Victron Energy website eg. Color Control GX manual.
  • Page 4 Last update: 2020-10-30 14:17 battery_compatibility:freedomwon https://www.victronenergy.com/live/battery_compatibility:freedomwon important to refer to the applicable Freedom Lite specification sheet for the maximum inverter power that may be connected to each specific Lite model. Do not exceed the maximum kVA values provided in the specification sheet for each respective model. For multiple units in parallel, the kVA rating for every Lite in the system may be summed to provide the total allowable inverter installed power.

  • Page 5: Can Bus Wiring

    Victron VE.CAN MPPTs and Freedom Won Batteries Note: In this section, the reference to “Color Control GX” refers only to that specific model of GX device and excludes the rest of the range. The limitations described in this section apply only to the...
  • Page 6 The Freedom Won Battery Management System is configured by default to communicate over CAN bus at a 500kbps baud rate. For systems using a Color Control GX and Victron VE.CAN MPPTs, it is possible to change the baud rate of the battery to 250kbps in order to accommodate the VE.CAN baud rate.
  • Page 7 Lite. Note: only adjust these values after selecting Lithium battery as the defaults entered by VE.Configure when selecting the Lithium battery type are not suitable to Freedom Won batteries. ✔️ Lithium batteries Victron Energy - https://www.victronenergy.com/live/...
  • Page 8 Last update: 2020-10-30 14:17 battery_compatibility:freedomwon https://www.victronenergy.com/live/battery_compatibility:freedomwon Absorption voltage: 55.80 V Float voltage : 55.80 V Absorption time : 1 Hr ☛ When setting up the ESS Assistant select LiFePO4 battery and enter the Ah value for the Lite (or the combination of Lite’s for a parallel battery system) as per the Ah rating provided in the Lite specification sheet eg.
  • Page 9 2020-10-30 14:18 9/13 Victron & Freedom Won LiFePO4 batteries - Freedom Lite ☛ Select – Do not change battery type ☛Sustain Voltage = 50V Victron Energy - https://www.victronenergy.com/live/...
  • Page 10 Last update: 2020-10-30 14:17 battery_compatibility:freedomwon https://www.victronenergy.com/live/battery_compatibility:freedomwon  ☛ Enter Dynamic Cut-off values as below (usually the Lite will override these values, however they should be entered correctly for redundancy) ☛ Restart Offset = 2.0V https://www.victronenergy.com/live/ Printed on 2020-10-30 14:18...
  • Page 11 ☛ Settings → Services → VE.CAN port → CAN-bus Profile → CAN-bus BMS (500kbit/s) Note: For systems with VE Can MPPT's, select 250kbit/s and ensure Lite profile is also set for 250kbit/s (check with Freedom Won or your Freedom Won distributor). Victron Energy - https://www.victronenergy.com/live/...
  • Page 12 Last update: 2020-10-30 14:17 battery_compatibility:freedomwon https://www.victronenergy.com/live/battery_compatibility:freedomwon ☛ Confirm that the Freedom Lite is showing in the device list (top of the menu structure) as per below ☛ Freedom Lite → Parameters → Confirm that the Charge Current Limit and Discharge Current Limit are as per the Lite specifications (Note: if the battery is fully charged the CCL may be reduced.

  • Page 13: Troubleshooting

    Lite or Lite’s in the system. Troubleshooting Should any difficulties arise with the Freedom Lite to Victron interface please contact support@freedomwon.co.za for assistance. DISQUS View the discussion thread. From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/battery_compatibility:freedomwon Last update: 2020-10-30 14:17 Victron Energy - https://www.victronenergy.com/live/...
