Dacor AFM36VSP Planning Manual

Document # PG11-002
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.

Product Dimensions

◊ The depth from the front of the door (w/o door handles) to the back of
the refrigerator chassis is 26 7/8" (68.3 cm).
◊ The depth of the cabinet less the door is 24 1/8" (61.3 cm).
◊ The height from the top of the refrigerator to the floor with the leveling
legs in the down position is 70 1/8" (178.1 cm).
◊ The height from the top of the refrigerator to the floor with the leveling
legs in the fully extended position is 71 1/4" (181.0 cm) at the front of
the unit and 70 11/16" (179.6 cm) at the rear of the unit.
◊ The refrigerator width from edge to edge is 35 5/8" (90.5 cm).

Electrical Requirements

A 115 Volt, 60 Hz. AC only 15 or 20 Amp. fused, grounded electrical supply
is required. It is recommended that a separate circuit serving only your
refrigerator be provided. Use an outlet that cannot be turned off by a switch.
Do not use an extension cord. The power cord is 60" (152.4 cm) long.

Location Requirements

◊ A grounded three prong non-GFCI electrical outlet must be provided
and should be in a location that allows the refrigerator to be
connected without an extension cord. See Electrical Requirements
for additional information.
◊ The plumbing for the water line can come through the floor flush to
or from the back wall. Install the water valve in a location that allows
it to be turned off without moving the refrigerator out in the event the
refrigerator or water line requires service.
◊ The location must allow the refrigerator to be moved out from the
wall without being disconnected in the event that service become
necessary.
◊ Do not install the refrigerator in a location where temperatures will fall
below freezing.
◊ The area to the left and the right of the appliance must permit both
doors to open to a minimum of 90°. Allow a minimum of
2 1/2" (6.4 cm) space between the side of the refrigerator doors and a
corner wall.

Water Supply Requirements

◊ Connect the ice maker to a cold water line with water pressure
between 35 and 120 psi. If you have any questions about your water
pressure, call your utility company.
◊ Use 1/4" (6 mm) copper line to connect the refrigerator to the house
cold fresh water supply.
◊ Install a shut off valve between the refrigerator and water supply. The
shut off valve should be a drilled saddle valve. See the diagram above
for recommended location.
◊ Do not use a piecing type or 3/16" (5 mm) saddle valve which will
reduce water flow and clog more easily.
◊ Allow a minimum of 24" (61.0 cm) diameter service loop of copper
tubing outside the wall or floor for easy connection to the water
supply.
Specifications subject to change without notice.
PF36BNDF
36 Inch Wide, Glass Door
Freestanding Refrigerator
WARNINg
(40.6 cm)
(76.2 cm)

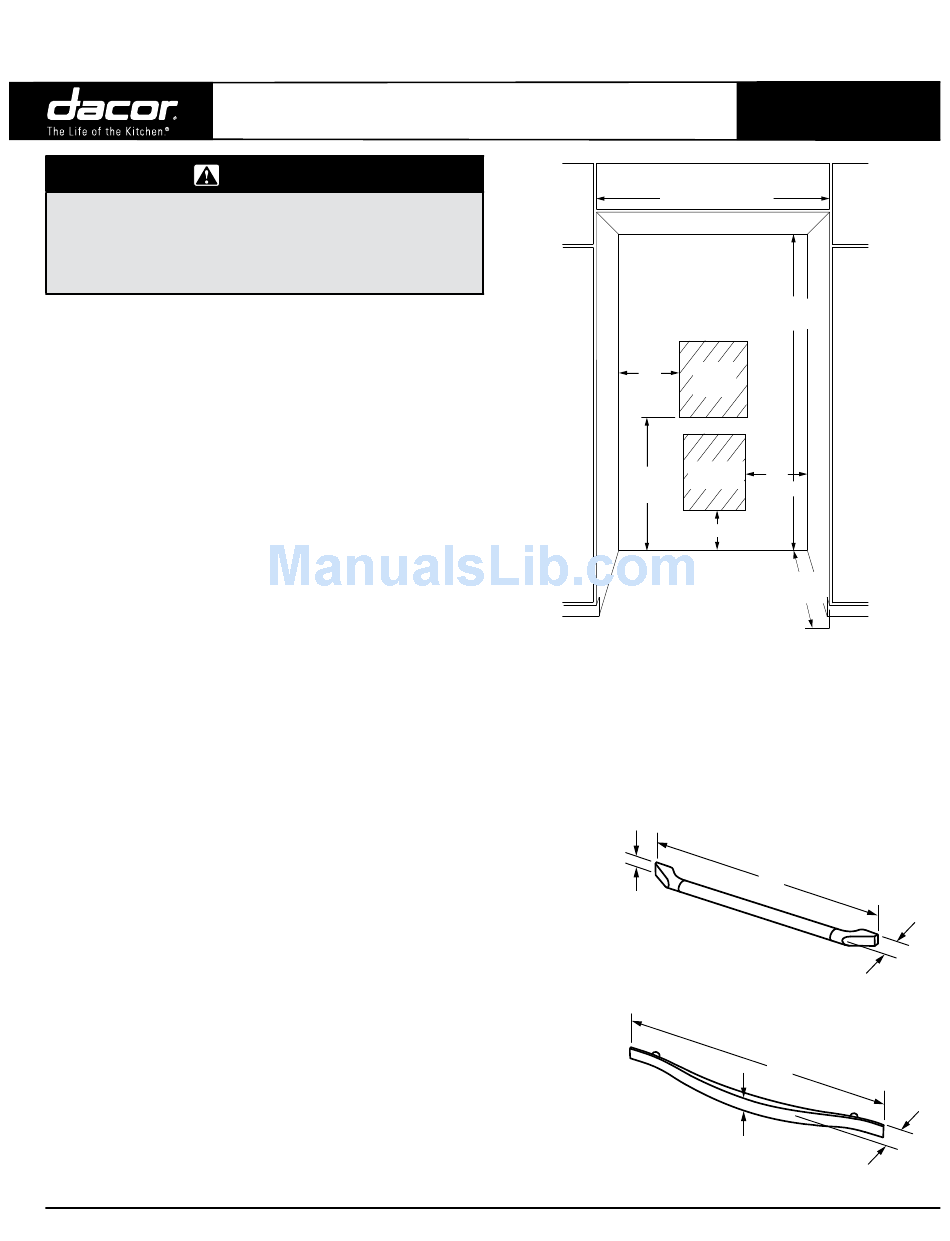

WATER VALVE AND ELEcTRIcAL oUTLET LocATIoNs
APPRoXIMATE DIMENsIoNs

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a reverse
osmosis system going to the water inlet valve of the refrigerator needs to
be between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water
supply, the water pressure to the reverse osmosis system needs to be a
minimum of 40 to 60 psi (276 to 414 kPa).
A = 13/16" (2.1 cm)
B refrigerator = 32" (81.3 cm)
B freezer drawer = 25 1/2" (64.8 cm)
C = 2 3/8" (6.0 cm)
EPIcURE sTyLE hANDLE DIMENsIoNs (PN AFE36h3)
A = 1 1/2" (3.8 cm)
B refrigerator = 40" (101.6 cm)
B freezer drawer = 33 1/2" (85.1 cm)
C = 2 1/2" (6.4 cm)
MILLENNIA sTyLE hANDLE DIMENsIoNs (PN AFM36h3)
www.dacor.com
Revised 08/10/11 Page 1/1
PLANNING
GUIDE
36" min. (91.4 cm)
70 1/2" min.
(179.1 cm)
16"
Water
valve
Electrical
12"
30"
outlet
(30.5 cm)
12" (30.5 cm)
24"
(61.0 cm)
B
A
B
A
Phone: (800) 793-0093
C
C
11.3
