Important Safety Instructions .................................. 1
Getting to Know Your Refrigerator.......................... 3
Operation .......................................................... 5
Care and Cleaning ........................................... 21
Before You Call for Service ................................ 24
Warranty and Service ........................................ 28
Warranty Card ...................................... Back Cover

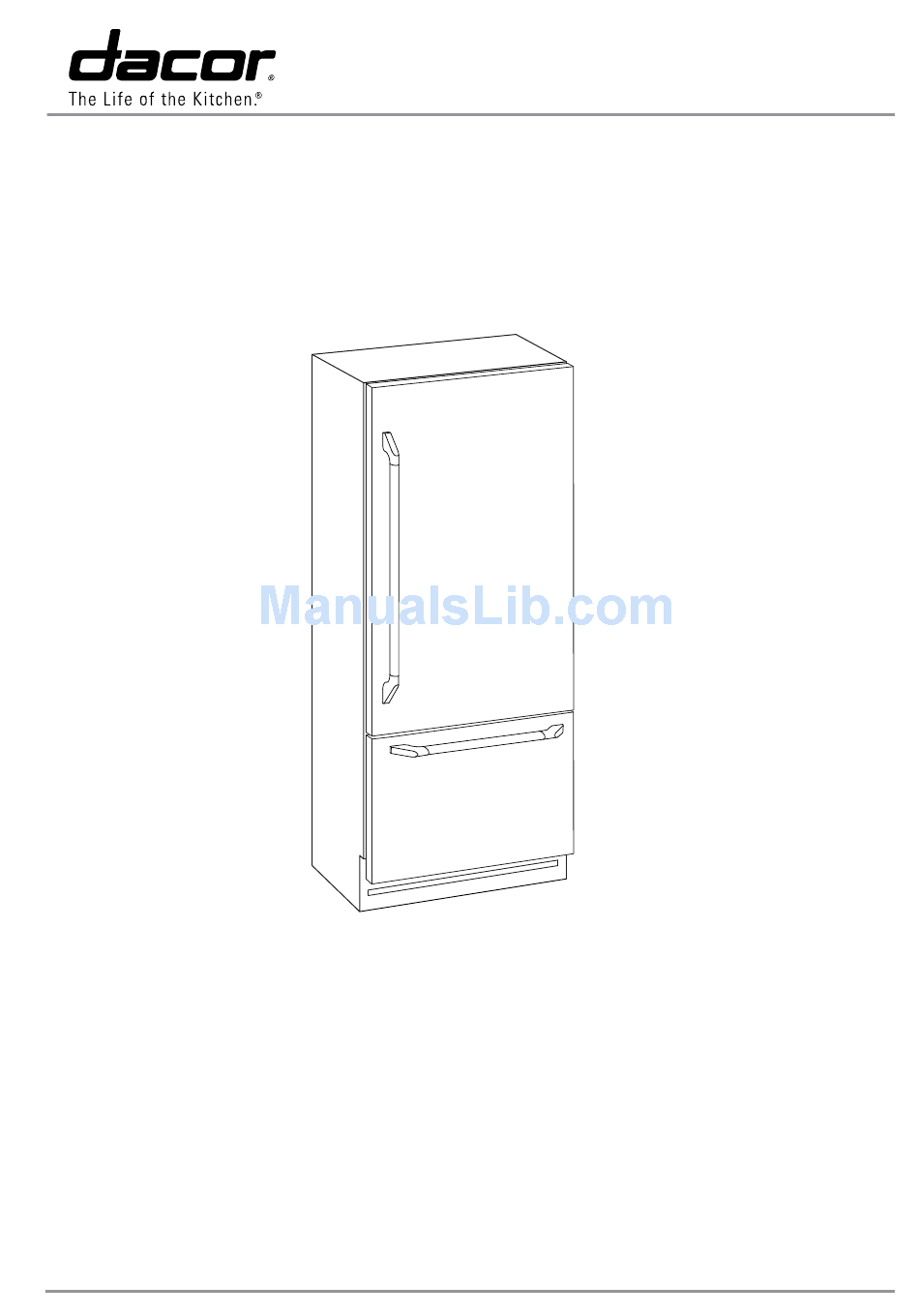

Use and Care Manual
Built-In Refrigerator
®
Models: DYF30BFBPL, DYF30BFBPR, DYF30BFBSL,

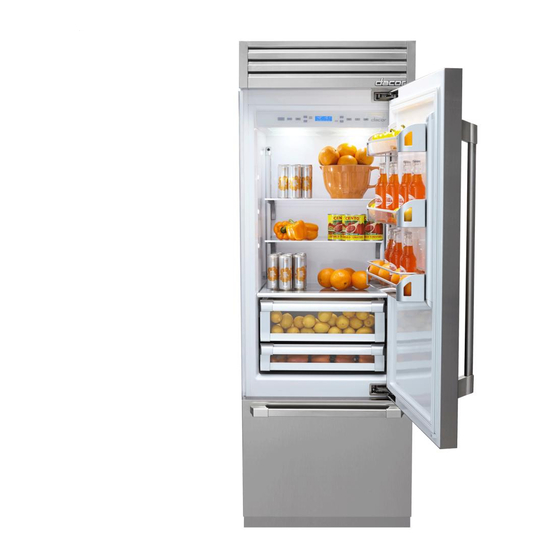

Style varies, model DYF36BFBSR shown
Table of Contents
Dacor Part No. 108791 Rev. A
DYF30BFBSR, DYF30BFTSL, DYF30BFTSR,
DYF36BFBPL, DYF36BFBPR, DYF36BFBSL,
DYF36BFBSR, DYF36BFTSL, DYF36BFTSR
Advertisement
Table of Contents
Related Manuals for Dacor Discovery DYF30BFBPL
Summary of Contents for Dacor Discovery DYF30BFBPL
-
Page 1: Table Of Contents
Important Safety Instructions ........1 Getting to Know Your Refrigerator......3 Operation ............5 Care and Cleaning ........... 21 Before You Call for Service ........ 24 Warranty and Service ........28 Warranty Card ........Back Cover Dacor Part No. 108791 Rev. A... - Page 2 © 2015 Dacor, all rights reserved...
-
Page 3: Important Safety Instructions
(GFI) is not recommended. Since we continually improve the quality and performance of our products, we may make changes to the appliance without updating this manual. Visit www.dacor.com to download the latest version of this manual. About Safety Instructions The Important Safety Instructions and warnings in this manual are not meant to cover all possible problems and situations that can occur. -
Page 4: General Safety Precautions
Important Safety Instructions General Safety Precautions WARNING - To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following: WARNING WARNING • If you receive a damaged product, immediately contact •... -
Page 5: Getting To Know Your Refrigerator
Getting to Know Your Refrigerator Stainless steel structure with aluminum trim Control panel Water filter Adjustable shelves Vegetable drawer Deli drawer Automatic ice maker Automatic drawer closing system Dual refrigeration system Control panel display Bottom Grill Models Adjustable door shelves Door with self closing hinges LED lighting FreshZone freezer compartment... -
Page 6: Control Panel
Control Panel The electronic control system on your Dacor refrigerator maintains constant temperature in both compartments and displays the measured temperature on the control panel. It also allows the user to personalize settings of the various functions and alerts the user should a malfunction occur. -
Page 7: Operation
Operation Touch the FRIDGE key again for three seconds to turn • Unlocking the Keypad the refrigerator compartment back on. Allow at least 6 hours for the refrigerator compartment to cool to operating Anytime the appliance is turned on and the control panel has not temperature. -
Page 8: Ice Maker Operation
• activated. • If the appliance has been switched off for a month or more, Dacor recommends performing a manual clean cycle (see page 14). Insert filter into • Ice cubes which have been in the ice cube container for a filter head long time may absorb odors. -
Page 9: Display Messages
The two upper shelves in the refrigerator compartment and • During long periods of absence, Dacor recommends that you all the shelves in the door can be easily moved up or down switch off the refrigerator (see page 5) and disconnect... - Page 10 Operation To activate Max Cool Fridge: To set Max Cool Fridge duration: Tap MENU and refrigerator Tap MENU and refrigerator Key-pad Unlocked Key-pad Unlocked (down) to unlock keypad (if (down) to un-lock keypad (if appears on display appears on display locked) locked) Functions appears on...
- Page 11 Operation To activate Max Cool FreshZone: To set Max Cool FreshZone duration: Tap MENU and refrigerator Tap MENU and refrigerator Key-pad Unlocked Key-pad Unlocked (down) to un-lock keypad (if (down) to un-lock keypad (if appears on display appears on display locked) locked) Functions appears on...
- Page 12 Operation To deactivate the Holiday Fridge function: Holiday FreshZone • In case of prolonged absences, in conjunction with the Tap MENU and refrigerator Key-pad Unlocked Holiday Fridge function, this function allows considerable (down) to un-lock keypad (if appears on display energy savings by raising the FreshZone freezer locked) compartment temperature.
- Page 13 Operation To deactivate the Holiday FreshZone Beverage Cooler function: This function can be activated when it is necessary to cool beverages quickly, by placing them inside the FreshZone freezer Tap MENU and refrigerator compartment. You can select a duration of 1 to 45 minutes. A tone Key-pad Unlocked (down) to un-lock keypad (if will indicate when the optimal temperature has been reached.
- Page 14 Operation To set the Beverage Cooler duration: Ice Maker - Fast Ice Function The Fast Ice function increases the quantity of ice produced. It Tap MENU and refrigerator Key-pad Unlocked deactivates automatically after 24 hours. (down) to un-lock keypad (if appears on display locked) To activate the Fast Ice function:...
-
Page 15: Sabbath Mode
Operation Sabbath Mode Water Filter Status This function deactivates the lights and disables the door switches This function allows you to view the time left before the filter so that the operation of the unit is not affected by opening and needs to be replaced. - Page 16 Operation Water Filter Bypass Manual Clean - Water Filter Activate this function when good quality water is being supplied • If the ice maker has been turned off or unused for a long to the refrigerator and the internal water filter is not necessary. An period of time, or just before replacing the water filter, example would be when a whole house water filter is in use.
-
Page 17: Default Settings
Operation FreshZone Setting Default Settings Tap SELECT appears on display The freezer compartment can, if required, be converted to the refrigeration or “fresh” operation. See page 5 for refrigeration Tap MENU repeatedly until it is Main display appears and “fresh” temperature ranges. no longer lit. - Page 18 Operation Disable Date on Display Time Setting To set the display so that the date is not To set the time shown on the display: shown: Tap MENU and refrigerator Key-pad Unlocked (down) to un-lock keypad (if Tap MENU and refrigerator appears on display Key-pad Unlocked locked)
- Page 19 Operation Disable Time on Display 12/24HR Time Setting The appliance is set to 12-hour (non-military) time at the factory. To set the display so that the time is not 24 hour time is also known as military time. 1:36 PM = 13:36 shown: military time.
- Page 20 Operation Setting the Temperature Scale To re-enable the control panel keypad lock: You can select the temperature scale (Fahrenheit or Celsius) the Tap MENU and refrigerator Key-pad Unlocked appliance uses to display the cooling temperatures. It is preset at (down) to un-lock keypad (if appears on display the factory to Fahrenheit.
-
Page 21: Functions Menu
Operation Control Panel Menu Map Functions Menu Max Cool Off Max Cool ON/OFF Max Cool On Max Cool Fridge Max Cool Time Set Hours: 1 Holiday Fridge Off Holiday ON/OFF Holiday Fridge On Holiday Fridge Holiday Time Set Days: 1 Max Cool FreshZone Off Max Cool ON/OFF Max Cool FreshZone On... - Page 22 Operation Control Panel Menu Map (cont.) Settings Menu Freezer FreshZone Options Fresh Fridge Default Setting Set Date DATE: 01-30-09 Date DATE: 01-30-09 On Show Date DATE: 01-30-09 Off Set Time TIME: 01:01 TIME: 01:01 On Time Show Time TIME: 01:01 Off Set: 12 Set View Set: 24...
-
Page 23: Care And Cleaning
Care and Cleaning Grill Removal - Bottom Grill Models General Cleaning The ventilation grill on bottom grill models is held in place • with magnets and is easy to remove. On some models, you may need to pull out the freezer drawer for easier access. To WARNING remove, grasp the grill and pull straight out. - Page 24 Care and Cleaning Shelf Removal • When replacing each drawer, make sure the back edge of the drawer slides under the clips toward the rear of the The shelves in the refrigerator compartment can be easily slides. removed for cleaning as follows: FreshZone Freezer Drawer Removal To remove the two upper refrigerator compartment shelves, •...
- Page 25 It contains no user serviceable feature (see page 13) to monitor filter usage parts. Replace with Dacor filter # ABFF2 or 3M filter # AP2-C401- • SG, available at www.everythingdacor.com or through your Dacor dealer.
-
Page 26: Before You Call For Service
Error Code or malfunction Functional problems Call Dacor Customer Service to help you solve the problem or message put you in contact with the nearest service agent. Some error messages can be cleared by touching the ALARM key for three seconds. - Page 27 Before You Call for Service Problem Solution Guide Before you call for service, please review the Problem Solution Guide below and on the following pages. Problem May Be Caused By What to Do Nothing working - lights Power is disconnected Make sure power is on at the circuit breaker panel and that the do not come on, cooling power plug is properly connected to electrical outlet.
- Page 28 Before You Call for Service Problem Solution Guide (cont.) Problem May Be Caused By What to Do The appliance is powered by two System seems to run all Normal operation. the time independent compressors. One or both may be running at any given time.
- Page 29 Before You Call for Service Problem May Be Caused By What to Do Ice maker does not work or not Ice maker is off/disabled. Ice maker can be turned off one of two ways, using the ice producing enough ice. maker key and from the functions menu.
-
Page 30: Warranty And Service
FULL ONE YEAR WARRANTY circuit breakers. Damage to the product caused by accident, fire, flood, power The warranty applies only to the Dacor appliance sold to the first • interruption, power surges or other acts of God. use purchaser, starting from the date of original retail purchase or closing date for new construction, whichever period is longer. - Page 31 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...
-
Page 32: Warranty Information
Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way of expressing our gratitude! Owner’s Name:...
