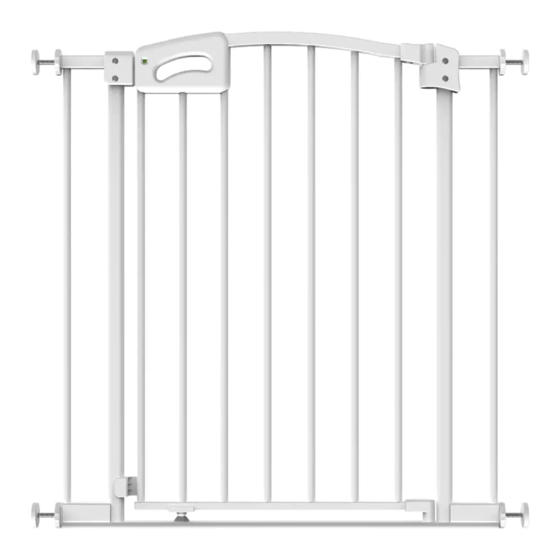

- Page 1 Ultimate INSTALLATION VIDEO Safety Gate Instruction Manual #2745 #2726 31” (79cm) 28.8” - 32.3” Wide (73cm - 82cm) IMPORTANT! READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE. This product complies with safety standard ASTM F1004-19.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION General Maintenance Warnings WHAT’S IN THE BOX Parts INSTALLATION Gate Placement Inside Opening or Doorway OPERATION How to Open Stay Open Feature Cleaning Instructions SUPPORT Warranty Certificate Warranty Card After Sales Support... -
Page 3: Safety Information
SAFETY INFORMATION GENERAL Read this instruction manual carefully and keep it in a safe place for future reference. The correct use and maintenance of this product is essential. MAINTENANCE Regularly check that the gate is functioning correctly, lubricate hinges and moving components with a suitable spray lubricant. Tighten and adjust mounts to ensure secure smooth operation. -
Page 4: Warnings
WARNINGS WARNING To prevent serious injury or death, securely install gate or enclosure and use according to manufacturer’s instructions. WARNING Incorrect installation can be dangerous. WARNING Danger to older children if climbing over the product. WARNING Do not use the safety barrier if any components are damaged, missing or disassembled. - Page 5 WARNINGS WARNING Never leave the child unattended when using this product. WARNING Always check that the safety barrier is correctly closed. WARNING Use only with the locking/latching mechanism securely engaged. WARNING Never use with a child able to climb over or dislodge/open the gate or enclosure.
-
Page 6: What's In The Box
WHAT’S IN THE BOX PARTS PARTS Screws Safety Gate Swing Direction Control Adjuster Bolts Adhesive Pads Adjuster Screws Mounting Cups... -
Page 7: Installation
INSTALLATION STEP 1: GATE PLACEMENT Gate must be installed in a structurally sound opening. Ensure mounting surface (wall, door frame, stair etc.) is strong, rigid and has an even surface. Measure the space to be enclosed, you may need to use extensions. Extensions are available through www.permachildsafety.com Note: Only use one extension on each side of gate. -
Page 8: Inside Opening Or Doorway
INSTALLATION STEP 2: INSIDE OPENING OR DOORWAY Screw Adjuster Bolts and Screws together then place into mounting holes in each corner of gate. Place the gate in opening, ensure the bottom rail is completely flat on the floor and the Mounting Cups are directly above each other. - Page 9 Stick the Mounting Cup in position with the Adhesive Pads and then place gate into position. For added security fix each cup to the wall using a small Phillips head screwdriver and the Screws provided. This gate must only be fixed to a solid and secure surface. If unsure, check with a qualified builder or trades person that the installation you intend is suitable and safe within the chosen location.
- Page 10 Align gate with Mounting Cups and tighten Adjuster Screws by turning clockwise, start with the bottom Adjuster Screws, then do the top. Tighten equally until there is only a 0.05” gap in the locking mechanism. Regularly check tension of all mounting bolts and adjust if required.
- Page 11 Determine which direction the gate should open. Screw in Swing Direction Control piece opposition to the desired opening direction. Use images below as a guide. Note: For the top of stairways, gate should never open out over stairs. LEFT SIDE BOTH SIDE RIGHT SIDE OPENING...
-
Page 12: Operation
OPERATION HOW TO OPEN Using one hand place thumb on the button and grip gate with fingers. Slide button and lift gate, then open gate in either direction, when released gate will swing closed automatically. LOCKED UNLOCKED Always check gate is properly closed. STAY OPEN FEATURE To engage the Stay Open feature, the gate needs to be... -
Page 13: Cleaning Instructions
CLEANING INSTRUCTIONS Simply use a soft damp cloth to wipe gate, dry after cleaning. Do not use chemical or abrasive cleaners. -
Page 14: Support
SUPPORT WARRANTY CERTIFICATE Congratulations! You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, we will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. -
Page 15: Warranty Card
WARRANTY CARD Details: Product Name: Ultimate Safety Gate Product Number: White 2745, Warm Black 2726 Your Name: Address: Phone: Email: Date of Purchase: Location of Purchase: We recommend that you keep a copy of your receipt, showing the date of purchase, with this warranty certificate and keep for your reference. - Page 16 ©2020 Permastik Pty Ltd. All Rights Reserved. Distributed by Perma Products USA® www.permaproducts.com Tel: 239 494 5481 Made in China to Perma quality standards...
