Installation manual 3A3718 Rev E

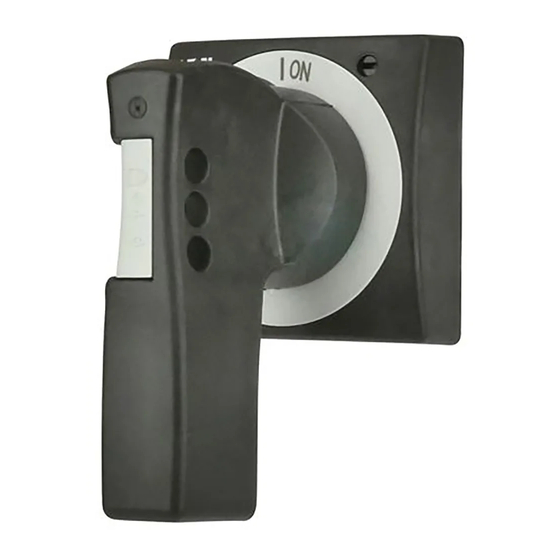

CCP2-H4X-_ pistol handles for use with
12 mm shafts
These instructions cover the installation
procedures specific to the catalog numbers shown
above. Please review the switch and switch
handle applications table on page 2 to ensure the
handle in this kit can be installed on your specific
Compact Circuit Protector switch application.
Effective February 2019
Supersedes January 2019
Short, counterclockwise pistol handle:
• CCP2-H4X-B3L
• CCP2-H4X-R3L
Long, counterclockwise pistol handle:
• CCP2-H4X-B4L
• CCP2-H4X-R4L
Short, clockwise pistol handle:
• CCP2-H4X-B3
• CCP2-H4X-R3
Long, clockwise pistol handle:
• CCP2-H4X-B4
• CCP2-H4X-R4
For complete installation, customers must supply
one each of the following.
A rotary operating mechanism (catalog
•
numbers):
CCP2-RM2 front rotary, 200 A switches
•
CCP2-RM4 front rotary, 400 A switches
•
CCP2-SM right or left side rotary, 200
•
and 400 A switches
A 12 mm square shaft (catalog numbers):
•
CCP2-SH2-225 (8.9"/225 mm long)
•
CCP2-SH2-425 (16.7"/425 mm long)
•
