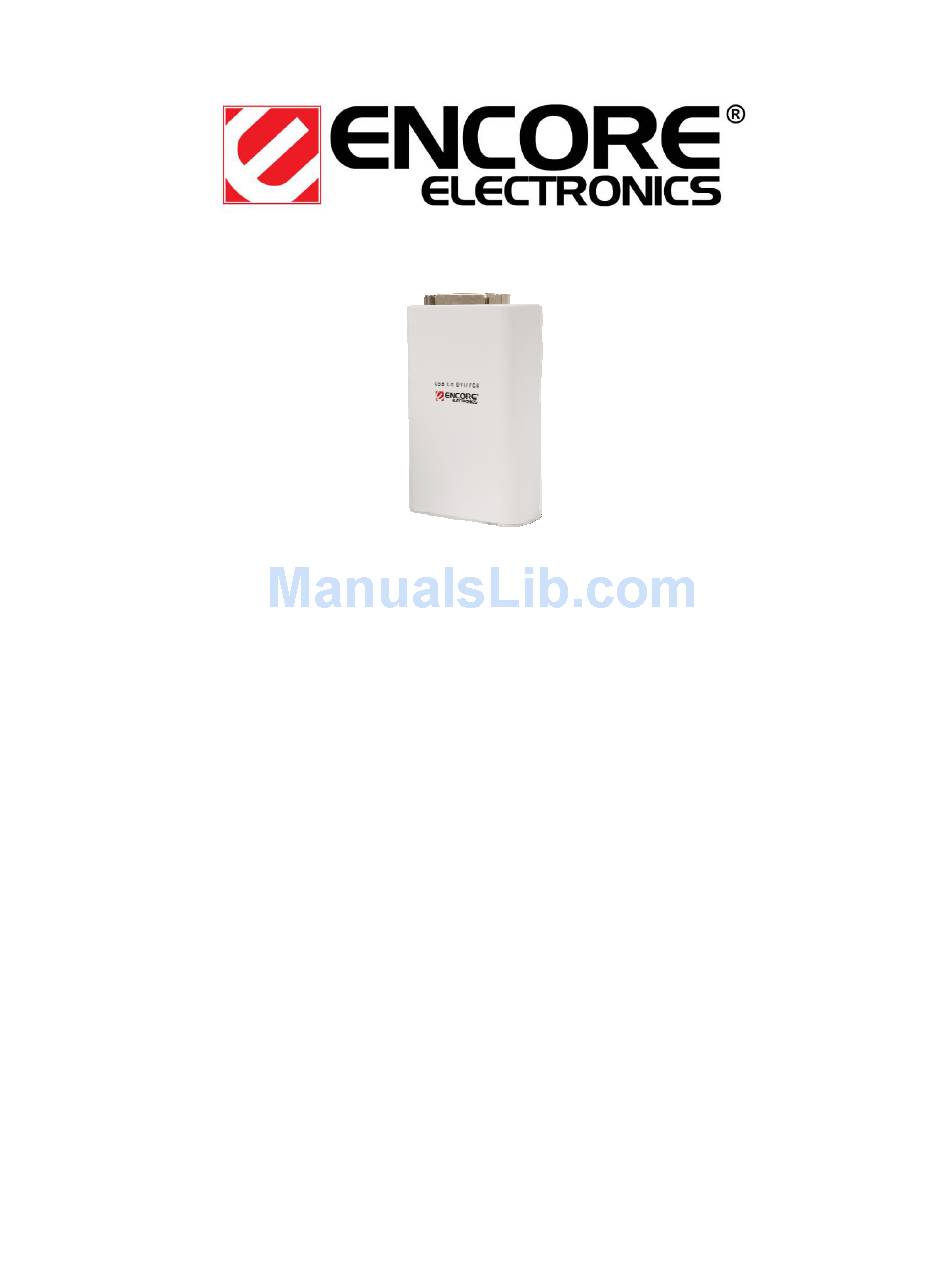

Page 1
ENMUV-2 External USB Video Adapter (DVI/VGA) The ENMUV-2 enables you to connect one more monitor, LCD or projector to a computer with a USB 2.0 port. For desktop users adding an extra monitor via USB connection is easier than ever without having to open the computer chassis to install an internal video card.
Features and Benefits Easy to Install – No Need to Open Computer Cases Add-on monitor, LCD or projector through a single USB 2.0 port Hot-plug ; add or remove monitor without system reboot Small in size, works with all VGA / DVI-I displays. Supports Video Resolution up to 1920x1080 Makes Multi-tasking Easier –...
Page 3
1400x1050, 1600x1200, 1680x1050, 1920x1080, Device Interface USB 2.0 Host upstream link USB Mini-B Type Female Connector Power Mode Bus-powered Power Consumption 430mA Up to 6 Number of Additional Monitors (Each monitor needs an individual ENMUV-2 and a USB port) 8M x 16 DDR Synchronous DRAM (SDRAM) Dimensions 84.5 (L) x 55.5 (W) x18 (H) mm Operating System Support...
System Requirements Operating System: Windows® 7 / XP(SP2) / 2000(SP4); Windows Vista® (SP1) Minimum CPU: Intel Pentium® / Celeron® 1.2GHz; AMD K6® / Athlon™ / Duron™ 1.2GHz; or higher Recommended CPU for Watching Video: dual core CPU at 2.0 GHz or faster 512MB RAM for single monitor;...
