Encore ENMUV User Manual

External usb video adapter ( dvi / vga )
Hide thumbs Also See for ENMUV:
Table of Contents

Advertisement

Quick Links

Download this manual
ENMUV
EXTERNAL USB VIDEO ADAPTER ( DVI / VGA )
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENMUV and is the answer not in the manual?

Questions and answers

Related Manuals for Encore ENMUV

Summary of Contents for Encore ENMUV

  • Page 1 ENMUV EXTERNAL USB VIDEO ADAPTER ( DVI / VGA ) User’s Manual...

  • Page 2: Ce Mark Warning

    Safety Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device complies with Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Federal Communication Commission Interference Statement............1 CE Mark Warning...........................1 INTRODUCTION......................1 .............................1 EATURES ........................1 YSTEM EQUIREMENT ..........................2 ACKAGE ONTENTS The ENMUV Adapter: ......................2 DVI (Male) to VGA (Female) Adapter: .................2 USB Cable:..........................2 Installation CD ........................2 SOFTWARE INSTALLATION .................3 ......................3 UPPORTED PERATING YSTEMS ......................3 INDOWS...

  • Page 4: Safety Information

    Introduction The ENMUV is a simple way to add additional video adapters to your computer with a high resolution DVI or VGA monitor. It allows for connecting up to six monitors to your desktop or laptop using free USB ports.

  • Page 5: Package Contents

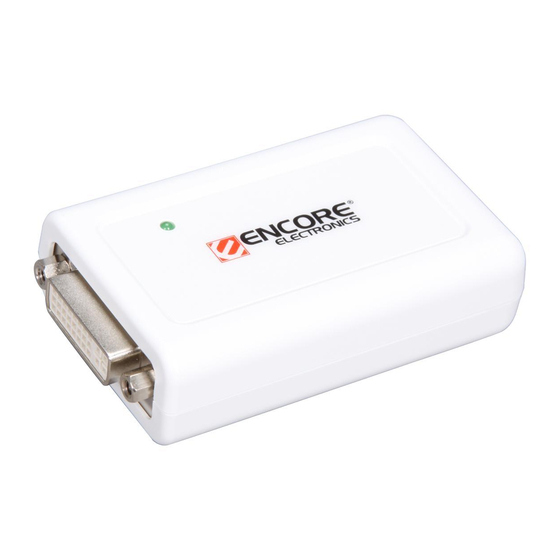

    The ENMUV Adapter Installation CD The ENMUV Adapter: The ENMUV adapter allows you to connect monitors to your computer using a USB connection. DVI (Male) to VGA (Female) Adapter: This adapter will convert your DVI port to a classic VGA port allowing you to connect your VGA monitor to the ENMUV’s DVI port.

  • Page 6: Software Installation

    10.4.11, Leopard 10.5.5, or later). Windows Vista Installation 1. Insert the ENMUV CD into the CD-ROM drive. The setup screen will automatically appear. 2. Click the “Utility Setup” button to install driver and software. 3. When prompt for permission to continue. Click “Continue” to go to the...

  • Page 7: Mac Os X Installation

    5. Wait a few moments for the process to complete; the installation program will close automatically. 6. Plug in the ENMUV, and wait until a message displays on your screen as shown. Mac OS X Installation 1. Insert the ENMUV CD into the CD-ROM drive. Locate and double-click...
  • Page 8 2. Double-click the installer disk image to mount the installer. 3. Open the “DisplayLink Software Installer” to start installation. 4. Click the “Continue” button.
  • Page 9 5. After reading the License Agreement, click “Continue” to continue. 6. Click the “Agree” button. 7. Click the “Install” button to continue. Or click the “Change Install Location…” button if you want designate another location. 8. Click the “Continue Installation” button.
  • Page 10 9. When prompted for password, enter your password and click the “OK” button. 10. Click the “Restart” button to restart your computer and complete the installation.

  • Page 11: Hardware Installation

    Hardware Installation See the following illustrations for instructions on how to install your adapter. Connecting the Adapter Connecting to DVI monitor Connect the DVI monitor with the USB to DVI-I/VGA Display Adapter as shown. Connecting to VGA monitor Connect the VGA monitor with the DVI to VGA adapter then to the USB to DVI- I/VGA Display Adapter as shown.

  • Page 12: Connecting To Usb Port

    Connecting to USB port Connect the USB cable and the USB to DVI/VGA Display Adapter as shown. Connecting the Monitors ENMUV supports up to 6 display connections to a single PC. See the following illustrations for sample setups. Connecting 2 monitors PC connects to two monitors via USB cables using ENMUV adapters.

  • Page 13: Multiple Monitors Using Powered Usb Hub

    Multiple monitors using powered USB hub PC connects to a standard powered USB hub. Three monitors are connected to the USB hub via ENMUV adapters. Monitors connect to graphics adapters via standard VGA/DVI cables. Note: A typical PC can run up to six monitors. The exact number depends on...

  • Page 14: Configuring Your Screen

    Configuring your Screen Windows 2000/XP/Vista After software installation, connect the ENMUV to your PC. An icon will appear on the lower right corner. Click the icon to pull up the USB to DVI Convertor Manager Menu. USB to DVI Convertor Manager menu allows you to configure basic functions of your additional screens including screen resolution, color quality, screen rotation, and extend, mirror, and off mode.

  • Page 15: Color Quality

    Color Quality The Color Quality specifies how many colors are displayed on the monitor. To setup the color quality, select an available color quality from the Color Quality submenu. Screen Rotation To rotate your screen, choose Rotated Left, Rotated Right, and Upside-Down from the Screen Rotation submenu.

  • Page 16: Configuring Extend Mode

    Select Extend to switch to the Extend Mode. Configuring Extend Mode 1. Select Right, Left, Above and Below from the Extend To submenu to choose where to extend your desktop. Or 2. Select Advanced from the menu to activate Display Settings.
  • Page 17 3. Display Settings window now opens. To move the position of a display, click and hold the monitor icon you wish to move. 4. Drag it to the desired position. The display will be highlighted with a blue border whilst you are moving the display to its new position.

  • Page 18: Mirror Mode

    Mirror Mode Mirror mode allows you to replicate the exact image from your primary monitor to your secondary monitor. To activate Mirror Mode select Mirror from the menu. Off Mode To disable the secondary monitor select Off from the menu. Identifying the Monitors To identify the active monitor, select Advanced from the menu to activate Display Settings and then click the Identify Monitors button.

  • Page 19: Mac Os X

    Mac OS X After software installation, connect the ENMUV to your Mac. The default setting for your displays is extended to the right of the main display. Select Displays from the System Preferences menu to configure the settings for each of your USB attached displays.

  • Page 20: Extend Mode

    If your computer is connected to more than two monitors, you can assign each of the monitors to a different mode. Extend Mode Extend mode allows you to add extensions to your existing desktop using the extra monitors. To move the position of a display, click and hold the monitor you wish to move then drag it to the desired position.

  • Page 21: Software Uninstallation

    Software Uninstallation Windows 2000/XP/Vista 1. Open the Control Panel on your Windows Vista system, and then double- click the Programs and Features. Or, open the Control Panel on your Windows 2000/XP system, and then double-click the Add or Remove Programs. 2.

  • Page 22: Mac Os X

    Mac OS X 11. Insert the ENMUV CD into the CD-ROM drive. Locate and double-click the ENMUV CD, and then double-click the “Mac OS X” folder. 12. Double-click the installer image to mount the installer. 13. Open the “DisplayLink Software Uninstaller” to uninstall software.

  • Page 23: Product Specifications

    OS X FCC Class B CE mark Class B Power Mode VCCI-B Bus-Power mode Number of expansions Up to 6 USB to DVI-I/VGA Display Adapters (7 monitors) Package contents The ENMUV Adapter USB Cable DVI to VGA Adapter Installation CD...
