- Page 1 ENLUH-302 SuperSpeed USB 3.0 PCIe Adapter User’s Manual...
-
Page 2: About This Manual
ABOUT THIS MANUAL This manual is designed for use with the SuperSpeed USB 3.0 PCIe Adapter. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental,... -
Page 3: Table Of Contents
Table of Contents INTRODUCTION ........................3 ..........................3 EATURES ........................3 ACKAGE ONTENTS ......................3 YSTEM EQUIREMENTS INSTALLATION ........................4 7 / XP / W ....................4 INDOW INDOWS ISTA HARDWARE INSTALLATION ....................9 INSTALLATION VERIFICATION ..................11 XP..........................11 INDOW 7 ..................... -
Page 4: Introduction

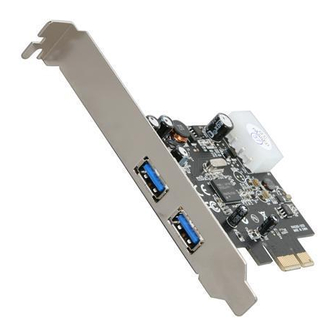

1. Introduction Encore Electronics’ SuperSpeed USB 3.0 PCIe adapter adds two USB 3.0 ports to your desktop computer. The data transfer rate is at an amazing speed up to 5 Gbps — 10 times faster than USB 2.0 (480 Mbps). Now, you can connect to the latest USB devices, such as external hard drives, Blu-ray burners, external video adapters and camcorders. -
Page 5: Installation
You will need to install the driver for your SuperSpeed USB 3.0 PCIe adapter first. Please follow the procedures as below. Window 7 / XP / Windows Vista Insert the provided Driver into CD-ROM. The following screen will show up and please choose the correct product model, ENLUH-302. - Page 6 Click “Driver Setup” to install driver, then press Next to continue.
- Page 7 After reading End-User License Agreement, please select “I accept the terms in the License Agreement” and click Next. Please click Browse to choose the Destination Folder. After that, please click Next.
- Page 8 Click Install to install NEC Electronics USB 3.0 Host Controller Driver. It will take a while to install the Driver. Notice: The Software Installation may pop-up during installation. Please click Continue Anyway to complete the installation.
- Page 9 Please click Finish to complete the NEC Electronics USB 3.0 Host Controller Driver. *Actual strings depend on your operation system. These screen shots are from Windows XP and might vary slightly for each operation system. Note: Please refer to next chapter to get more information about installing PCIe adapter.
-
Page 10: Hardware Installation
3. Hardware Installation 1. Turn off your computer, unplug the power cord from your computer, and then remove the cover of the computer. 2. Plug the PCIe adapter into the PCIe slot of your computer. 3. Plug the power connector from your computer's internal power supply to the SuperSpeed 3.0 PCIe adapter. - Page 11 Please choose “Install the software automatically” and click Next. Notice: The sign of Hardware Installation may show up, please click Continue Anyway. Please click Finish to complete the Found New Hardware Wizard. *Actual strings depend on your operation system. These screen shots are from Windows XP and might vary slightly for each operation system.
-
Page 12: Installation Verification
4. Installation Verification After finishing driver installation and plugging this PCIe adapter to PC, the system will detect the device. You can go to Device Manager to verify the entire installation. Window XP... -
Page 13: Window Vista/ Windows 7
Window Vista/ Windows 7... -
Page 14: Specification
5. Specification Description SuperSpeed USB 3.0 PCIe Adapter Standard USB 3.0, backward compatible with USB 2.0 / 1.x USB Port USB 3.0 SuperSpeed Downstream port x 2 Data transfer rate USB 3.0: up to 5 Gbps USB 2.0: up to 480 Mbps USB 1.x: up to 12 Mbps Interface PCI Express x1...
