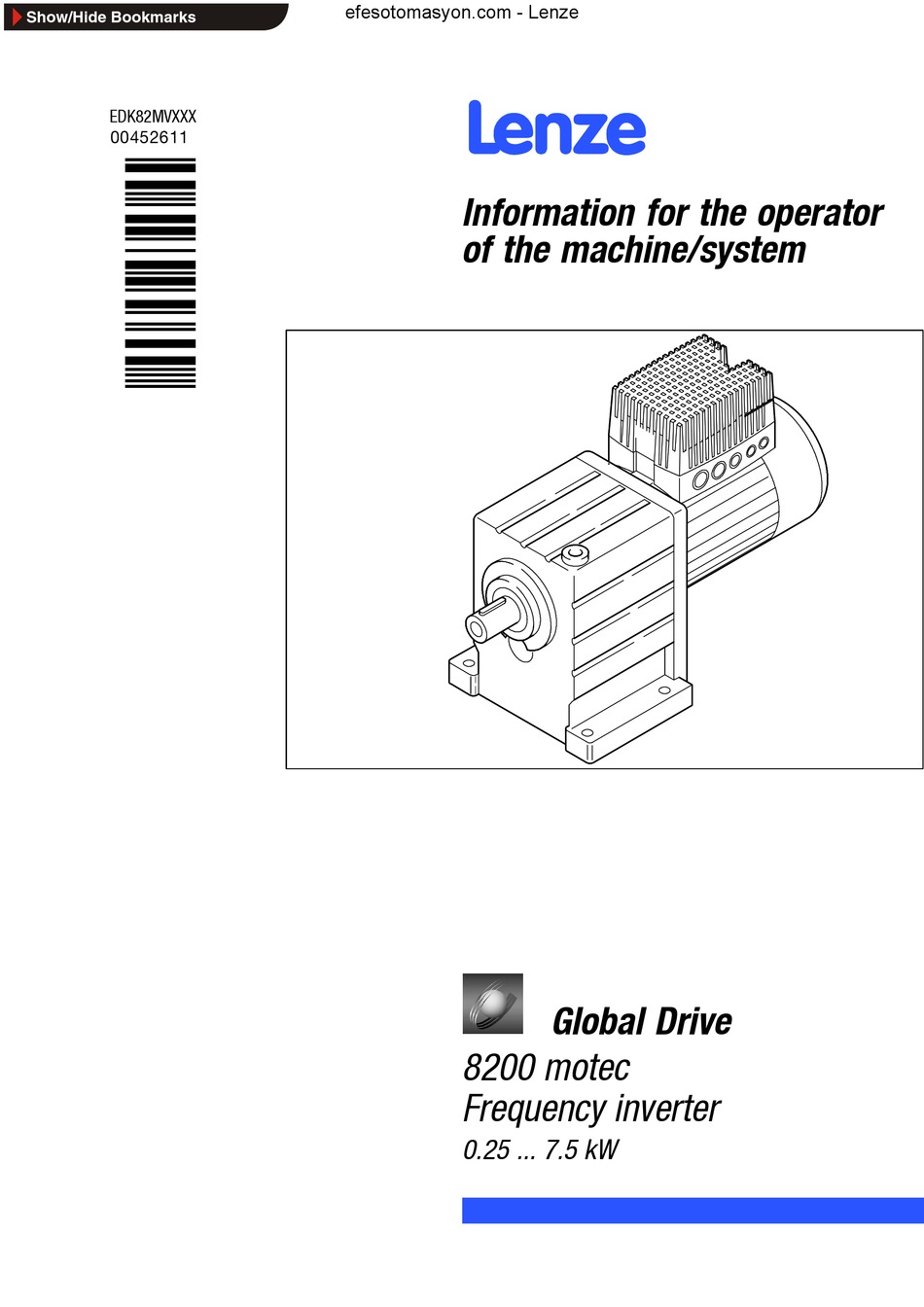

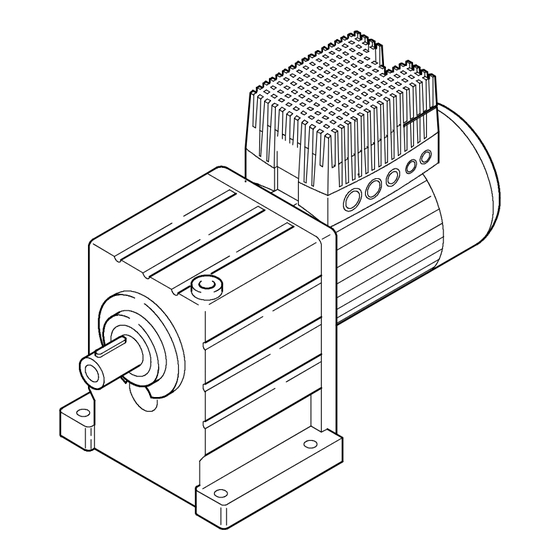

- Page 1 - Lenze Show/Hide Bookmarks EDK82MVXXX !N;, Information for the operator of the machine/system Global Drive 8200 motec Frequency inverter 0.25 ... 7.5 kW...
- Page 2 Mounting Instructions and Operating Instructions for the 8200 motec frequency inverters. The Mounting Instructions are included in the scope of delivery, the Operating Instructions can be ordered at your Lenze representative. The downloading of the Lenze documentation can be made in the internet as an Adobe Acrobat file: http://www.lenze.de...
-
Page 3: Safety Information
1. General Lenze controllers (frequency inverters, servo inverters, DC controllers) can carry a voltage or parts of the controllers can rotate during operation. Surfaces can be hot. If the required cover is removed, the controllers are used inappropriately or installed or operated incorrectly, severe damage to persons or material assets can occur. - Page 4 - Lenze Show/Hide Bookmarks Safety information Lenze low-voltage machinery General safety and application notes for Lenze low-voltage machinery (in conformity with the Low-Voltage Directive 73/23/EEC) 1. General Low-voltage machines have dangerous, live and rotating parts as well as possibly hot surfaces. All operations serving transport, connection, commissioning and maintenance are to be carried out by skilled, responsible technical personnel (observe EN 50110-1 (VDE 0105-100);...
-
Page 5: Residual Hazards
- Lenze Show/Hide Bookmarks Safety information Residual hazards, Layout of the safety instructions Residual hazards • Protection of Before working on the motec or opening the housing, check that no voltage is applied. Wait for at least 3 minutes, since after mains switch-off persons the power terminals U, V, W;... -
Page 6: Parameter Setting Using The Keypad
• The menu User – is active after every mains switching or keypad attachment during operation. – contains all codes for a standard application with linear V/f characteristic control (Lenze setting). – can be modified as required under C0517. •... - Page 7 C0002 Parameter set transfer/reset see code table Tip! Use C0002 ”Parameter set transfer” to easily transfer configurations from one controller to the other or to reset the controller to Lenze settings. EDK82MVXXX EN 1.0...
-
Page 8: Parameter Change In Menus
- Lenze Show/Hide Bookmarks Parameter setting Parameter setting using the keypad 2.1.3 Change between the menus U U U U S S S S E E E E r r r r A A A A L L L L L L L L USEr Œ... -
Page 9: Troubleshooting And Fault Elimination
- Lenze Show/Hide Bookmarks Troubleshooting and fault elimination Maloperation of the drive Troubleshooting and fault elimination Maloperation of the drive Fault Cause Remedy Motor does not DC-bus voltage too low Check mains voltage rotate (Red LED is blinking every 0.4 s;... -
Page 10: Error Messages
- Lenze Show/Hide Bookmarks Troubleshooting and fault elimination Error messages LEDs at the controller (operating status display) Operating status green Controller enabled Mains switched on and automatic start inhibited blinking Controller inhibited blinking every second Fault active, check under C0161 blinking every 0.4 seconds... - Page 11 - Lenze Show/Hide Bookmarks Troubleshooting and fault elimination Error messages Display Fault Cause Remedy Keypad PC • short-circuit short-circuit Find reason for short circuit; check motor cables • Check brake resistor Excessive capacitive charging current of the motor Use shorter/low-capacity motor cables...
- Page 12 - Lenze Show/Hide Bookmarks Troubleshooting and fault elimination Error messages Display Fault Cause Remedy Keypad PC Faulty auto-TRIP reset More than 8 fault messages in 10 minutes Depends on the fault message Open wire at analog input Current at analog input < 4 mA Close circuit at analog input (setpoint range 4 ...
