INSTALLING THE DOWNDRAFT VENT SYSTEM

30" COOKTOP/DOWNDRAFT
UNIT JVB37
NOTE: Before you begin, measure and mark
Dimension 3 to ensure that adequate flat
countertop surface is available.

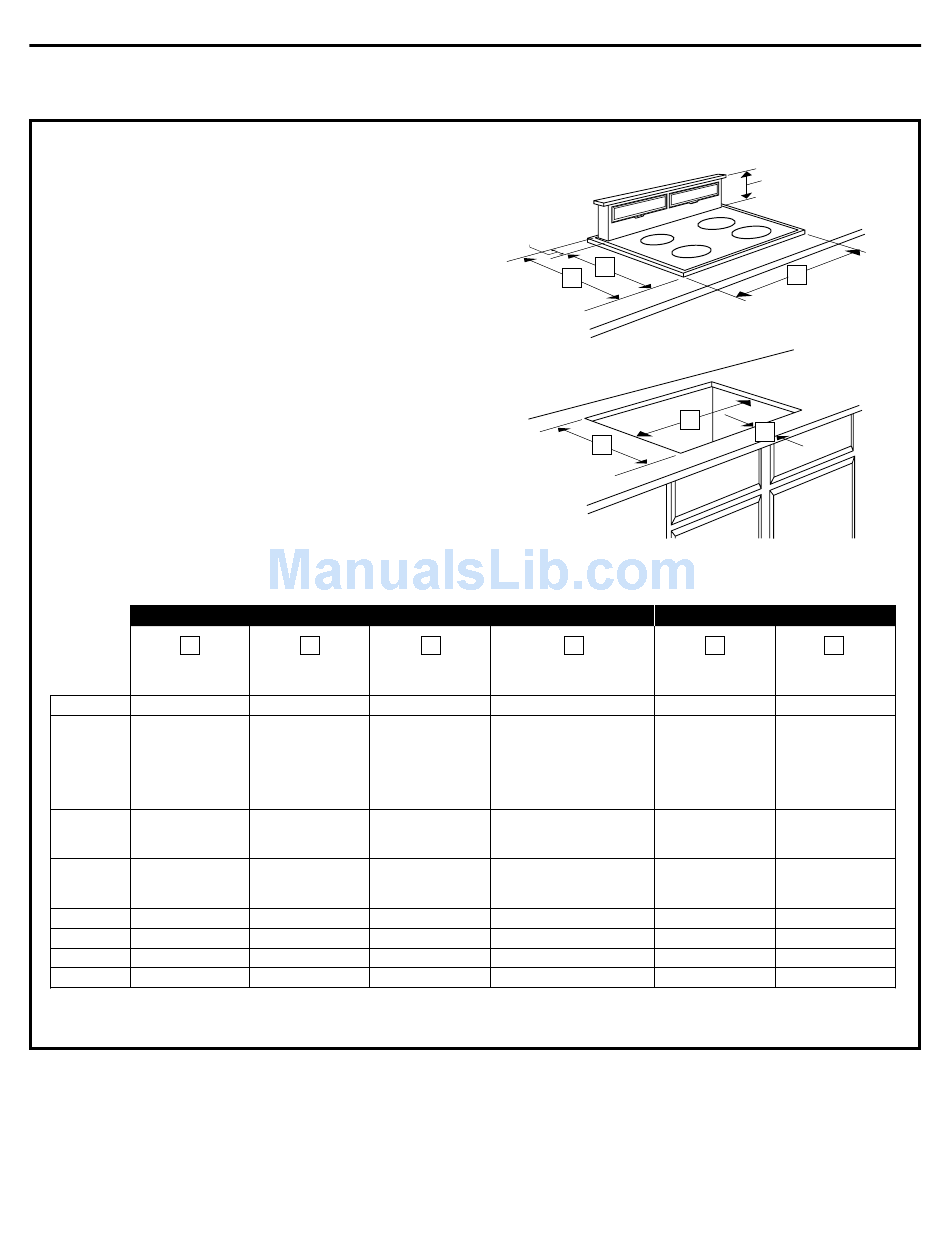

Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
• Draw lines on the countertop to follow
as a cutting guide.
• Make sure sides of the opening are
parallel and rear and front cuts are exactly
perpendicular (right angle) to sides.
Planning Installation 30" Electric and Gas Cooktops with Downdraft Vents
1
Overall
Model No. Width
JP326 30-1/4"
JP340
JP350
JP930
29-3/4"
JP931
JP938
JP939
JP350SC
JP930SC 29-7/8"
JP938SC
JGP328
JGP933 30"
JGP933S
JGP336 30"
JGP932 29-3/4"
JGP930S 30"
JGP932S 29-7/8"
**Includes 1/8" gap between cooktop and vent trim
**Required to maintain UL or AGA approvals
Installation Instructions
2 3
Cooktop Surface Surface Depth
Overall Depth with Downdraft*
21-1/4" 23-3/8"
20-7/8" 23"
21-1/2" 23-5/8"
21" 23-1/8"
21" 23-1/8"
21" 23-1/8"
21-1/4" 23-3/8"
21-5/8" 23-3/4"
"
2 ⁄
1
8
2
3
6
4
Minimum Setback
Cutout to Front Edge**
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
10
"
8 ⁄
1
2
1
5
4
Preparing Cutout
5 6
Combined Combined
Cutout Width Cutout Depth
28-1/2" 22-3/8"
28-1/2" 22-1/4"
28-1/2" 22-3/8"
28-1/2" 22-3/8"
28-1/2" 22-1/4"
28-1/2" 22-1/4"
28-1/2" 22-1/4"
28-1/2" 22-5/8"
