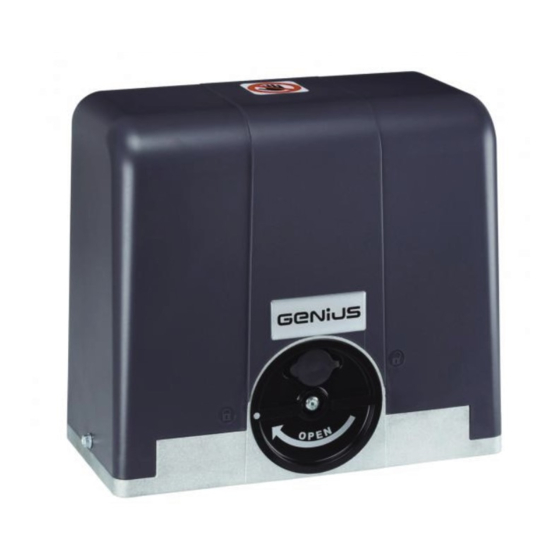

- Page 1 BLIZZARD 500 C BLIZZARD 900 C https://smartel.ua...
- Page 2 © Copyright FAAC S.p.A. dal 2016. Tutti i diritti riservati. Nessuna parte di questo manuale può essere riprodotta, archiviata, distribuita a terzi né altrimenti copiata, in qualsiasi formato e con qualsiasi mezzo, sia esso elettronico, meccanico o tramite fotocopia, senza il preventivo consenso scritto di FAAC S.p.A. Tutti i nomi e i marchi citati sono di proprietà...
-
Page 3: Table Of Contents
Model: BLIZZARD 500 C; BLIZZARD 900 C. 3. BLIZZARD 500-900 C ..........6 Complies with the following relevant Union harmonization legislations: 3.1 Intended use . -
Page 4: Introduction To This Instruction Manual
1. INTRODUCTION TO THIS INSTRUCTION MANUAL This manual provides the correct procedures and requirements for installing BLIZZARD 500-900 C and maintaining it in a safe condition. FIGURE E.g.: 1 -3 see Figure 1 - detail 3. When drafting the manual, the results of the risk assessment con- ducted by FAAC S.p.A. -
Page 5: The Manufacturer
2. SAFETY RECOMMENDATIONS This product is placed onto the market as “partly completed machin- ery”, therefore it cannot be commissioned until the machine in which Up indication. it will be incorporated has been identified and declared to conform to the Machinery Directive 2006/42/EC by the actual Manufacturer. Keep away from water and moisture. -
Page 6: Unpacking And Handling
- It is prohibited to install the automation system to create fire doors. GENIUS BLIZZARD 500-900 C series gear motors are designed to - It is prohibited to install the automation system in environments operate horizontal sliding gates for residential use (including in which represent an explosion or fire hazard: the presence of apartment complexes). -
Page 7: Emergency Use
3.5 PRODUCT WARNINGS 3.7 TECHNICAL CHARACTERISTICS The GENIUS BLIZZARD 500 C and BLIZZARD 900 C series gear motors Risk of fingers and hands being trapped between the rack, pinion and are equipped with an electronic board that controls their automatic casing (2). -
Page 8: Component Identification
3.8 COMPONENT IDENTIFICATION INSTALLATION ACCESSORIES WHICH ARE NOT SUPPLIED 3 7 Installation Accessories Base plate with mounting hardware Steel rack Spacers for steel rack (to be screwed or welded) Nylon rack Mounting hardware for nylon rack 2 3.9 DIMENSIONS 6 Components Case and danger symbol Hardware/accessories... -
Page 9: Installation Requirements
4. INSTALLATION REQUIREMENTS 4.1 MECHANICAL REQUIREMENTS For the minimum dimensions to prevent crushing/shearing of body parts, refer to EN 349. For the safety distances required to prevent The mechanical structural components must comply with the require- danger zones being reached, refer to ISO 13857. ments of EN 12604 and EN 12605. -
Page 10: Example System
4.3 EXAMPLE SYSTEM The example system is a purely illustrative and not exhaustive representation of BLIZZARD 500-900 C. Mains power supply 3 x 1.5mm Circuit breaker Junction box Blizzard gear motor Photocell TX Photocell RX Key switch Flashing Light 5 5. -
Page 11: Installation Dimensions
5.2 INSTALLATION DIMENSIONS POSITIONING THE BASE PLATE 90° 90° 0-50 0-50 6 7 Opening to the right Opening to the left CENTRELINE DISTANCES ø29 8 POSITIONING THE RACK Foundation 9 Nylon rack BLIZZARD 500-900 C 532103 - Rev.B https://smartel.ua... -
Page 12: Base Plate
Foundation 1 0 Steel rack 5.3 BASE PLATE RISKS PERSONAL PROTECTIVE EQUIPMENT Before proceeding, check that the necessary conduits are in place (§ 4.3- 5). The base plate and corresponding hardware are accessories which are not included. 1. -
Page 13: Manual Operation
4. Bring the base of the gear motor to 18mm from the base plate using the four support nuts (14 -1). 5. Fit four M10 locknuts and four washers, supplied with the base plate, as in 14 -2. 6. Ensure there is 13.5mm between the pinion and the sliding gate section (§... - Page 14 then use a spirit level to check it is level (17 ). 4. Weld the spacer to the sliding gate section (17 -1). 5. Move the sliding gate section forward, checking that the section rests on the pinion. 6. Check the level, then weld the other two spacers, repeating the operations in steps 5 and 6.
- Page 15 STEEL RACK WITH SPACERS TO BE SCREWED ON 1. Rest a rack section on the pinion (20). 2. Position the spacers in the upper par t of the slots ( 20-1): This will allow future adjustments if the rail is lowered. 3.
-
Page 16: Adjustments And Checks
7. If necessary, use another section of rack; rest it on the pinion and connect it to the previous one and use a spirit level to check it is level (2 4). 8. Install the section, repeating the operations in points 4, 5, 6 and 7. 9. -
Page 17: Model: Blizzard 500 C; Blizzard 900 C
500 mA 60 W max 28 KEY: LED: Terminal board for accessories Limit switch 1 Connector for GENIUS 5-pin receiver Limit switch 2 Rapid connector for encoder OPEN B Partial opening command Rapid connector for start-up capacitor OPEN A... -
Page 18: Terminal Boards And Connectors
Example of N.O. contacts connected in parallel negative for accessories. Default: indicator lamp (§ 7.4- 15-SP). Rapid connector for inserting the GENIUS 5-pin radio receiver (option- al accessory). Plug in the receiver only when the board is not powered. Example of N.C. contacts connected in series Rapid connector for inserting the encoder (optional accessory in some models). -
Page 19: Photocells And Safety Devices
6.2 PHOTOCELLS AND SAFETY DEVICES The maximum current on terminal 11 is 100 mA: if the consumption is greater, replace it with a negative pole for accessories supply and do not enable the Fs and SA functions in Advanced Programming. The contacts described in this paragraph are N.C. -
Page 20: Start-Up
7. START-UP During operation there is a risk of fingers and hands being trapped between the rack, pinion and casing. The body of the electric motor can reach high temperatures during operation. If the encoder is installed (42), make sure that it is connected to the board and activate the relative parameter in advanced programming (§... -
Page 21: Installation Of The Limit Switches
7.3 INSTALLATION OF THE LIMIT SWITCHES RISKS OPENING LIMIT SWITCH PERSONAL PROTECTIVE EQUIPMENT CLOSING LIMIT SWITCH OPENING TO THE RIGHT (43) STATUS LED FCA LED FCC CLOSING LIMIT SWITCH ENGAGED NO LIMIT SWITCH ENGAGED 4 3 OPENING LIMIT SWITCH ENGAGED OPENING TO THE LEFT (... -
Page 22: Programming
7.4 PROGRAMMING 1 4 Basic Programming BASIC PROGRAMMING Default The electronic board contains two Programming menus: Basic and Advanced. Operating logics (§ 9): A = Automatic In order to save the modifications made to the functions, scroll through AP = Automatic Step-by-Step the menu until reaching gate status (St). - Page 23 ADVANCED PROGRAMMING Default ADVANCED PROGRAMMING Default Fail-safe: Pre-limit switch deceleration: If this function is active, it enables a functional test of the photocells This sets the deceleration of the gate before the opening and closing before any movement of the gate occurs (§ 6.1- 10, § 6.2). limit switches are tripped.
-
Page 24: Direction Of Movement Check
7.5 DIRECTION OF MOVEMENT CHECK INSTALLING THE CASING RISKS Mount the casing following the instructions in 47: choose between the hexagonal insert screws and the Allen screws provided, size M5. PERSONAL PROTECTIVE EQUIPMENT Disconnect power to the system before making connections ... -
Page 25: Maintenance
This shall also cause the warranty to lapse. Perform a general clean of the area of movement of the gate. Make replacements only using original GENIUS spare parts. Gear Motor Check that the gear motor is intact and correctly fastened. - Page 26 Access Controls Check that the gate opens only when an authorised user is recognised. Complete Automation System Check that the automation system operates correctly, following the set logic, when using the various control devices. Check that the gate moves correctly - smooth, regular and without abnormal noise.
-
Page 27: Operating Logics
9. OPERATING LOGICS In logics A, AP and S, the maintained commands OPEN A and OPEN B prolong the OPEN IN PAUSE status until they are disabled (E.g. by TIMER). The effects on the other active inputs are shown in brackets. LOGIC A: AUTOMATIC PULSES SAFETY DEVICES... - Page 28 LOGIC E: SEMI-AUTOMATIC GATE STATUS PULSES SAFETY DEVICES OPEN A OPEN B STOP FSW OP FSW CL FSW CL/OP EDGE Opens Opens partially No effect (OPEN disa- No effect (OPEN disa- No effect No effect (OPEN disa- No effect (OPEN disa- CLOSED bled) bled)
- Page 29 LOGIC B: SEMI-AUTOMATIC B GATE STATUS PULSES SAFETY DEVICES OPEN A OPEN B (CLOSE) STOP FSW OP FSW CL FSW CL/OP EDGE Opens No effect No effect (OPEN A No effect (OPEN A No effect (OPEN B No effect (OPEN A No effect (OPEN disa- CLOSED disabled)
-
Page 30: Instructions For Use
10.1 SAFETY RECOMMENDATIONS 10.4 MANUAL OPERATION Installations of GENIUS BLIZZARD 500-900 C series gear motors must Before performing the release operation, shut off the power supply to be used for vehicular traffic. - Page 31 https://smartel.ua...
- Page 32 ООО "Компания Строймир" г. Киев, ул. Борщаговская 154А, оф. 435 +38 (044) 331-15-43 info@smartel.ua BLIZZARD 500-900 C 532103 - Rev.B www.smartel.ua https://smartel.ua...
