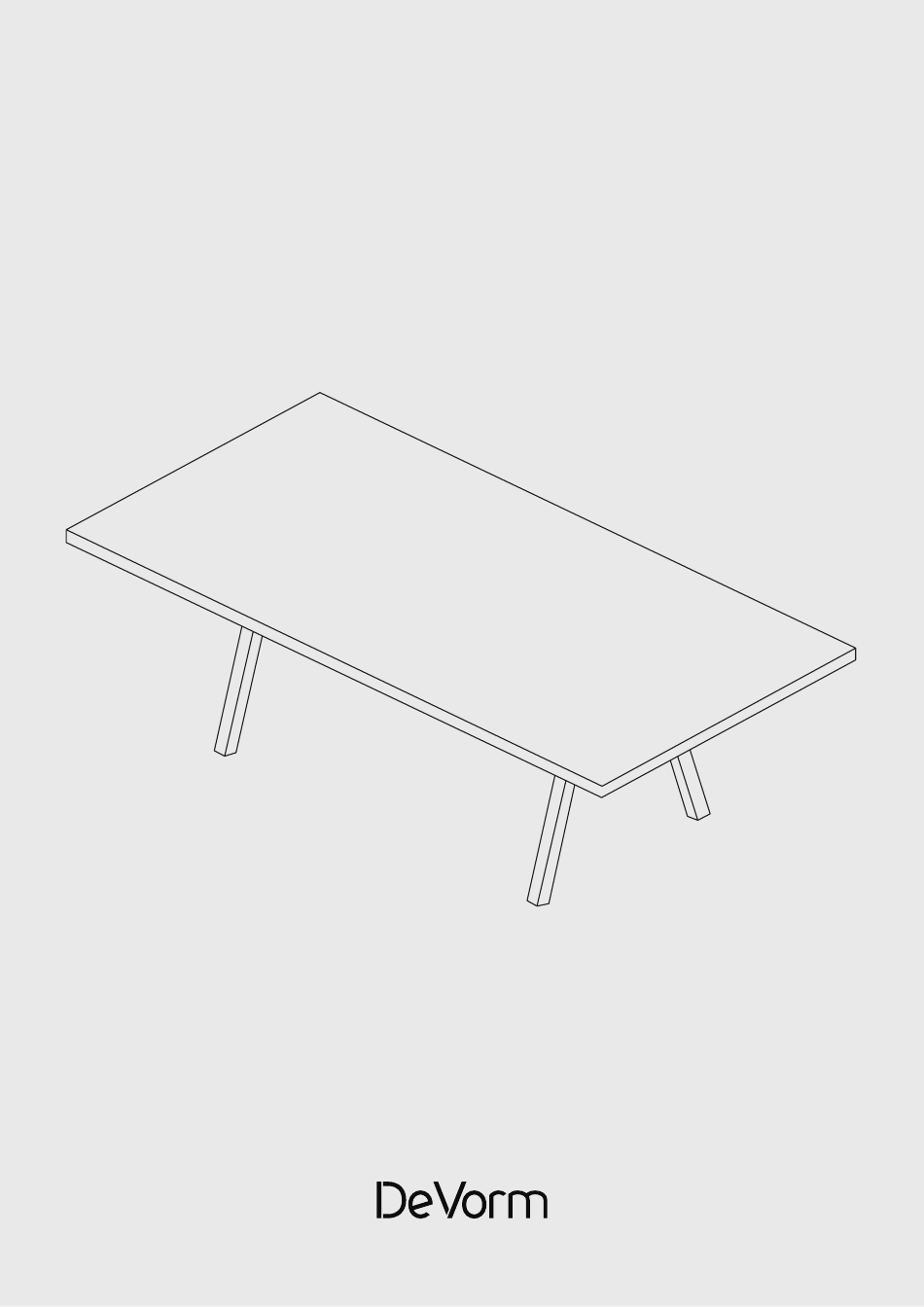

- Page 1 Big Modular Table System Installation Guide p. 1...
- Page 2 Index Introduction p. 3 Mounting Materials p. 4 Tools p. 5 Big Table parts p. 6 Assembling the frame p. 7 1. Place frame on furniture blanket 2. Connect the profile 3. Insert crossbar 4. Tighten bushing after positioning 5. Insert sliding nuts Assembling the table legs p.
- Page 3 Choose from infinite surface, colour, shape and size variations to make the perfect table for any context. In addition to this installation guide, you can also consult the instruction videos on our website via the following link: www.devorm.nl/information-bank/ installation-guides/big-table-system p. 3...
-
Page 4: Mounting Materials
Mounting Materials Connection materi- Connection materi- tion materi- Bushing Extension connector Bushing Extension connector Universal connector Universal connector Connection materi- Bushing Extension Connector Universal Connector Sliding-nut Sliding-nut Adjustable foot Adjustable foot M8x16 5x16 M8x16 Self-tapping 5x16 Self-tapping Bushing Extension connector Universa M3x10 M3x10... - Page 5 Tools BZK6 BZK5 p. 5...
- Page 6 Tools: Tools: Tools: Tools: Tools: Table Frame Tools: Profile Profile Profile 1200 mm 1800 mm 2400 mm Frame cover Frame cover Frame cover Small Medium Cross bar Cross bar Cross bar Table Legs Big Table Legs Big Table Legs Big Table Legs 74 cm 95 cm 110 cm...
-
Page 7: Assembling The Frame
Assembling the frame Place frame on furniture blanket Make sure to place frame e.g. on protection blanket to prevent damage. Connect the profile Skip this step if your table is shorter than 340 cm and go to step 3. Screw all the Bushings finger-tight by hand! Do not use a drill. - Page 8 Insert crossbar Make sure the spacing between the crossbars is equally divided. p. 8...
- Page 9 Tighten bushing after positioning The crossbar needs to align perfectly with the top ends of the 1200/1800/2400 mm profiles. p. 9...
- Page 10 Insert sliding nuts Push the sliding-nut in at an angle and turn it 90° until the spring pushes the T-nut into place. p. 10...
- Page 11 Assembling the table legs Mounting of table legs Right orientation of the feet of the legs p. 11...
- Page 12 Placement of adjustable feet Mounting of frame cover Use the self tapping M3x10mm screws in order to mount the frame cover. p. 12...
- Page 13 Pre-tensioning Please note that we only deliver the pre-tensioner angle with larger tables. Skip this step in case your Big Table is shorter than 450 cm and proceed to step 11. Lift By lifting the frame you are able to create space between the profiles.
- Page 14 Connect table tops Placement of dominos Skip this step if your table top is one piece. Placement table connector p. 14...
- Page 15 Alignment of the table tops Tighten table connector Tighten the table top connector when both table tops are perfectly aligned. p. 15...
- Page 16 Table top fastening Congratulations, it’s done! p. 16...
- Page 17 Our design process is infused with technical development; techniques result in aesthetic features and the other way round. Leemansweg 45 6827 BX Arnhem The Netherlands +31(0) 268 200 360 info@devorm.nl www.devorm.nl p. 17...
