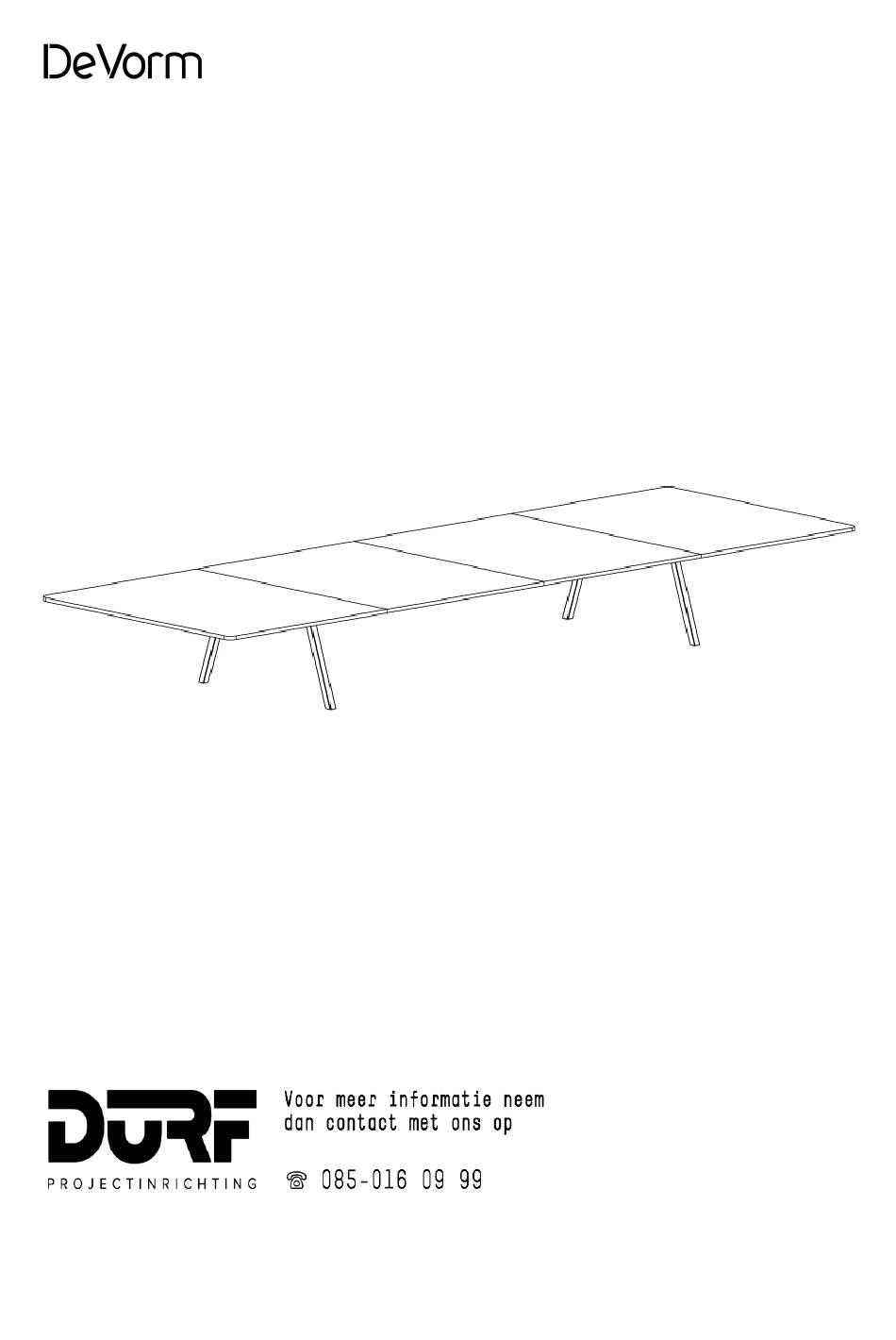

- Page 1 BIG – Modular Table System Installation guide Don’t like reading? We have an installation video too! Watch the video here: www.devorm.nl/wiki/installation-guides/big-table-system...
- Page 4 Step 1 – Profile connecting v Skip this step if your table is shorter than 340 cm and go to step 3. v Tighten the screws not too tight!
- Page 5 Step 2 – Crossbar insertion...
- Page 6 v The crossbar needs to align perfectly with the top ends of the 1200/1800/2400 mm profiles.
- Page 7 Step 3 – Sliding-nut v 2 per leg v Push the sliding-nut in at an angle and turn it 90° until the spring pushes the T-nut into place.
- Page 8 Step 4 – Mounting of table legs v Allen key nr. 6 ...
- Page 9 Step 5 – Adjustable foot Step 6 – Mounting of frame cover v 8x Self tapping M3x10mm screws...
- Page 10 Step 7 – Pre-tensioning v By lifting the frame your able to create space between the profiles. If this is not enough, unscrew the bushings a little. 3x 180cm profiles - 2x 240cm profiles Step 8 – Bushing tightening v Screw all the Bushings finger-tight by hand! Tightening with a cordless drill is not permitted. v Allen key nr. 5...
- Page 11 Step 9 – Table top connecting v Skip this step if your table top is made out of one piece. v Table top connector use ‘wrench’ nr 10.
- Page 12 Step 10 – Table top fastening v 5x16 screws Step 11 – Finished!
