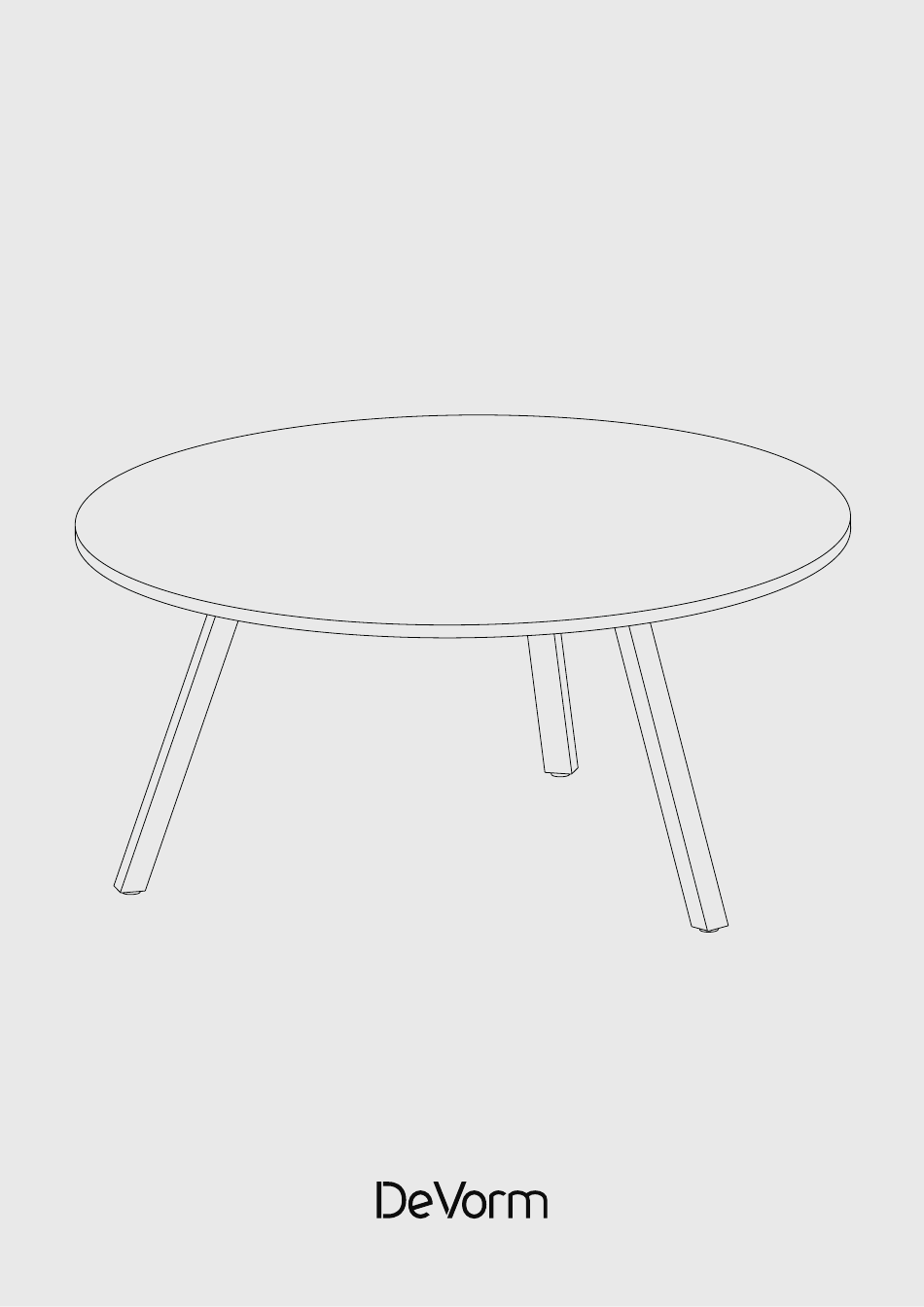

- Page 1 Big Round Installation Guide p. 1...
-
Page 2: Table Of Contents
Index Introduction p. 3 Mounting Materials p. 4 Tools p. 5 Big Round parts p. 6 Assembling the hexagon frame p. 8 1. Parts required 2. Tools required 3. Place frame on furniture blanket 4. Prepare the bushing (and all positions) 5. - Page 3 Choose the surface, colour, shape and size to make this the perfect table for any context. The Big Round is available in three heights and a wide range of dimensions. The modularity of the system enables you to create robust tables from Ø160 to Ø250 cm on just 3 legs.
- Page 4 Mounting Materials Bushing Connector Hinge Connector Shifter Sliding Nut Adjustable Feet Bolt M8×16 Quantity depends Quantity depends on table size on table size Domino Table Connector Bolt M8×10 L-bracket Screw M5×16 p. 4...
- Page 5 Tools BZK6 BZK5 p. 5...
- Page 6 Table Frame Profile 63,5 cm Profile 71,5 cm Profile 89 cm Table Legs Table Leg 74 cm Table Leg 95 cm Profile 110 cm p. 6...
- Page 7 Table Top Table Top Two parts One part Depending on the table finish, you will receive the table top in two parts or in one. p. 7...
-
Page 8: Parts Required
Assembling the hexagon frame Parts required Tools required Bushing BZK5 Profile Connector Hinge Connector Shifter Place frame on furniture blanket Make sure to place frame e.g. on protection blanket to prevent damage. Short connectors are placed on the outside. Long connectors are placed on the inside. -
Page 9: Prepare The Bushing (And All Positions
Prepare the bushing (and all positions) Preparing the connectors Connector Hinge Connector Shifter Place bushing Make sure the eye of the bushings are perfectly in line with the profile. p. 9... -
Page 10: Place Connectors
Place connectors Make sure the tapered holes are perfectly in line with the bushings. Tighten the screw in the bushing Not too tight, leave room for motion. p. 10... -
Page 11: Connect Profiles
Connect profiles Tighten bushing Repeat step 1 to step 10 untill you have 2 halfs of the hexagon frame. p. 11... -
Page 12: Connect Two Halfs Of The Hexagon
Connect two halfs of the hexagon p. 12... -
Page 13: Parts Required
Assembling the table legs Parts required Table Frame Table Leg M8×16 Adjustable Feet Sliding Nut Tools required BZK6 p. 13... -
Page 14: Placement Of The Sliding Nut
Placement of the sliding nut p. 14... -
Page 15: Assembling The Leg
Assembling the leg Right orientation of the feet of the legs p. 15... -
Page 16: Placement Of The Adjustable Feet
Placement of the adjustable feet p. 16... -
Page 17: Parts Required
Connect table tops Parts Required Bolt M8×10 L-bracket Screw M5×16 Sliding Nut Quantity depends Quantity depends on table size on table size Table Connector Domino The placement of the table top p. 17... -
Page 18: Lock Table Top With One Screw
Lock table top with one screw Placement of dominos p. 18... -
Page 19: Placement Of The Table Connectors
Placement of second tabletop Placement of the table connectors Not too tight, leave room for motion. p. 19... -
Page 20: Alignment Of The Table Tops
Alignment of the table tops Tighten table connector Tighten the table top connector when both table tops are perfectly aligned. p. 20... -
Page 21: Placement Of Sliding Nut
Placement of sliding nut Assemble L-brackets & screws p. 21... -
Page 22: All Screws Assembled
All screws assembled Congratulations, it’s done! p. 22... - Page 23 Our design process is infused with technical development; techniques result in aesthetic features and the other way round. Leemansweg 45 6827 BX Arnhem The Netherlands +31(0) 268 200 360 info@devorm.nl www.devorm.nl p. 23...
