- Page 1 PV Inverter SUNNY TRIPOWER 5000TL / 6000TL / 7000TL / 8000TL / 9000TL User Manual STP5-9TL-BA-en-10 | TBEN-STP5-9TL | Version 1.0...
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..... . . 5 Safety ......... . 7 Intended Use. - Page 4 Table of Contents SMA Solar Technology AG STP5-9TL-BA-en-10 User Manual...
-
Page 5: Information On This Document
SMA Solar Technology AG 1 Information on this Document Information on this Document Validity This document is valid for the following device types as of firmware version 2.00: • STP 5000TL-20 • STP 6000TL-20 • STP 7000TL-20 • STP 8000TL-20 •... - Page 6 1 Information on this Document SMA Solar Technology AG Nomenclature Complete designation Designation in this document Electronic Solar Switch PV plant Plant ® SMA Bluetooth Bluetooth Wireless Technology Sunny Tripower Inverter, product SMA Webconnect function Webconnect function Abbreviations Abbreviation Description...
-
Page 7: Safety
Design of a PV plant with Sunny Tripower The Sunny Tripower is suitable for indoor and outdoor use. Alternative uses of the Sunny Tripower not expressly recommended by SMA Solar Technology AG are not permitted. For safety reasons, it is not permitted to modify the product or install components that are not explicitly recommended or distributed by SMA Solar Technology AG for this product. -
Page 8: Safety Precautions
2 Safety SMA Solar Technology AG 2.2 Safety Precautions Electric Shock High voltages that can cause fatal electric shocks are present in the live components of the inverter. • Do not open the inverter. • All work on the inverter (e.g. repairs, modification) must be carried out by skilled persons only. -
Page 9: Product Description

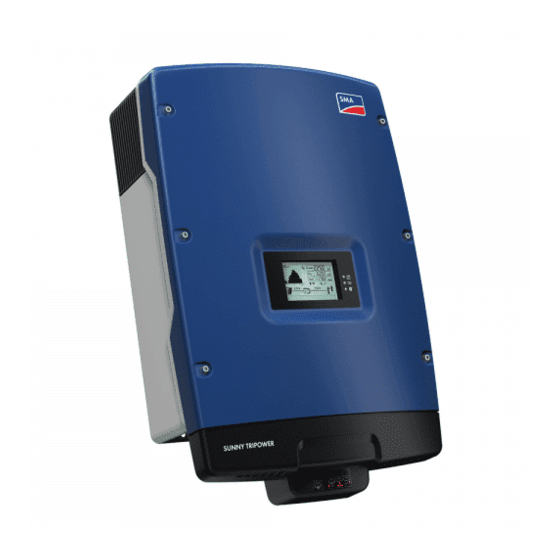

SMA Solar Technology AG 3 Product Description Product Description 3.1 Sunny Tripower The Sunny Tripower is a transformerless PV inverter with two MPP trackers, that converts the direct current of the PV array into grid-compliant three-phase current and feeds this into the electricity grid. -
Page 10: Symbols On The Inverter
3 Product Description SMA Solar Technology AG Symbols on the Inverter Symbol Designation Explanation Inverter This symbol defines the function of the green LED. The green LED indicates the operating state of the inverter. Observe the documentation. This symbol defines the function of the red LED. -
Page 11: Display
SMA Solar Technology AG 3 Product Description 3.2 Display The display shows the current operating data of the inverter (e.g. current power, daily energy, total energy) as well as any events and errors. The energy and power are displayed as bars in the diagram. - Page 12 3 Product Description SMA Solar Technology AG Position Designation Explanation Input voltage/input Displays input voltage and input current of one input in current alternation Event number relating Event number of errors relating to the PV array to the PV array...
- Page 13 SMA Solar Technology AG 3 Product Description Symbol Designation Explanation Webconnect function Indicates that connection to Sunny Portal is possible Multi-function relay Indicates that the multi-function relay is active Thermometer Indicates that the power of the inverter is limited due to excessive temperature...
-
Page 14: Type Label
(RID) for registration in Sunny Portal You require the information on the type label to use the inverter safely and for and for SMA Service Line support. The type label must be permanently attached to the inverter. STP5-9TL-BA-en-10 User Manual... -
Page 15: Symbols On The Type Label
SMA Solar Technology AG 3 Product Description Symbols on the Type Label Symbol Designation Explanation Danger to life due to high The product operates at high voltages. voltages All work on the inverter must be carried out by skilled persons only. -
Page 16: Electronic Solar Switch (Ess)
The inverter is equipped with Bluetooth communication as standard. Additionally, it features Speedwire communication with Webconnect function. The inverter can communicate with special SMA communication products (e.g. data logger, software) and other inverters via Bluetooth. If you would like to communicate via Bluetooth, you can protect the inverter with a plant password for the user and a plant password for the installer. -
Page 17: Led Signals
SMA Solar Technology AG 4 LED Signals LED Signals The LEDs indicate the operating state of the inverter. Designation Status Explanation Green LED glowing Operation In the case of an event, the event message is shown in the display. flashing The requirements for connecting to the electricity grid have not been met. -
Page 18: Cleaning The Inverter
5 Cleaning the Inverter SMA Solar Technology AG Cleaning the Inverter • Damage to the display due to the use of cleaning agents • If the inverter is dirty, clean the enclosure lid, the display and the LEDs using only clean water and a cloth. -
Page 19: Glossary
SMA Solar Technology AG 6 Glossary Glossary Bluetooth Bluetooth is a radio technology that allows the inverter and other communication products to communicate with each other. For Bluetooth communication, the Bluetooth devices do not need to be within sight of each other. -
Page 20: Contact
7 Contact SMA Solar Technology AG Contact If you have technical problems, first contact your installer. The following information is required in order to provide you with the necessary assistance: • Inverter device type • Inverter serial number • Firmware version of the inverter •... - Page 23 Legal Restrictions The information contained in this document is the property of SMA Solar Technology AG. Publishing its content, either partially or in full, requires the written permission of SMA Solar Technology AG. Any internal company copying of the document for the purposes of evaluating the product or its correct implementation is allowed and does not require permission.
