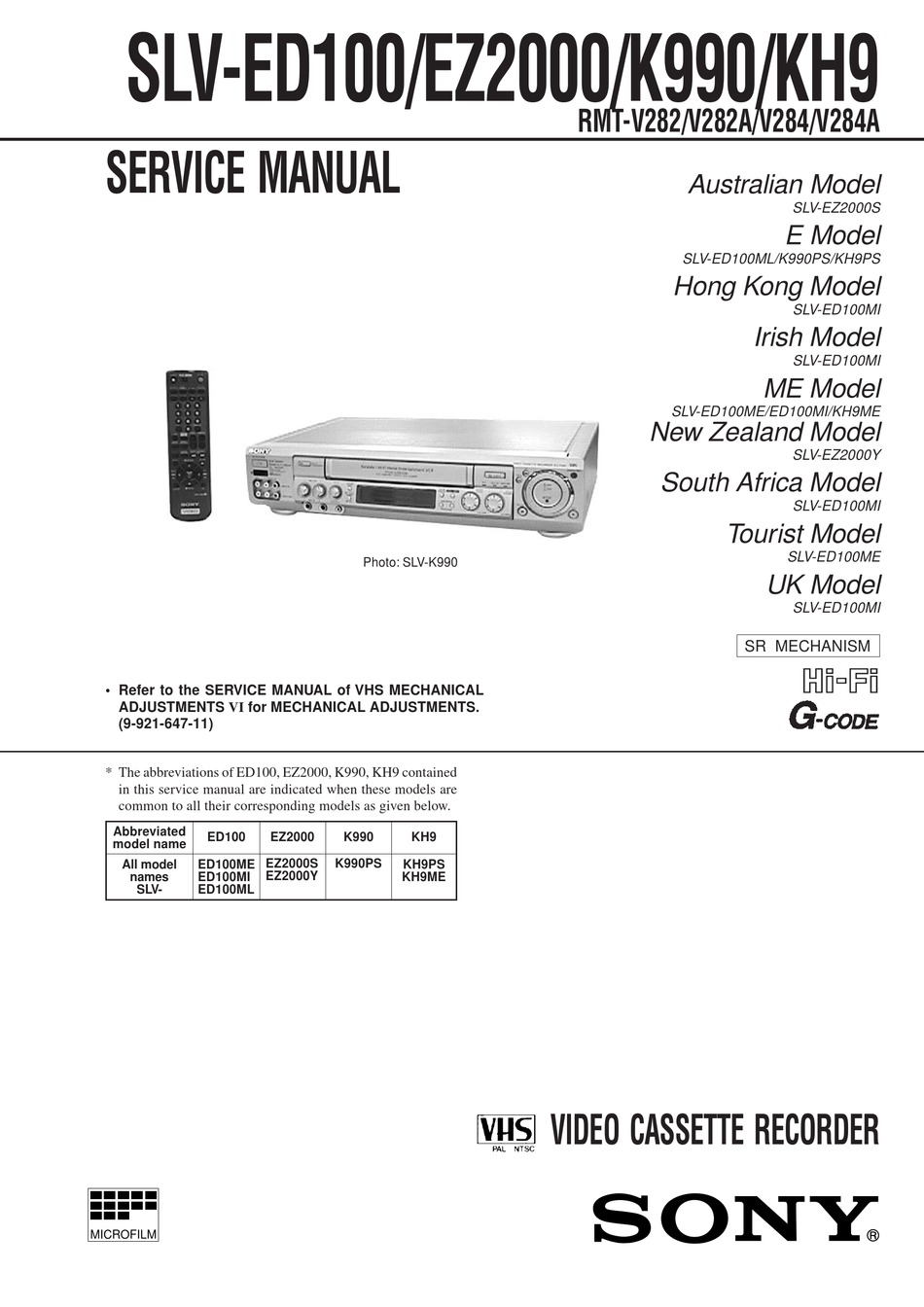

Sony SLV-EZ2000S Service Manual

SLV-ED100/EZ2000/K990/KH9
SERVICE MANUAL
• Refer to the SERVICE MANUAL of VHS MECHANICAL
ADJUSTMENTS VI for MECHANICAL ADJUSTMENTS.
(9-921-647-11)
* The abbreviations of ED100, EZ2000, K990, KH9 contained
in this service manual are indicated when these models are
common to all their corresponding models as given below.
Abbreviated
ED100
model name
All model ED100ME
names ED100MI
SLV- ED100ML
MICROFILM

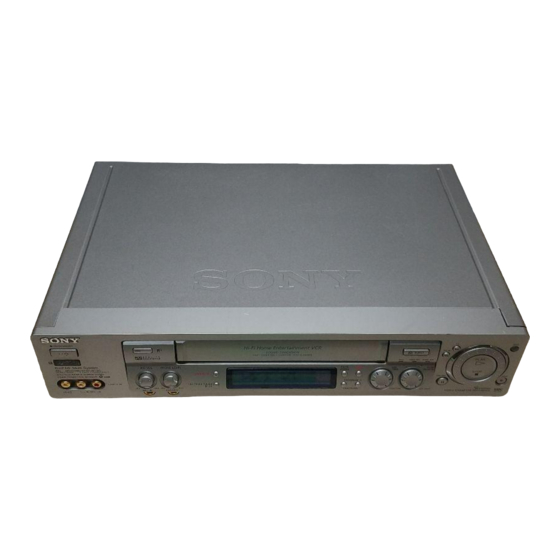

Photo: SLV-K990
EZ2000 K990 KH9
EZ2000S K990PS
KH9PS
EZ2000Y
KH9ME
RMT-V282/V282A/V284/V284A
Australian Model
SLV-ED100ML/K990PS/KH9PS
Hong Kong Model
SLV-ED100ME/ED100MI/KH9ME
New Zealand Model
South Africa Model
VIDEO CASSETTE RECORDER
SLV-EZ2000S
E Model
SLV-ED100MI
Irish Model
SLV-ED100MI
ME Model
SLV-EZ2000Y
SLV-ED100MI
Tourist Model
SLV-ED100ME
UK Model
SLV-ED100MI
SR MECHANISM
G
