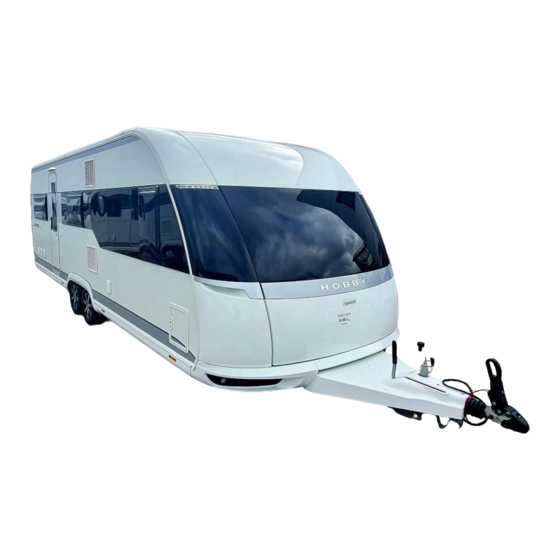

Hobby DE LUXE 2018 Operating Manual
  1. Manuals
  2. Brands
  3. Hobby Manuals
  4. Motorhomes
  5. DE LUXE 2018
  6. Operating manual

Hobby DE LUXE 2018 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATION GUIDE
GB
Version 7 / 2018
ONtOur│DE LuXE│DE LuXE EDItION│EXCELLENt│PrEStIGE│PrEMIuM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE LUXE 2018 and is the answer not in the manual?

Questions and answers

Related Manuals for Hobby DE LUXE 2018

Summary of Contents for Hobby DE LUXE 2018

  • Page 1 OPERATION GUIDE Version 7 / 2018 ONtOur│DE LuXE│DE LuXE EDItION│EXCELLENt│PrEStIGE│PrEMIuM...
  • Page 2 1. Introduction Dear Caravaner, Congratulations on the purchase of your new HOBBY Caravan. The trust you have placed in us is both an incentive and an obligation to continuously implement new ideas, technical innovations and fine touches to make our caravans even better. Our fully fitted and highly sophisticated models enable us to offer you the perfect setting for the most enjoyable days of the year.

  • Page 3: Table Of Contents

    1. Introduction Table of Contents Introduction General information .........................1 Key to using in These Operating Instructions .................2 Safety Intended use ............................4 General information .........................4 Fire protection ..........................4 Emergency equipment ........................5 Safety Systems ..........................6 Before the journey ...........................7 2.6.1 What to observe before your first journey ..................7 2.6.2 Before each journey ........................9 While driving ..........................10 After each journey .........................12...
  • Page 4 1. Introduction 7.3.1 HobbyConnect ..........................77 Electrical supply ..........................91 Electrical system ...........................96 Diagram of the electrical distribution board ..................97 TV Connections ..........................98 Additional lights ..........................99 Water General information ........................100 Water pump ..........................100 Water flushing toilet ........................106 Gas system General safety rules for the use of liquid gas facilities ..............109 Gas supply ..........................111 Gas socket, external........................113 10 Built-in devices...

  • Page 5: General Information

    These operating instructions also describe equipment which may vary from the standard scope of delivery. Therefore, HOBBY shall not be liable for any claims arising from the contents of this handbook. The equipment that has been im- plemented at the time of printing is described in these operating instructions.

  • Page 6: Key To Using In These Operating Instructions

    1. Introduction 1.2 Key to using in These Operating Instructions This operating manual explains the caravan as follows: Texts and illustrations The texts which accompany illustrations are found directly to the right of the illustrations. Details in illustrations (here: habitation door) are marked with position number Lists Lists are set out in bullet-point form, indicated by a hyphen "-"...
  • Page 7 For technical reasons, optional extras cannot always be installed in all models. Should you have any questions, please speak to your Hobby dealer. Should there be any equipment or a model that is not described in this user manual, please note the enclosed additional operating instructions.

  • Page 8: Safety

    2. Safety 2.1 Intended use This caravan has been designed as a mobile travel accommodation for private, not commercial use. This is a recreational vehicle that is fit for habitation. It offers accommodation that can be used temporarily or seasonally and which meets the requirements for the construction and use of the vehicle on the road.

  • Page 9: Emergency Equipment

    2. Safety Fighting a fire • Evacuate all passengers immediately. • Close the main shut-off valve on the gas bottle as well as the shut-off valves on gas appliances. • Shut off the electrical supply. • Sound the alarm and call the fire service. •...

  • Page 10: Safety Systems

    2. Safety • when it must be highlighted by the use of a warning triangle on the hard shoulder because of an accident or breakdown. Warning triangle The warning triangle should also be kept handy in a fixed place in the base vehicle/caravan, preferably together with the first aid kit.

  • Page 11: Before The Journey

    2. Safety Should your caravan be stolen, please do the following: • Contact the police and inform your insurance company. Inform them of any anti-theft devices that may be mounted in your caravan. • Inform CRiS and continue to keep CRiS informed of all further developments so that their database can be kept up-to-date.
  • Page 12 Hobby dealer will always be available to assist you! Fit for a Speed of 60 mph (Germany) 1. Your HOBBY caravan is technically equipped for a maximum speed of 60 mph. Under no circumstances may this speed be exceeded! 2.

  • Page 13: Before Each Journey

    2. Safety 2.6.2 Before each journey Road safety • The electric connection between the tow vehicle (your car) and the caravan must function perfectly. • Before driving, check that the signalling and lighting systems and brakes function correctly. • If the vehicle has been standing for a longer period of time (approx.

  • Page 14: While Driving

    2. Safety • Close and firmly lock all of the windows and roof lights. • Empty the waste water tank, clean it and stow it securely in the gas box. • Switch off the awning light. • If necessary, pack away the awning and stow the winding handle securely.
  • Page 15 Despite carrying out automatic brake adjust- ments on all HOBBY trailers, the basic setting for the brakes must be checked by an authorised specialist and adjusted if necessary (initial inspection) after ha- ving driven 500 km.

  • Page 16: After Each Journey

    2. Safety Driving in reverse Your HOBBY caravan has a braking system with automatic reverse. It enables you to drive backwards without applying the brakes, becau- se the overrun coupling does not differentiate between overrunning or reversing the caravan. When you back up the caravan, you must first overcome a slight residual brake torque in order to activate the automatic reverse.
  • Page 17 2. Safety Securing the vehicle Rules for securing the vehicle: • Apply the handbrake brake. • Only extend the corner steadies to the point where the axle still assists in bearing the weight (The winding handle is located in the bottle container). •...

  • Page 18: Chassis

    For the sake of traffic safety, the vehicle undercarriage must be maintained just as conscientiously as the base vehicle itself. This maintenance should be carried out by your HOBBY dealer. If spare parts are required, use only the original parts supplied by the manu- facturer.

  • Page 19: Loading

    3. Chassis 3.3 Loading 3.3.1 General information Rules for loading: • Spread the load evenly between the left and right-hand side of the caravan. Heavy or bulky objects should be placed in the lower storage compartments and near the axle. •...

  • Page 20: Tow Hitch Load

    1. Determine the maximum nose weigh of your tow vehicle by checking its documentation, the chassisplate or the drawbar plate. 2. The maximum permissible nose weightfor your HOBBY caravan is 100 kg (Exception: model 19 EG, i.e. models 720 the permissible nose weight for these models is 150 kg).

  • Page 21: Meaning Of Weights For The Caravan

    1. Gross vehicle weight rating (g.v.w.r.) The indication of the gross vehicle weight rating is taken directly from the HOBBY factory. This mass takes into account the specific operating conditions that are based on the model of the caravan and its specifications, including such factors as material strength, load-carrying capacity of the axles and tyres, etc.

  • Page 22: Safety Hitch Ws 3000

    3. Chassis 4. Actual mass Sum of the mass when ready to drive and the optional extras or additional equipment assembled by the manufacturer. 5. Loading capacity / additional load Difference between the technically permissible maximum weight and the actual mass of the vehicle. 6.
  • Page 23 3. Chassis Preparation for hitching/unhitching • To hitch and unhitch, open the stabiliser hitch (lever in position WARNING: Ensure that the ball of your tow bar is clean and free of grease. Hitching • Connect the break away cable into the eyelet provided for that purpose.

  • Page 24: Jockey Wheel

    3. Chassis Unhitching • Make sure that overrun gator is fully extended. It will not be possible to release the hitch from the tow ball if it is compressed. • Release the break away cable and disconnect the 13 pin plug. •...

  • Page 25: Handbrake Operation

    (see photo Fig. Should you exchange the carabiner, ensure that you get an equivalent replacement. The standard version of your Hobby caravan is equipped with a carabiner used by fire departments. A so-called spring hook must not be attached directly to the eyelet, because it can only supply the strength required to fully apply the brake if it is the fastener for a loop.

  • Page 26: Overrunning Equipment And Wheel Brakes

    30 seconds, the overrunning equipment must be checked by an experienced technician or workshop. Wheel brakes All Hobby caravan models have an automatic brake adjustment that independently compensates for wear in the brake shoes. • Regular adjustment of the brakes is not necessary.

  • Page 27: Electronic Trailer Stabilisation (Ets Plus)

    (Knott). 3.8 Electronic Trailer Stabilisation (ETS plus)* ETS Plus is a safety system that can be retrofitted for HOBBY cara- vans with a mechanical overrun brake. It automatically recognises if the trailer starts to sway and, if necessary, can stabilise the car and caravan by applying the caravan brakes.

  • Page 28: Wheels And Tyres

    Wheels and Tyres 4.1 Wheels The following applies for wheel bolts: If you are driving a new vehicle, or after changing a tyre, tighten the wheel bolts or nuts after you have driven the first 50 km and then again after the following 100 km. For your safety, do not use any tyres or wheel bolts other than what was originally stipulated.

  • Page 29: Tyre Pressure

    4. Wheels and Tyres 4.3 Tyre pressure Tips for checking tyre pressures: • Check and correct tyre pressure every four weeks (but at least every three months) and before every journey. • Tyres must be checked when they are cold. •...

  • Page 30: Profile Depth And Age Of Tyres

    Wheels and Tyres Tyre manufacturers' recommendation • Change tyres after six years, regardless of profile depth. • Avoid striking curbs, potholes or other obstacles. Age of tyres You should change your tyres before they reach six years old because the rubber deteriorates over time and also when they don't move for long periods of time.

  • Page 31: Changing A Wheel Tyre

    4. Wheels and Tyres 4.6 Changing a wheel tyre Preparing to change the tyre • If possible, only change the tyre when the tow vehicle is coupled to the caravan. • Park the car and caravan on as firm and even a surface as possible. •...
  • Page 32 Wheels and Tyres Changing the wheel • If the vehicle is parked on soft ground, lay a stable reinforce ment under jack* (i.e., a board). • Set the corresponding jack onto the fixed part of the axle not the swinging arm or on the chassis beam ias close as is possi- ble to the axle on the side where the wheel is being changed.

  • Page 33: Tyre Repair Kit

    4. Wheels and Tyres 4.7 Tyre repair kit (model-specific) All single-axle caravans are equipped with a tyre repair kit; this is part of the standard equipment. In certain circumstances some caravans with changed specifications have a spare wheel instead of the repair kit. Do not use the tyre repair kit if the tyre was dama- ged as a result of driving without air.
  • Page 34 Wheels and Tyres B Unscrew the valve cap from the tyre valve. Remove the valve insert with the valvecore remover . Do not lay the valve insert down in sand or dirt. Unscrew the valve cap C Pull the stopper from the fill hose .
  • Page 35 4. Wheels and Tyres E Open the air hose on the tyre valve. Insert the plug into the cigar lighter socket. Then pump the tyres (Fig. Do not operate the electric air pump longer than 8 minutes! Danger of overheating! If sufficient air pressure is unattainable, drive 10 meters (either forward or in reverse) so that the sealant can be evenly distributed within the tyre.

  • Page 36: Exterior Structure

    5. Exterior structure 5.1 Forced and fixed ventilation The following applies for ventilation Proper ventilation and dehumidifying of the caravan is a prerequisite for ideal living comfort. Vents for draft-free forced ventilation have been integrated in the floor of your caravan; for forced dehumidifying , they have been integrated in the roof lights .

  • Page 37: Opening And Closing Doors And Lockers

    5. Exterior structure Removing the fridge vents during maintenance and repair • Push the lock(s) up as far as it will go. • Carefully lift open the ventilation grid on the left-hand side. • Then pull the right-hand side out of the bracket. The ventilation grills must be firmly mounted while driving or when it is raining.
  • Page 38 5. Exterior structure Entrance door The entrance door is your escape route in an emergency. Therefore, never block the door from the outside! Only tow the caravan when the entrance door is shut. External entrance door To open • Gently turn the key to the left (for a door with the hinges on the left and right for a door with the hinges to the right) until you hear the lock open.
  • Page 39 5. Exterior structure Emptying the waste bin • To empty the waste bin, first open the lid. • Carefully release the grey mounting frame from its position. • The bin can then be opened by folding it down and the contents can be removed.
  • Page 40 5. Exterior structure Access locker To open • Unlock with the key. • Hold the locking knob between your thumb and index finger and press firmly. • Open the door downward. To close • Lift the door upward. Access locker •...
  • Page 41 5. Exterior structure Gas box Lid The gas box is permanently vented (see also Chapter 9 Gas). Since the gas box has not been constructed to be waterproof, moisture may permeate the gas box. For this reason as well, only gas bottles and the in- tended objects placed there by the factory (winding handle, chocks, entry step, etc.) may be carried in the gas box.
  • Page 42 5. Exterior structure If you load too much in the rear storage locker compart- ment, the vehicle will be considerably more difficult to handle; this endangers all road users. Therefore, a load of no more that 30 kg may be placed in the storage locker compartment! Furthermore, when loading the storage locker, please ensure that sufficient storage space is also loaded at the front of the vehicle...

  • Page 43: Corner Steadies

    5. Exterior structure Opening • Grasp the cover flap at the bottom of the latch and pull it up. Closing • Grasp the latch of the cover flap and close it until it clicks into place. Please refer to the appropriate chapters on water (Chapter8), gas (Chapter 9) and electricity (Chapter 7) for information on handling the individual components.

  • Page 44: Roof

    5. Exterior structure 5.4 Roof The following applies for the roof load • Use only standardised and licensed ladders that can be positi- oned firmly to climb onto the roof. • The roof has not been made for concentrated loads. Place a large-scale cover over the area you wish to step on before standing on the roof.

  • Page 45: Bicycle Carrier

    5. Exterior structure 5.6 Bicycle carrier * Please read the separate operating instructions before using the bicycle carrier. Before driving for the first time, take some time to practice so as to familiarise yourself with driving conditions. A frame bicycle carrier In all models a bicycle carrier can be mounted on the A frame.

  • Page 46: Roof Mounted Awning

    5.7 Roof mounted awning * Appropriate adapters and fitting components are available for sub- sequent assembly of roof awnings. Please speak to your HOBBY dealer. The roof awning should always be assembled by an authorised specialist.
  • Page 47 5. Exterior structure Retracting • Insert the the end of the winding handle into the slot on the win- ding mechanism. • Turn the the handle counter-clockwise until the awning has been rolled in except for the last meter. • Retract the adjustable support legs, fold them up and secure them.

  • Page 48: Interior Structure

    6. Interior structure 6.1 Cupboard and drawer operation Furniture doors with a locking mechanism Wall cabinets in the kitchen for ONTOUR, De Luxe (Edition), Excellent, Prestige To open • Press the release and pull on the handle to open the door. To close • Use the handle to close the door until you can feel it lock into place. Furniture doors with a locking mechanism Kitchen Wall cabinet handles (Premium) To open • Pull the long edge of the handle...
  • Page 49 6. Interior structure Furniture doors with a soft close function Wall cabinets, storage cabinets To open • Use the handle to pull the door upwards. To close • Use the handle to shut the door until the soft-close function automatically brings the door to its final position. Store only light objects in the upper storage cabinets. Furniture doors with a soft close function Mirror cabinet doors/furniture doors with magnetic safety catches To open • Pull firmly on the handle or edge of the door and swing it open.
  • Page 50 6. Interior structure Kitchen drawer/cupboard with pushlock Each individual drawer is secured by a separate pushlock To open • Press the push-lock until the knob jumps up. • Pull on the handle until the drawer slides out or the cup- board door opens. To close Pushlock in connection with kitchen cabinet • Push the handle to shut the drawer or the door of the cup- board. • Press the push-lock until the knob snaps into place and the drawer is securely shut. Please observe the maximum load of 15 kg per drawer. Pushlock in connection with kitchen drawers Carousel in the Corner Kitchen • Release the door of the corner base cabinet by pressing the pushlock...

  • Page 51: Tv Bracket

    6. Interior structure Sliding doors To open • Hold the sliding door by the handle and push it upwards. To close • Hold the sliding door by the handle and push it closed until it Sliding door for kitchen wall cabinet clicks into place. Shelf in the kitchen wall cabinet (model-specific) The height of the shelf in the kitchen wall cabinet can be adjusted. It rests on the shelf supports and, as required, can be removed from the cabinet. The shelf can be adjusted to different heights. To change the height of the shelf: - Remove the shelf from the cabinet. - Pull the shelf supports out of the drilled holes and push them into the drilled holes at the required height. All shelf sup- ports must be inserted at the same height. - Push the shelf back into the cabinet above the shelf supports and lower it onto the shelf supports until it rests evenly on all four.

  • Page 52: Tables

    6. Interior structure Articulated TV Bracket • To unlock, pull the locking pin up and then pull the bracket into the desired position. • To lock, push the bracket back to its original position until it locks into place. When driving, the TV bracket must always be locked in its original position. Articulated TV Bracket The maximal dimensions of the television are 535 x 351 x 50 mm. 6.3 Tables Metal elevating table base To lower • Pull upwards on the handle on the right-hand side. • Use one hand to lightly press the table down and swing it down towards the middle of the caravan. The table only locks into place in this lowered position when the handle snaps back into its original position. To turn • There are rollers on the table legs, shifted 45°, which enable the Metal elevating table base table to be turned around its centre point in any desired direction.

  • Page 53: How To Convert Seating Areas Into Beds

    6. Interior structure Neither the metal elevating table leg nor the single-post elevating table leg are fastened to the floor. Before driving, lower the table and, depending on the model, secure it with one or two pushbuttons either to the seat base or to the front/rear wall. Securing the table Hanging table To lower • Raise the front end of the table top by approx. 30°. • Pull down the lower part of the table leg , fold it over by 90° and lay it on its end. • Fold out the supporting legs by 90°. • Pull the table top out of the upper wall brackets • Raise the front end of the table top considerably and hook it diagonally from above into the lower wall brackets Hanging table • Place the supporting legs at the front edge of the table top on the floor.
  • Page 54 6. Interior structure When converting seating areas into beds, do not place the cushions directly on the tabletop as this may cause scratches or mildew due to condensation. We recommend that you use an absorbent cloth (e.g. terry cloth or cotton). In some models, the cushions hang over the edge of the table after the seating area has been converted into a bed. They can be damaged if they are bent or folded over the edge. Ensure that the tabletop, seat bases and/or covers as well as cushions are well secured so that nothing falls. Bed extension in the seating area (or model-specific) In some models, the narrow section of the seating arrangement can be widened into a bed. Conversion • Press the outer panel to unlock the bed extension. • Lay the outer panel fully on the floor in order to raise the inner panel • Hook the outer panel underneath the groove of the inner panel Pushlock safety catch Carry out this procedure in reverse order to convert the bed back into the seating arrangement.
  • Page 55 6. Interior structure Bed Extension for Single Beds Converting the bed extension • Lift up the bedside table and remove it. • Pull on the handle and pull out the slatted frame fully to a horizontal position. • Insert the mattresses to expand the beds. The extension for widening the beds can carry a max. of 100 kilos. Only place loads on the bed extension when it has been pulled out completely and the mattresses have been Converting into a wider bed laid in place. While driving, the bedside table must be stored under bed frames. Otherwise, the bedside table might move when braking suddenly and damage the interior of the caravan.
  • Page 56 6. Interior structure Concertina door for sleeping area Release the clip that fastens the door and slowly and carefully slide the concertina door along the rail to close it. The magnetic lock will automatically lock the door. Securing the concertina door while driving Head rests (Premium) The head rests can be manually locked into different positions. Depending on your requirements, lift the head rests until they lock into the desired position and press on them lightly to lower them. Head rests are only available together with the optio- nal leather interior. Head rests Premium model Children's beds The children’s beds are not suitable for unsupervised use by children under the age of 6. Windows next to children's beds can only be opened slightly to effectively prevent children from falling out.

  • Page 57: Washroom

    6. Interior structure 6.5 Washroom Shower cubicle door in the rear washroom The shower door in the rear washroom must be secu- rely fastened when driving. To fold the shower door out • Loosen the pushbutton Securing the shower door while driving • Fold out the handles on the shower partition. • Fold out the shower door and guide it to the opposite side. To shut the shower door • Guide the shower door back to its original position and fold it up. • Push the handles back in until they lie flat against the shower partition.

  • Page 58: Windows

    6. Interior structure 6.6 Windows All of the window catches on the long bottom edge of the window have lock buttons. To open these window catches , press the lock buttons. Window catches located on the vertical edge of the window do not have lock buttons. Various window fixings have been used in the caravan. Window with ratcheting stays To open • Turn all of the window latches by 90°. • Press the window catch outwards until you hear it click. The window will automatically remain in this position. The angle of opening can be increased in predefined steps. To close • Lift the window slightly to unhook the stay. • Close the window. • Turn all of the window catches to the original position so Catch that they clasp behind the latches and pull the pane into the seal. Apart from the open and closed positions, the window catches can also be locked in the middle slot of of the latches to allow air in, this is the vent position.
  • Page 59 6. Interior structure Blind/ fly screen To close the black-out blind • Use the handle to pull the plissé up to the desired position and then let go. The blind remains in this position. To open the black-out blind • Use the handle strip to pull up or down lightly on the black-out blind. The blind rolls upward automatically. Blind/ fly screen To close the fly screen • Pull the fly screen completely down with the handle and let go. The screen remains in this position. To open the fly screen • Pull the fly screen slightly down with the handle and then guide it upward. The screen rolls upward automatically.

  • Page 60: Roof Lights

    6. Interior structure Opening the fly screen: • Press the catch and then pull the insect screen slowly and evenly to the top of the guide rail. Combining the blind and fly screen: • First, pull the sunshade slowly and evenly along the guide rail to the desired position. Then pull the insect screen slowly and evenly down the guide rail as far until it meets the blind, press the spring catch and hook it into place. Spring catch on the fly screen Front window The blind and pleated fly screen for these windows are fully adjustable: pull them slowly and evenly to the desired position. The combined blind and pleated fly screen must be opened before setting up the bed if the bed protrudes into the front window when it has been set up. Other- wise the pleated screen might be damaged.
  • Page 61 6. Interior structure Large roof light Before opening the roof light, ensure that the area above the opening of the light is free. The roof light can be opened to an angle of 60°. To open • Take hold of the handle and fold it out into the operating po- sition. Turn the handle clockwise to open the roof light outer to the desired position. When you have reached the maximum Large roof light opening angle you will feel the resistance. To close • Turn the handle anti-clockwise until the light is closed and you feel the resistance. The control pin is visible when the sky- light is shut. Finally turn the handle do it can be put back in its...
  • Page 62 6. Interior structure Roof vent The roof vent can be pushed up either on one or both sides. To open • Press the catch diagonally upwards towards the inside of the roof vent until it unhooks from its locked position. At the same time, using the handle to press the roof vent upwards. To close • Use both handles to pull the roof vent firmly downwards until both catches have latched into place. Roof vent (washroom) Roof vent catch Blind/ fly screen To close • Pull the handle of the blind to the opposite side and hook the clip into the counterpart To open • Press the catch and tilt it slightly to enable it to unhook from the counterpart.

  • Page 63: Installation Of Electrical Devices

    7. Installation of electrical devices 7.1 Safety tips The installation of electrical devices in the HOBBY caravan has been carried out in accordance with the valid regulations and standards. Please note • Do not remove the signs on electrical components giving safety instructions or danger warnings. • The installation spaces around electrical equipment such as distribution fuse boards, electric power supply, etc., may not be used as additional storage...
  • Page 64 7. Installation of electrical devices • If the battery is not used for a longer period of time (four weeks or more) press the pushbutton (see page 95). The standby current used continuously by some electrical devices discharges the bat- tery. Even if the main switch on the control panel has been swit- ched off, the battery can still be charged by the battery charger. • If the battery has been removed, isolate the positive terminal (to prevent short circuits). Battery charger • The charge controller operates with the use of a sensor or using charging technology provided the sensor has not been calibrated or the CIBUS system is offline. Please refer to Chap- ter 7.3 Battery Management to calibrate the sensor. • In the case of misuse the guarantee and manufacturer’s liability will no longer apply. • Ensure that the battery charger is sufficiently ventilated. Tank probe The probe with rods measures the contents of the fresh water tank.

  • Page 65: Control Panel

    7. Installation of electrical devices 7.3 Control panel The system consists of a control panel, a standard or TFT panel (model-specific or optional extra) with a keypad and several remote controls.It enables you to operate the different lights and several 230 V devices. Furthermore, various kinds of information and measured values are shown on the TFT display. Standard control panel (ONTOUR/De Luxe (Edition)/Excellent/Prestige) TFT control panel (Premium models or optional extra) Vehicles that have been equipped with a Truma Combi heating system or VarioHeat also have a TFT control panel.
  • Page 66 7. Installation of electrical devices Functions of the main switch • After initially connecting the caravan to the 230 V mains, you must press either the main switch or any other control key in order to activate all of the 12 V electrical devices and the 230 V electrical devices that are switched by the system (e.g. Truma Therme water heater, floor heating • Once the system is in operation, press the main switch briefly to turn all of the lights off. All of the 12 V steady electrical devices (e.g. water supply, refrigerator control, heat blower) remain activated. The devices that were previously switched on are stored in the system; pressing on the main switch reactivates them. This also resets the degree to which those lights were dimmed that can be adjusted. • Pressing the main switch for at least four seconds while the sys- tem is switched on will turn off not only the presently activated devices, but also the entire 12 V system (also affects flushing the toilet and water pump; in self-sufficient caravans, this will not cut off the charging of the battery) • If there should be a power failure, the system will remember whether the main switch was on or off. As soon as the power is back on, the main switch will automatically switch itself back on.
  • Page 67 7. Installation of electrical devices Ambience (optional for ONTOUR De Luxe) • Press briefly on the button to switch the electric circuit of each ambience (indirect lighting) on and off. In the ONTOUR De Luxe models, these buttons have no functions if the optional extra has not been ordered for the caravan. Memory button • This button is used to save and recall the setting of individual lights. Press briefly on this button to recall the last saved setting of all switchable 12 V lights. Press longer on this button to save the lighting setting of a lamp. This button is not used to save the setting of the 230 V electrical devices (therme and floor heating*). Awning light • Press the button to switch the awning light on and off. It is not possible to switch this light on if the caravan has been hooked up to the car by means of the 13-pin plug and the engine is running. The awning light must be switched off when the cara- van is on the road. Kitchen light • Press briefly on the button to switch the kitchen light as well as the spots on and off.
  • Page 68 7. Installation of electrical devices Floor heating with LED display • Press the key to switch the floor heating on and off. An illumi- nated LED signals that it has been switched on (only standard panel). • If the main switch is pressed to deactivate the electric power supply, the floor heating will also be switched off. Both the therme and the floor heating (optional extra) are 230 V electrical devices. These devices cannot be switched on and off if there is no mains connection. Filling level indicator (only standard panel) When you press this button, the fill level of the fresh water tank is displayed via an LED chain. The level of the fresh and waste water tanks is displayed in 5 steps: empty only the left red LED lights up 1/4 left red LED off; 1 yellow LED on 1/2 left red LED off; 2 yellow LEDs on...
  • Page 69 7. Installation of electrical devices Main menu on the TFT control panel Fixed header A Permanently displays: date time inside temperature outside temperature. Main display B This art of the screen shows the current status of certain appli- ances. i.e. it show whether the heating is switched on or if the cara- van is on mains hook up.
  • Page 70 = in operation; satellite has been found SAT-Anlage WLAN orange = antenna is turning heizen Wassertank Therm green = in operation; active connection HOBBY Connect orange = system is starting up or shutting down Fußbodenheizung Soft key menu bar C Therm This is used to access the individual menus for the items fitted and their current settings. Fußbodenheizung Soft keys The “soft keys” are used to carry out the commands displayed...
  • Page 71 7. Installation of electrical devices Wassertank Fresh water tank The level of the fresh water tank can be read off here. The alarm Wassertank can be activated (green) above the left soft key (On/Off icon). If the alarm has been activated, a beep will go off when the tank is being filled. These beeps will be sent at increasingly shorter inter- 06.06.16 12:25 27,4°C 26,4°C vals while the tank is filling up. The level of the fresh water tank will...
  • Page 72 7. Installation of electrical devices Charger (charging the battery) If the icons for the “Charger” appear, the caravan is connected to a 230V mains connection and the charge controller was recognised: the battery will be charged. If the caravan is connected to a 230V mains connection and the icons for the Charger do not appear, is loaded according to characteristic. Error messages 06.06.16 12:25 27,4 °C 26,4 °C Warning message: Low voltage This warning appears when a voltage of 10.8V or less is measured for a battery for a duration of at least 3 minutes. The icon for the battery in question appears in the menu.
  • Page 73 7. Installation of electrical devices Lighting system Select the desired light in the menu for the lighting system by means Lichtsystem of the control knob or the arrow functions (display: yellow). Press on the control knob or the left soft key to switch the corresponding Lichtsystem light on or off (activated lights are displayed in green). Activated timer Activated light (blue dot) (green dot) 06.06.16 12:25 27,4°C 26,4°C Wall lights above centre seating arrangement/seating bench 06.06.16 12:25 27,4°C 26,4°C • Ceiling light Kitchen light Kitchen wall cabinet Right bed On/Off Timer Left bed 01.07.15...
  • Page 74 7. Installation of electrical devices Heizung TRUMA ULTRAHEAT TRUMA ULTRAHEAT* heating system MA ULTRAHEAT The temperature level (1-6) and power level (in watts) are displayed in the menu for the electric auxiliary heating system. The lower menu icon is shown in green when the heating system is switched on. 12:25 27,4 °C 26,4 °C 06.06.16 Next to this icon, the value 12:25 27,4 °C 26,4 °C 06.06.16 ON = on or OFF = The ultraheat(electric heating) is not switched on MA ULTRAHEAT 2.000 W (white icon) is shown. 2.000 W The heating system is activated or deactivated using the “On/Off”...
  • Page 75 7. Installation of electrical devices /VarioHeat Truma Combi heating system (Model-specific Heizung ALDE or optional extra) and Alde hot-water heating system The Truma Combi heating system is part of the standard equipment in models 495 WFB, 540 FU, 560 WFU, 660 WFC and 720 KWFU/ WLC. As an optional extra, this can be replaced by a Truma Combi e-heating system (can be operated electrically). Model 460 SFf has 12:30 23,5 °C 18,0 °C 09.01.15 been fitted with a VarioHeat heating system. The specifications for UK supplied caravans can differ from those listed above (please 18 °C speak to your UK dealer) 50°C oder 65°C...
  • Page 76 7. Installation of electrical devices HAUPTDISPLAY MENÜLEISTE Heizung Bei ON wird der letzte Betriebszustand der Heizung wiederhergestellt. Betrieb AN / AUS weiß, wenn AUS Bei OFF werden Heiz- und / oder Warmwasserbereitung ausgeschaltet. Short-term increase in the amount of hot water grün, wenn AN Einstellungen Raumtemperatur 06.06.16...
  • Page 77 7. Installation of electrical devices Klima DOMETIC DOMETIC* air-conditioning system Klima DOMETIC The chosen setting (heating or cooling), fan level and desired room temperature are displayed in the menu for the Dometic air-condi- 12:25 27,4 °C 26,4 °C 06.06.16 tioning system. The lower menu icon is shown in green when the DOMETIC air-conditioning system is switched on. 19 °C Next to this icon, the type of operation 12:30 23,5 °C 18,0 °C 06.06.16 12:25 27,4 °C 26,4 °C 06.06.16 ON = on (green icon) or DOMETIC DOMETIC OFF = air-conditioning system is switched off (white icon) is shown.
  • Page 78 7. Installation of electrical devices Info menu 12:25 27,4 °C 26,4 °C 06.06.16 Information on the device manufacturer is shown here. Dometic Info: Dometic Servicepartner It is possible to move from the main menu for the auxiliary heating http://service-location.dometic.com http://dometic.com (ultraheat) menu by pressing the back button again. After one mi- nute, all menus automatically switch back to the main menu on the control panel. The aforementioned functions are only available for air conditioning systems that are CI bus compatible. TRUMA* air-conditioning system 12:25 27,4°C 26,4°C 06.06.16...
  • Page 79 7. Installation of electrical devices Functions of menu bar C: Operation on/off (via soft key or control knob) Setting antenna up / in park position (also via soft key or control knob) Submenu: set position Submenu: set satellite Submenu: information on device manufacturer Back function Submenu: set position 06.06.16...
  • Page 80 It is also possible to calibrate the indoor and outdoor temperatures shown, as temperature effects on the sensors may lead to a deviati- on between the temperature displayed and the actual temperature. The temperature display can be changed by a maximum of +/-12° C.. Exit this menu by using the “Back” function; otherwise, after one minute, it will automatically switch back to the main menu on the control panel. Info menu on the TFT control panel 12:25 27,4 °C 26,4 °C 06.06.16 Information on the device manufacturer is shown here. HOBBY Hobby-Wohnwagenwerk Ing. Harald Striewski GmbH Harald-Striewski-Strasse 15 24787 Fockbek Deutschland...

  • Page 81: Hobbyconnect

    The Connect Box automatically connects itself to the server via the SIM card as soon as the Box has been connected to the electric system. Only connect the Box to the on-board equipment just before using the Hobby- Connect system. The SIM card includes a 12-month m2m telephone contract (for data transmission via the Internet). The contractual period begins as soon as the system has been connected. Before the term is over, the MyHobby app will call on the user to purchase an extension for the telephone contract. After 12 months, the SIM card will be deactivated if no extension has been purchased. It is then possible to extend the existing contract for a further 12 months. After this deadline has expired, the SIM card will become invalid. In order to reactivate the HobbyConnect system, a new SIM card must be purchased from the Hobby dealer.
  • Page 82 Anyone who has this access code can take over the remote control of the connected components. Report the loss of the access code immediately to your dealer. - Make note of any changes in the user settings and user accounts when purchasing or selling a vehicle that has been equipped with the HobbyConnect system. - Please note that your device must be able to send and receive mobile data. If this function has been deactivated or you do not have a mobile Internet connection, the HobbyConnect system can only be controlled via Bluetooth. Default settings First, please check whether the installed Hobby Connect Box is connected to the micro USB connection and supplied with power. The USB power supply cable must be connected to the Hobby Con- nect Box. Blinking red and green LED lights at the top left indicate whether or not the box is working. Connect Box...
  • Page 83 7. Installation of electrical devices The Hobby Box code for connecting the app to the vehicle can be found in the enclosed documents. Do not confuse the serial number with the Hobby code! If no Hobby code has been noted on the card, please contact your Hobby dealer, who will send you the Hobby code via e-mail. (Please refer to the MyHobby Code section.) Should you not be able to log in with your access data, this may be because your account has not yet Key card been activated.
  • Page 84 7. Installation of electrical devices Android Operating System The interface for registering in the Android operating system is shown Login on the left. Email: Click on “Not a member? Sign up now.” to register. Complete registration as described in Ill. 4. Password: Use the “Forgot password?” function to reset the password and have a new password sent to the e-mail address entered. Not a member? Sign up now. LOGIN Forgot password Ill. 2 iOS Operating System Click on “Not a member? Click here.”...
  • Page 85 After completing these steps, you can carry on and log in. Terms of Use Login Set up free account Ill. 4 b MyHobby Code My Page To enable the dealer to generate the Hobby code, please have the following data at hand: My Settings Messages - the serial number of the MyHobby Connect Box (can be found on the box, in the enclosed documents or in the TFT menu for Hobby Connect under CB number: xxxxxx) - and the vehicle identification number (VIN). Connections to MyHobby...
  • Page 86 7. Installation of electrical devices The MyHobby Code that has been entered is shown at the top of the screen (removed here for reasons of data protection). Use the “Delete MyHobby Code” button to disconnect and delete the access code that was entered. Delete MyHobby Code Ill. 7 Furthermore, the red button indicates that the MyHobby code is correct and that you can now return to the main menu. There are differences in the app’s functions, depending on which components have been fitted, as well as different functions, depen- ding on the type of caravan. (See App Functions) Setting up a Bluetooth connection To set up a connection between your mobile device and the TFT control panel in the caravan, the Bluetooth function on both com-...
  • Page 87 7. Installation of electrical devices When the Bluetooth functions have successfully been activated, use the “Bluetooth” button on the app's Start menu to connect the components and then start the “Search” function . 1. Activate Bluetooth on the control panel Select “Bluetooth” from the menu on the control panel in the vehicle. Now activate Bluetooth. This procedure can take up to 30 seconds. 2. Search for Bluetooth devices Press the “Search” key at the bottom to set up a Bluetooth connection. Search Ill. 11 The picture on the left (Ill. 12) shows a successful Bluetooth connection.
  • Page 88 7. Installation of electrical devices Special features indicate that a connection to the ca- ravan could not be set up. The overview will be greyed out and “No control/vehicle offline” will be displayed. This may be caused by the following: - The box was not connected by means of the USB Water Tank Battery Status power supply cable. TANK LEVEL BATTERY OPERATION INDICATOR - The box is not activated. The box activates itself auto- matically as soon as the caravan has been connected to the power supply for a certain period of time. - The signal from the Connect Box is too weak. De- Fockbek 23,0°C pending on network reception, the caravan's loca-...
  • Page 89 7. Installation of electrical devices Water Tank The fill level of the fresh water tank is displayed here. In addition, the therme can be switched on and off as required, de- pending on how much hot water is to be provided. Therme Send message regarding tank level Ill. 17 Inside temperature Depending on how the vehicle has been equipped, this function is used to regulate the air-conditioning system* and/or the floor heating system*. If, for example, no air-conditioning system was fitted, the system will recognise this and inform the user accordingly. (Fig. 19) binnentemperatuur In this menu, you can regulate and control Heating: - the heating, system switched off - the air-conditioning system Air-conditioning - and the floor heating system. Furthermore, the function can be programmed to send you a mes- Floor heating sage if the system recognises there is a danger of frost, enabling Send frost you to switch on the heating if necessary to prevent the caravan...
  • Page 90 7. Installation of electrical devices Weather and location The outside temperature is detected via a sensor. A weather forecast is displayed for the next three days. After parking the vehicle in a certain location, activate the function “Notify location”. This enables the system to understand that the camper is not to be outside moved from its location. Should the vehicle’s position be changed, an automatic message will be sent to your mobile device as soon Today as the radius has been changed by more than 1 km. Tomorrow Wednesday If you have deactivated the “Notify location” function on your mobile device, the last known location will be used. The weather report may then vary considerably. Send location Ill. 20 Users This menu displays the number of users connected to the vehicle via the Internet. If you have logged in via Bluetooth, this will be dis- played here.
  • Page 91 7. Installation of electrical devices The MyHobby App is available in the following countries:...
  • Page 92 7. Installation of electrical devices Possible errors Possible errors Suggested solution Other The app cannot be found in the Check the settings on the device; Check the app settings in the store. write MyHobby as one word and not respective country. two. The Hobby Connect Box is not Check whether the device is The red and green LED lights recognised. connected to the power system. must blink in the upper left-hand corner. The box is connected to the po- Check the data cable on the box. Contact your dealer. wer system, but it is not recog- Restart the device by separating nised. it from the power supply system for 10 seconds and then recon- necting it.
  • Page 93 7. Installation of electrical devices General information regarding the TFT display The time and date are powered by a 3V 210 mAh, CR2032 type bat- tery. If, therefore, the time should be incorrect or the clock should stop working, this battery must be replaced. It is mounted on the reverse of the circuit board of the TFT display. To replace this bat- tery, the TFT display must be removed from the furniture front by carefully clipping the chrome-plated frame out of its holder. You will then see the screws that fasten the plastic part to the furniture. Loosen these screws to detach the display. When replacing the battery, please ensure that plus and minus are in the right direction. Incorrect polarity may cause the display to become defective. Circuit board (reverse side) of TFT display Remote control* • The hand-held transmitter is used to switch six functions on the...
  • Page 94 7. Installation of electrical devices Remote control bed • Briefly press the key to switch the ceiling lighting (in the ONTOUR/De Luxe model = ceiling light over the bed) (otherwise = ambient interior lighting) left bed light right bed light Remote controls, bed on and off. Press longer on the key to dim the light if required. The brightness you set will be saved; when the lights areswitched on again, the brightness you originally set will also be switched on again. Remote control washroom • Briefly press the key to switch the lightning in the shower over the washstand lightning...

  • Page 95: Electrical Supply

    7. Installation of electrical devices 7.4 Electrical supply An electrical supply to the caravan can be obtained from the following connections: - 230 V mains connection 50 Hz - via the tow vehicle if it is connected using the 13-pole plug (limited functions) - via a built-in battery *. Everything that uses 12 V, such as ligh- ting, water pump, etc., will work. Supply via mains hook up The caravan receives its electric power supply via the 230 V CEE feeder plug on the side wall of the caravan. CEE external socket To connect to a mains hook up point • Pull out the 13-pin plug that connects to the tow vehicle.
  • Page 96 7. Installation of electrical devices Protecting the 230V system The 230 V system is protected by a two-pin 13 A automatic circuit breaker , which is located in the wardrobe (460 DL + 470 UL ONTOUR in the seating area). (Exceptions to this include special installations, such as ultraheat, hot-water heating, etc.. In this case, an additional two-pin 16 A circuit breaker has been installed.) If there are two automatic circuit breakers, both must be switched on.
  • Page 97 7. Installation of electrical devices This check should be carried out at least once a month to ensure that the residual current device functions perfectly in case there should be a fault in the current. When the FI switch has been switched off (even when testing) the customised settings in all mains-operated devices are lost and the default settings made by the manufacturer will apply again. If the automatic circuit breaker has gone off (other than if the Test function has been used) you must wait a short while before swit- ching it on again. - If the automatic circuit breaker remains active, there was only an overload. - If the automatic circuit breaker goes off abruptly again, there is either a short circuit or an earth fault. Devices that cause it to trip when in use show that there is a fault; they must be checked and/or repaired by an electrical engineering specialist. Switching it back on again and again will do no good. The automatic circuit breaker also goes off when the rocker switch is held firmly in place.
  • Page 98 7. Installation of electrical devices Connector pin functions on the 13-pin plug Colour of Wire size Electrical wire devices yellow Left indicator blue rear fog Light white Earthing for pins 1 to 8 green Right indicator brown Rear tail light, marker light, licence plate illumination on the right Brake light black...
  • Page 99 7. Installation of electrical devices Battery Sensor An Intelligent Battery Sensor (IBS) has been connected to the battery terminal. It monitors the actual current and the actual voltage in a highly precise manner. Please refer to Chapter 7.3 to calibrate the sensor. It is possible to precisely predetermine the operating time of the battery based on the actual consumption. The IBS ensures that the battery will be charged in good time and assists in providing active Intelligent Battery Sensor (IBS) energy management so that the performance requirements of the different electrical devices can be coordinated with the charging of the battery. The charge state of the battery, age or remaining time until it is too low to operate are all shown on the TFT display of the control panel. Charging is carried out gently in accordance with the steady-state principle by an "intelligent" charger.

  • Page 100: Electrical System

    7. Installation of electrical devices Battery charger The charger supplies the battery with electric power when there is bus-powered mains operation. • Airing the battery charger insufficiently will cause a reduction in the charge current. • The surface of the charger casing may become hot when the device is in operation. • The battery charger may only be opened by a specia- list. Battery charger in the wardrobe 7.5 Electrical system As soon as there is a mains connection, the electrical system will switch from battery operation to mains operation. The electrical supply unit uses a transformer to change the external mains voltage for the 12 Volt electrical devices. All of the lamps in the caravan use 12V. Only large electrical devices such as the therme, floor heating * ,...

  • Page 101: Diagram Of The Electrical Distribution Board

    7. Installation of electrical devices 7.6 Diagram of the electrical distribution board Please note: Achtung S40 10/11 230V current 9 und 13 vom Kfz 9 and 13 from car or con- S38 to battery charger, S38 zum Laderegler 230V Bereich range from plus nection to battery charger,...

  • Page 102: Tv Connections

    Cable colours: white = mass black = steady plus brown = D+ signal External socket in the awning, incl. satellite/TV connection Your caravan also has a combined external socket and aerial con- nection in the awning (optional extra for De Luxe (Edition) and ONTOUR). This can be used, for example, to set up a TV in the awning. De- pending on how you wire it, the integrated aerial connection can be used as either an input or an output socket. For further information, please speak to your Hobby dealer External socket and antenna terminal in the awning.

  • Page 103: Additional Lights

    7. Installation of electrical devices 7.8 Additional Lights The switches for the lights described here are located directly on the lights themselves; they are not controlled via the control panel. Touch spotlight (model-specific) The touch spotlights are switched on and off by using the rocker switch . The light can be regulated with varying intensity. Touch spotlight Wardrobe light The wardrobe light is switched on and off by opening the doors of the wardrobe (integrated motion detector - cannot be switched on the control panel). The LED light is battery-operated. Before ini-...

  • Page 104: Water

    8. Water 8.1 General information We recommend that you inspect any water you have left in the tank, this is very critical before using the wa- ter again • Water that is suitable for drinking should always be used when working with food. This also applies to washing your hands and cleaning the objects that have come into contact with food.
  • Page 105 8. Water Water pump with on/off switch (country-specific feature) Should the immersion pump be fitted with a separate on/off switch it can be switched on and off manually. Switch for the water pump Fresh water tank The tank has a volume of 25 or 50 l (model-specific or optional extra) and is located either under the bed or in the seating area.
  • Page 106 8. Water Filling the water system • Site the caravan in a horizontal position. • Shut all of the water taps. • Switch on the main switch on the control panel. • Shut the drain valves on the therme (or on the boiler*/Combi heating system).
  • Page 107 8. Water Never switch on the Therme when it is empty. Please also note the manufacturer‘s separately enclo- sed operating instructions. If the caravan has been fitted with a boiler*, Combi heating system (model-specific) or an Alde hot-water heating system*, please observe the instructions set out in Chapter 10.
  • Page 108 8. Water Position of the Frost Control valve (only for models with a Combi heating system) The Frost Control valve is always located directly next to the hot-air heater under the bed or seat bench. The non-electric safety or drain valve will automatical- ly open at temperatures under approx.
  • Page 109 8. Water Sink in the kitchen unit When necessary, the sink waste can be removed by unscrewing the screw When the waste is then replaced in the sink and fastened, please observe the maximum tightening torque of the screw. The maximum tightening torque for the fixing screw for the sieve in the sink is 1 Nm.

  • Page 110: Water Flushing Toilet

    8. Water 8.3 Water flushing toilet Preparing the toilet waste tank (cassette) for use. Before you can use the toilet, you must first prepare the waste tank as shown in Figures 1 to 3 on the left and then return it to its original position.
  • Page 111 8. Water Using the toilet The toilet can be used when the sliding flap is either open or clo- sed. To open the flap, turn the control knob anti-clockwise or push the lever to the left (depending on your model). Never leave any water in the bowl when the toilet is not being used.
  • Page 112 8. Water Emptying the waste tank (Cassette) The cassette has a capacity of approx. 19,7 litres. It must be emp- tied when the level indicator lights up. Once this lights up, the tank can be used no more than two times. Ensure that the valve is closed, open the external toilet cassette door and follow the instructions shown in Figures 1 to 7 on the left.

  • Page 113: Gas System

    9. Gas system 9.1 General safety rules for the use of liquid gas facilities The gas operation pressure is 30 mbar. You are not permitted to operate the heating system while driving. Inspection of the gas system • Have the gas system checked by an expert before the first use. • The gas system should be inspected by an expert every two years. This inspection should be documented on the inspection certificate in accordance with the German Association of Gas and Water Experts, worksheet G 607, and EN 1949. • Regulator knobs, hoses and waste gas outlets should also be inspected. • The safety regulators and hose lines must be replaced at least every 10 years; high-pressure hoses after 5 years (from the date they were manufactured. Should you discover tears, porous spots or similar defects in the hose, it must be replaced immediately. • The owner/operator is responsible for arranging the inspection. This also applies for vehicles that are not licensed to drive on public roads.
  • Page 114 9. Gas system Regulator knobs and valves • Only use those regulator knobs custom-made for vehicles, with a safety valve. Other regulator knobs are not permissible in accordance with the German Association of Gas and Water Experts, worksheet G 607, and EN 1949. They are not suffici- ent to tolerate the immense strain. • The gas regulator must have a fixed outlet pressure of 30 mbar. The requirements of EN 12864, Appendix D, apply accordingly. The flow rate of the pressure control device must be 1,2 kg/h. Connecting the gas regulator to the gas • Connect the regulator knob or high-pressure hose* to the bottle bottle carefully by hand (NB: left-handed thread). • Use the de-icing system (Eis-Ex)* for the regulator knobs when the temperature drops below 5° C. Gas regulator for France and Great Britain Due to specific country regulations, the gas regulator in vehicles ex- ported to France and Great Britain is firmly mounted on the bulkhead of the gas box. This requires the use of a high-pressure hose. Therefore,...

  • Page 115: Gas Supply

    9. Gas system 9.2 Gas supply The caravan is equipped with a propane gas system (gas bottles are not included in the price). These facilities operate the following devices: - cooker - refrigerator - heating element (in the Combi heating system: incl. an integra- ted boiler) - oven - special equipment, if necessary - external gas point Bottle box The gas bottle box holds two 11 kg liquid gas bottles . Via a safety regulator , the gas bottles are attached by a hose to the supply line . Each bottle must be fastened twice, either by means of two belts or with a belt and a safety mechanism on the floor of the gas bottle box Gas bottles must only be carried in the gas-bottle container. Securing the top of the gas bottle Rules for the gas-bottle box • Before every trip, check that the gas bottles are securely faste- ned. Place them in an upright position and turn off the valve.
  • Page 116 9. Gas system Never smoke or light open fires when changing gas bottles. After changing bottles, check whether gas is escaping from the any gas fittings by spraying these with a leak indicator. When the pig tail is connected to the liquid gas bottle, ensure that it is free of kinks and not subject to stress. The regulator knob must be positioned above the valve on the bottle. Gas shutoff valves and valves A corresponding gas stop valve has been built in for each gas device that has been installed. These gas taps can be used to turn off the gas supply to each device.

  • Page 117: Gas Socket, External

    9. Gas system 9.3 Gas socket, external * The external socket for gas is used to connect external gas devices such as a gas barbecue or lamp. The operating pressure of devices to be connected must be 30 mbar. Maximum performance of devices to be connected: 1.5 kW. The plug connection can only be hitched when the emergency shutoff valve has been closed. Push back the clutch sleeve to undo the safety latch. The coupling valve has been constructed in such a way that the emergency shutoff valve can only be opened if a gas hose has been attached. When connecting, the plug connection is plugged into the safety coupling.

  • Page 118: Built-In Devices

    10.1 General information In this chapter, you will find information on the devices that have been built into the Hobby caravan. This information refers only to the operation of these devices. To some extent, the devices described are special accessories.
  • Page 119 10. Built-in devices To operate Due to its design, the heater front casing gets hot when the heating is on. The user is responsible for exercising due diligence so that third parties (especially small children) are not hurt. • Open the valve on the gas bottle and the gas shutoff valve in the top kitchen drawer.
  • Page 120 10. Built-in devices Insert new batteries before the beginning of each season. Also note the separate operating instructions from the manufacturer. Circulation fan The heating system in your caravan has been fitted with a recirculation air system(also referred to as the blown air fan) which distributes the hot air throughout the entire interior by means of several air vents.

  • Page 121: Electric Auxiliary Heating

    10. Built-in devices 10.2.2 Electric auxiliary heating* The electric auxiliary heating (Ultraheat) operates only when the caravan is connected to the 230V mains supply The electric auxiliary heating is integrated in the Truma-S-hot-air heating system. This allows for three possible heating methods: - just the gas heater - gas heater + electric heater - just the electric heater...

  • Page 122: Truma Combi Heating System C4/C6 (E) Or Varioheat-Heizung

    10. Built-in devices 10.2.3 Truma Combi Heating System C4/C6 (E) * or VarioHeat Heating System The combined LPG heating consists of a warm air heater with an integrated hot water boiler (capacity: 10 l). The heating system is fully operational with or without the hot water system. It has been installed in various models instead of the standard Truma-S hot-air heating system (Type WFB / WFU (not Premium) / WFC / WLC / KWFU / FU).
  • Page 123 10. Built-in devices If the system's power supply is interrupted, the time must be reset. Use the panel by the entrance to operate the basic functions of the Combi heating system (see Chapter 7). Combi heating system only: The change to the iNet- ready version was carried out during the current season.
  • Page 124 10. Built-in devices Press (for 3 seconds) - Main function ON / OFF - Combi heating system only: iNet-ready: use the control knob / pushbutton to change the function (see APP mode) Reset button Press the reset button to return to the previous menu and reject the settings.
  • Page 125 10. Built-in devices Combi heating system only: APP mode in connection with an iNet Box Function In APP mode, the connected devices as well as the Truma CP plus control panel switch to stand-by. - no heating function - no hot water generated - air-conditioning system does not work - the timer on the Truma CP plus control panel does not work The CP plus control panel continues to receive commands via...
  • Page 126 10. Built-in devices Changing the hot water temperature (for Combi heating only) Use the control knob / pushbutton to select the icon in the menu line • Press to switch to the setting mode. • Use the control knob / pushbutton to select the required temperature.
  • Page 127 10. Built-in devices Malfunction in the combustion process (e.g. lack of fuel) Combi Gas The heating system will switch automatically to electric operation. If it is running in mixed operation, the cause of the malfunction must be eliminated. Use the control panel to switch the heating off and then on again.
  • Page 128 10. Built-in devices Setting the timer The timer can only be selected if the clock on the control panel has been set. If the timer has been activated (ON), the menu item Activate timer (OFF) is first displayed. Use the control knob / pushbutton to select the icon in the menu line •...
  • Page 129 10. Built-in devices Setting the hot water temperature (for Combi heating only) • Use the control knob / pushbutton to select the required hot water temperature. • Press the control knob / pushbutton to confirm the temperature. Selecting the type of energy •...
  • Page 130 10. Built-in devices Setting the time • The hours flash. • Use the control knob / pushbutton to set the hours (24-hour mode). • After pressing the control knob / pushbutton once again, the minutes will blink. • Press the control knob / pushbutton to confirm the time entered.
  • Page 131 10. Built-in devices Resetting to manufacturer's default setting (RESET) The reset function resets the control panel to the manufacturer's de- fault setting. It deletes all of the settings you have previously made. Confirming the reset • Press the control knob / pushbutton Display: 230V mains voltage The icon signals that the 230V mains voltage (hook up power) is available.
  • Page 132 10. Built-in devices Malfunction If there is a malfunction, the control panel will immediately go to “Malfunction” mode and display the Malfunction error code. E = Malfunction 41 = Error code H = Heating Cause eliminated / Return to setting mode •...

  • Page 133: Electric Under Floor Heating

    10. Built-in devices FrostControl(Combi heating system only) FrostControl is a non-electric safety or drain valve. If there is a risk of sub-zero temperatures it automatically drains the content of the boiler via a drain outlet. If the system is under excess pressure intermittent pressure equa- lisation will automatically take place via the safety valve.

  • Page 134: Alde Heating And Hot Water System

    10. Built-in devices 10.2.5 Alde heating and hot water system* The Compact 3020 HE heater is a hot-water heating system which heats hot water separately (contents: 8.5 l). It is possible to heat up the heating system without filling the hot-water heater with fresh water. Location •...
  • Page 135 10. Built-in devices To start the hot water heater To start the heating system, press the On/Off button and the start image will appear. The heater will start with the settings that were last used. Control panel for the hot water heating system D E F G H Idle position...
  • Page 136 10. Built-in devices It is not possible to set any temperature if the daytime or nighttime automatic system is in operation. The plus and minus icons are then greyed out. Hot water The boiler can also be used even if it has not been filled with fresh water.
  • Page 137 10. Built-in devices 1. Starting and changing the different heating levels step by step (Off, 1 kW, 2 kW or 3 kW) with "+" or "-". The value set will be displayed on the screen. When activated, the plus icon is shown in green.

  • Page 138: Electro Boiler

    10. Built-in devices 10.3 Electro Boiler The optional boiler holds approx. 14 litres of water. It heats the water electrically using an integrated heating element. It replaces the standard Truma therme. Empty the boiler if there is a danger of frost. Never operate the boiler if it is empty.

  • Page 139: Dometic Refrigerator

    10. Built-in devices 10.4 Dometic Refrigerator If the external temperature is high, full refrigerating capacity can only be ensured by means of sufficient ventilation.To achieve better ventilation, ensure that the side of the caravan with the refrigerator vents stands in the shade (see Chapter 5.1). Please refer to the manufacturer's separate opera- ting instructions before using the refrigerator.
  • Page 140 10. Built-in devices 12 V operation 12 V operation can only be used while driving, when the motor is running. When resting or if you have stopped for a long period of time, turn off the 12 V operation and, if required, select another mode of operation.
  • Page 141 10. Built-in devices The freezer compartment is suitable for making ice cubes or for storing frozen food for a short period of time. It is not suitable for freezing food. It is not suitable for freezing food nor for the proper storage of medication.

  • Page 142: Gas Hob

    10. Built-in devices 10.5 Gas hob The kitchen segment of the caravan is equipped with a 3 burner gas hob. Before first use: • Open the bottle valve and the gas valve in the kitchen drawer. • The skylight or the kitchen window must be open when opera- ting the cooker.

  • Page 143: Extractor Hood

    10. Built-in devices 10.6 Extractor hood* As an option, the kitchen can be fitted with an extractor fan. The built-in fan blows kitchen odours directly outside. Extractor hood • Press the right button to turn on the fume hood. Hold the fan button firmly to select the speed of the fan (infinitely variable).
  • Page 144 10. Built-in devices Oven Oven Ignitor switch Oven Temperature control knob Grill Oven interior light Turning on the oven • Switch on the 12 V power supply using the main switch on the control panel. Using oven • Open the main shutoff valve on the gas bottle and the gas valve marked “oven”.
  • Page 145 10. Built-in devices Hob-Oven Combination** The Hob-oven combination can only be fitted in for the Prestige model. The combination includes both an oven and a grill as well as three gas burners and an electric hot plate. Switching the gas burners on •...

  • Page 146: Microwave

    10. Built-in devices • If it has not ignited, repeat this procedure from step 1. • Should the flame on the burner accidentally be extin- guished, turn the switch back to the neutral position and leave the burner off for at least one minute before igniting it again.

  • Page 147: Rooftop Air Conditioning

    10. Built-in devices 10.9 Rooftop Air Conditioning The air conditioner is located instead of the roof light on the living room ceiling. Use the TFT display to set the roof air-conditioning system (see Chap. 7.3 Installation of electrical devices). To operate the air conditioner correctly and optimize its perfor- mance, you should observe the following: Roof air-conditioning system •...

  • Page 148: Satellite System

    10. Built-in devices 10.10 Satellite System The satellite system is CI-BUS compatible and, therefore, it can be controlled by means of the control panel next to the entrance. More information on how to operate the system via the control panel can be found in Chapter 7. The satellite system is suitable for all types of receivers or any TV with a satellite tuner.

  • Page 149: Accessories

    • Any changes to the status of the caravan as delivered by the manufacturer may alter driving performance and roadworthiness. • Any accessories, add-ons, modifications or mounted parts that have not been approved by HOBBY may cause damage to the caravan and impair its roadworthiness. Even if a professional, general type approval or design approval has been provided for these parts, this does not ensure the orderly condition of the product.
  • Page 150 Electro boiler TRUMA 14 l 15.00 External socket in awning, incl. 230 V output, satellite/TV connection 0.40 Gas socket, external 1.50 HOBBY-CONNECT, remote control for on-board equipment via app 1.20 Remote control for lighting system 0.30 Smoke detector 0.20 TFT control panel for lighting system and tank, incl.

  • Page 151: Maintenance And Upkeep

    Rules for maintenance intervals • The 1st annual maintenance check should be carried out by an authorised HOBBY dealer no later than 12 months after the initial registration date. • Have all further maintenance performed once annually at a HOBBY dealer.

  • Page 152: Hitch Head

    12. Maintenance and upkeep Greasing and oiling Regularly examine and grease the sliding parts and stationary parts of the chassis. If the caravan is used seldom, yearly mainte- nance is required. Rules for greasing and oiling • Movable parts such as pins and hinged parts on the hand brake lever and deflexion lever of the ramp should be oiled lightly.

  • Page 153: Brakes

    12. Maintenance and upkeep Changing the friction pads It is very easy to exchange the friction pads when they are worn out. Messrs. Winterhoff offer a corresponding set of spare parts. Please note the detailed instructions for assembly in the manufacturer's spare part kit.

  • Page 154: Changing Bulbs In The Rear Lights

    12. Maintenance and upkeep 12.4 Changing bulbs in the rear lights Different rear lights are used in the Premium models. Unfortunately, it is not possible to replace these lights easily. In this case, please speak to your dealer, who will be pleased to assist you in changing these light bulbs Some of the rear lights in the Premium models are fitted with LED lights, whereby each individual light...
  • Page 155 12. Maintenance and upkeep Changing the rear lamps in the ONTOUR, De Luxe (Edition) and Excellent models • Remove the two screws Loosen the screws • Remove the rear light from the light pillar. Reverse side of rear light • Remove the bulb from the socket by turning it. Carry out this procedure in reverse order to install a new bulb and replace the rear light.
  • Page 156 12. Maintenance and upkeep Changing the rear lamps in the Prestige model The LED components in the rear light cannot be chan- ged separately. In case of defects, the entire rear lamp must be exchanged. Rear light (LED) Fog tail light (light bulb) Reversing light (light bulb) Multifunctional light in Prestige model Indicator (light bulb)

  • Page 157: Changing The Battery And Maintenance Of The Smoke Detector

    12. Maintenance and upkeep 12.5 Changing the battery and maintenance of the smoke detector* Please observe the operating instructions of the device manufacturer. Maintenance The smoke detector system does not require any maintenance. From time to time, remove the dust from the cover of the detector and ensure that the air slots are not dirty or blocked up by insects or similar objects.

  • Page 158: Ventilation

    12. Maintenance and upkeep 12.6 Ventilation Sufficient ventilation and de-aeration of the vehicle interior is essen- tial to maintaining a comfortable climate. In addition, condensation can be avoided. Condensation forms most readily - in tight spaces, - from the breath and perspiration of the passengers, - by having damp clothing, inside the caravan, - Operating the gas cooker and oven*.
  • Page 159 12. Maintenance and upkeep Cleaning the exterior The vehicle should only be washed when it is dirty. Rules for cleaning the exterior • Rinse the vehicle with a light stream of water. • Wash the vehicle with a soft sponge and commercial cleaning agents.
  • Page 160 • Repair all damages without undue delay to prevent further damage caused by corrosion. Consult your HOBBY dealer. Chassis The chassis of the caravan has been specially coated. If the pro- tective coating is damaged, repair it immediately. Coated areas should not be treated with spray oil.
  • Page 161 12. Maintenance and upkeep Cleaning the interior To reduce problems arising from dampness, use wa- ter sparingly when cleaning inside. Do not use razor blades to clean the mirror or window panes! Wipe mirrors and windows with a damp micro- fibre cloth or leather cloth, wiping in circles.
  • Page 162 12. Maintenance and upkeep Rules for cleaning the carpet: • Clean with a vacuum cleaner or brush. • If necessary, treat or shampoo with carpet foam. Rules for cleaning PVC surfaces: Sand and dust can damage the surface of the PVC flooring if it is walked on regularly.
  • Page 163 12. Maintenance and upkeep The following applies for the fresh water tank • Rinse it regularly with clean, clear water. • Pull out the overflow pipe and clean the sealing surface with a gentle cleaning solution. • Clean the sealing surfaces in the tank and grease them with Vaseline.

  • Page 164: Winterising The Caravan

    12. Maintenance and upkeep 12.8 Winterizing the Caravan For many people, the camping season ends when the temperature starts to fall. Your caravan must be properly prepared for its winter lay up The following general rules apply: • Only leave your caravan in an enclosed space if it is dry and well-aired.

  • Page 165: Winter Useage

    12. Maintenance and upkeep The following applies for the interior fittings: • Clean the interior of your caravan. Vacuum carpets, cushions and mattresses. Alternatively, place them in such a way inside the caravan that they do not come into contact with condensation. •...
  • Page 166 12. Maintenance and upkeep If, despite all of these measures, condensation forms somewhere, simply wipe it away. Before entering, remove the snow from your clothes and shoes to prevent an increase in humidity. The following applies for heating: • Both the air intake as well as the exhaust gas openings of the heating system must be kept free of snow and ice (if necessary, use flue extensions).

  • Page 167: Waste Disposal And Environmental Protection

    13. Waste disposal / environmental protection 13.1 The environment and mobile travel Environmentally sound use Naturally, motor home, caravan and van owners and users are especially responsible for the environment. Therefore, you should always use your caravan in an environmentally sound manner.
  • Page 168 13. Waste disposal / environmental protection Rules for rubbish disposal • Separate rubbish and bring recycleable materials to the appro- pri- ate collection sites. • Empty disposal bins as often as possible in the bins or containers provided for this purpose. This prevents unpleasant odours and rubbish build-up. Rules for rest areas • Always clean up picnic spots before you leave, even if the rub- bish has been left by someone else. • Never dispose of your household rubbish in the containers pro- vided in rest areas.

  • Page 169: Technical Data

    14. Technical Data 14.1 Chassis data Model Tech- g.v.w.r. Per- Axle(s) Wheel Leading Stabiliser Towbar nical [kg] mitted brake equip- Hitch name axle load ment 390 SF 30EG • 1200 1200 VGB 13 M 20-2425/1 KFL 12 B WS 3000 H45 One Piece 400 SFe 30EG...
  • Page 170 14. Technical Data Rims Tyre Floor Total Track Dis- Length Length Total size length width tance length Wheel Size Model towbar caravan mounting 5½ J x 14 5/112, ET 30 Steel 195/70 R 14 XL 3663 2200 1950 3524 4102 4587 5777 5½...

  • Page 171: Possibilities For Increasing Loads

    14. Technical Data 14.2 Possibilities for increasing loads Basic version Model Tech- g.v.w.r. Axle Axle Tyres Brakes Lea- Forked nical [kg] load ding A frame name [kg] equip- ment 390 SF P28B • 1200 1200 VGB 13 M 195/70 R 14 XL LI 96 20-2425/1 KFL 12 B One-Piece...
  • Page 172 14. Technical Data Maximum increased load g.v.w.r. Axle Axle Additional Wheels Brakes Leading Forked Weight [kg] load New ! rear New ! New ! equipment A frame [kg] crossbar New ! 1500 1500 VGB 15 MV 185 R 14 C LI 102 KFL 20 A 1500 1500...
  • Page 173 14. Technical Data Basic version Model Tech- g.v.w.r. Axle Axle Tyres Brakes Lea- Forked A nical [kg] load ding frame name [kg] equip- ment 620 CL S44M 1900 1000/1000 VGB 10 M 155/80 R 13 XL LI 84 20-2425/1 KFL 20 A ZHL 20 A •...
  • Page 174 14. Technical Data Maximum increased load g.v.w.r. Axle load Axle Additional Wheels Brakes Leading Forked A Weight [kg] [kg] New ! rear New ! New ! equipment frame crossbar New ! 2000 1100/1100 VGB 13 M 165 R 13 C LI 93 2200 1200/1200 VGB 13 M...

  • Page 175: Weights Of Vehicle And Equipment

    14. Technical Data 14.3 Weights of the vehicle and equipment Model Unladen Basic Mass in ready Technically Payload weight equipment to drive permissible [kg] [kg] [kg] condition total mass. [kg] [kg] 390 SF ONTOUR 1014 1200 460 DL ONTOUR 1122 1184 1300 470 UL ONTOUR...
  • Page 176 14. Technical Data Model Unladen Basic Mass in ready Technically Payload weight equipment to drive permissible [kg] [kg] [kg] condition total mass. [kg] [kg] 495 UL Prestige 1249 1311 1500 540 FU Prestige 1303 1380 1500 560 LU Prestige 1373 1460 1600 560 WFU Prestige...

  • Page 177: Tyres And Rims

    14. Technical Data 14.4 Tyres and Rims Standard Metal wheel rims for Light alloy rims for version the standard version the standard version Technically Model Tech- Axle Metal Tyre size Light Light Light Tyre size permissi- load wheel pres- alloy alloy alloy pres-...
  • Page 178 14. Technical Data Max. increase Metal wheel rims for Light alloy rims for (for increased load) increased load increased load Technically Axle load Metal Tyre size Light Light Light alloy Tyre size permissi- [kg] wheel rim pres- alloy rim, alloy rim, rim, pres- ble total...
  • Page 179 14. Technical Data Standard Metal wheel rims for Light alloy rims for version the standard version the standard version Technically Modell Tech- Axle Metal Tyre size Light Light Light Tyre size permissi- nical load wheel pres- alloy alloy alloy pres- ble total name [kg]...
  • Page 180 14. Technical Data Max. increase Metal wheel rims for Light alloy rims for (for increased load) increased load increased load Technically Axle load Metal Tyre size Light Light Light alloy Tyre size permissi- [kg] wheel rim pres- alloy rim, alloy rim, rim, pres- ble total...

  • Page 181: Tyre Pressures Values

    14. Technical Data 14.5 Tyre pressure values As a rule of thumb, it may be assumed that a filled tyre suffers a loss of pressure of 0.1 bar every two months. Check the pressure regularly to avoid damage to tyres or a puncture. Tyre size Air pressure in bar 155/80 R 13 XL or reinforced...

  • Page 182: Measurements Of Awning Perimeter

    14. Technical Data 14.6 Measurements of Awning Perimeter Model Perimeter Model Perimeter measurements measurements [mm] [mm] 390 SF ONTOUR 8360 495 UL Excellent 9710 460 DL ONTOUR 9180 495 WFB Excellent 9710 470 KMF ONTOUR 9290 540 WLU Excellent 9860 470 UL ONTOUR 9290...

  • Page 183: Index

    Control panel 61 Hand brake 21 Hanging table 49 High-visibility vest 6 Definition of masses 17 Hitching/unhitching 19 Doors Hobby-Connect 77 interior 44 Hot-air heating system 114/118 Doors Hot-water heater 130 opening and closing 34 Hot-water supply 102 upkeep 156...
  • Page 184 Index Oven 139 Overrunning brake facility 21 Valves (gas) 110 Ventilation and de-aerating 32 VIN (Vehicle Identification Number) 14 Pleated screens 57 Push lock 46 Warning triangle 6 Waste water tank 104 Rear lamps 150 Water pump 100 Redirecting electrical devices 13 Water system 13 Windows 54 Refrigerator 135...
  • Page 185 Hobby-Wohnwagenwerk Ing. Harald Striewski GmbH Harald-Striewski-Straße 15 D-24787 Fockbek/Rendsburg www.hobby-caravan.de...
