Honeywell T6H700RW Applications Manual

2 T6R SMART THERMOSTAT & 2-CHANNEL RECEIVER BOX
X
FEATURES
T6R Smart Thermostat

Attractive, ultra-modern styled thermostats make it ideal for
any location in any type of home.

Wireless with table stand to fit a new and retrofit
installations.

Wi-Fi communication to connect to the Internet
- Smart Home and Apple HomeKit ready

A dynamic text display on the LCD that gives enhanced
feedback to the user / installer.

High LCD Contrast and backlighting for easier viewing in all
light conditions.

Time out screen with selectable brightness

Factory programmed daily or 5+2 default heating schedule.

Schedule with up to 6 independent time and temperature
pairs to suit the comfort needs.

"Hold until" temperature override of programmed schedule
temperature till the next switch point.

Schedule off mode for manual operation.

Setpoint and room temperature always displayed.

OFF position has an integral frost protection setting at
minimum 5C so that pipes in the house will never freeze in
winter.

Alert messages to assist in fault-finding.

Honeywell Home mobile App for:
- Remote view and change of settings
- Schedule changes
- Smartphone Geolocation temperature control


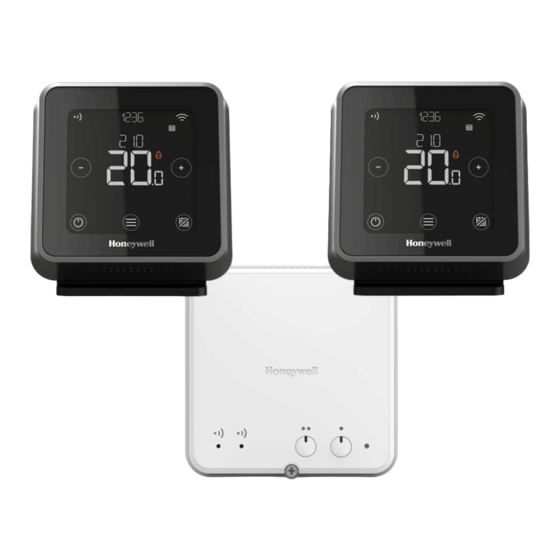

2-zone application
With the new 2-channel Receiver box (R6H911RF) and
2x a T6R wireless smart thermostats (
automatic time and temperature control of 2 heating
zones and a boiler for homes and apartments can be
managed.
It's compatible with 24-230V on/off and OpenTherm®
appliances such as gas boilers, combi-boilers and heat
pump. Also works with zone valve applications but not
with electric heating (240V).
The solution is designed with the installer in mind.
The 2-channel Receiver box offers mounting options for
directly on the wall or on a wall box. Wiring can be from
below or from the back by lifting the terminal platform,
which makes installation quick and easy.
The T6R wireless thermostat has a high contrast PMVA
display with dynamic text line and touch screen buttons.
The thermostat has a simple programming philosophy to
make it easier to install and very user friendly.
The 2-zone solution is ideal for consumers who want to
split the comfort control of their home in 2 areas, like
upstairs and down-stairs or a living and working area.
The solution offers remote comfort control of both zones
via the Honeywell Home app.

User menu allows extra functions to be set at the discretion
of the user:
- Language selection
- Wi-FI setup
- Optimisation
- Clock setting
- Resetting the heating program to factory default
- Brightness
- Temperature offset
- Lock function

Advanced menu (Installer Set-Up) allows extra functions to
be set at the discretion of the installer to match the
consumers applications and needs:
- System type
- OpenTherm data
- Upper / Lower Set point Limit Adjust
- Minimum ON time
- Cycle rate
- Factory Reset
- Binding
2-channel Receiver box

Clear LED indication of bound devices

Override button per zone with LED indication

Simple binding via override button

A flip up wiring platform for easy wiring

Pinhole for easy reset.

2 on/off relay outputs

OpenTherm ® compatible heating control output.
APPLICATION MANUAL
T6H700RW)
T6R-2Z-EN0H 8603 NL01 R0718
