Model 152 – ½" to 2"
Model 154 – ½" to 4"
Model 152 PM – ½" to 2"
Model 154 PM – ½" to 4"
Operating, Maintenance, Safety
This manual is free of charge. All personnel who operate or
service the Hydraulic Knockout Set should have a copy of this
manual and read and understand its contents. To request a copy,
call or write to the address below.
CurrenT ToolS • P. o. Box 17026 Greenville, SC 29606
800.230.5421 or 864-721-4230 • Fax 864-721-4232
Hydraulic Knockout Sets
™
and
and Parts Manual
Read and understand this material before
operating the Hydraulic Knockout Set. Failure to
understand how to safely operate and service
this unit may result in serious injury or death.
www.currenttools.com
08/10 - REV. 3
Advertisement
Table of Contents
Related Manuals for Current Tools 154 PM
Summary of Contents for Current Tools 154 PM
- Page 1 Hydraulic Knockout Set should have a copy of this manual and read and understand its contents. To request a copy, call or write to the address below. CurrenT ToolS • P. o. Box 17026 Greenville, SC 29606 800.230.5421 or 864-721-4230 • Fax 864-721-4232 www.currenttools.com...
-
Page 2: Table Of Contents
TaBle oF ConTenTS Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety Information . -
Page 3: Safety Information
WARNING at pressures up to 8,000 PSI. Do NOT connect any pump to the Current Tools model 1522 Ram that will exceed 8,000 PSI. Doing so may cause component failure which may result in injury or death. Only use a hand or foot operated pump with the model 1522 Ram. -
Page 4: Specifications
Replace any worn or defective parts with Current Tools replacement parts. NEVER use dull punches. NEVER use any component that has worn or damaged threads. - Page 5 oPeraTinG inSTruCTionS continued . . . 3. When using ⁄ " through 3" punch and die, thread the end of the ⁄ " draw stud (Part #1582) with the shortest thread length into the ram until snug. (See Figure 1b. ) When using the ⁄...
-
Page 7: Components List

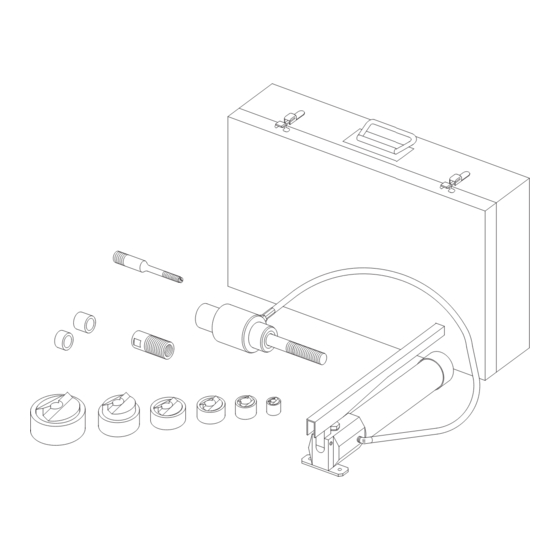

CoMPonenTS KNOCKOuT SET 9 & 10 11 thru 36 CoMPonenTS liST ITEM# CATALOG# DESCRIPTION #152 #152PM #154 #154PM ⁄ " to 2" ⁄ " to 2" ⁄ " to 4" ⁄ " to 4" 1 ....1522 ....Ram (Includes #2) ....1 ....1 ....1 ....1 2 ....1582 ...... -
Page 8: Section View & Parts List - Model 1522 Ram
SeCTion view MODEL 1522 RAM ParTS liST — Model 1522 ram ITEM# PART# DESCRIPTION 1 ......1522-11 ......1 ........CYLINDER 2 ......1522-12 ......1 ......... PISTON 3 ......1522-2 ......1 ......... SPRINg 4 ......1522-4 ......1 ..........CAP *5 ......1522-5 ......1 ......... RETAININg RINg 6 .......1582 ......1 ........ -
Page 9: Specifications - Model 1521 Hand Pump
SPeCiFiCaTionS — Model 1521 Hand PuMP B E N D I N g WARNING The Model 1521 Hand Pump is designed for use ONLY with Hydraulic Knockout Sets and Cable Cutters. Model No. 1521 Hand pump Overall Dimensions ⁄ " Wide x 3 ⁄... -
Page 11: Parts List - Model 1521 Hand Pump
ParTS liST — Model 1521 Hand Pump B E N D I N g ITEM # PART # DESCRIPTION 1 ......1521-1 ......1 ........... BODY 2 ......1521-2 ......1 ......RELEASE ASSEMBLY 2a ......1521-2a ......1 ........RELEASE BODY 2b ......1521-2b ......1 ..........SCREW 2c ......
